Budora W11513255 Water Inlet Valve Instruction Manual

Introduction

This manual provides essential information for the installation, operation, maintenance, and troubleshooting of the Budora W11513255 Water Inlet Valve. This component is designed as a replacement part for various Whirlpool washing machine models. Please read these instructions carefully before proceeding with installation or maintenance.

Safety Information

Always prioritize safety when working with appliances. Failure to follow these safety guidelines may result in personal injury or property damage.

• Disconnect Power: Before beginning any repair or maintenance, always disconnect the washing machine from its electrical power source by unplugging it or turning off the circuit breaker.
• Turn Off Water Supply: Shut off the hot and cold water supply valves to the washing machine before disconnecting any hoses.
• Wear Protective Gear: Wear appropriate personal protective equipment (PPE), such as gloves and safety glasses, to prevent injury.
• Consult a Professional: If you are unsure about any step or lack the necessary tools or experience, consult a qualified appliance technician.
• Water Spillage: Have towels and a bucket ready to manage any residual water when disconnecting hoses.

Setup and Installation

This section outlines the general steps for replacing a water inlet valve. Specific washing machine models may vary, so refer to your appliance's service manual for detailed panel removal and component access.

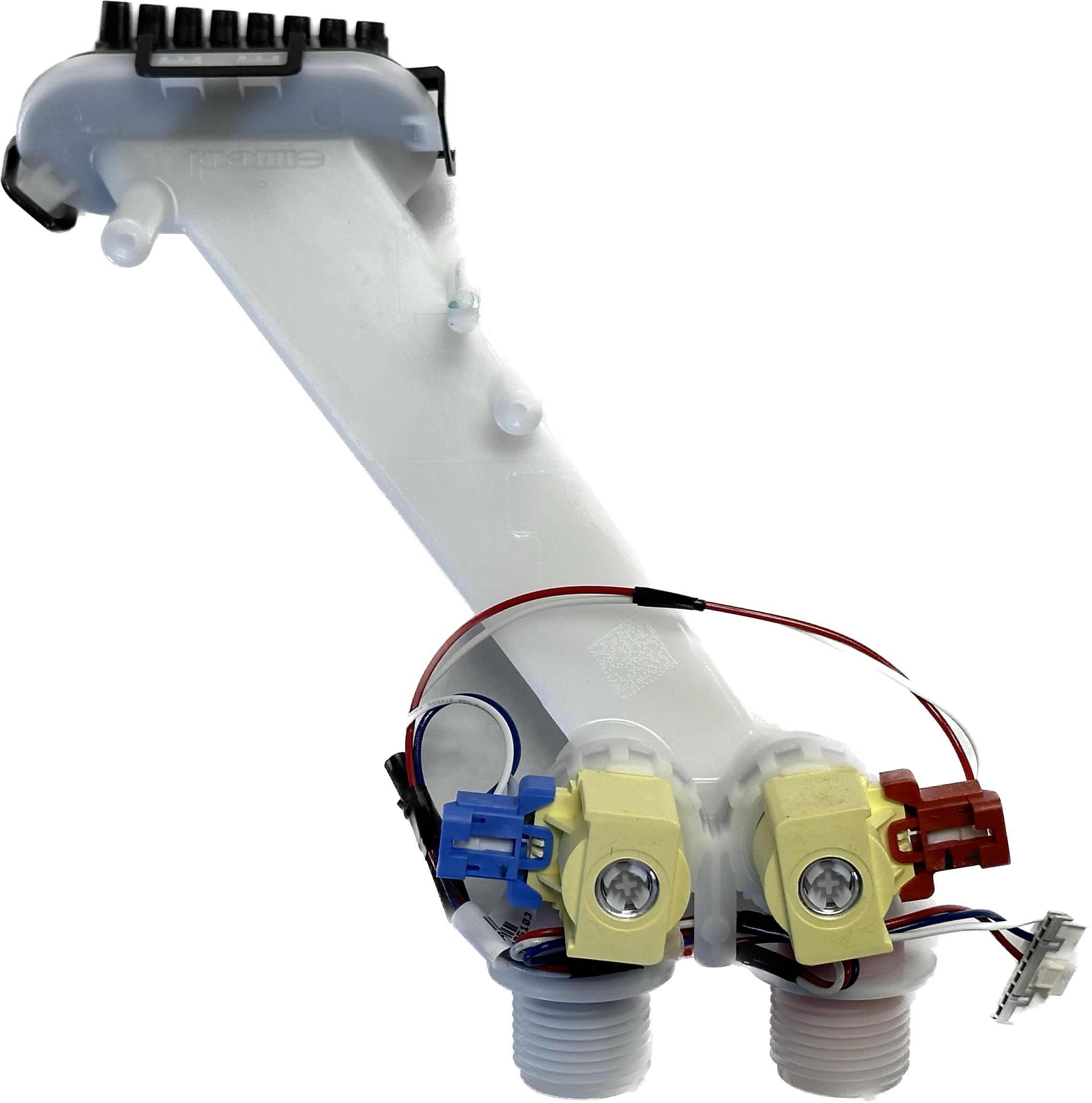

Image 1: Front view of the Budora W11513255 Water Inlet Valve, showing the two threaded inlets for hot and cold water hoses, and electrical connectors.

1. Preparation: Ensure the washing machine is disconnected from the electrical outlet and both hot and cold water supply valves are fully closed.
2. Access the Valve: Carefully move the washing machine away from the wall. Depending on your model, you may need to remove the rear access panel or the top panel to gain access to the water inlet valve. Use appropriate tools as specified in your washing machine's manual.
3. Disconnect Hoses: Place a shallow pan or towels beneath the valve to catch any water. Using pliers or a wrench, carefully disconnect the hot and cold water inlet hoses from the old valve.
4. Disconnect Wiring: Locate the electrical connectors attached to the solenoids on the old valve. Gently squeeze the tabs or pull to disconnect them. Note the position of each wire if they are not color-coded or uniquely shaped.
5. Remove Old Valve: Unfasten any screws or clips securing the old water inlet valve to the washing machine's frame or bracket. Carefully remove the old valve.

Image 2: Side view of the Budora W11513255 Water Inlet Valve, highlighting the mounting bracket and various electrical connections.
6. Install New Valve: Position the new Budora W11513255 water inlet valve in the same location as the old one. Secure it using the original screws or clips, ensuring it is firmly mounted.
7. Connect Wiring: Reconnect the electrical connectors to the corresponding solenoids on the new valve. Ensure each connection is secure and properly seated.
8. Connect Hoses: Reattach the hot and cold water inlet hoses to the new valve's threaded ports. Hand-tighten the connections, then use pliers to tighten an additional quarter turn. Avoid overtightening to prevent damage to the plastic threads.


Image 3: Top-down view of the Budora W11513255 Water Inlet Valve, illustrating the water outlet and the internal solenoid mechanisms.

9. Restore Water and Power: Slowly turn on the hot and cold water supply valves. Check all connections for leaks. Once confirmed leak-free, plug the washing machine back into the electrical outlet.
10. Test Operation: Run a short wash cycle to verify that the washing machine fills correctly with water and that there are no leaks during operation.

Operating Principles

The water inlet valve is a critical component that controls the flow of water into your washing machine. It contains electrically operated solenoids that open and close to allow hot, cold, or mixed water to enter the tub based on the selected wash cycle and temperature settings. When the washing machine's control board signals for water, the appropriate solenoid(s) are energized, opening the valve to fill the tub to the required level. Once the level is reached, or the cycle progresses, the solenoids de-energize, closing the valve and stopping the water flow.

Maintenance

Proper maintenance can extend the life of your washing machine and its components, including the water inlet valve.

• Inspect Hoses: Periodically check the hot and cold water inlet hoses for signs of wear, cracks, bulges, or leaks. Replace hoses every 3-5 years, or immediately if any damage is observed.
• Clean Inlet Screens: The water inlet valve has small screens at its connection points to filter out sediment from the water supply. If water flow is reduced, disconnect the hoses (after turning off water supply) and clean these screens with a small brush under running water.
• Level Appliance: Ensure your washing machine remains level to prevent undue stress on internal components and connections.

Troubleshooting

If you experience issues with water filling your washing machine, the water inlet valve may be a factor. Here are common problems and potential solutions:

• No Water or Slow Fill:
  • Ensure both hot and cold water supply valves are fully open.
  • Check the inlet hose screens for clogs from sediment. Clean if necessary.
  • Verify that the electrical connections to the valve solenoids are secure.
  • If the valve is new and the issue persists, the problem might be with the washing machine's control board or pressure switch, which signals the valve.
• Constant Water Fill (Overflow):
  • This often indicates a faulty water inlet valve that is not closing completely. If this occurs, the valve needs to be replaced.
  • A malfunctioning pressure switch can also cause continuous filling by failing to signal the control board that the tub is full.
• Leaking from Valve:
  • First, check the tightness of the water inlet hose connections to the valve.
  • If the leak originates from the valve body itself, the valve is defective and requires replacement.

Specifications

Warranty

This Budora W11513255 Water Inlet Valve is covered by a 1-Year Warranty. For specific terms, conditions, and claim procedures, please refer to the manufacturer's official warranty documentation or contact Budora customer support.

Support

For further assistance, advanced troubleshooting, or warranty claims, please contact Budora customer support. You may also consider consulting a certified appliance repair technician for complex issues or professional installation.

Always refer to your specific washing machine's user manual or service guide for model-specific instructions and safety warnings.
