CC KITS Full-Size Conversion Kit Bed Rails

CC KITS Full-Size Conversion Kit Bed Rails Instruction Manual

For Ti Amo Convertible Cribs by Bivona

1. Introduction

This instruction manual provides detailed guidance for the assembly and use of the CC KITS Full-Size Conversion Kit Bed Rails. This kit is designed to convert your compatible Ti Amo convertible crib into a full-size bed, extending the life and functionality of your nursery furniture.

2. Product Overview

The CC KITS Full-Size Conversion Kit includes two solid wood bed rails and necessary hardware to facilitate the transition of your convertible crib into a full-size bed. The design ensures a secure and stable bed frame utilizing your existing crib's headboard and footboard.

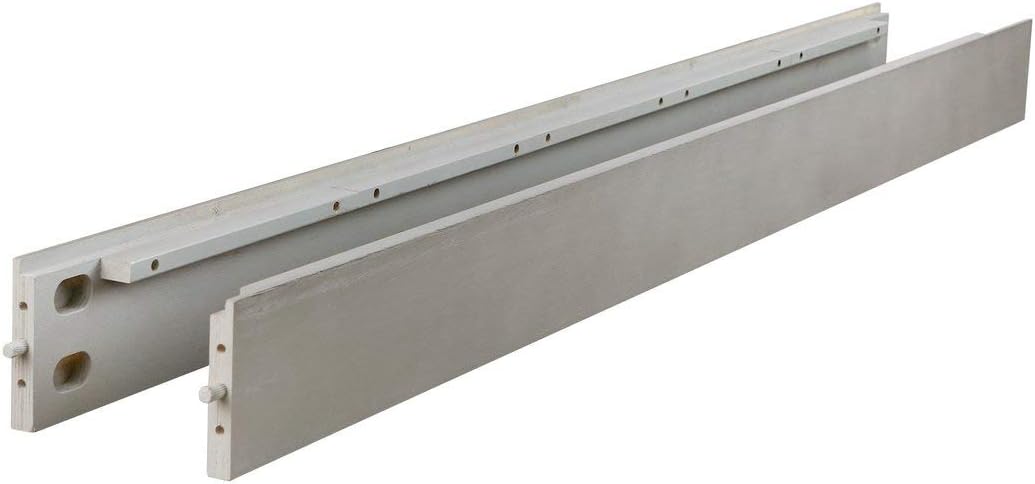

Two Misty Grey solid wood bed rails for crib conversion

Image 2.1: CC KITS Full-Size Conversion Bed Rails in Misty Grey.

Misty Grey color swatch

Image 2.2: Color swatch for Misty Grey finish.

3. Compatibility

This conversion kit is compatible with the following Ti Amo Convertible Cribs by Bivona:

  • Ariel
  • Baci
  • Bradlee
  • Brio
  • Carino
  • Castello
  • Catania
  • Matteo
  • Mila
  • Moderna Island
  • Paisley
  • Palazzo
  • Shiloh

If your crib model is not listed, please contact CC KITS customer support for assistance in determining the correct conversion kit.

Ti Amo Ariel Crib in grey

Image 3.1: Example of a compatible Ti Amo Ariel Crib.

Ti Amo Catania Crib converted to a full-size bed

Image 3.2: Example of a Ti Amo Catania Crib after conversion to a full-size bed.

4. Package Contents

Verify that all components are present before beginning assembly:

  • Two (2) Solid Wood Bed Rails
  • Hardware Pack (screws, bolts, and potentially alternate hooks)
  • Instruction Sheet

5. Setup and Installation

The conversion process typically takes 20-30 minutes. Follow these steps carefully. For a visual guide, please refer to the embedded video below.

Video 5.1: Installation guide for converting a crib to a full-size bed using a conversion kit. This video demonstrates the general process of removing crib sides, attaching bed rails, and securing slats.

  1. Prepare the Crib: Carefully disassemble your convertible crib. Remove the side panels, leaving only the headboard and footboard.
  2. Attach Bed Rails to Headboard: Position one bed rail perpendicular to the headboard. Align the pre-drilled holes on the bed rail with the attachment points on the headboard. Secure using the provided hardware. Ensure a snug fit.
  3. Check Hook Compatibility: Test the pre-packaged hooks in the headboard slots. If they do not fit securely, use the alternate hooks provided in the kit. Replace the pre-packaged hooks with the new ones if necessary, securing them with an Allen key.
  4. Attach Bed Rails to Footboard: Once the bed rails are securely attached to the headboard, connect the other end of the bed rails to the footboard using the same method.
  5. Install Slats (Optional but Recommended): The kit includes four wooden slats. Space these evenly across the bed frame and secure them to the bed rails with the provided screws. For enhanced mattress support and to keep the bed low, additional slats are available for purchase. A box spring or additional slats are required to support the mattress.
  6. Place Mattress: Once the frame is assembled and slats are in place, position your full-size mattress on the bed frame.
Diagram showing a crib converting to a full-size bed with conversion kit, slats, and mattress

Image 5.2: Visual representation of a crib converting to a full-size bed using the conversion kit.

Comparison of bed height with slats versus a box spring

Image 5.3: Illustration comparing mattress height when using slats versus a box spring.

6. Maintenance

To maintain the quality and appearance of your bed rails:

  • Wipe surfaces with a soft, damp cloth.
  • Avoid using abrasive cleaners or harsh chemicals.
  • Periodically check all hardware to ensure it remains tight and secure.

7. Troubleshooting

  • Rails do not fit securely: Ensure you are using the correct set of hooks for your crib model. The kit includes alternate hooks to accommodate variations. Refer to the installation video for guidance on testing and replacing hooks.
  • Bed feels unstable: Verify that all screws and bolts are tightened. Ensure the headboard and footboard are properly aligned with the bed rails. Adequate mattress support (slats or box spring) is crucial for stability.

8. Specifications

  • Material: 100% Solid Wood (no plywood or veneers)
  • Finish: Water-based, non-toxic, lead-free, phthalate-free
  • Color: Misty Grey
  • Product Dimensions: Approximately 75"W x 5"H (each rail)
  • Item Weight: 15 pounds
  • Weight Capacity: Supports up to 600 lbs (when paired with additional slats, sold separately)
  • UPC: 099026053626
Non-toxic product seal

Image 8.1: Certification for non-toxic finishes.

9. Warranty and Support

CC KITS provides a lifetime warranty on this Full-Size Conversion Kit, ensuring long-lasting durability and peace of mind. For any questions, missing parts, or assistance with installation, please contact CC KITS customer support directly. Refer to the product packaging or the official CC KITS website for contact information.
