vidaXL 4-in-1 Brush Cutter Instruction Manual

Introduction

This manual provides essential instructions for the safe assembly, operation, and maintenance of your vidaXL 4-in-1 Brush Cutter. Please read this manual thoroughly before using the product to ensure proper function and to prevent injury or damage. Keep this manual for future reference.

Safety Instructions

Always follow basic safety precautions to reduce the risk of fire, electric shock, and personal injury. Failure to follow these instructions may result in serious injury or death.

General Safety

• Read and understand all instructions before operating the machine.
• Wear appropriate personal protective equipment (PPE), including eye protection, hearing protection, gloves, long pants, and sturdy footwear.
• Keep bystanders, children, and pets at a safe distance (at least 15 meters) from the operating area.
• Do not operate the machine when tired, ill, or under the influence of alcohol or drugs.
• Inspect the machine before each use for loose parts, damage, or wear. Do not operate if damaged.
• Ensure all guards and safety devices are in place and functioning correctly.
• Operate only in well-ventilated areas.

Fuel Handling Safety

• Handle fuel with extreme care; it is highly flammable.
• Mix fuel outdoors or in a well-ventilated area.
• Use a 25:1 fuel-to-oil mixing ratio for the 2-stroke engine.
• Do not smoke while handling fuel.
• Store fuel in approved containers away from ignition sources.
• Wipe up any spilled fuel immediately.
• Never refuel a hot engine. Allow the engine to cool before adding fuel.

Product Overview

The vidaXL 4-in-1 Brush Cutter is a versatile tool designed for various garden maintenance tasks. It features a powerful 52cc 2-stroke engine and interchangeable attachments for grass trimming, brush cutting, hedge trimming, and pruning.

Components and Functions

• Engine Unit: The main power source, a 52cc 2-stroke, air-cooled engine.
• Split Shaft: Allows for quick attachment changes and easier storage.
• Grass Trimmer Head: For cutting grass and light weeds with nylon line.
• Brush Cutter Blade: For heavier brush and dense vegetation.
• Hedge Trimmer Attachment: For shaping and trimming hedges and shrubs.
• Pruner (Chainsaw) Attachment: For cutting branches and small trees.
• Handle with Controls: Ergonomic handle with throttle and safety switch.
• Shoulder Strap: For comfortable operation and weight distribution.

Image: Fully assembled vidaXL 4-in-1 brush cutter with the grass trimmer attachment. This shows the engine unit, split shaft, handle, and the grass trimmer head.

Image: Detailed view of the dimensions for each attachment: pruner (210 cm total length, 25 cm cutting length), hedge trimmer (232 cm total length, 40 cm cutting length), grass trimmer (189 cm total length, 41.5 cm nylon line diameter), and the engine unit with brush cutter (182 cm total length, 25.5 cm blade diameter).

Setup and Assembly

The vidaXL 4-in-1 Brush Cutter requires assembly before first use. Follow these steps carefully.

1. Fuel Mixing

This machine uses a 2-stroke engine and requires a specific fuel mixture. Mix unleaded gasoline with 2-stroke engine oil at a ratio of 25:1 (25 parts gasoline to 1 part oil). Use a clean, approved fuel container for mixing. Shake the mixture thoroughly before pouring it into the fuel tank.

2. Attaching the Shaft and Handle

1. Connect the engine unit to the main shaft. Ensure the quick-connect mechanism is securely fastened.
2. Attach the handle assembly to the shaft at a comfortable operating position. Tighten all bolts firmly.
3. Secure the shoulder strap to the designated points on the shaft.

Image: Close-up view of the ergonomic handle with the throttle trigger and safety switch, which needs to be attached to the main shaft.

3. Attaching Work Heads

The machine comes with four interchangeable heads. Select the appropriate head for your task and attach it to the end of the shaft. Ensure it is securely locked in place.

• Grass Trimmer Head: For light grass and weed trimming.
• Brush Cutter Blade: For dense brush. Ensure the blade guard is properly installed.
• Hedge Trimmer Head: For trimming hedges.
• Pruner Head: For cutting branches.

Image: The hedge trimmer and pruner (chainsaw) attachments, ready to be connected to the main shaft.

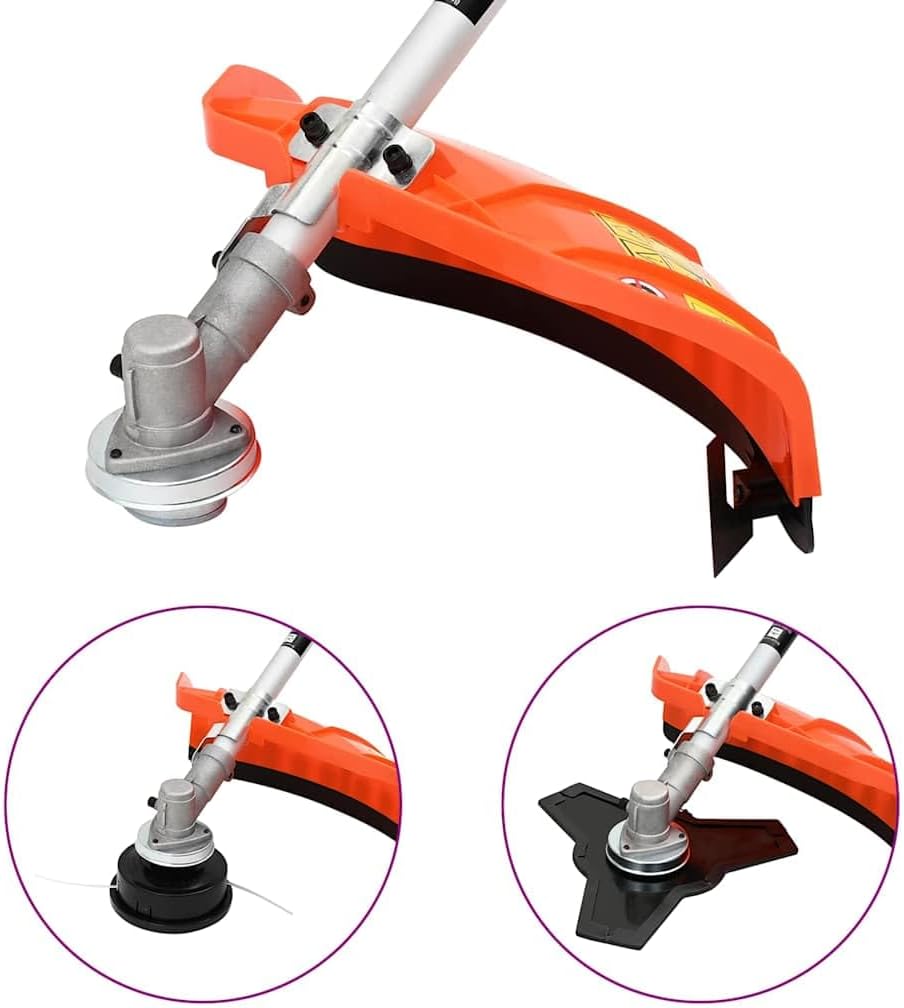

Image: The grass trimmer head with nylon line and the brush cutter blade, showing how they attach to the gear head.

Operating Instructions

Starting the Engine

1. Ensure the fuel tank is filled with the correct 25:1 fuel mixture.
2. Place the machine on a flat, stable surface.
3. Set the choke lever to the "START" or "CLOSED" position.
4. Press the primer bulb several times until fuel is visible in the return line.
5. Pull the recoil starter handle firmly and steadily until the engine starts. Do not pull the cord to its full extension.
6. Once the engine starts, gradually move the choke lever to the "RUN" or "OPEN" position.
7. Allow the engine to warm up for a few moments before engaging the throttle.

Image: Close-up view of the engine unit, showing the recoil starter, fuel tank cap, and air filter cover.

Using the Attachments

Always wear appropriate PPE and maintain a firm grip on the machine during operation. The engine operates between 7500 and 9500 RPM.

• Grass Trimmer: Use a sweeping motion to cut grass. Keep the trimmer head slightly above the ground. The nylon line diameter is 41.5 cm.
• Brush Cutter: Use the metal blade for thicker weeds and brush. Work in a controlled, steady motion. The blade diameter is 25.5 cm.
• Hedge Trimmer: Use for shaping and trimming hedges. Maintain a safe distance from the blades. The cutting length is 40 cm.
• Pruner: For cutting branches. Ensure the chain is properly tensioned and lubricated. The cutting length is 25 cm.

Stopping the Engine

Release the throttle and press the engine stop switch to turn off the machine.

Maintenance

Regular maintenance ensures optimal performance and extends the lifespan of your tool. Always disconnect the spark plug wire before performing any maintenance.

• Cleaning: After each use, clean the machine, especially the cutting attachments, to remove grass, dirt, and debris.
• Air Filter: Check and clean the air filter regularly. Replace if damaged or excessively dirty.
• Spark Plug: Inspect the spark plug periodically. Clean or replace if fouled or worn.
• Fuel Filter: Check and clean the fuel filter as needed.
• Gear Head Lubrication: Lubricate the gear head of the attachments as per manufacturer recommendations (refer to specific attachment manuals if provided).
• Blades/Line: Inspect cutting blades and nylon line for wear or damage. Replace worn blades or line as necessary. Sharpen blades if they become dull.
• Storage: When storing for extended periods, drain the fuel tank and run the engine until it stops to clear the carburetor. Store in a dry, secure location.

Troubleshooting

This section provides solutions to common operational issues. For problems not listed here, contact customer support.

Specifications

Warranty and Support

For warranty information, please refer to the documentation provided at the time of purchase or contact your retailer. For technical support or spare parts, please contact vidaXL customer service or the seller from whom you purchased the product. Keep your proof of purchase for any warranty claims.
