Introduction
Thank you for choosing the YITAHOME Large Dressing Table. This modern vanity desk is designed to enhance your daily routine with its integrated LED mirror, convenient power outlets, and extensive storage solutions. This manual provides comprehensive instructions for safe assembly, operation, and maintenance to ensure optimal performance and longevity of your product.
Image: The YITAHOME Large Dressing Table, showcasing its LED mirror, multiple drawers, and accompanying stool.
Safety Information
Please read all safety warnings and instructions carefully before assembly and use. Failure to follow these instructions may result in injury or damage to the product.
- Keep all small parts and packaging materials away from children and pets.
- Ensure all connections are secure before use. Regularly check and tighten fasteners.
- Do not overload drawers or shelves. Distribute weight evenly.
- Place the dressing table on a flat, stable surface to prevent tipping.
- Use the provided anti-tip hardware to secure the vanity to a wall, especially if children are present.
- Avoid exposing electrical components (mirror, outlets) to water or excessive humidity.
- Unplug the unit from the power source before cleaning or performing any maintenance.
Image: Detail of the anti-tip bracket, essential for securing the vanity to the wall for safety.
Package Contents
Your YITAHOME Dressing Table package includes the following components. Please verify all parts are present before beginning assembly. The item typically ships in two separate boxes, which may arrive at different times.
- Dressing Table Frame and Panels
- LED Mirror with integrated lighting
- Matching Stool with storage
- 5 Drawers and 2 Storage Cabinets
- Power Outlets (2 standard, 2 USB ports)
- Hair Dryer Holder
- Assembly Hardware (screws, dowels, etc.)
- Detailed Instruction Manual with diagrams
- RGB LED Light Strips and Remote Control
Image: Visual representation of the product packaging, indicating that the item is shipped in two separate boxes.
Product Specifications
Refer to the table below for detailed specifications of the YITAHOME Dressing Table (Model 0140).
| Feature | Specification |
|---|---|
| Product Dimensions (L x W x H) | 108 x 40 x 135 cm (42.5 x 15.7 x 53.1 inches) |
| Weight | 47.59 kg (104.9 lbs) |
| Material | Engineered Wood |
| Color | White |
| Mirror Type | LED Mirror with Adjustable Brightness and 3 Color Modes |
| Power Outlets | 2 Standard AC Outlets (220V/16A), 2 USB Ports (5V/2A) |
| Storage | 5 Drawers, 2 Cabinets, 4 Open Shelves, Stool with Storage |
| Lighting | RGB LED Lights (60,000+ colors, 29 modes, App/Remote Control) |
| Model Number | 0140 |
| UPC | 197839911734 |
Image: Detailed product dimensions and component breakdown for assembly reference.
Image: Energy label for the product, indicating its energy efficiency class G and consumption of 24 kWh/1000h. For more details, scan the QR code or visit eprel.ec.europa.eu/qr/1785531.
Assembly Instructions
The YITAHOME Dressing Table is designed for straightforward assembly. A detailed step-by-step instruction manual with diagrams and numbered parts is included in your package. Please follow these instructions carefully.
- Unpack All Components: Carefully remove all parts from the packaging. Lay them out and compare them against the parts list in the included manual to ensure nothing is missing. Remember, the product ships in two boxes.
- Identify Hardware: Separate and identify all screws, dowels, and other hardware components.
- Follow Step-by-Step Guide: Refer to the provided assembly manual for precise, illustrated instructions for each step. Assembly typically requires one person but may be easier with two due to the number of components.
- Secure Connections: Ensure all screws and fasteners are tightened securely but do not overtighten to avoid damaging the wood.
- Install Anti-Tip Kit: For safety, especially in households with children, install the included anti-tip hardware to secure the dressing table to a wall.
Note: While assembly is designed to be simple, it can be time-consuming due to the number of pieces. No additional tools beyond what is typically provided are required.
Image: An overhead view of the assembled dressing table, highlighting the five large drawers, open shelves, two storage cabinets, and the vanity stool with hidden storage space.
Operating Instructions
LED Mirror Operation
The integrated LED mirror features adjustable brightness and three color modes (Cold White, Warm White, Warm Yellow) to suit your lighting needs.
- Power On/Off: Lightly touch the designated touch button on the mirror to turn the LED lights on or off.
- Change Color Mode: Short press the touch button to cycle through the three color temperature modes.
- Adjust Brightness: Press and hold the touch button for a few seconds to smoothly adjust the brightness level. Release when the desired brightness is achieved.
Image: The LED mirror demonstrating its three color modes (Cold White, Warm White, Warm Yellow) and the touch control for brightness adjustment.
Integrated Power Outlets
The vanity desk is equipped with convenient power outlets for your electronic devices.
- AC Outlets: Two standard 220V/16A AC outlets are provided for hair dryers, curling irons, or other small appliances.
- USB Ports: Two 5V/2A USB ports are available for charging mobile phones, tablets, or other USB-powered devices.
- Ensure the dressing table is properly plugged into a wall outlet before using the integrated power features.

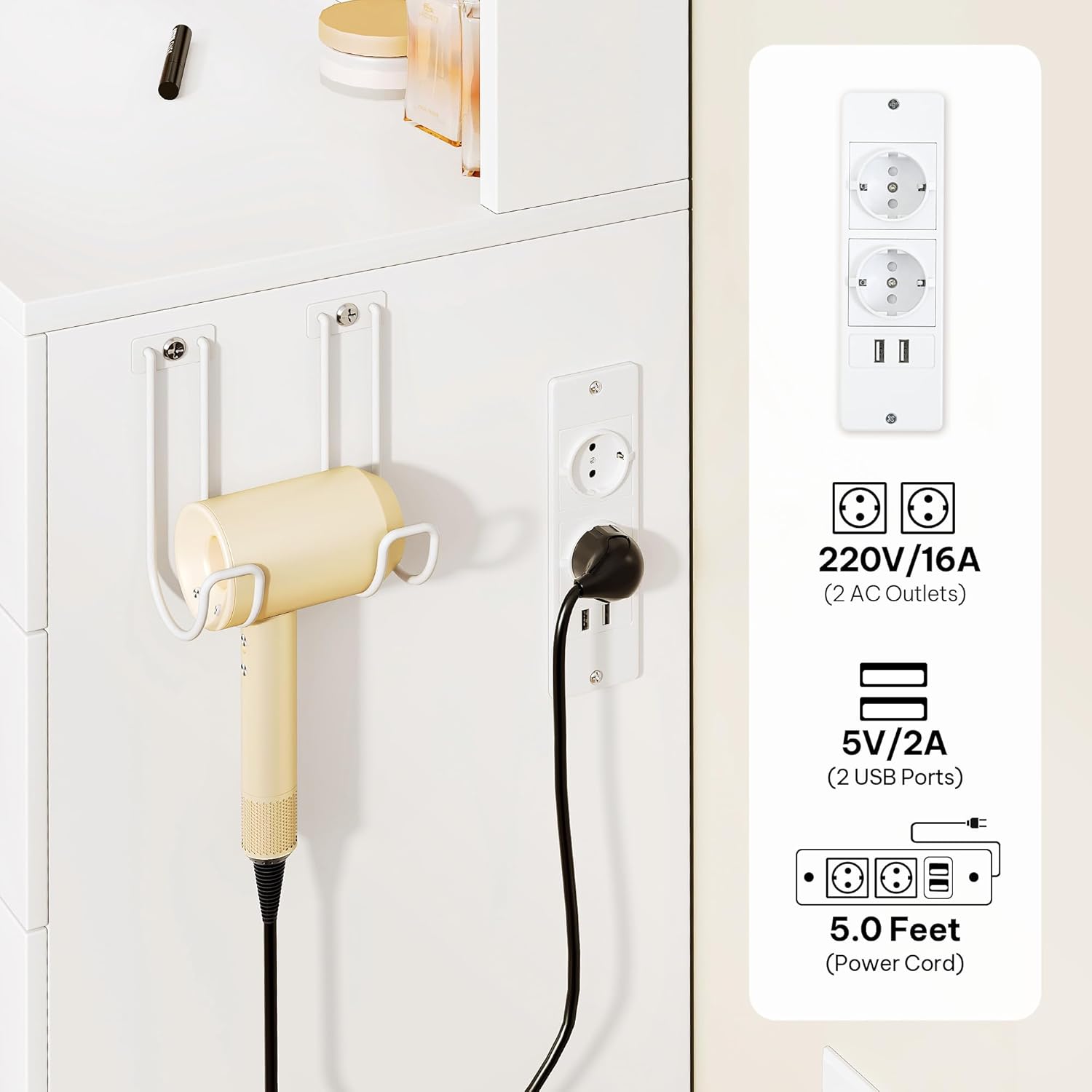

Image: A close-up view of the integrated power strip, showing two AC outlets and two USB ports, along with the hair dryer holder.
RGB Ambient Lighting
The viewing drawers and storage cabinets are equipped with RGB LED lights, offering over 60,000 colors and 29 flashing modes. These lights can be controlled via a remote control or a dedicated mobile application.
- Remote Control: Use the provided remote control to change colors, adjust brightness, select modes (e.g., Mic Mode, Timing Function, Music Mode), and power the RGB lights on/off.
- Mobile Application: Download the compatible mobile application (refer to the included manual for QR code or app name) to access advanced control features, including custom color selection and dynamic lighting effects.
Image: The RGB lighting system, showing the remote control and mobile app interface for selecting from over 60,000 colors and various modes.
Maintenance
Proper maintenance will ensure the longevity and appearance of your YITAHOME Dressing Table.
- Cleaning: Wipe surfaces with a soft, damp cloth. Avoid abrasive cleaners or harsh chemicals that could damage the finish. For the mirror, use a glass cleaner and a lint-free cloth.
- Dusting: Regularly dust all surfaces to prevent buildup.
- Hardware Check: Periodically check all screws and fasteners to ensure they remain tight. Retighten as necessary.
- Spills: Clean up spills immediately to prevent staining or damage to the wood.
Troubleshooting
If you encounter any issues with your dressing table, please refer to the common problems and solutions below.
| Problem | Possible Cause | Solution |
|---|---|---|
| LED Mirror lights not turning on/off or changing color. | Power issue, loose connection, or touch sensor malfunction. | Ensure the vanity is plugged in. Check all electrical connections. Try unplugging and replugging the unit. If the issue persists, contact customer support. |
| RGB lights not responding to remote/app. | Remote battery low, remote out of range, app not connected, or light strip connection issue. | Replace remote battery. Ensure remote is pointed at the receiver. Re-pair the app with the lights. Check light strip connections. |
| Missing parts during assembly. | Product shipped in multiple boxes, or a component was omitted. | Verify if all packages have arrived (the product ships in two boxes). Double-check the parts list against what you received. Contact YITAHOME customer support with details of the missing parts. |
| Vanity feels unstable or wobbly. | Loose fasteners or uneven floor. | Ensure all assembly screws are tightened. Place the vanity on a level surface. Use shims if necessary. Install the anti-tip kit. |
Warranty and Support
YITAHOME is committed to providing high-quality products. While specific warranty details are not provided in this manual, please retain your proof of purchase. For any questions, concerns, or to report missing/damaged parts, please contact YITAHOME customer support directly through the retailer where you purchased the product or via the official YITAHOME website.
You can visit the YITAHOME store on Amazon for more information: YITAHOME Store
