1. Introduction
Thank you for choosing the Yaheetech 11x11ft Outdoor Gazebo. This manual provides essential information for the safe assembly, operation, and maintenance of your new gazebo. Please read all instructions carefully before beginning assembly and retain this manual for future reference.
This gazebo is designed to provide a shaded and comfortable outdoor space for various activities, featuring a durable powder-coated steel frame and a water-resistant fabric canopy.
2. Safety Information
WARNING: Failure to follow these safety instructions could result in serious injury or property damage.
- Assembly: Always assemble with at least two people. Some components are heavy and large.
- Anchoring: Securely anchor the gazebo to the ground using the provided stakes for soft surfaces (grass) or bolts for hard surfaces (concrete/wood decks). Do not use in high winds without proper anchoring.
- Weather Conditions: While the canopy is water-resistant, it is not designed for heavy rain, snow, or strong winds. In adverse weather conditions, remove the canopy to prevent damage to the structure and ensure safety.
- Fire Hazard: Keep all flame and heat sources away from the gazebo fabric. The fabric is not fireproof.
- Structural Integrity: Do not hang heavy objects from the frame or canopy. Do not climb on the gazebo.
- Maintenance: Regularly inspect all connections and anchoring points for tightness and wear.
3. Parts List
Before assembly, ensure all parts are present and undamaged. Refer to the included hardware pack for specific component identification.
| Part | Description | Quantity |
|---|---|---|
| Main Frame Legs | Powder-coated steel legs (2" diameter) | 4 |
| Roof Frame Components | Steel crossbars and connectors for double-tiered roof | Various |
| Main Canopy Fabric | Water-resistant PA-coated polyester fabric (Dark Gray) | 1 |
| Top Tier Canopy Fabric | Smaller water-resistant fabric for ventilation tier | 1 |
| Ground Stakes | For securing to soft ground | 8 |
| Expansion Bolts | For securing to hard surfaces (concrete/wood) | 8 |
| Hardware Pack | Bolts, nuts, washers, wrench | 1 set |
Note: Sidewalls are not included with this model.
4. Setup and Assembly
Assembly typically requires two adults and can take approximately 1-2 hours. Ensure you have adequate space for assembly.
4.1 Preparation
- Clear the assembly area of any obstructions.
- Lay out all parts and hardware, verifying against the parts list.
- Tools required: Included wrench (or your own adjustable wrench/socket set for easier assembly).
4.2 Assembly Steps
- Assemble the Roof Frame: Connect the roof frame components according to the diagrams in your hardware manual. Ensure all connections are finger-tight at this stage. Pay attention to the double-tiered design for enhanced ventilation.
- Attach Canopy Fabric: Carefully drape the main canopy fabric over the assembled roof frame. Secure it to the frame as per the instructions, ensuring the fabric is taut. Then, attach the smaller top-tier canopy fabric.
- Connect Legs to Roof Frame: With assistance, lift the roof assembly and connect the four main frame legs to the corners of the roof frame. Ensure the legs are oriented correctly.
- Tighten All Connections: Once the main structure is upright, go back and securely tighten all bolts and connections using the provided wrench. Do not overtighten.
- Anchor the Gazebo: This is a critical step for stability.
- For Soft Surfaces (e.g., grass, lawn): Use the 8 ground stakes. Insert them through the anchor holes in the large feet of each leg and drive them firmly into the ground.
- For Hard Surfaces (e.g., concrete, wood deck): Use the 8 expansion bolts. Mark the drilling points through the anchor holes in the feet, drill appropriate holes, and secure the legs with the expansion bolts.
Image: Underside view of the gazebo roof frame, highlighting the central hook for hanging lights or plants.
Image: Detailed view of the gazebo's features, including the double-tiered top for ventilation and the water-resistant fabric.

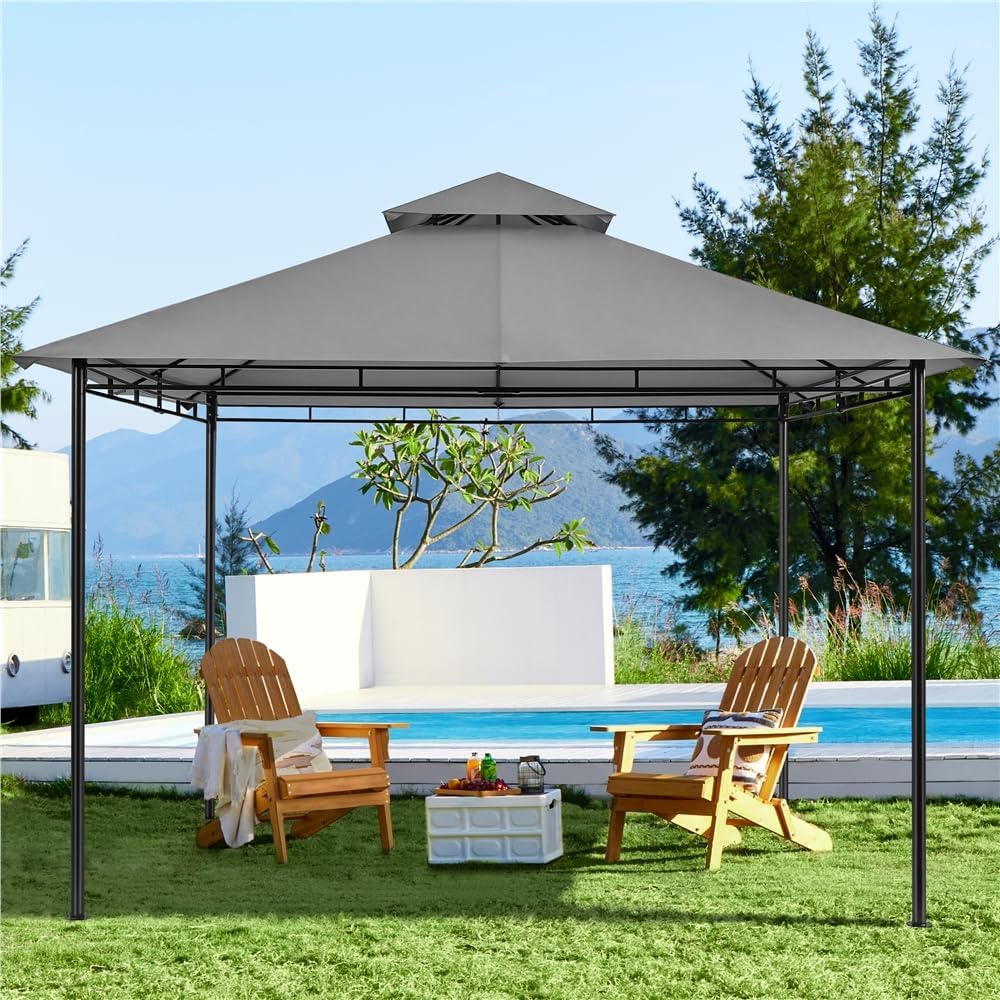

Image: The fully assembled gazebo structure.
Image: Illustration of anchoring methods for different ground types.
Image: Detail of the gazebo's large feet with pre-drilled anchor holes for improved stability.
5. Operating Instructions
Your Yaheetech Gazebo is designed for outdoor use, providing shade and a comfortable area for relaxation and entertainment.
- Shade and Ventilation: The 11x11ft canopy offers generous shade coverage. The double-tiered roof design promotes airflow, helping to dissipate heat and enhance wind resistance.
- Top Hook Usage: A central hook is provided on the underside of the roof frame. This can be used to hang string lights for ambiance, small potted plants, or a lightweight fan for additional ventilation. Ensure any hung items do not exceed the weight capacity of the hook (consult product specifications for exact weight limit, typically light decorative items).
- Weather Considerations: While the canopy is water-resistant, it is not designed to withstand heavy downpours, snow accumulation, or strong winds. In such conditions, it is recommended to remove the canopy to prevent water pooling, snow load, or wind damage to the structure.
Image: The gazebo providing shade in an outdoor setting.
Image: Gazebo illuminated at night with string lights, demonstrating the use of the top hook.
6. Maintenance
Regular maintenance will extend the life and appearance of your gazebo.
- Cleaning the Canopy: Clean the fabric canopy with mild soap and water. Do not use harsh chemicals or abrasive cleaners, as these can damage the water-resistant coating. Rinse thoroughly and allow to air dry completely before storage or re-installation.
- Frame Cleaning: Wipe down the powder-coated steel frame with a damp cloth. For stubborn dirt, use mild soap and water. Dry thoroughly to prevent rust.
- Hardware Inspection: Periodically check all bolts, nuts, and connections to ensure they are tight. Re-tighten as necessary.
- Anchoring Check: Regularly inspect the ground stakes or expansion bolts to ensure they remain securely anchored, especially after strong winds or heavy rain.
- Winter Storage: For prolonged periods of non-use or during winter months, it is highly recommended to disassemble the canopy and store it in a dry, protected area to prevent damage from extreme weather conditions.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Gazebo feels unstable or wobbly. | Loose connections; insufficient anchoring. | Ensure all bolts are securely tightened. Verify ground stakes or expansion bolts are firmly in place. Re-anchor if necessary. |
| Water pooling on canopy. | Canopy not taut enough; heavy rainfall. | Ensure canopy is stretched tightly over the frame. In heavy rain, remove canopy to prevent damage. |
| Fabric tearing or fraying. | Exposure to extreme weather; sharp edges on frame; prolonged sun exposure. | Remove canopy during harsh weather. Check frame for any sharp points and smooth them if found. Consider replacing canopy if severely damaged. |
| Difficulty assembling parts. | Incorrect orientation; missing parts; not enough assistance. | Refer to the assembly diagrams carefully. Verify all parts are present. Ensure at least two people are assisting with assembly. |
8. Specifications
| Brand | Yaheetech |
| Model Number | YT-00144734 |
| Product Dimensions | 129.92"L x 129.92"W x 112.2"H (approx. 11ft x 11ft x 9.35ft) |
| Item Weight | 63.2 pounds |
| Frame Material | Powder-Coated Steel |
| Canopy Material | Water-resistant PA-coated Polyester Fabric |
| Color | Dark Gray |
| Water Resistance Level | Waterproof (Note: Not for heavy rain/snow accumulation) |
| Assembly Required | Yes |
Image: Dimensional overview of the gazebo.
9. Warranty and Support
For warranty information, replacement parts, or technical support, please contact Yaheetech customer service. Refer to your purchase documentation or the official Yaheetech website for contact details.
Website: Visit the Yaheetech Store on Amazon
Please have your model number (YT-00144734) and purchase date available when contacting support.
