1. Introduction
This manual provides detailed instructions for the safe and efficient operation, installation, and maintenance of your Happygrill 1.6 HP Shallow Well Jet Pump. Please read this manual thoroughly before operating the pump to ensure proper function and to prevent injury or damage. Keep this manual for future reference.
The Happygrill Shallow Well Jet Pump is designed for transferring fresh and clean water, suitable for domestic water supply, garden watering, lawn sprinkling, and farmland irrigation. It features a powerful 1.6 HP motor, a 5-gallon stainless steel pressure tank, and various safety mechanisms.
2. Safety Instructions
WARNING: Failure to follow these safety instructions could result in electric shock, fire, serious injury, or death.
- Always disconnect the pump from the power supply before performing any maintenance, installation, or cleaning.
- Ensure the power supply voltage matches the pump's specifications.
- Do not operate the pump with damaged cords or plugs. Replace immediately.
- This pump is designed for clean water only. Do not use it for flammable, corrosive, or explosive liquids.
- Keep children and unauthorized persons away from the operating pump.
- Install the pump in a dry, well-ventilated area, protected from direct sunlight and freezing temperatures.
- Ensure proper grounding according to local electrical codes.
- Do not run the pump dry. This can cause severe damage to the motor and seals.
3. Product Overview and Components
Familiarize yourself with the main components of your Happygrill Shallow Well Jet Pump.
Figure 3.1: Overview of the Happygrill Shallow Well Jet Pump. This image displays the complete pump unit, including the motor, pressure tank, pressure gauge, and power cord, providing a general view of the product's design.
Figure 3.2: Key features and controls of the pump. This image highlights the overheat protection, IPX4 water resistance rating, vents for heat dissipation, the waterproof on/off switch, the pressure gauge for easy observation, and the stable metal base for enhanced support.

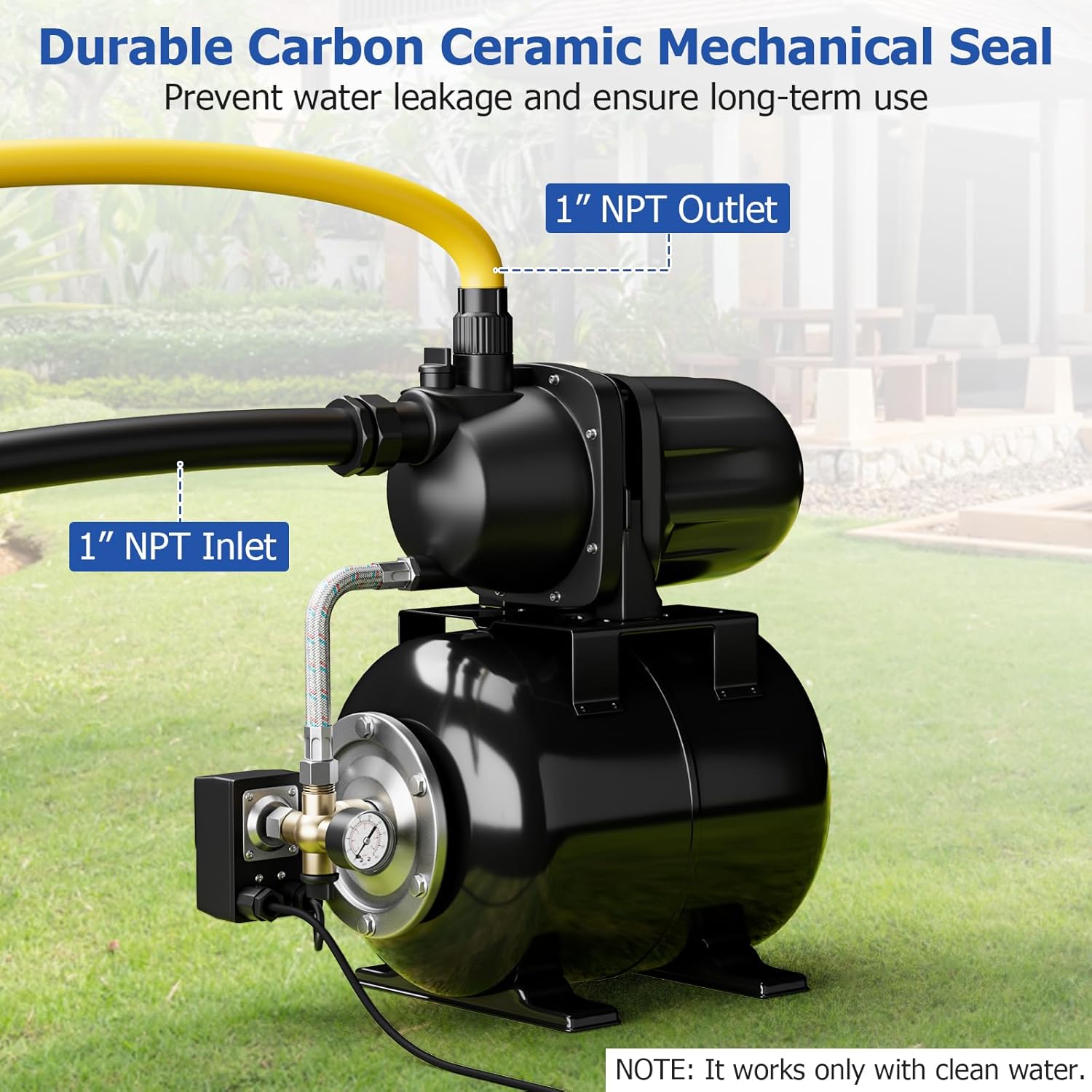

Figure 3.3: Pump inlet and outlet connections. This image shows the 1-inch NPT inlet and 1-inch NPT outlet, along with the durable carbon ceramic mechanical seal designed to prevent water leakage and ensure long-term use. Note: The pump works only with clean water.
Key Components:
- Motor: 1.6 HP powerful motor for efficient water transfer.
- Pressure Tank: 5-gallon stainless steel tank for durability and consistent pressure.
- Pressure Gauge: Allows for easy observation of system pressure.
- On/Off Switch: Waterproof switch for simple and safe operation.
- Inlet/Outlet: 1-inch NPT connections for easy plumbing.
- Mechanical Seal: Carbon ceramic seal to prevent leaks.
- Overheat Protection: Automatic shut-off feature to protect the motor.
4. Specifications
| Specification | Value |
|---|---|
| Brand | HAPPYGRILL |
| Model | 1000 GPH 1.6 HP Shallow Well Pump |
| Motor Power | 1.6 HP |
| Max Flow Rate | 1000 GPH (Gallons Per Hour) |
| Max Lift Head | 164 FT |
| Max Suction Lift | 26 FT |
| Pressure Tank Capacity | 5 Gallons (Stainless Steel) |
| Inlet/Outlet Size | 1" NPT |
| Operating Pressure Range | Starts at 20 PSI, Shuts off at 40 PSI |
| Material | Polypropylene (PP), Stainless Steel |
| Product Dimensions (L x W x H) | 18" x 10.5" x 19" |
| Item Weight | 11 Kilograms |
| Protection Features | Overheat Protection, IPX4 Water Resistance |
Figure 4.1: Physical dimensions of the Happygrill Shallow Well Jet Pump. This image illustrates the length (18 inches), width (10.5 inches), and height (19 inches) of the pump unit.
Figure 4.2: Performance capabilities of the Happygrill Shallow Well Jet Pump. This diagram visually represents the maximum flow rate of 1000 GPH, maximum head of 164 FT, strong suction of 26 FT, and the 5-gallon pressure tank, illustrating its water transfer capabilities.
5. Setup and Installation
Proper installation is crucial for the pump's performance and longevity. If you are unsure about any steps, consult a qualified professional.
5.1 Location Selection
- Choose a dry, level, and well-ventilated area.
- Protect the pump from freezing temperatures, direct sunlight, and excessive moisture.
- Ensure adequate space around the pump for maintenance and air circulation.
- Mount the pump on a stable surface to minimize vibration.
5.2 Plumbing Connections
- Inlet Connection: Connect the suction pipe from your water source to the 1" NPT inlet port of the pump. Ensure all connections are airtight to prevent air leaks, which can affect pump performance. Use thread sealant tape for a secure seal.
- Outlet Connection: Connect the discharge pipe to the 1" NPT outlet port. Install a check valve on the discharge side if not already present in your system, especially if pumping uphill, to prevent backflow.
- Priming Port: Locate the priming port (usually a plug on top of the pump housing). Before initial operation, the pump must be primed by filling it with water.
5.3 Electrical Connection
- Ensure the power supply matches the pump's voltage requirements.
- Connect the pump to a grounded electrical outlet.
- Avoid using extension cords if possible. If necessary, use a heavy-duty, outdoor-rated extension cord of appropriate gauge.
6. Operating Instructions
Follow these steps for safe and effective operation of your Happygrill Shallow Well Jet Pump.
6.1 Priming the Pump (Initial Setup or After Maintenance)
- Ensure all plumbing connections are secure and airtight.
- Remove the priming plug from the top of the pump housing.
- Slowly fill the pump casing with clean water until it overflows from the priming port.
- Replace the priming plug securely.
- Open any discharge valves or faucets to allow air to escape the system.
6.2 Starting the Pump
- Plug the pump into a grounded electrical outlet.
- Turn the waterproof on/off switch to the "ON" position.
- The pump will start and build pressure. Observe the pressure gauge. The pump is designed to start at 20 PSI and shut off at 40 PSI.
- Allow the pump to run until a steady stream of water is discharged and all air has been expelled from the system.
- Close any open discharge valves or faucets. The pump should then reach its shut-off pressure and turn off automatically.
Figure 6.1: The Happygrill Shallow Well Jet Pump in operation, demonstrating its use for garden irrigation. This image highlights the pump's 1.6 HP motor and its capability to deliver water for outdoor applications.
6.3 Shutting Down the Pump
- Turn the waterproof on/off switch to the "OFF" position.
- For extended periods of non-use or before maintenance, unplug the pump from the power source.
7. Maintenance
Regular maintenance ensures the longevity and optimal performance of your pump.
7.1 General Cleaning
- Keep the pump exterior clean and free from dirt and debris.
- Ensure the motor's cooling vents are clear to prevent overheating.
7.2 Winterization (for cold climates)
- Before freezing temperatures, drain all water from the pump and plumbing lines to prevent damage from ice expansion.
- Disconnect the pump from the power supply.
- Remove the drain plug (if present) or disconnect the inlet/outlet pipes to allow water to escape.
- Store the pump in a warm, dry place if possible.
7.3 Mechanical Seal
The pump features a durable carbon ceramic mechanical seal. If you notice persistent water leakage from the pump housing, the mechanical seal may need inspection or replacement. This typically requires professional service.
8. Troubleshooting
This section addresses common issues you might encounter with your Happygrill Shallow Well Jet Pump.
| Problem | Possible Cause | Solution |
|---|---|---|
| Pump does not start | No power; Faulty switch; Motor overload protection tripped. | Check power connection and circuit breaker; Test switch; Allow motor to cool and reset. |
| Pump runs but no water or low flow | Pump not primed; Air leak in suction line; Suction line blocked; Water source depleted; Impeller damaged. | Re-prime the pump; Check all suction connections for leaks; Clear any blockages; Verify water source; Inspect impeller (professional service recommended). |
| Pump cycles on and off frequently | Pressure tank air charge incorrect; Leak in discharge line; Faulty pressure switch. | Check and adjust air pressure in the tank; Inspect discharge plumbing for leaks; Test/replace pressure switch (professional service recommended). |
| Excessive noise or vibration | Air in pump; Loose mounting; Damaged bearings or impeller. | Re-prime the pump; Tighten mounting bolts; Inspect for internal damage (professional service recommended). |
| Water leakage | Loose connections; Damaged mechanical seal; Cracked housing. | Tighten all plumbing connections; Replace mechanical seal (professional service recommended); Replace pump if housing is cracked. |
If you encounter problems not listed here or if solutions do not resolve the issue, please contact Happygrill customer support.
9. Warranty and Support
For warranty information and customer support, please refer to the documentation included with your purchase or visit the official Happygrill website. Keep your purchase receipt as proof of purchase for warranty claims.
For technical assistance or spare parts inquiries, please contact Happygrill customer service through their official channels. When contacting support, please have your product model and purchase date available.
Happygrill is committed to providing quality products and excellent customer service.
