Generic Roof Rack Cross Bars for Toyota Corolla (2012-2025) Instruction Manual

1. Introduction

This instruction manual provides comprehensive guidance for the safe and proper installation, operation, and maintenance of your Generic Roof Rack Cross Bars. Designed specifically for Toyota Corolla models from 2012 to 2025, these aluminum cross bars offer a robust and versatile solution for transporting various cargo. Please read this manual thoroughly before installation and use to ensure optimal performance and safety.

2. Safety Information

• Always adhere to the maximum load capacity of 220 lbs (100 kg) for these cross bars. Exceeding this limit can lead to product failure, vehicle damage, or accidents.
• Ensure all components are securely fastened before driving. Regularly check the tightness of all bolts and connections, especially after initial installation and before each trip.
• Distribute cargo evenly across the cross bars. Secure all items with appropriate tie-downs to prevent shifting or detachment during transit.
• Be aware of your vehicle's increased height and width when the roof rack is installed, especially when entering garages, car washes, or low-clearance areas.
• Adjust driving speed according to road conditions and cargo weight. High speeds with heavy or bulky loads can affect vehicle handling and stability.
• Remove the cross bars when not in use to minimize wind noise and improve fuel efficiency.

3. Package Contents

Verify that all components listed below are present and undamaged before proceeding with installation.

Image: Overview of the Generic Roof Rack Cross Bars and all included components, including the two aluminum bars, four end supports, keys, and various screws and washers.

• 2 x Aluminum Cross Bars (one longer for front, one shorter for rear)
• 4 x End Supports with integrated locking mechanism
• 2 x Keys for locking the end supports
• 4 x Large Screws for mounting cross bars to end supports
• 8 x Small Screws for securing end supports
• 8 x Washers
• 1 x Large Allen Wrench
• 1 x Small Allen Key

4. Setup and Installation

These cross bars are designed for vehicles with a "Naked/Smooth/Bare" roof type, meaning no existing fixed points, raised rails, or flush rails are present. The "Power Grip" mounting system clamps directly onto the vehicle's door frame.

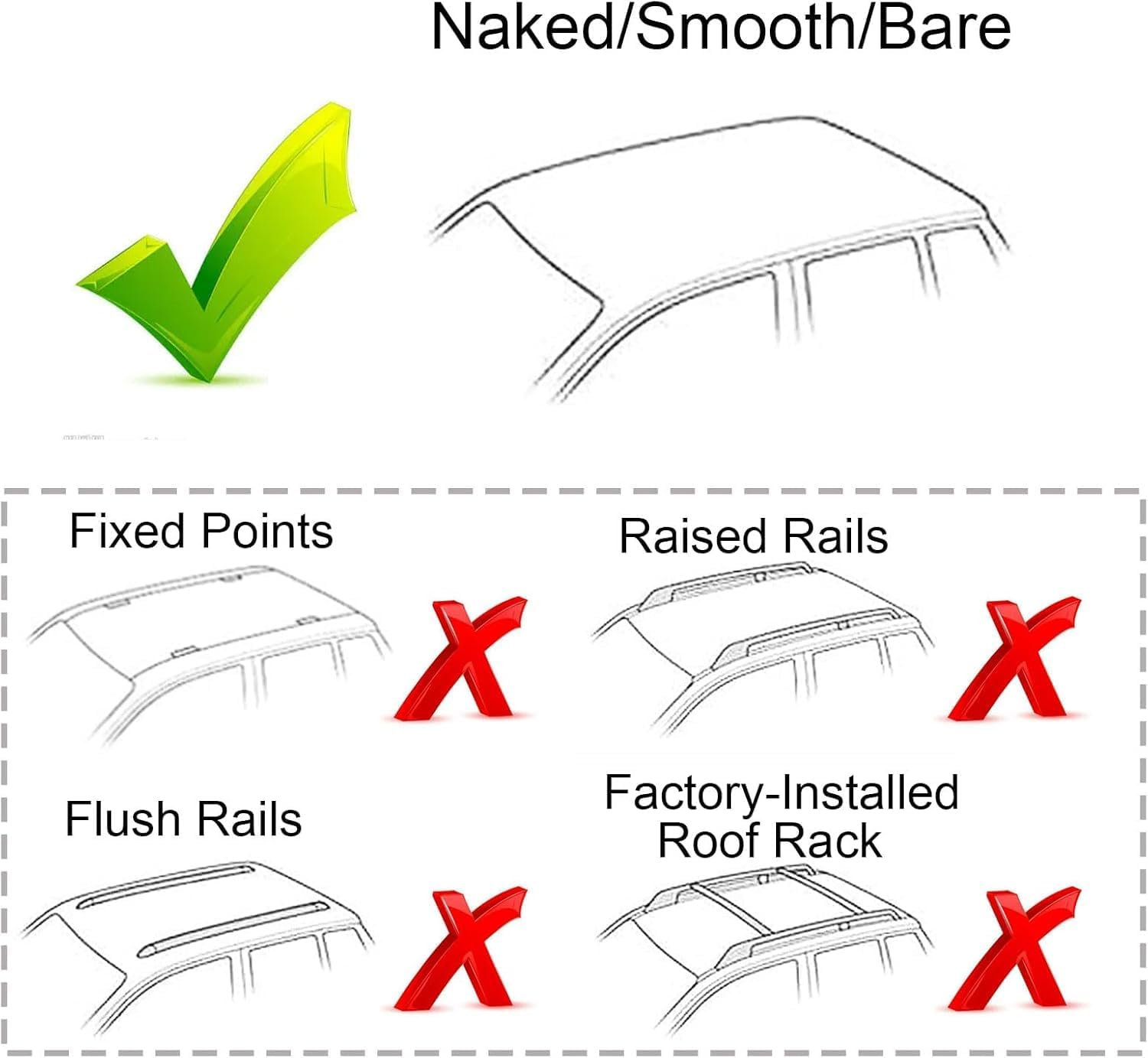

Image: Diagram illustrating compatible roof types. A checkmark indicates compatibility with "Naked/Smooth/Bare" roofs, while an 'X' marks incompatibility with "Fixed Points," "Raised Rails," and "Flush Rails."

4.1. Pre-Installation Steps

1. Identify the front and rear cross bars. The front bar is typically longer than the rear bar.
2. Unlock the end supports using the provided keys and open the covers.
3. Loosely attach the end supports to the cross bars using the large screws and washers. Do not tighten them fully at this stage, as length adjustment will be required.

Image: Detailed view of the heavy-duty aluminum alloy construction, showing the three types of hooks with rubber pads, nut fixing hook, and high toughness stainless steel bracket for luggage rack retention.

4.2. Mounting the Cross Bars

Follow these steps for secure installation:

1. Place the assembled cross bar (with loosely attached end supports) onto your vehicle's roof.
2. Adjust the length of the cross bar by sliding the end supports along the bar until they fit snugly against the vehicle's door frame. Ensure the rubber pads on the hooks make full contact with the vehicle's surface to prevent paint damage.
3. Once the length is adjusted, use the large Allen wrench to fully tighten the large screws that secure the end supports to the cross bars.
4. Open your vehicle's doors. Position the hooks of the end supports under the door frame.
5. Use the small Allen key to tighten the small screws on the end supports. These screws will extend the hooks, clamping the cross bars securely to the door frame. Tighten evenly on both sides until firm.
6. Close the end support covers and lock them with the provided keys to prevent theft and ensure components remain secure.
7. Repeat the process for the second cross bar.

Image: Side view of the installed roof rack cross bars on a vehicle, showcasing the low-profile design.

5. Operating Instructions

5.1. Loading Cargo

• Ensure all cargo is within the 220 lbs (100 kg) weight limit.
• Place heavier items at the bottom and center of the rack to maintain vehicle stability.
• Use appropriate cargo carriers or tie-downs (not included) for specific items like kayaks, bicycles, skis, or snowboards. Ensure they are securely fastened to both cross bars and the vehicle.
• Check for any loose items or straps that could flap in the wind or obstruct your view.

Image: The universal roof rack cross bars shown with various types of cargo, including a cargo box, kayak, and bicycle, demonstrating their versatility.

5.2. Driving with Cargo

• Drive cautiously, especially when cornering, braking, or encountering strong winds.
• The streamlined design of these cross bars helps minimize wind resistance and noise, but some increase in noise is normal.
• Periodically check your cargo and the roof rack during long journeys to ensure everything remains secure.

6. Maintenance

• Regularly inspect the cross bars, end supports, and all fasteners for any signs of wear, damage, or corrosion.
• Clean the cross bars with mild soap and water. Avoid abrasive cleaners or solvents that could damage the finish.
• Lubricate the locking mechanisms periodically to ensure smooth operation.
• If any part is damaged, replace it immediately. Do not use damaged components.

7. Troubleshooting

7.1. Excessive Wind Noise

• Ensure all components are tightly secured. Loose parts can vibrate and cause noise.
• Check if any cargo is improperly secured or creating additional drag.
• Consider adding a fairing (wind deflector) if noise persists (not included).

7.2. Cross Bars Feel Loose

• Re-tighten all large screws connecting the bars to the end supports.
• Re-tighten the small screws that clamp the end supports to the door frame.
• Ensure the rubber pads are correctly positioned and not worn out.

8. Specifications

9. Warranty and Support

For warranty information, technical support, or replacement parts, please contact the manufacturer, Persimoon, or your retailer directly. Keep your purchase receipt as proof of purchase.
