Crypticorps SC1600L Simple Comfort Wall Thermostat User Manual

1. Introduction

This manual provides comprehensive instructions for the installation, operation, and maintenance of your Crypticorps SC1600L Simple Comfort Wall Thermostat. This non-programmable thermostat is designed for single-stage heat-only systems, compatible with 24-volt and millivolt applications, including gas, oil, and hydronic systems. Please read this manual thoroughly before installation and use to ensure proper function and safety.

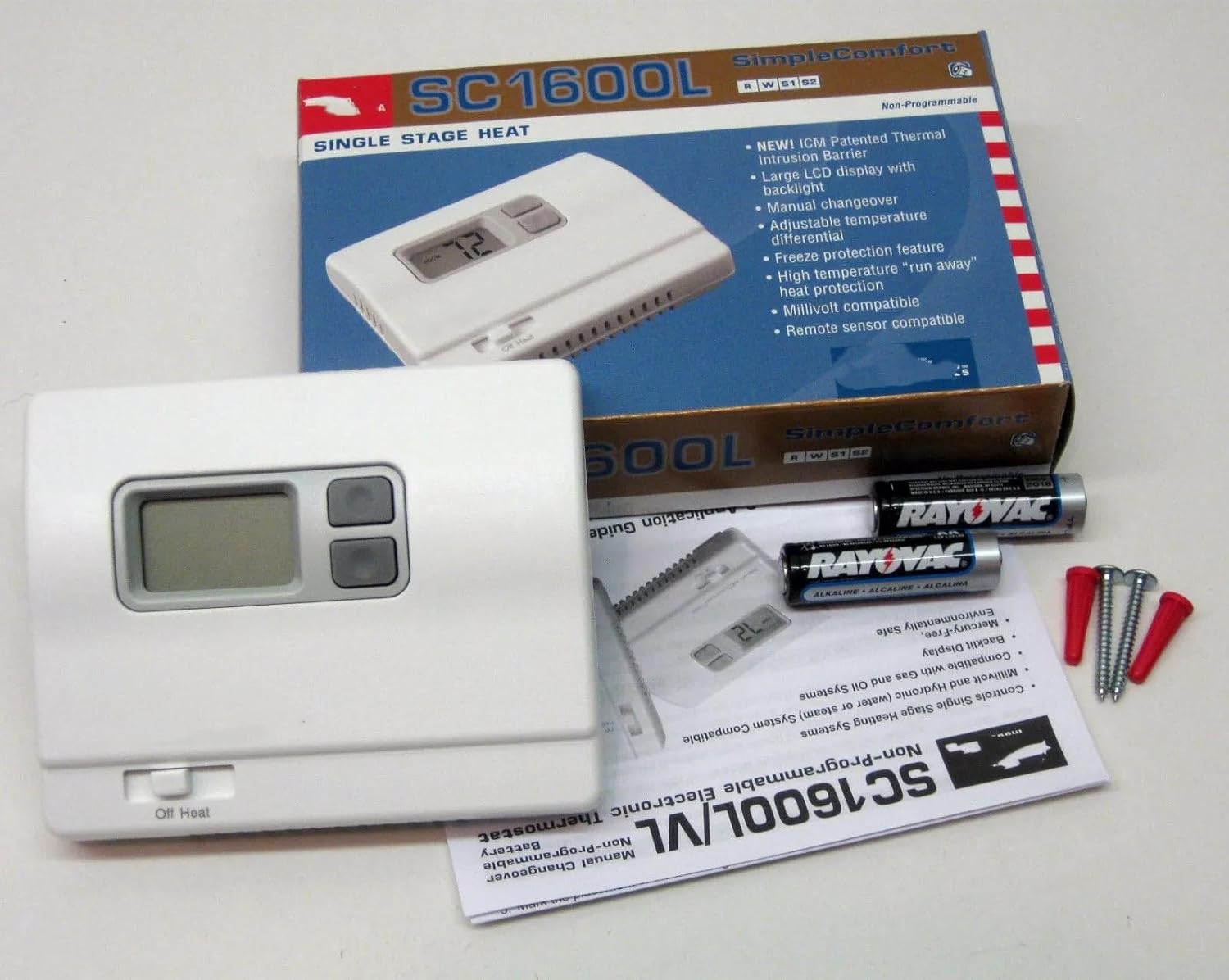

Image 1.1: The Crypticorps SC1600L Simple Comfort Wall Thermostat, shown in its retail packaging alongside included accessories such as batteries, mounting hardware, and the user guide. This image illustrates the complete product package as received by the user.

2. Safety Information

Always observe the following safety precautions to prevent damage to the product or injury to yourself:

• Turn off power to the heating system at the main fuse or circuit breaker panel before installing or servicing the thermostat.
• Ensure all wiring is done in accordance with local electrical codes and ordinances.
• Do not short circuit the battery terminals.
• Keep batteries out of reach of children.
• If you are unsure about any part of the installation process, consult a qualified HVAC technician.

3. Package Contents

Verify that all items are present in your package:

• Crypticorps SC1600L Wall Thermostat
• Mounting Screws and Wall Anchors
• AA Alkaline Batteries (typically 2)
• User Manual (this document)

4. Features

The Crypticorps SC1600L thermostat offers the following key features:

• Non-Programmable Single-Stage Heat Only Operation
• New ICM Patented Thermal Intrusion Barrier
• Manual Changeover
• Large LCD Display with Backlight
• Battery Powered with Low Battery Indicator
• Precise Temperature Sensing
• Easy Access Terminal Block
• Compatible with Gas, Oil, Hydronic, and Millivolt Systems
• Remote Sensor Compatible (sensor sold separately)
• Freeze Protection Feature

5. Installation

5.1 Mounting Location

Install the thermostat approximately 5 feet (1.5 meters) above the floor on an inside wall. Avoid locations near heat sources (lamps, sunlight, fireplaces), drafts (windows, doors), or unheated/uncooled areas (outside walls, behind doors).

5.2 Removing the Old Thermostat

1. Turn off power to your heating system at the main fuse or circuit breaker.
2. Remove the cover of your old thermostat.
3. Take a picture of the existing wiring connections for reference.
4. Disconnect and label each wire before removing the old thermostat base from the wall.

5.3 Wiring the SC1600L Thermostat

The SC1600L features an easy-access terminal block for wiring. Refer to the internal view of the thermostat for terminal locations.

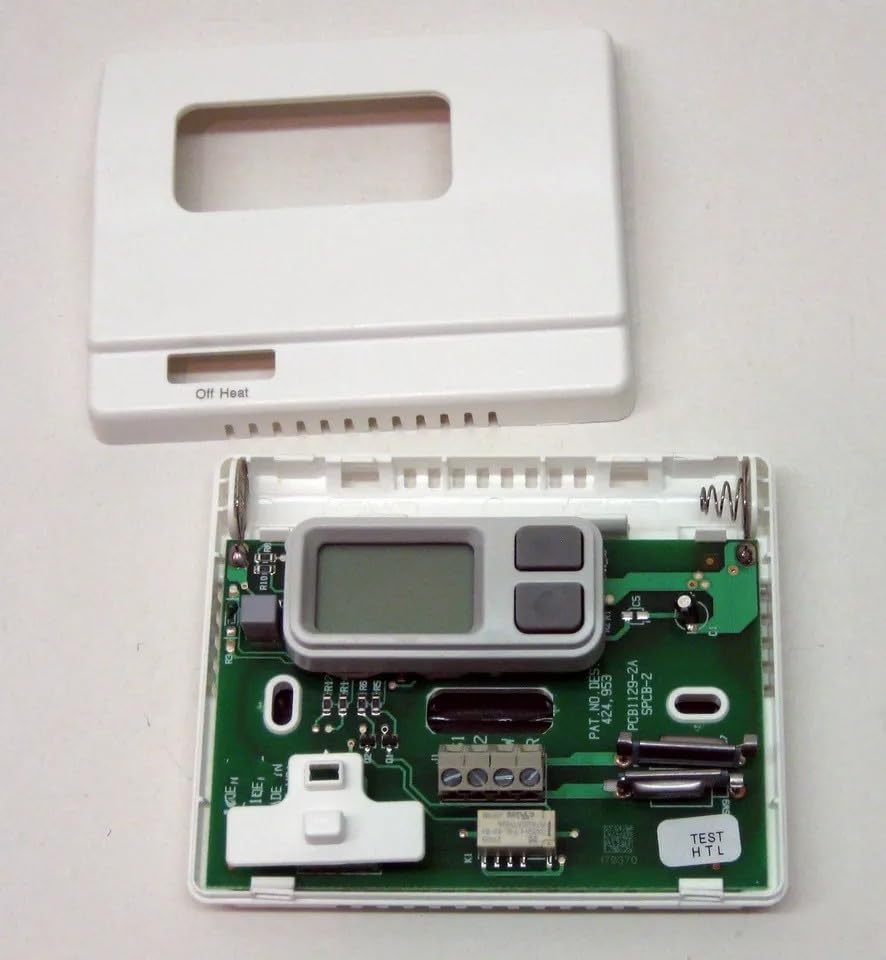

Image 5.1: An internal view of the Crypticorps SC1600L thermostat with its front cover removed. This image highlights the circuit board, battery compartment, and the easy-access terminal block where system wires are connected. This view is crucial for understanding the wiring process.

Connect the wires from your heating system to the corresponding terminals on the SC1600L. Typical connections for a single-stage heat-only system include:

• R: 24V AC power (or Millivolt power)
• W: Heat call
• C: Common (if applicable for 24V systems, not always used for millivolt)
• S1, S2: Remote sensor connections (optional)

Ensure all connections are secure. This thermostat does not have a fan output.

5.4 Battery Installation

The SC1600L is battery-powered. Install two AA alkaline batteries into the battery compartment located on the back of the thermostat. Observe correct polarity (+/-). The low battery indicator will alert you when batteries need replacement.

5.5 Attaching the Thermostat to the Wall

1. Feed the wires through the opening in the new thermostat base.
2. Secure the thermostat base to the wall using the provided screws and anchors.
3. Snap the thermostat body onto the base.
4. Restore power to your heating system at the main fuse or circuit breaker.

6. Operation

6.1 Powering On and Initial Display

Once batteries are installed and power is restored, the large LCD display will illuminate, showing the current room temperature and the setpoint temperature. The backlight will activate briefly when buttons are pressed.

6.2 Setting the Temperature

Use the UP (▲) and DOWN (▼) buttons to adjust the desired setpoint temperature. The thermostat will automatically maintain this temperature by turning your heating system on or off as needed.

6.3 System Switch (Heat/Off)

The thermostat features a manual changeover switch, typically located on the side or bottom of the unit. Set it to "Heat" for heating operation or "Off" to disable the heating system.

6.4 Freeze Protection

The SC1600L includes a freeze protection feature. If the room temperature drops below a certain threshold (e.g., 40°F / 4.5°C), the thermostat may activate the heating system to prevent pipes from freezing, even if the system switch is set to "Off" or the setpoint is lower.

7. Maintenance

7.1 Battery Replacement

When the low battery indicator appears on the display, replace the two AA alkaline batteries promptly. To replace, carefully remove the thermostat from its wall base, remove the old batteries, and insert new ones, observing correct polarity. Reattach the thermostat to the base.

7.2 Cleaning

Clean the thermostat's exterior with a soft, damp cloth. Do not use abrasive cleaners or solvents. Ensure no moisture enters the internal components.

8. Troubleshooting

If you experience issues with your thermostat, refer to the following common problems and solutions:

If problems persist after trying these solutions, contact a qualified HVAC technician or Crypticorps customer support.

9. Specifications

10. Warranty and Support

For warranty information and customer support, please refer to the documentation included with your purchase or visit the official Crypticorps website. Keep your purchase receipt as proof of purchase for any warranty claims.

For technical assistance or further inquiries, please contact Crypticorps customer service.
