1. Important Safeguards
When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following:
- Read all instructions before using the appliance.
- Do not touch hot surfaces. Use handles or knobs.
- To protect against electric shock, do not immerse cord, plugs, or the appliance housing in water or other liquid.
- Close supervision is necessary when any appliance is used by or near children.
- Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
- Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
- The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
- Do not use outdoors.
- Do not let cord hang over edge of table or counter, or touch hot surfaces.
- Do not place on or near a hot gas or electric burner, or in a heated oven.
- Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
- Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to "off", then remove plug from wall outlet.
- Do not use appliance for other than intended use.
- Ensure adequate ventilation around the appliance during use.
2. Product Overview
Familiarize yourself with the components of your Beautiful 3-Quart Digital Air Fryer.

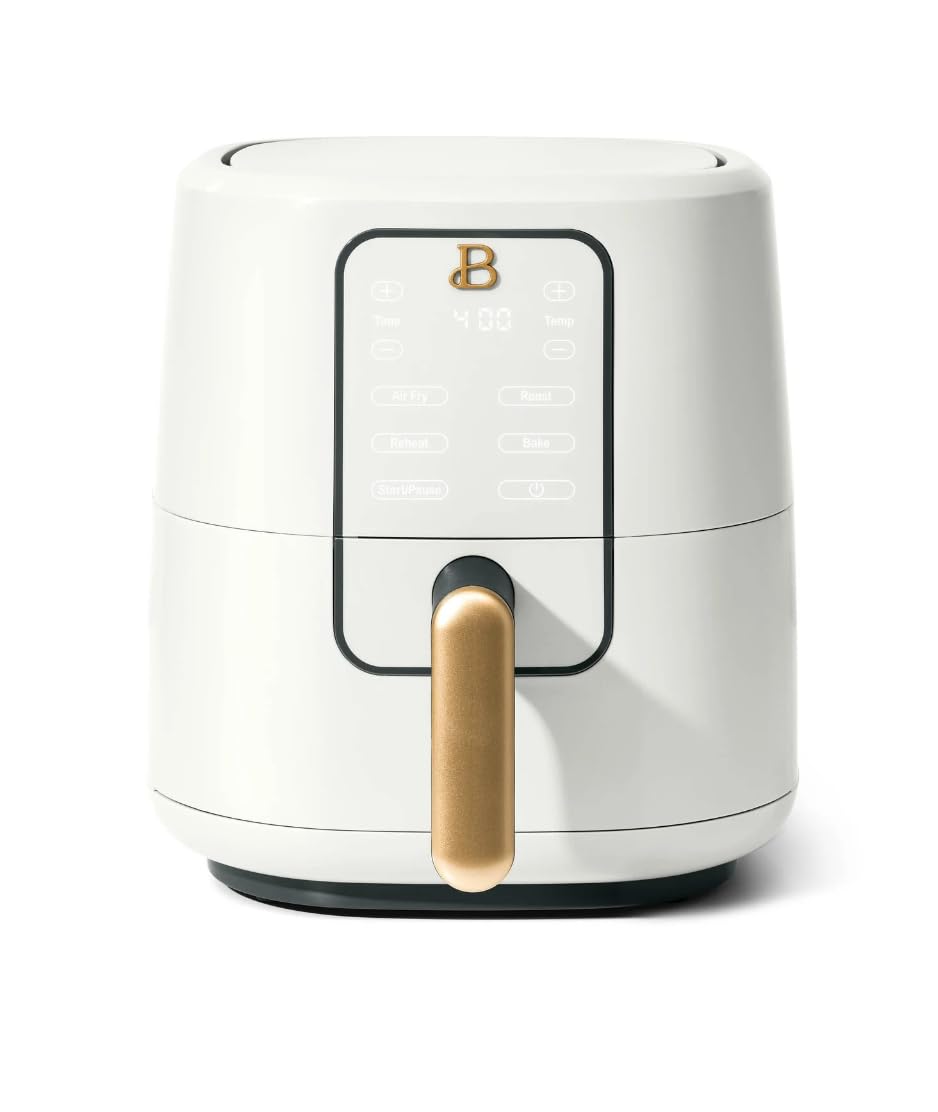

This image displays the Beautiful 3-Quart Digital Air Fryer from the front. It features a sleek white casing, a prominent gold-colored handle for the air fryer basket, and a digital control panel with touch-sensitive buttons for time, temperature, and four preset cooking functions (Air Fry, Roast, Reheat, Bake). The brand logo 'B' is visible at the top of the control panel.
Components:
- Control Panel: Digital interface for setting time, temperature, and selecting presets.
- Air Fryer Basket: Removable non-stick basket for holding food during cooking.
- Handle: Ergonomic handle for safely pulling out and inserting the air fryer basket.
- Air Inlet: Located on the top of the unit, allows air to enter for circulation.
- Air Outlet Vent: Located at the rear of the unit, releases hot air during operation.
3. Setup and First Use
Before First Use:
- Unpack: Carefully remove all packaging materials and any promotional labels or stickers from the air fryer.
- Clean: Wash the air fryer basket and removable parts with hot, soapy water. Rinse thoroughly and dry completely. Wipe the exterior of the appliance with a damp cloth. Do not immerse the main unit in water.
- Placement: Place the air fryer on a stable, heat-resistant surface, ensuring at least 6 inches of clear space around the back and sides for proper air circulation.
- Initial Run: It is recommended to run the air fryer empty for about 10-15 minutes at 400°F (200°C) before first use to eliminate any manufacturing odors. A slight odor or smoke may be present during this process; this is normal.
4. Operating Instructions
Control Panel Overview:
- Time Controls (+/-): Adjust cooking time.
- Temperature Controls (+/-): Adjust cooking temperature (90°F-400°F).
- Preset Buttons: Select from 4 convenient cooking modes: Air Fry, Roast, Reheat, Bake.
- Start/Pause Button: Begin or temporarily stop the cooking cycle.
- Power Button: Turn the appliance on or off.
Basic Operation:
- Power On: Plug the air fryer into a grounded electrical outlet. The display will illuminate.
- Prepare Food: Place food into the air fryer basket. Do not overfill the basket to ensure even cooking.
- Set Temperature: Use the Temperature +/- buttons to set the desired cooking temperature (range 90°F-400°F).
- Set Time: Use the Time +/- buttons to set the desired cooking time.
- Start Cooking: Press the Start/Pause button to begin the cooking cycle.
- Check Food: During cooking, you can pull out the basket to shake or turn food. The air fryer will automatically pause and resume when the basket is reinserted.
- Finish: The air fryer will beep when the cooking cycle is complete. Carefully remove the basket and transfer food to a serving dish.
Using Presets:
The air fryer includes 4 convenient preset functions for common dishes:
- Select Preset: After powering on, press the desired preset button (Air Fry, Roast, Reheat, Bake). The air fryer will automatically set a default time and temperature for that function.
- Adjust (Optional): You can adjust the preset time and temperature using the +/- buttons if needed.
- Start: Press the Start/Pause button to begin cooking.
TurboCrisp Technology:
This air fryer utilizes TurboCrisp technology, which circulates super-heated air around your food, ensuring crispy results with little to no oil. This technology helps achieve a golden-brown finish and a tender interior for a variety of dishes.
5. Cleaning and Maintenance
Cleaning:
- Unplug and Cool: Always unplug the air fryer and allow it to cool completely before cleaning.
- Basket and Tray: The non-stick air fryer basket and removable parts are dishwasher safe for easy cleaning. Alternatively, wash them with hot, soapy water and a non-abrasive sponge.
- Exterior: Wipe the exterior of the air fryer with a damp cloth. Do not use abrasive cleaners or scourers, as they may damage the finish.
- Interior: If necessary, wipe the interior of the appliance with a damp cloth. Ensure no water enters the electrical components.
Storage:
Ensure the appliance is clean and dry before storing. Store the air fryer in a cool, dry place.
6. Troubleshooting
Common Issues and Solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Air fryer does not turn on. | Appliance is not plugged in. | Ensure the power cord is securely plugged into a grounded electrical outlet. |
| Food is not cooked evenly. | Basket is overfilled; food is stacked. | Cook food in smaller batches. Shake or turn food halfway through cooking. |
| White smoke coming from appliance. | Grease residue from previous use; fatty food cooking. | Clean the basket and interior thoroughly. For fatty foods, ensure proper ventilation. |
| Food is not crispy. | Not enough oil (if applicable); temperature too low; cooking time too short. | Lightly spray food with oil. Increase temperature or cooking time as needed. |
7. Specifications
Technical Data:
| Feature | Detail |
|---|---|
| Model Name | White Icing Air Fryer 3QT |
| Item Model Number | EK-60X121 |
| Capacity | 3-Quart |
| Temperature Range | 90°F - 400°F |
| Control Method | Touch (Digital) |
| Special Feature | Digital Display, TurboCrisp Technology, 4 Presets |
| Material | Stainless Steel |
| Non-stick Coating | Yes |
| Dishwasher Safe Parts | Yes (Removable parts) |
| Product Dimensions | 10"D x 4"W x 11"H |
| Item Weight | 7 Pounds |
8. Warranty and Support
Warranty Information:
This product comes with a manufacturer's warranty. Please refer to the warranty card included with your purchase or contact the manufacturer directly for specific terms and conditions. Retain your proof of purchase for warranty claims.
Customer Support:
For technical assistance, troubleshooting, or questions regarding your Beautiful 3-Quart Digital Air Fryer, please contact customer support through the retailer or manufacturer's official channels. Have your model number (EK-60X121) and purchase details ready when contacting support.
