CCTVPRO 4MP License Plate Recognition Network Camera ITC413-PW4D-Z3 User Manual

1. Introduction

This manual provides detailed instructions for the installation, operation, and maintenance of the CCTVPRO 4MP License Plate Recognition Network Camera, model ITC413-PW4D-Z3. This advanced security camera is designed for precise license plate recognition and vehicle monitoring in various environments.

2. Safety Information

Please read these safety instructions carefully before operating the device to prevent damage and ensure proper functionality. Keep this manual for future reference.

• Power Supply: Use only the power supply provided or specified by the manufacturer. Ensure the power source matches the camera's requirements.
• Installation Environment: Install the camera in a stable location, away from direct sunlight, heat sources, and excessive moisture. Ensure proper ventilation.
• Handling: Avoid dropping or subjecting the camera to strong impacts. Do not disassemble the camera; refer servicing to qualified personnel.
• Cleaning: Use a soft, dry cloth for cleaning. Do not use strong detergents or abrasive materials.
• Outdoor Use: The camera is rated IP67 and IK10 for outdoor use, providing protection against dust, water, and vandalism. However, ensure all connections are properly sealed during installation.

3. Product Overview

The ITC413-PW4D-Z3 is a high-performance 4MP License Plate Recognition (LPR) network camera featuring a motorized vari-focal lens and dual illuminators. It is designed for accurate vehicle and license plate detection in various lighting conditions.

Key Features:

• 4MP High-Resolution Video: Captures clear 2688×1520 resolution for precise license plate recognition.
• Motorized Vari-Focal Lens: Adjustable 8-32mm lens offers flexible focus and enhanced coverage.
• Advanced Analytics: Supports vehicle type, color, and plate recognition with a detection range of 26-65ft.
• Efficient Installation: Includes mounting bracket and power supply for quick and seamless setup.
• Durability: IP67 and IK10 rated for protection against dust, water, and impact.

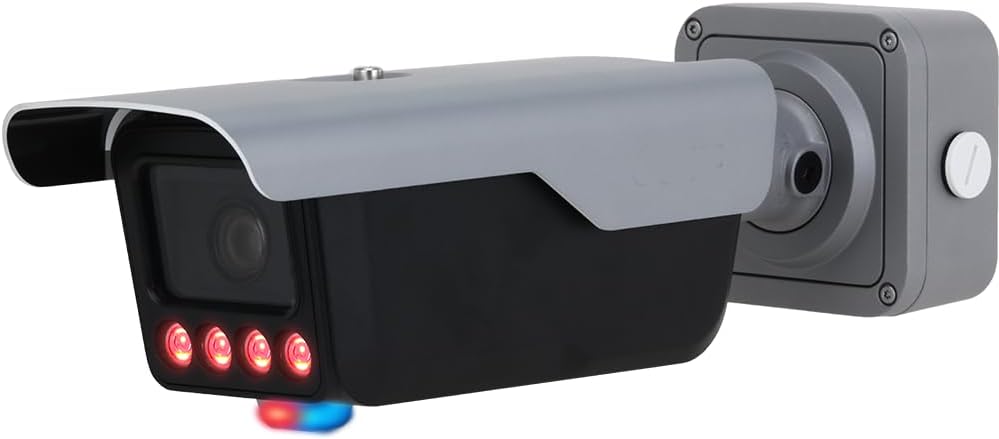

Figure 3.1: Front view of the ITC413-PW4D-Z3 License Plate Recognition Network Camera. The camera features a robust housing, a motorized lens, and integrated illuminators visible at the front.

4. Package Contents

Verify that all items are present and in good condition upon opening the package:

• ITC413-PW4D-Z3 LPR Network Camera
• Mounting Bracket
• Power Supply
• Installation Screws and Anchors
• Quick Start Guide (this manual)

5. Installation

5.1 Mounting Options

The camera supports various mounting configurations to suit different installation environments:

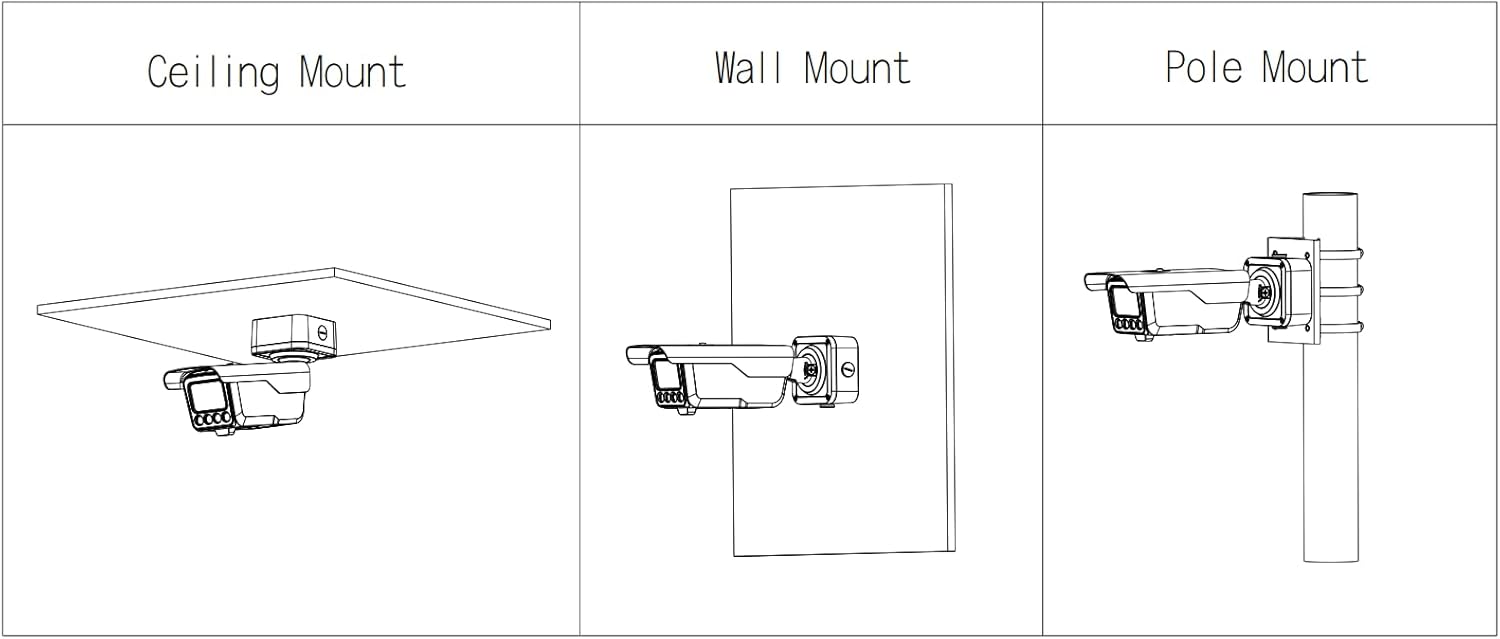

Figure 5.1: Diagram illustrating the three primary mounting options for the camera: Ceiling Mount (camera suspended from an overhead surface), Wall Mount (camera attached to a vertical wall), and Pole Mount (camera secured to a cylindrical pole).

5.2 Installation Steps

1. Choose Location: Select an optimal location for LPR, considering the detection range (26-65ft) and lighting conditions. Ensure a clear line of sight to the license plates.
2. Mounting:
   • Attach the mounting bracket to the chosen surface (ceiling, wall, or pole) using appropriate screws and anchors.
   • Securely attach the camera to the mounting bracket.
3. Wiring:
   • Connect the Ethernet cable for network connectivity.
   • Connect the power supply to the camera. Ensure all connections are secure and weatherproofed if installed outdoors.
4. Initial Configuration: Access the camera's web interface via its IP address to perform initial network settings, date/time, and administrator password setup.

5.3 Dimensions

Figure 5.2: Technical drawing displaying the precise dimensions of the camera in millimeters and inches, including length, width, height, and mounting hole spacing. This diagram is crucial for pre-installation planning and bracket compatibility.

6. Operation

6.1 Accessing the Camera

The camera can be accessed via a web browser using its IP address. Refer to your network configuration for the assigned IP address or use a discovery tool provided by the manufacturer.

6.2 Motorized Lens Adjustment

The 8-32mm motorized vari-focal lens can be adjusted remotely through the camera's web interface. This allows for precise focusing and zooming to optimize the field of view for LPR.

6.3 License Plate Recognition (LPR) Features

The camera's advanced analytics enable:

• Plate Recognition: Automatically detects and reads license plates.
• Vehicle Type and Color Recognition: Identifies vehicle characteristics for enhanced data collection.
• Whitelist/Blacklist Management: Configure lists for authorized or unauthorized vehicles.
• Event Triggers: Set up actions based on LPR events, such as recording or alerts.

7. Maintenance

7.1 Cleaning

Regularly clean the camera lens and housing to ensure optimal performance. Use a soft, lint-free cloth. For stubborn dirt, a mild cleaning solution designed for optical lenses can be used sparingly.

7.2 Firmware Updates

Periodically check the manufacturer's website for firmware updates. Keeping the firmware updated ensures the camera has the latest features, security patches, and performance improvements. Follow the provided instructions carefully during the update process.

8. Troubleshooting

9. Specifications

10. Warranty and Support

For technical assistance, troubleshooting, or warranty inquiries, please contact CCTVPRO customer support. Local technical support is available to assist with installation and troubleshooting needs.

Refer to your purchase documentation or the CCTVPRO official website for specific warranty terms and contact information.
