Introduction
This manual provides essential information for the safe and effective use of your Vsdampj CS-PTG103CL Ni-MH rechargeable battery. Please read these instructions carefully before installation and operation to ensure optimal performance and longevity of your battery.
Compatibility
The Vsdampj CS-PTG103CL battery is designed to be compatible with various Panasonic cordless phone models and replaces specific original part numbers. Before purchasing and installing, verify that your device model and original battery part number match the following:
- Compatible Panasonic Models: KX-TGA101S, KX-TGA106M, KX-TGA250FX, KX-TGA401B, KX-TGA430, KX-TGA430B, KX-TGA641T, KX-TGA651B
- Replaces Part Numbers (P/N): HHR-4DPA, HHR-55AAABU
Specifications
Detailed technical specifications for the Vsdampj CS-PTG103CL rechargeable battery:
| Feature | Detail |
|---|---|
| Battery Type | Ni-MH (Nickel Metal Hydride) |
| Capacity | 700 mAh |
| Voltage | 2.4 Volts |
| Energy Rating | 1.68 Wh |
| Dimensions | 44.23 × 20.57 × 10.30 mm |
| Weight | 49.0 grams |
| Rechargeable | Yes |
| Model Name | CS-PTG103CL |
Setup and Installation
Follow these steps to properly install your new battery:
- Verify Compatibility: Before opening the package, carefully check your device's model number and the original battery's part number against the compatibility list provided in this manual.
- Prepare Device: Ensure your device is powered off and disconnected from any power source before attempting battery replacement.
- Remove Old Battery: Open the battery compartment of your device and carefully remove the old battery. Dispose of old batteries according to local regulations.
- Install New Battery: Insert the Vsdampj CS-PTG103CL battery into the compartment, ensuring the connector is properly aligned and securely connected to your device. Do not force the connector.
- Secure Compartment: Close the battery compartment securely.
Figure 1: Front view of the Vsdampj CS-PTG103CL Ni-MH rechargeable battery pack.

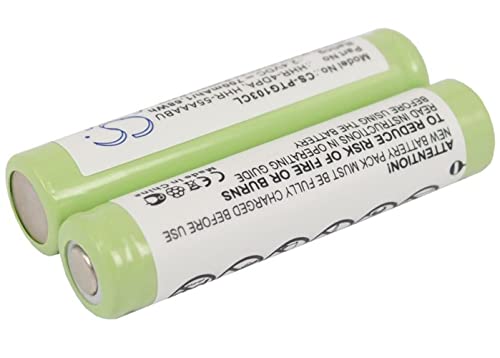

Figure 2: Angled view of the battery pack, showing product label and specifications.
Operating Instructions
To achieve the best performance from your new battery, follow these guidelines:
- Initial Charge: A new battery will reach its optimal performance after 2 or 3 complete charge and discharge cycles. Fully charge the battery before its first use, then allow it to fully discharge before recharging again for the first few cycles.
- Regular Charging: Use the original or a high-quality, compatible charger provided with your device.
Maintenance and Safety
Proper care and adherence to safety warnings will extend the life of your battery and ensure safe operation:
- Charging Practices: Do not use low-quality third-party adapter chargers. Using incompatible or substandard chargers can reduce battery life and pose safety risks.
- Temperature Control: Do not store the battery above 60°C (140°F). Extreme temperatures can damage the battery and affect its performance.
- Physical Integrity: Do not crush, puncture, or short-circuit the external contacts of the battery. Physical damage can lead to overheating, fire, or explosion.
- Water Exposure: Do not dispose of the battery in fire or water. Exposure to fire or water can cause severe damage and hazards.
- Disassembly: Do not attempt to disassemble or service the battery pack. The warranty may be void if the label is removed or the battery is tampered with.

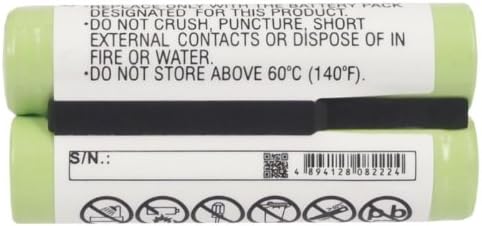

Figure 3: Close-up of safety warning labels on the battery.

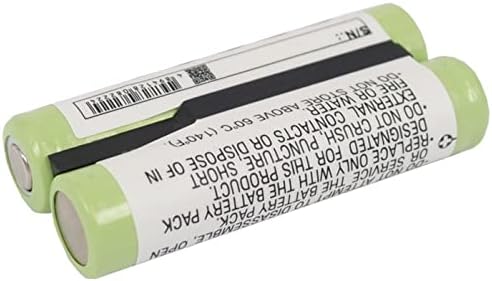

Figure 4: Rear view of the battery pack with serial number and warning icons.
Troubleshooting
If you encounter issues with your battery, consider the following:
- Battery Not Charging: Ensure the battery is correctly installed and the connector is firmly seated. Verify that your charger is functioning correctly and is compatible with your device and battery.
- Short Battery Life: New batteries require 2-3 full charge/discharge cycles to reach full capacity. If the issue persists, ensure you are using a quality charger and avoiding extreme temperatures.
- Device Not Powering On: Double-check battery installation. If the device still does not power on, the issue may be with the device itself rather than the battery.
For persistent issues, please refer to the Support section for contact information.
Warranty Information
Your Vsdampj CS-PTG103CL battery comes with a 30-day money-back or free replacement guarantee without reason. This warranty covers manufacturing defects and ensures your satisfaction with the product. Please retain your proof of purchase for warranty claims.
The battery has passed certifications including ISO9001, RoHS, CE, UN38.3, and MSDS, ensuring quality and safety.
Support and Contact
If you have any questions, concerns, or encounter any problems while using our products, please do not hesitate to contact us. We are committed to providing prompt assistance.
Please send us a message, and we will respond as soon as possible to help resolve your issue.
