Domi 12'x20' Outdoor Sunroom Kit Instruction Manual

Introduction

This manual provides essential information for the safe and effective assembly, operation, and maintenance of your Domi 12'x20' Outdoor Sunroom Kit. Please read all instructions carefully before beginning assembly and retain this manual for future reference.

Image: The Domi 12'x20' Outdoor Sunroom Kit, showcasing its integration with a modern home and poolside area.

Safety Information

Important Safety Precautions:

• Always use appropriate safety equipment, including gloves and eye protection, when handling and installing components.
• Ensure the wall mounting surface is structurally sound and capable of supporting the sunroom's weight. Consult a professional if unsure.
• Do not attempt installation during adverse weather conditions such as strong winds, heavy rain, or snow.
• Keep children and pets away from the assembly area.
• Verify all connections are secure before use.

Product Features

• Spacious Interior: The sunroom measures 20.4ft in length, 12ft in width, and 8.4ft in height, providing ample space for various activities.


Image: Dimensional diagram illustrating the sunroom's length, width, and height, along with snow pressure and wind resistance ratings.

• Slope & Hidden Gutter System: Designed with a galvanized steel roof that directs rainwater and snowmelt into a hidden gutter system for efficient drainage.


Image: Detailed view of the hidden gutter system, demonstrating its effectiveness in preventing leaf blockage and ensuring proper water flow.

• Versatile Sunlight Control: Features detachable PC windows for customizable light and ventilation. These windows are easy to remove for cleaning or to enjoy open-air conditions.


Image: Detachable PC windows offering privacy, UV protection, and waterproof capabilities, with an inset showing easy removal.

• Double Sliding Door & Securable Side Entry: The sunroom includes a double sliding door at the front and a lockable side entrance, allowing flexible access and space configuration.


Image: View of the sunroom's front and side sliding double doors, emphasizing smooth operation and convenient handles.

• Extra Metal Support Poles: Two additional support poles are included to enhance the structure's weight-bearing capacity, particularly useful in snowy conditions.
• Durable Construction: Features a power-coated aluminum structure and galvanized steel roof for enhanced durability, waterproofing, and anti-corrosion properties.

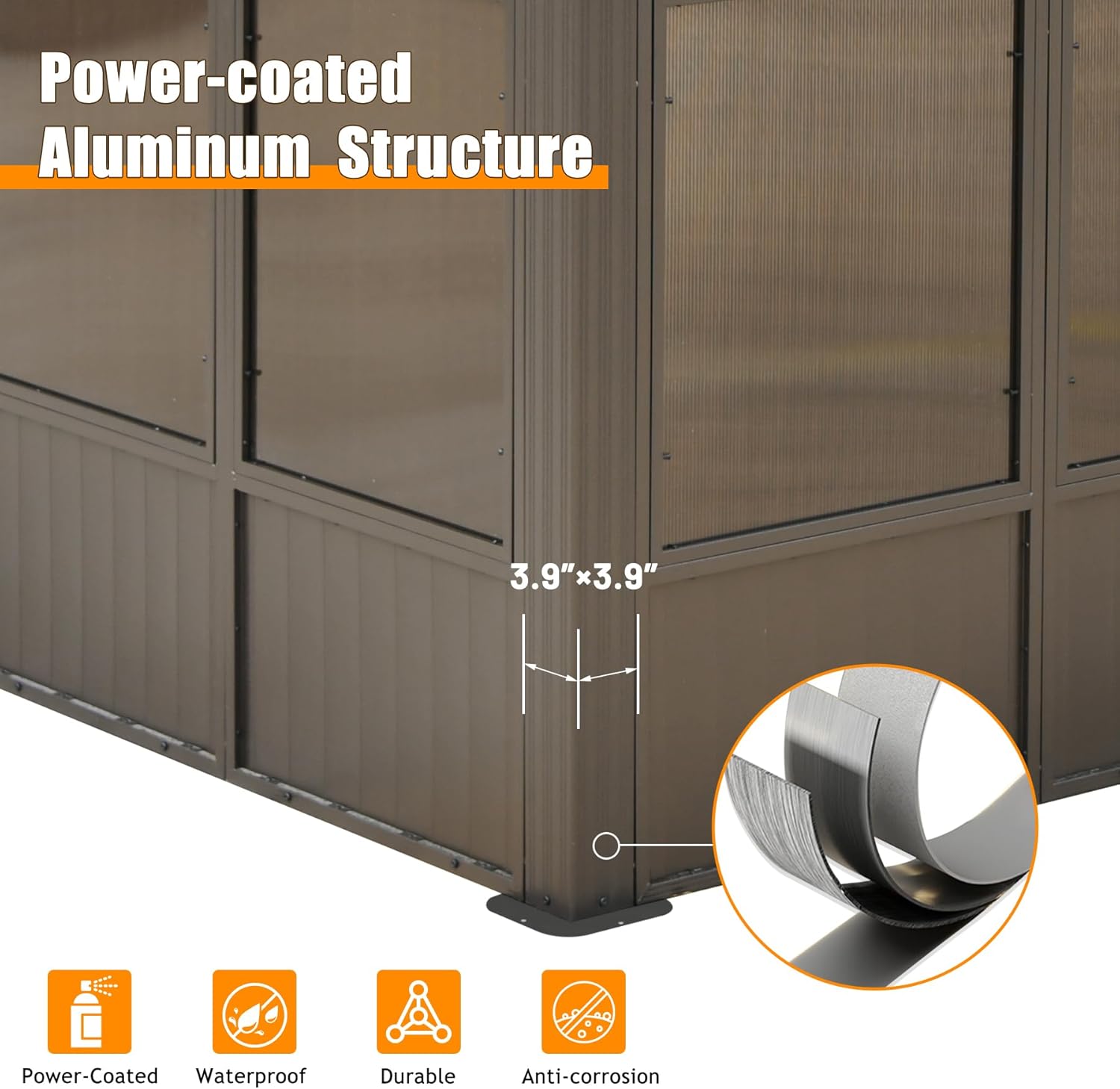

Image: Detailed view of the sunroom's power-coated aluminum frame, highlighting its robust 3.9"x3.9" dimensions and protective features.

Setup and Installation

Assembly of the Domi Sunroom Kit requires careful attention to detail and adherence to the provided instructions. It is recommended to have at least two people for assembly.

1. Preparation: Clear the installation area. Ensure the wall where the sunroom will be mounted is clean, level, and structurally sound. Gather all tools required, including a drill with appropriate bits, wrenches, and a level.
2. Frame Assembly: Begin by assembling the main frame components. Lay out all parts and identify them using the parts list. Connect the corner posts and cross beams according to the manual. It is often easier to assemble wall sections flat on the ground before raising them.
3. Wall Mounting: Securely attach the sunroom frame to the designated wall. Utilize the pre-drilled wall studs and base holes for anchoring. Ensure the structure is level and square.
4. Roof Installation: Install the galvanized steel roof panels. Pay close attention to the sealing process to prevent leaks. Apply sealant liberally where indicated in the instructions, as the supplied amount may be insufficient for optimal sealing.
5. Door and Window Installation: Install the detachable PC windows and sliding doors. It is generally recommended to hang the doors last. Ensure smooth operation of the sliding tracks and proper alignment to prevent gaps.
6. Support Poles: Install the extra metal support poles as directed, especially if the sunroom will be exposed to heavy snow loads or severe weather.

For detailed step-by-step instructions, refer to the comprehensive assembly guide included with your product packaging.

Operating Instructions

• Sliding Doors: To open or close the double sliding doors, gently push or pull the door handles along the smooth sliding tracks. Ensure the tracks are clear of debris for optimal operation.
• Detachable PC Windows: The PC windows can be removed to allow for increased airflow or to enjoy an open-air experience. Follow the specific instructions in your assembly guide for safe removal and reinstallation. When removed, the integrated insect mesh provides ventilation while keeping pests out.


Image: The sunroom with detachable privacy windows removed, showcasing the breathable insect mesh for ventilation.

• Lockable Side Entrance: Use the lockable side entrance for additional security and flexible access.

Maintenance

Regular maintenance will extend the lifespan and appearance of your sunroom.

• Cleaning: Clean the aluminum frame and PC windows periodically with mild soap and water. Avoid abrasive cleaners or tools that could scratch surfaces.
• Gutter System: Regularly inspect and clear the hidden gutter system of any leaves or debris to ensure proper water drainage.
• Seals and Fasteners: Periodically check all seals, bolts, and fasteners for tightness and integrity. Re-tighten as necessary. Inspect for any signs of wear or damage.
• Winter Care: While the sunroom is designed for all-weather use, ensure the extra support poles are installed during winter months to manage snow load. Clear heavy snow accumulation from the roof to prevent structural stress.
• PC Window Storage: When not in use, store detachable PC windows in a safe, dry place, ideally on a dedicated storage shelf to prevent damage.

Troubleshooting

Here are solutions to common issues you might encounter:

Specifications

• Brand: domi outdoor living
• Model: 12'x20' Sunroom
• Material: Steel Roof, Metal Frame
• Product Dimensions: 244.8"L x 144"W x 100.8"H (20.4ft L x 12ft W x 8.4ft H)
• Item Weight: 500 Pounds
• Water Resistance Level: Water Resistant
• Ultraviolet Light Protection: UV Protection
• Color: Brown
• Assembly Required: Yes

Warranty and Support

Information regarding product warranty and customer support contact details was not available in the provided product data. Please refer to the documentation included with your purchase or visit the official Domi Outdoor Living website for specific warranty terms and support options.
