FiiO K17 Desktop DAC & Headphone Amplifier User Manual
Model: K17 | Brand: FiiO
Introduction
The FiiO K17 is a high-performance desktop Digital-to-Analog Converter (DAC) and Headphone Amplifier designed to deliver exceptional audio fidelity for discerning audiophiles. It integrates advanced audio technologies, including flagship AKM DAC chips, a powerful discrete amplifier circuit, and versatile connectivity options, ensuring a premium listening experience. This manual provides comprehensive instructions for setting up, operating, and maintaining your FiiO K17.
What's in the Box
Upon unboxing your FiiO K17, please verify that all the following items are included:
- FiiO K17 Desktop DAC & Headphone Amplifier
- Quick Start Guide
- Remote Controller
- Power Cable
- USB Cable
Key Features
Discrete Amplifier Circuit
The FiiO K17 features a discrete amplifier circuit utilizing an OP + transistor current-driving headphone amplifier design. It is equipped with On Semiconductor MJE243G/253G complementary pairs, enabling high-current, low-impedance output. The balanced output power reaches up to 4000mW+4000mW, capable of effortlessly driving both large headphones and sensitive in-ear monitors, delivering a smooth, natural, and melodious sound.
Image: Internal components illustrating the discrete class AB transistor current amplification.
Flagship DAC Chip Combination
The device incorporates the AKM flagship DAC chip combination, AK4191 + AK4499EX*2, with each AK4499EX handling one channel. This setup, paired with an 8-channel to 4-channel LPF design, effectively reduces common-mode interference, leading to improved channel separation and dynamics. A fully separated digital/analog structure, based on newly developed "DWA ROUTING technology," further purifies the audio background and enhances resolution.

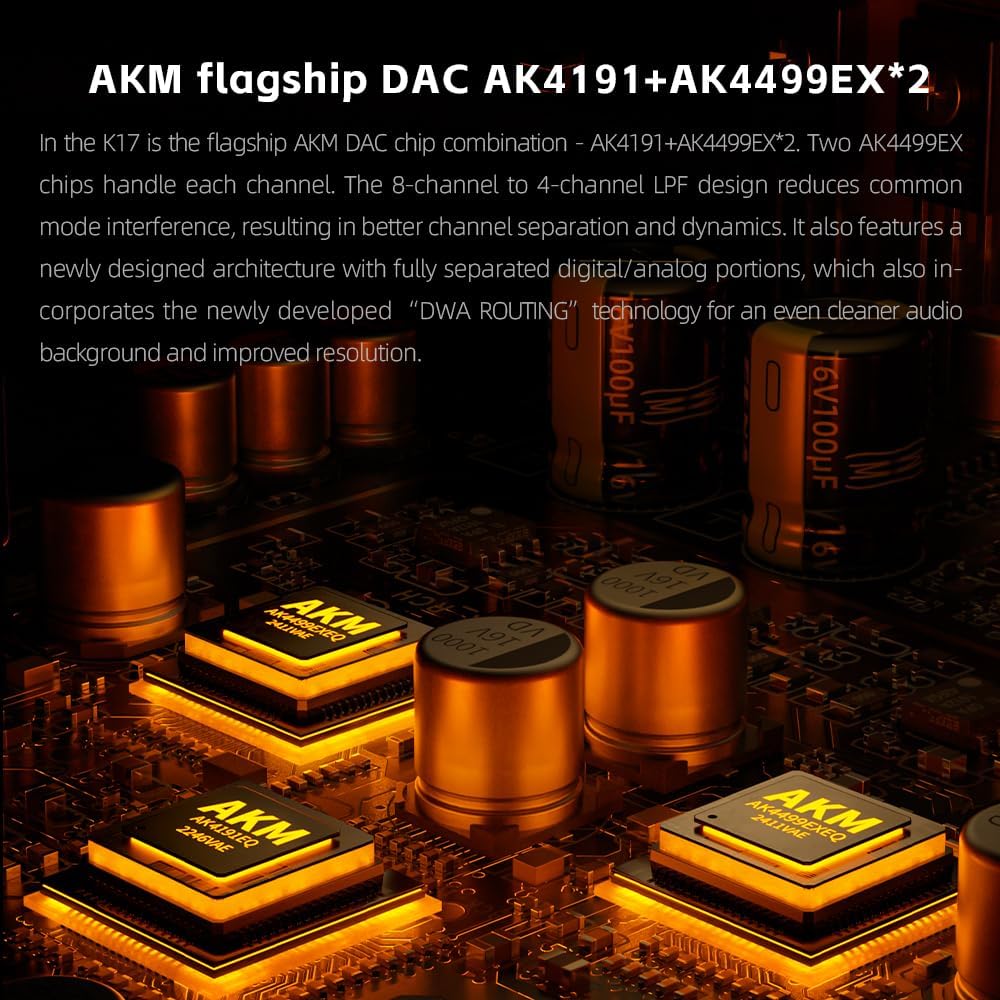

Image: Detailed view of the AKM flagship DAC chips (AK4191 and AK4499EX) within the K17.
31-Band Professional PEQ Adjustment
Equipped with the professional DSP chip M21586Q and high-performance ADC ES9821Q, complemented by a custom-designed ultra-low phase noise femtosecond crystal oscillator, the FiiO K17 offers a 31-band professional-grade high-precision lossless PEQ (Parametric Equalizer) adjustment function across all input modes. This allows for precise simulation or correction of headphone frequency response curves to tailor your listening experience.
Image: Graphical representation of the 31-band PEQ adjustment interface.
Multiple Input Options and Decoding Capabilities
The FiiO K17 supports a wide array of input options, including single-ended line input, balanced line input, USB decoding, Bluetooth decoding, optical decoding, and coaxial decoding. The USB decoding utilizes the XMOS 16-core chip XU316, supporting up to 768kHz/32bit, DSD512, and full MQA decoding. Bluetooth decoding is powered by the Qualcomm QCC5125 chip, featuring Bluetooth 5.1 and supporting aptX HD, aptX Adaptive, and LDAC codecs. It also supports Roon Ready and AirPlay for streaming, and local playback via external USB drives and portable hard drives.
Image: Overview of the K17's eight versatile operating modes.
Intuitive Control and Display
The K17 features a custom-designed 3.93-inch LCD screen for quick switching between various settings and functions via touch controls. It also includes five independent control knobs for one-button standby and fast adjustments for volume, gain, and output. An infrared remote control is included for convenient long-distance operation, allowing easy switching of work modes, EQ settings, and volume adjustments.
Image: Front panel of the FiiO K17, highlighting the LCD screen and control interface.
Precision Power Supply Design
The K17 incorporates a precision power supply design featuring a 35W low-noise linear power supply and five large 4700µF electrolytic capacitors. It utilizes separate power supplies for analog and digital circuits, along with a multi-stage analog power supply, to ensure clean and stable power delivery for optimal audio performance.
Image: Internal view showcasing the precision power supply components.
Accusilicon Femtosecond Audio Crystal Oscillators
The K17 is equipped with three Accusilicon low phase noise femtosecond audio crystal oscillators. These high-precision oscillators significantly reduce the impact of phase noise on audio signals, allowing audio signals of various sampling rates to be precisely and faithfully restored, resulting in purer and more consistent sound.
Image: Detailed view of the Accusilicon crystal oscillators.
High-End Components for Superior Sound
The FiiO K17 utilizes a selection of high-quality components to ensure superior audio performance. This includes 4 ELNA MILIC II capacitors, 4 Nichicon audio-specific capacitors, 6 ELNA RA3 audio-specific capacitors, 4 sets of silver-plated oxygen-free copper connecting cables, and NEUTRIK gold-plated connectors. These components contribute to the K17's exceptional sound quality and durability.

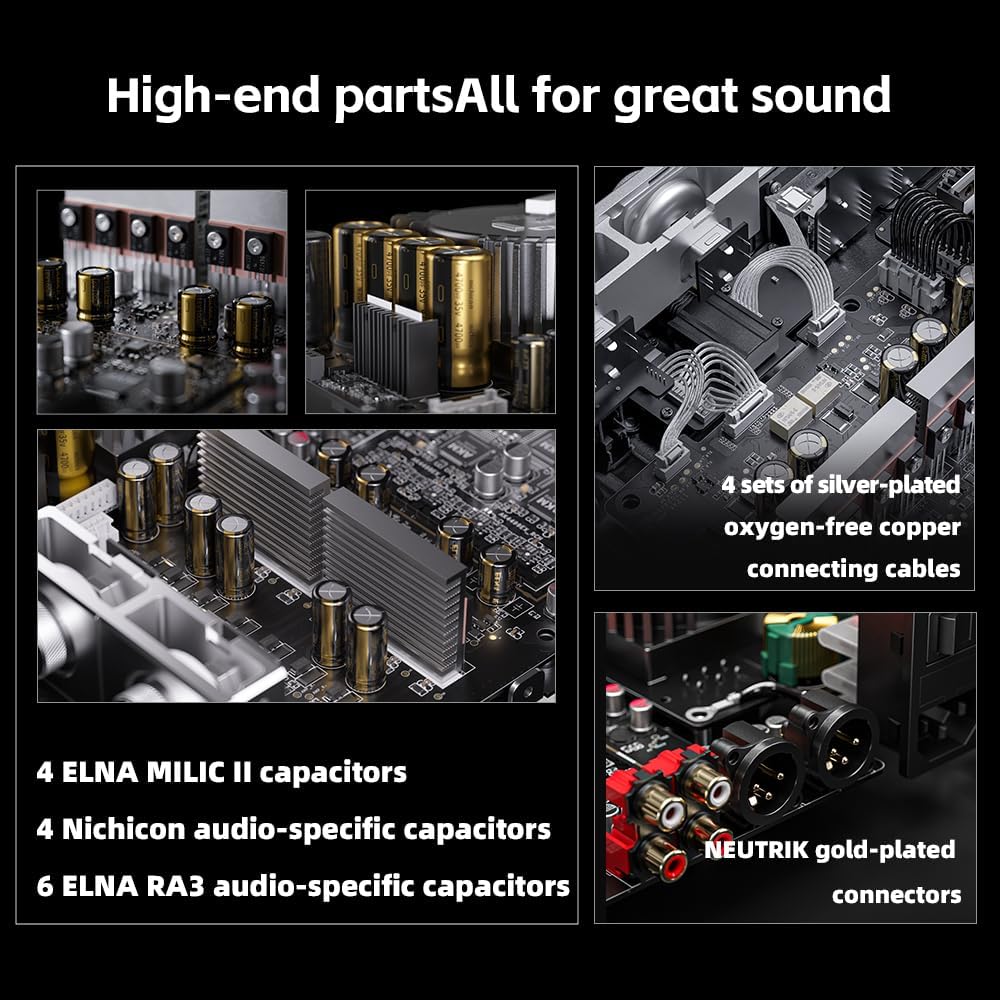

Image: Various high-end internal components used in the K17.
Setup Guide
Follow these steps to set up your FiiO K17 for optimal performance:
- Placement: Place the K17 on a stable, flat surface with adequate ventilation. Avoid placing it near heat sources or in direct sunlight.
- Power Connection: Connect the provided power cable to the AC input on the rear panel of the K17 and then to a suitable power outlet. Ensure the power switch is in the OFF position before connecting.
- Input Connection:
- USB Input: Connect your computer or other USB audio source to the USB-B input port on the rear panel using the supplied USB cable.
- Optical/Coaxial Input: Connect your digital audio source (e.g., TV, CD player) to the OPTICAL IN or COAXIAL IN port.
- Line Input (RCA/4.4mm): For analog sources, connect to the LINE IN RCA ports or the 4.4mm balanced input.
- Network Connection (LAN): For streaming features like Roon Ready, connect an Ethernet cable to the LAN port.
- Output Connection:
- Headphones: Connect your headphones to the appropriate headphone output jacks on the front panel (6.35mm single-ended, 4.4mm balanced, or XLR 4-pin balanced).
- Line Output (RCA/XLR): For connecting to external power amplifiers or active speakers, use the LINE OUT RCA ports or the BALANCED OUTPUT XLR ports on the rear.
- Power On: Flip the power switch on the rear panel to the ON position. The LCD screen on the front will illuminate.
- Remote Control Setup: Insert batteries into the remote control. The remote can be used to control various functions from a distance.
Image: Rear panel of the FiiO K17, illustrating all available input and output connections.
Operating Instructions
The FiiO K17 offers a range of controls and modes for a customized audio experience.
Front Panel Controls
- LCD Screen: Displays current input, sample rate, volume, EQ settings, and other operational information. Supports touch control for quick navigation.
- MENU Knob: Used to navigate menus, select options, and confirm settings.
- VOLUME Knob: Adjusts the output volume. Can also be pressed to mute/unmute.
- Input Selector Knobs: Dedicated knobs for switching between various inputs (e.g., USB, Optical, Coaxial, Line In, Bluetooth).
- Gain Switch: Adjusts the gain level (e.g., Low, Medium, High) to match the sensitivity of your headphones.
- Output Mode Switch: Selects between headphone output, line output, or pre-out modes.
Input Mode Selection
Rotate the input selector knob or use the remote control to cycle through available input sources: USB, Optical, Coaxial, Line In (RCA), Balanced Line In (4.4mm), Bluetooth, Streaming (LAN), and Local Playback (USB Host).
Volume Adjustment
Turn the VOLUME knob clockwise to increase volume and counter-clockwise to decrease. Press the knob to quickly mute or unmute the audio output.
Gain Settings
The K17 features multiple gain settings to accommodate a wide range of headphones. Select a lower gain for sensitive IEMs to avoid hiss, and a higher gain for demanding over-ear headphones to ensure sufficient power.
PEQ (Parametric Equalizer) Adjustment
Access the PEQ settings via the LCD screen menu. The 31-band PEQ allows for precise frequency response adjustments. You can select from preset EQ curves or create custom ones to fine-tune the sound to your preference or to compensate for headphone characteristics.
Bluetooth Operation
Switch the input to Bluetooth mode. The K17 will enter pairing mode. On your device (smartphone, tablet), search for "FiiO K17" in the Bluetooth settings and connect. The K17 supports high-resolution Bluetooth codecs like aptX HD, aptX Adaptive, and LDAC.
Streaming and Local Playback
When connected to a network via LAN, the K17 supports Roon Ready and AirPlay for seamless streaming from compatible devices and servers. For local playback, connect a USB flash drive or portable hard drive to the USB Host port on the rear panel to access your stored audio files.
Maintenance and Care
Proper care will ensure the longevity and optimal performance of your FiiO K17.
- Cleaning: Use a soft, dry, lint-free cloth to clean the exterior of the unit. For stubborn marks, slightly dampen the cloth with water. Avoid using harsh chemicals, solvents, or abrasive cleaners.
- Ventilation: Ensure the K17 has adequate airflow around it. Do not block the ventilation holes.
- Environment: Operate and store the unit in a clean, dry environment, away from extreme temperatures, humidity, and direct sunlight.
- Handling: Avoid dropping or subjecting the unit to strong impacts.
- Power Off: Always power off the unit before disconnecting cables or moving it.
Troubleshooting
If you encounter issues with your FiiO K17, refer to the following common problems and solutions:
No Sound Output
- Check Power: Ensure the unit is powered on and the power cable is securely connected.
- Volume Level: Verify that the volume is not set to minimum or muted.
- Input Selection: Confirm that the correct input source is selected on the K17.
- Output Connection: Ensure headphones or speakers are properly connected to the correct output port.
- Source Device: Check if your audio source device (computer, phone) is playing audio and its volume is up.
Distorted or Poor Sound Quality
- Cable Connections: Ensure all audio cables are securely connected and not damaged.
- Sample Rate Mismatch: For USB input, ensure the sample rate set on your computer matches the capabilities of the K17 and the audio file.
- Gain Setting: Adjust the gain setting to match your headphones. Too high gain for sensitive headphones can cause distortion.
- EQ Settings: Check if any PEQ settings are causing undesirable effects. Try resetting EQ to default.
Connectivity Issues (USB/Network)
- USB Driver: For Windows PCs, ensure the correct FiiO USB DAC driver is installed.
- Cable Integrity: Try a different USB or Ethernet cable.
- Network Configuration: For Roon Ready or AirPlay, ensure the K17 and your control device are on the same network. Check router settings if necessary.
- Firmware Update: Ensure the K17's firmware is up to date. Firmware updates are typically performed via USB and require downloading the update file from the FiiO website.
- Reboot: Power cycle the K17 and your source device/router.
Remote Control Not Responding
- Batteries: Check and replace the batteries in the remote control.
- Line of Sight: Ensure there is a clear line of sight between the remote and the K17's IR receiver.
Specifications
| Model | K17 |
| DAC Chip | AK4191 + AK4499EX*2 |
| Amplifier Circuit | Discrete OP + Transistor Current-Driving Headphone Amplifier |
| Max Balanced Output Power | 4000mW + 4000mW |
| USB Decoding Support | Up to 768kHz/32bit, DSD512, Full MQA |
| Bluetooth Version | 5.1 |
| Bluetooth Codecs | aptX HD, aptX Adaptive, LDAC, etc. |
| Display | 3.93-inch LCD Screen (Touch Control) |
| PEQ | 31-Band Professional High-Precision Lossless PEQ |
| Inputs | USB-B, Optical, Coaxial, RCA Line In, 4.4mm Balanced Line In, LAN, Bluetooth |
| Outputs | 6.35mm Headphone, 4.4mm Balanced Headphone, XLR 4-pin Balanced Headphone, RCA Line Out, XLR Balanced Line Out |
| Package Dimensions | 13.78 x 11.02 x 3.54 inches |
| Item Weight | 8.76 pounds |
| Manufacturer | FiiO |
| Country of Origin | China |
Warranty and Support
For detailed warranty information, please refer to the warranty card included with your FiiO K17 or visit the official FiiO website. Warranty terms and conditions may vary by region.
For technical support, firmware updates, and frequently asked questions, please visit the official FiiO support page or contact their customer service directly.
