Goplus Rolling Garden Cart with Adjustable Seat and Handle

1. Introduction

This manual provides essential information for the safe and efficient use of your Goplus Rolling Garden Cart. Please read these instructions thoroughly before assembly and operation. Keep this manual for future reference.

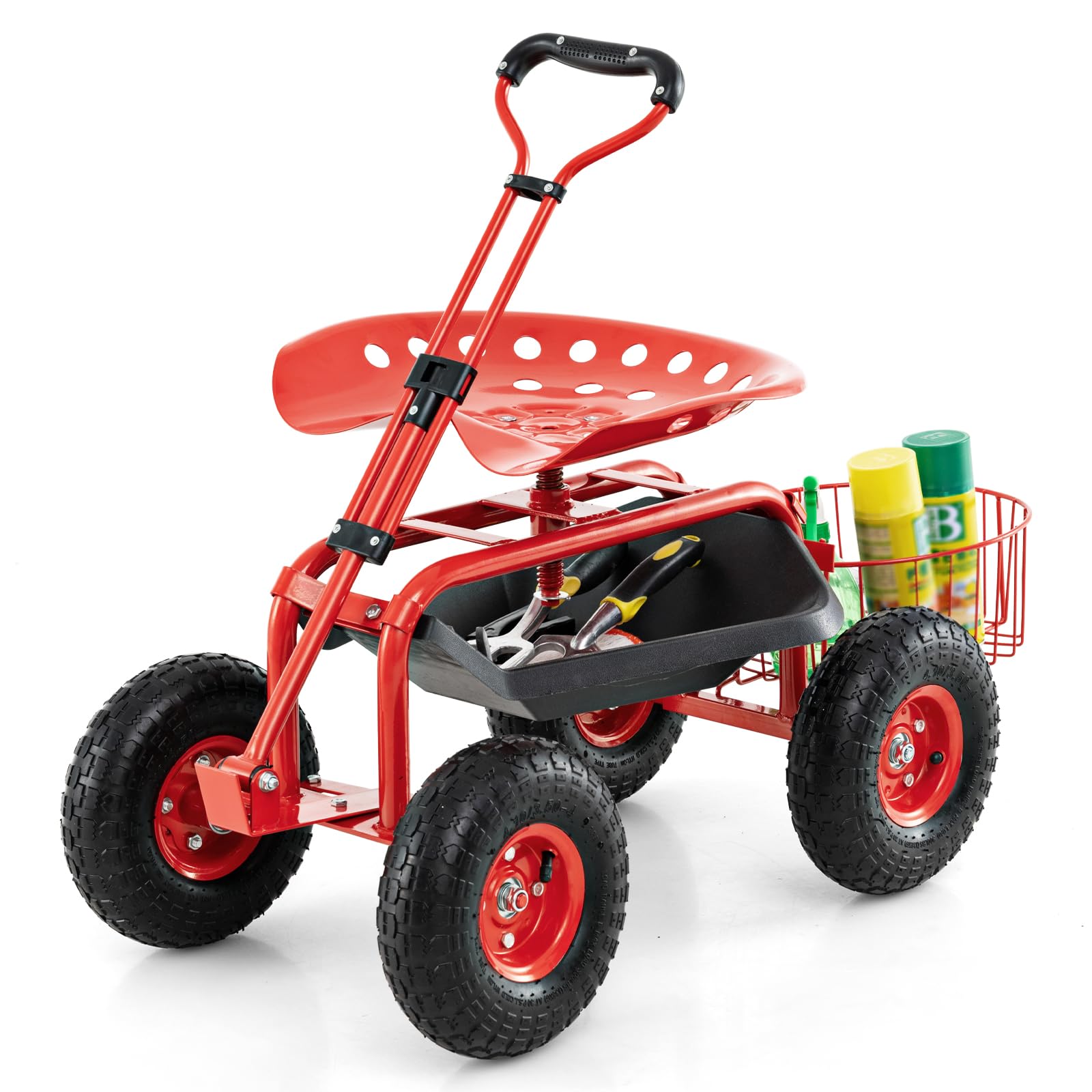

Image 1.1: Goplus Rolling Garden Cart in use.

2. Safety Information

To ensure safe operation and prevent injury or damage, observe the following safety guidelines:

• Always ensure the cart is on a stable, level surface before use.
• Do not exceed the maximum weight capacity of 330 lbs (150 kg).
• Exercise caution when using the swivel seat and height adjustment features to prevent tipping.
• Keep the drag rod clear of walking paths to prevent tripping hazards.
• Always follow the assembly instructions carefully to ensure the cart is properly assembled and stable.
• Keep hands and feet clear of moving parts, especially wheels and steering mechanisms.
• Do not allow children to play on or around the cart unsupervised.

3. Package Contents

Verify that all components are present and undamaged before beginning assembly:

• 1 × Goplus Rolling Garden Cart
• 1 × Instruction Manual (this document)
• All necessary hardware for assembly (bolts, nuts, washers)

If any parts are missing or damaged, please contact Goplus customer support immediately.

4. Assembly Instructions

Assembly is required. It is recommended to perform assembly in a well-ventilated area, preferably outdoors, to dissipate any initial odors from materials. You will need the following tools (not included):

• Two wrenches (e.g., 1/2 inch or adjustable wrenches)
• Phillips head screwdriver

Follow the included pictorial instructions carefully. Pay close attention to the orientation of parts and ensure all fasteners are securely tightened.

1. Attach the Wheels: Secure each of the four 10-inch pneumatic tires to the axle using the provided large nuts and washers. Ensure tires are adequately inflated.
2. Assemble the Frame: Connect the main frame components as shown in the diagram.
3. Install the Seat Post: Insert the seat post into the designated opening on the frame.
4. Attach the Seat: Secure the ergonomic seat to the seat post using the Phillips head screws.
5. Mount the Tool Tray and Basket: Attach the under-seat tool tray and the rear mesh basket to the frame.
6. Connect the Steering Handle: Attach the adjustable steering handle to the front axle assembly. Do not overtighten the steering assembly bolts; allow for smooth rotation of the front wheels.

Image 4.1: Product dimensions and weight capacity.

5. Operating Instructions

Your Goplus Rolling Garden Cart is designed for comfortable and efficient gardening tasks.

5.1. Seat Adjustment

• Height Adjustment: The seat height can be adjusted from approximately 19 to 21 inches (48-53 cm). To adjust, rotate the seat clockwise to lower or counter-clockwise to raise. Do not force rotation beyond resistance points.
• Swivel Function: The seat features a 360-degree swivel for easy access to surrounding areas without repositioning the cart.

Image 5.1: Ergonomic seat features.

5.2. Steering Handle

• Length Adjustment: The telescoping handle can be adjusted in length from 22 to 31 inches (56-79 cm) to suit user height and preference. Loosen the locking mechanism, extend or retract the handle, and secure the lock.
• Steering: Use the handle to steer the front wheels, guiding the cart across your garden or yard. The handle also allows for pulling the cart when not seated.

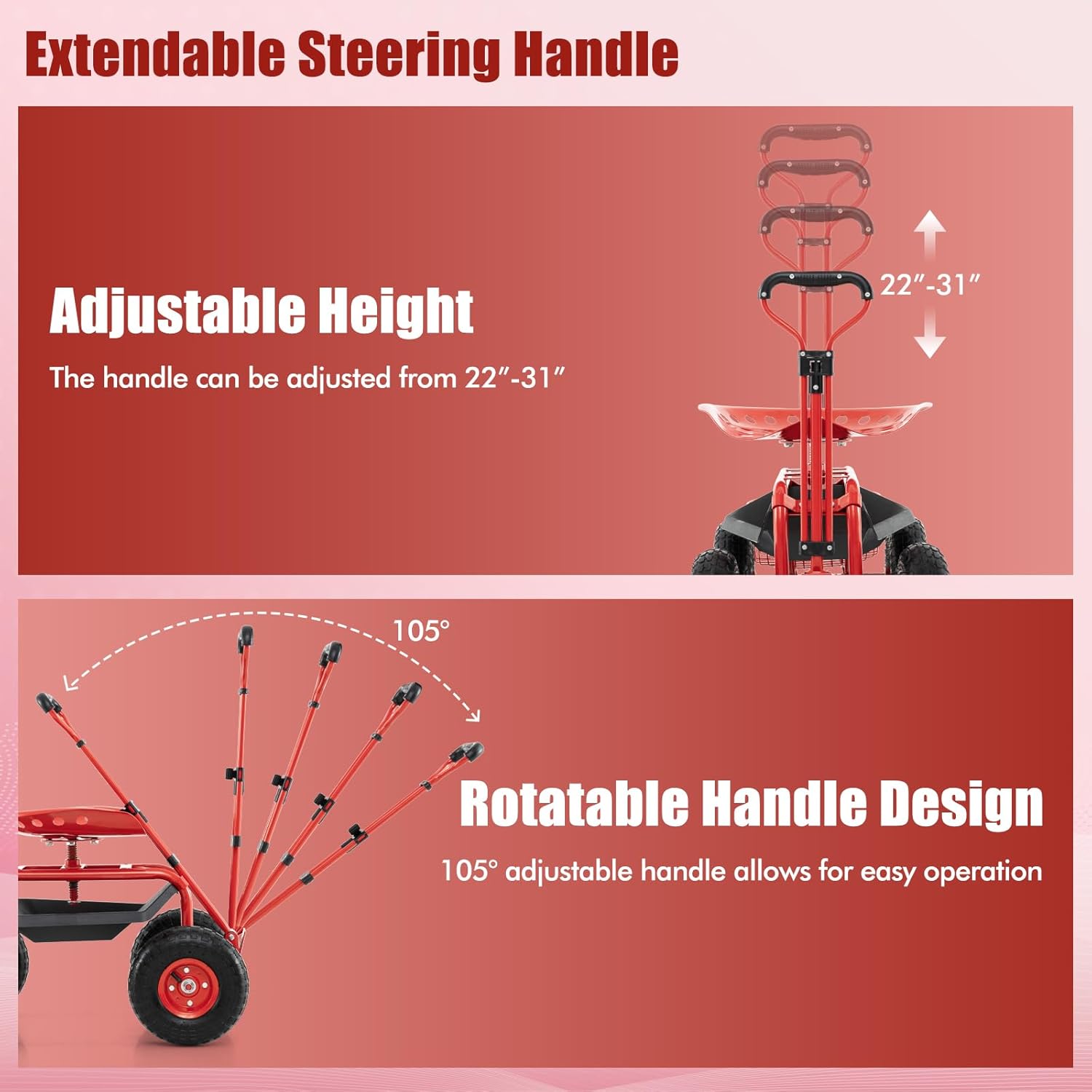

Image 5.2: Extendable steering handle.

5.3. Storage

• Under-Seat Tool Tray: Utilize the compartment beneath the seat to store small tools, gloves, or other gardening essentials.
• Rear Mesh Basket: The removable mesh basket at the back provides additional storage for larger items like watering cans or harvested crops.

Image 5.3: Tool tray and mesh basket storage.

5.4. All-Terrain Tires

The 10-inch air-filled rubber tires are designed with deep tread patterns for enhanced traction and stability on various surfaces, including asphalt, cobbled roads, lawns, and muddy terrain.

Image 5.4: All-terrain pneumatic tires.

6. Maintenance

Regular maintenance ensures the longevity and optimal performance of your garden cart.

• Cleaning: Wipe down the metal frame and plastic seat with a damp cloth after each use to remove dirt and debris. Avoid harsh chemicals that may damage the finish.
• Tire Pressure: Periodically check the air pressure in the pneumatic tires. Inflate to the recommended PSI (usually indicated on the tire sidewall) to ensure smooth rolling and prevent damage.
• Fasteners: Regularly inspect all bolts, nuts, and screws to ensure they are tight. Retighten as necessary to maintain structural integrity.
• Lubrication: Apply a small amount of general-purpose lubricant to moving parts such as the steering mechanism and seat swivel point annually, or as needed, to ensure smooth operation.
• Storage: Store the cart in a dry, covered area when not in use to protect it from weather elements and extend its lifespan.

7. Troubleshooting

This section addresses common issues you might encounter.

8. Specifications

9. Warranty and Support

Specific warranty information for the Goplus Rolling Garden Cart (Model SU-3749RE-TG) is not detailed in this manual. For warranty claims, product support, or to inquire about replacement parts, please refer to the purchase documentation or contact Goplus customer service directly through their official website or the retailer where the product was purchased.

Please have your model number (SU-3749RE-TG) and purchase date available when contacting support.
