ONBRILL Adjustable Full/Queen Headboard Instruction Manual

1. Introduction and Overview

Thank you for choosing the ONBRILL Adjustable Headboard. This headboard is designed to enhance your bedroom with its modern aesthetic, integrated storage, and customizable RGB LED lighting. This manual provides essential information for safe assembly, operation, and maintenance of your new headboard.

Image 1.1: ONBRILL Adjustable Full/Queen Headboard, Beige. This image shows the overall design of the headboard, highlighting its modern vertical channel design and integrated LED light strip.

2. Product Features

• Adjustable Height: Suits full and queen bed frames with six adjustable positions, ranging from 45.2" to 49.1" in height. Includes two adapters for easy attachment to various bed bases.
• Integrated RGB LED Lighting: Features a smart light strip with over 60,000 colors and multiple flashing modes. Includes a music sync function to change light colors with sound and music rhythm.
• Vertical Storage Space: Provides convenient storage for items such as tablets, books, and magazines, keeping them within easy reach.
• Modern Design: Upholstered in breathable linen fabric with a comfortable, soft appearance and a vertical channel design for an elegant aesthetic.
• Sturdy Construction: Built with premium metal legs and a solid wood frame for stability and durability.

3. Safety Information

• Ensure all components are securely fastened during assembly to prevent instability.
• Do not overload the vertical storage space to maintain structural integrity.
• Keep electrical components (LED strip, power cord) away from water and moisture.
• Ensure the power cord is not pinched or damaged during installation or use.
• This product is intended for adult use. Keep small parts away from children during assembly.

4. Package Contents

Before beginning assembly, verify that all parts are present and undamaged. If any parts are missing or damaged, please contact customer support.

• Headboard panels (main upholstered sections)
• Metal legs (2)
• Bed frame adapters (2)
• RGB LED light strip with controller
• Assembly hardware (screws, bolts, Allen wrench)
• Instruction manual

5. Setup and Assembly

Follow these steps carefully for proper assembly. Two people are recommended for easier installation.

1. Unpack Components: Carefully remove all parts from the packaging and lay them out on a clean, soft surface to prevent scratches.
2. Attach Metal Legs: Secure the metal legs to the back of the headboard panels using the provided screws and bolts. Ensure they are firmly attached.
3. Adjust Height: The headboard offers six adjustable height positions. Select your desired height and secure the legs using the appropriate pre-drilled holes. The height adjusts from 45.2" to 49.1".
4. Attach to Bed Frame (Optional): If attaching to a bed frame, use the two included bed frame adapters. These adapters allow for easy attachment to various bed bases. For Queen beds, the distance between headboard legs adjusts from 54" to 60.3"; for Full beds, it's 48" to 54.3".
5. Install LED Light Strip: The LED light strip is typically pre-installed. Ensure its connection to the controller is secure.

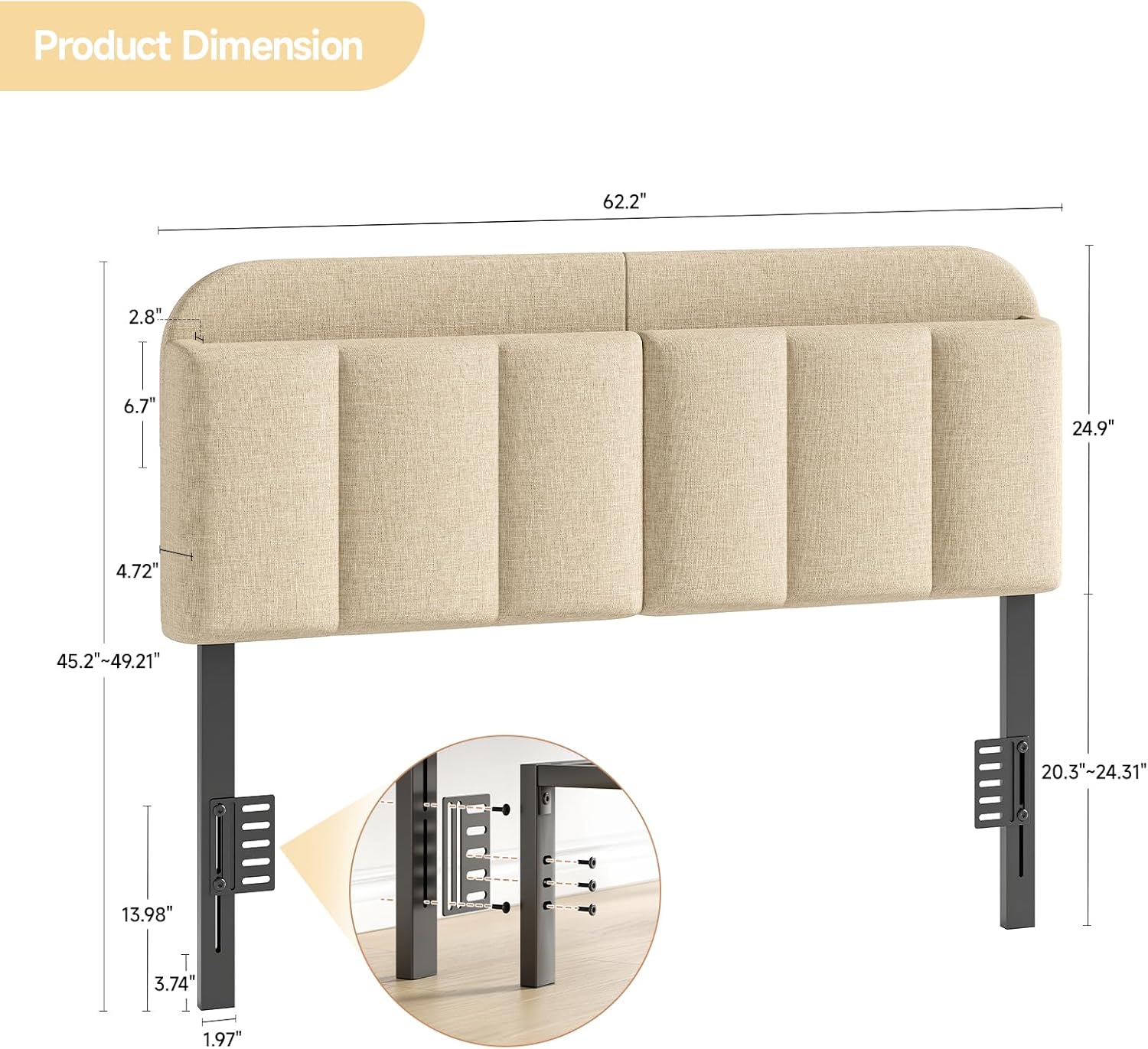

Image 5.1: Product Dimension Diagram. This diagram illustrates the overall dimensions of the headboard and the adjustable height range.

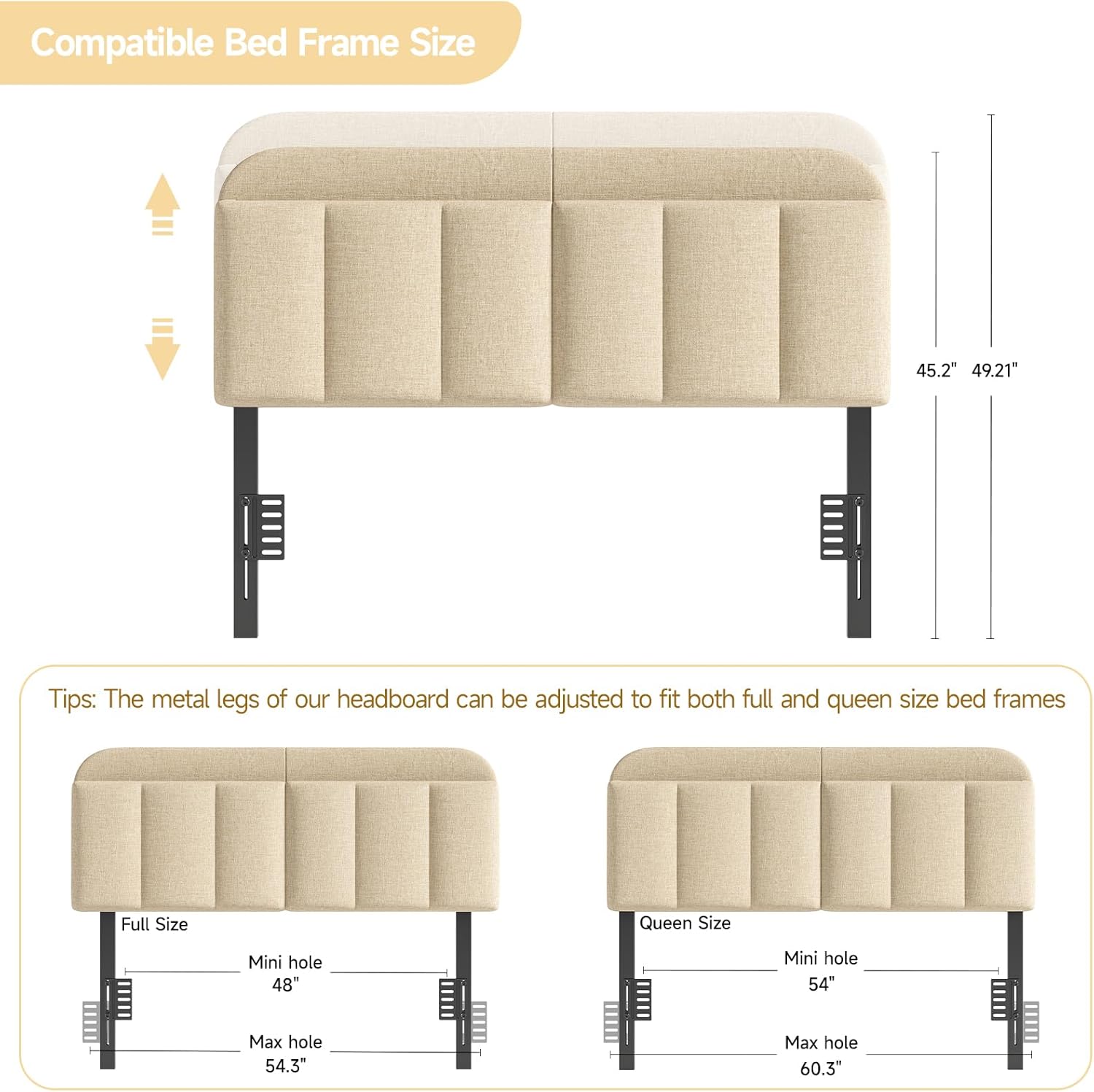

Image 5.2: Compatible Bed Frame Size Diagram. This image shows how the headboard legs adjust to fit both Full and Queen size bed frames.

Image 5.3: Bed Frame Adapter Detail. This close-up shows the adjustable bed frame adapters and how they attach to the headboard legs.

6. Operating Instructions

6.1. RGB LED Light Operation

The integrated RGB LED light strip can be controlled via a physical switch or a dedicated mobile application.

• Physical Switch: Locate the inline switch on the power cord. Press the button to cycle through various colors and lighting modes.
• Mobile Application: Download the compatible app (refer to packaging or product information for app name). Connect the headboard's LED system to the app via Bluetooth or Wi-Fi (as per app instructions). The app allows for precise color selection (over 60,000 colors), brightness adjustment, and activation of multiple flashing modes.
• Music Sync Function: The LED lights can change color with the rhythm of sound and music. Activate this feature through the mobile application.

Image 6.1: Hidden RGB LED Strip Lights. This image highlights the LED light feature and its app control capabilities.

6.2. Vertical Storage Space

The headboard features a vertical storage compartment located along the top edge. This space is designed to hold small items conveniently.

• Place items such as books, tablets, remote controls, or glasses into the compartment for easy access.
• Avoid placing heavy or sharp objects that could damage the fabric or structure.

Image 6.2: Vertical Storage Space. This image shows the integrated storage compartment and examples of items it can hold.

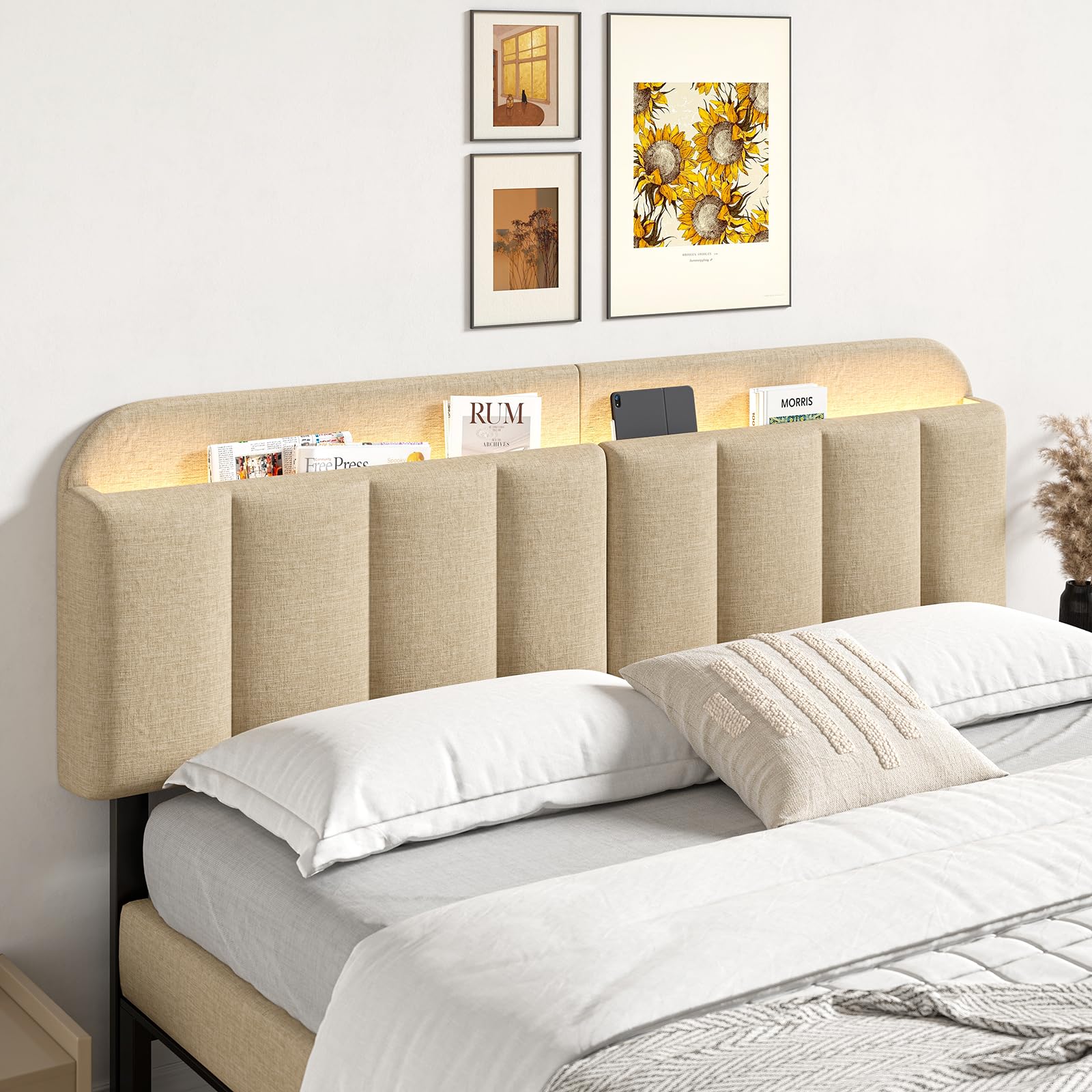

Image 6.3: Headboard in use with storage and LED lights. This image demonstrates the headboard with items stored in its compartment and the LED lights illuminated.

7. Maintenance

• Fabric Cleaning: For general cleaning, gently vacuum the linen fabric to remove dust. For spills, blot immediately with a clean, damp cloth. Avoid harsh chemicals or abrasive cleaners.
• LED Lights: The LED strip is designed for long-term use. If cleaning is necessary, use a dry, soft cloth. Do not use liquid cleaners directly on the LED strip or electrical components.
• Structural Check: Periodically check all screws and bolts to ensure they remain tight. Re-tighten if necessary to maintain stability.

8. Troubleshooting

• LED Lights Not Working:
  • Check if the power adapter is securely plugged into a working outlet.
  • Ensure all connections to the LED strip and controller are firm.
  • If using the app, verify Bluetooth/Wi-Fi connection and app settings.
• Headboard Feels Unstable:
  • Verify that all assembly screws and bolts are fully tightened.
  • Ensure the metal legs are correctly seated and adjusted to the desired height.
  • If attached to a bed frame, confirm the adapters are securely fastened to both the headboard and the bed frame.
• Difficulty Adjusting Height:
  • Loosen the adjustment bolts slightly before attempting to change the height.
  • Ensure no obstructions are preventing the legs from sliding smoothly.

9. Specifications

10. Warranty and Support

This product comes with a standard manufacturer's warranty against defects in materials and workmanship. While specific warranty details are not provided, ONBRILL is committed to customer satisfaction.

If you encounter any missing accessories, manufacturing defects, or workmanship issues with your headboard, please contact ONBRILL customer support immediately. We are dedicated to providing resolutions for any product-related concerns.

For support, please visit the ONBRILL Store on Amazon or refer to your purchase documentation for direct contact information.
