Introduction
This manual provides essential instructions for the safe operation, maintenance, and troubleshooting of your VEVOR Jumping Jack Compactor, model CNCJ-80K-1. This fuel-powered vibratory rammer is designed for compacting various materials such as soil, gravel, footings, concrete slabs, and foundations. Please read this manual thoroughly before operating the equipment to ensure proper use and to prevent injury or damage.
- Powerful Impact: Delivers 3600 lbs of impact force for effective compaction up to 26 inches deep.
- Efficient Mobility: Achieves a travel speed of 49.2 ft/min, enhancing work efficiency.
- High Power Engine: Equipped with a 6.5 HP, 196 cc engine for reliable performance.
- Easy Transport: Features two 5.4-inch transport wheels and a convenient handle for effortless movement.
- Clear Oil Level: Visible oil and fuel capacities for timely monitoring and replenishment.
Safety Information
Always prioritize safety when operating heavy machinery. Failure to follow safety instructions can result in serious injury or death.
- Wear appropriate personal protective equipment (PPE) including safety glasses, hearing protection, safety boots, and gloves.
- Ensure the work area is clear of bystanders and obstructions.
- Operate the compactor on stable, level ground.
- Do not operate the machine under the influence of alcohol or drugs.
- Keep hands and feet away from moving parts.
- Refuel in a well-ventilated area with the engine off and cool.
- Store fuel in approved containers away from ignition sources.
Setup and Assembly
Your VEVOR Jumping Jack Compactor comes largely pre-assembled. Follow these steps for initial setup:
- Unpacking: Carefully remove the compactor from its packaging. Inspect for any shipping damage.
- Handle Installation: Attach the operating handle securely to the main unit using the provided hardware. Ensure all bolts are tightened.
- Fuel and Oil Fill:
- Engine Oil: Fill the engine with the recommended type and amount of engine oil (0.4 L - 0.6 L capacity). Refer to the engine manual for specific oil type.
- Fuel: Fill the fuel tank with unleaded gasoline (2.8 L capacity). Do not overfill.
Image: A visual guide showing the steps for preparing the compactor for operation, including filling engine oil and gasoline, turning on the switch, adjusting the damper and throttle, and pulling to start.
Operating Instructions
Follow these steps to operate your VEVOR Jumping Jack Compactor:
- Pre-Operation Check:
- Check engine oil and fuel levels. Replenish if necessary.
- Inspect the air filter for cleanliness.
- Ensure all fasteners are tight.
- Starting the Engine:
- Turn the engine switch to the "ON" position.
- Move the choke lever to the "CHOKE" position (for cold starts).
- Adjust the throttle lever to a mid-range setting.
- Pull the recoil starter handle firmly until the engine starts.
- Once started, gradually move the choke lever to the "RUN" position.
- Compaction:
- Allow the engine to warm up for a few minutes.
- Guide the compactor over the area to be compacted. The machine will vibrate and jump, compacting the material beneath its base plate.
- Maintain a steady pace, allowing the machine to work effectively. The travel speed is approximately 49.2 ft/min.
- For optimal compaction, make multiple passes over the same area.
- Stopping the Engine:
- Reduce the engine speed to idle.
- Turn the engine switch to the "OFF" position.
Image: A worker in safety gear operating the VEVOR Jumping Jack Compactor on a construction site, demonstrating its use for deep compaction with 3600 lbs impact force and 26 inches compaction depth.
Image: A visual comparison showing loose soil before compaction and densely packed soil after using the VEVOR Jumping Jack Compactor, highlighting its efficiency and travel speed of 49.2 ft/min.
Maintenance
Regular maintenance ensures the longevity and optimal performance of your compactor.
- Engine Oil: Check the oil level before each use. Change the oil according to the engine manufacturer's recommendations (typically after the first 20 hours, then every 50-100 hours).
- Air Filter: Clean the air filter regularly, especially when operating in dusty conditions. Replace if damaged.
- Spark Plug: Inspect and clean the spark plug periodically. Replace if worn or fouled.
- Fuel System: Drain the fuel tank and carburetor if storing the compactor for an extended period. Use fresh fuel.
- General Cleaning: Clean the exterior of the compactor after each use to remove dirt and debris.
- Fasteners: Periodically check all bolts and nuts for tightness and re-tighten as needed.
Image: A close-up view of the VEVOR Jumping Jack Compactor's oil level window and labels indicating fuel capacity (2.8L) and oil capacity (0.6L), emphasizing ease of monitoring.
Troubleshooting
Refer to this section for common issues and their potential solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Engine does not start | No fuel; old fuel; spark plug issue; choke not set correctly; engine switch off. | Fill with fresh fuel; check/clean/replace spark plug; adjust choke; turn engine switch ON. |
| Reduced compaction force | Low engine RPM; worn base plate; incorrect material. | Check throttle setting; inspect base plate for wear; ensure material is suitable for compaction. |
| Excessive vibration | Loose fasteners; damaged shock mounts. | Check and tighten all bolts and nuts; inspect shock mounts for damage and replace if necessary. |
Specifications
Key technical specifications for the VEVOR Jumping Jack Compactor CNCJ-80K-1:
| Specification | Value |
|---|---|
| Model Number | CNCJ-80K-1 |
| Engine Power | 6.5 HP |
| Displacement | 196 cc |
| Impact Force | 3600 lbs/ft² |
| Max Compaction Depth | 26 inches |
| Travel Speed | 49.2 ft/min |
| Item Weight | 178.6 pounds (65.9 kg) |
| Product Dimensions (L x W x H) | 29.13 x 18.3 x 42.51 inches (740 x 465 x 1080 mm) |
| Fuel Capacity | 2.8 L |
| Oil Capacity | 0.4 L - 0.6 L |

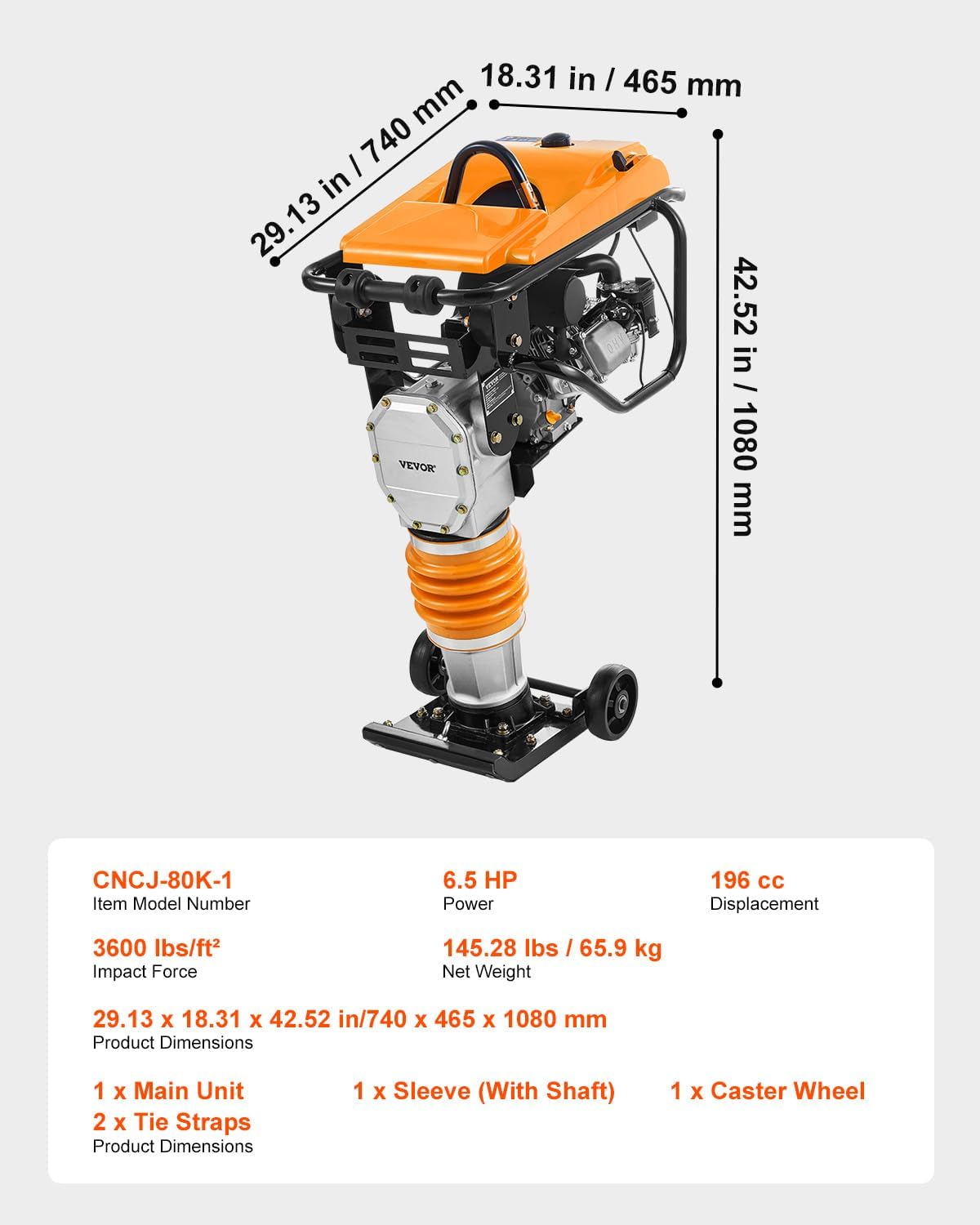

Image: An illustration detailing the dimensions of the VEVOR Jumping Jack Compactor in both inches and millimeters, alongside a summary of its key specifications including model number, power, impact force, displacement, net weight, and included components.
Warranty and Support
For warranty information, technical support, or to order replacement parts, please contact VEVOR customer service. Keep your purchase receipt and model number handy for faster service.
VEVOR Customer Service: Please refer to the contact information provided with your product packaging or visit the official VEVOR website for support details.
