TKOWTB GPS Module for R18 CTV18 V18 C118 Fishing Bait Boats - Instruction Manual

1. Introduction

This instruction manual provides detailed information for the TKOWTB GPS Module, a replacement part designed for R18, CTV18, V18, and C118 GPS fishing bait boats. This module is engineered to provide accurate positioning, enhancing the functionality of your fishing boat. Please read this manual thoroughly before installation and operation to ensure proper use and longevity of the product.

2. Package Contents

Verify that all items listed below are present in your package:

• 1 x TKOWTB Bait Boat GPS Module

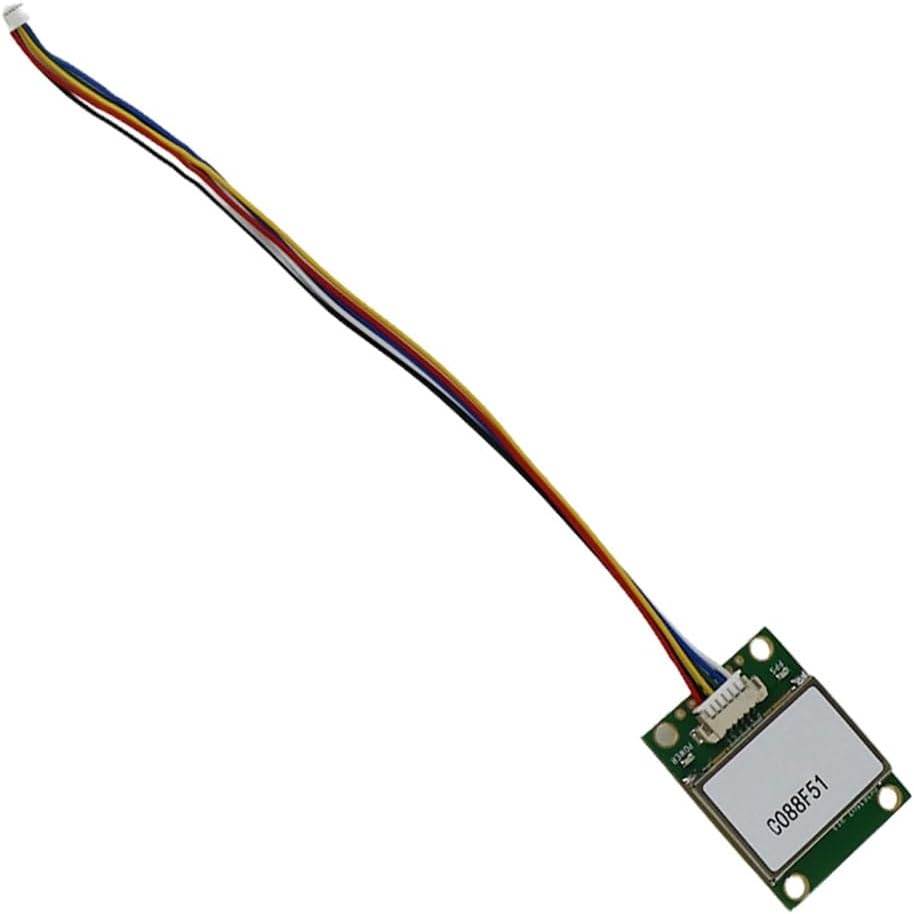

Figure 2.1: Top view of the TKOWTB Bait Boat GPS Module with connecting wires.

3. Specifications

4. Setup and Installation

This GPS module is designed for easy installation as a replacement part for compatible fishing bait boats. No specialized tools or professional personnel are typically required.

1. Identify the Existing GPS Module: Locate the current GPS module within your R18, CTV18, V18, or C118 fishing bait boat.
2. Disconnect Power: Ensure the bait boat is powered off and disconnected from any power sources before proceeding with the installation.
3. Carefully Remove Old Module: Gently disconnect the wiring harness from the old GPS module and remove it from its mounting location.
4. Connect New Module: Connect the wiring harness from the bait boat to the new TKOWTB GPS module. Ensure the connector is securely seated.
5. Secure New Module: Mount the new GPS module in the designated location within the bait boat.
6. Verify Compatibility: The module is compatible with R18, CTV18, V18, and C118 models.

Figure 4.1: The GPS module shown as a replacement part for a fishing bait boat.

Figure 4.2: Visual representation of the TKOWTB GPS module's compatibility with various bait boat models (CTV18, R18, V18, C118).

5. Operating Instructions

Once installed, the GPS module integrates with your bait boat's existing system to provide accurate positioning capabilities. The primary function is to assist in navigation and return-to-origin features.

• Accurate Positioning: The module provides precise location data, allowing you to set and recall specific points on the water.
• Waypoint Setting: You can typically set up to 16 arbitrary positioning points using your bait boat's remote control system.
• Automatic Return Function: In the event of signal loss or low battery, the bait boat is designed to automatically return to its origin point after approximately 15 seconds, preventing loss.
• Enhanced Fishing Experience: Accurate positioning helps in repeatedly reaching desired fishing spots, making your fishing experience more efficient.

Figure 5.1: Illustration of the GPS positioning function, showing how a bait boat can navigate between up to 16 set points and return to origin.

6. Maintenance

To ensure the longevity and optimal performance of your GPS module, follow these general maintenance guidelines:

• Keep Dry: While designed for outdoor use, avoid prolonged exposure to extreme moisture or submersion beyond the bait boat's intended water resistance.
• Clean Gently: If cleaning is necessary, use a soft, dry cloth. Do not use harsh chemicals or abrasive materials.
• Inspect Connections: Periodically check the wiring connections to ensure they remain secure and free from corrosion.
• Storage: When not in use for extended periods, store the bait boat and its components in a cool, dry place.

7. Troubleshooting

If you encounter issues with your GPS module, consider the following common troubleshooting steps:

• No GPS Signal:
  • Ensure the bait boat is in an open area with a clear view of the sky. Obstructions like dense foliage or buildings can interfere with GPS reception.
  • Check all connections to the GPS module to ensure they are firm and correctly seated.
  • Verify that the bait boat's power supply is adequate.
• Inaccurate Positioning:
  • Allow sufficient time for the GPS module to acquire a stable signal after powering on.
  • Ensure the bait boat's internal components are not interfering with the GPS antenna.
• Module Not Responding:
  • Power cycle the bait boat (turn off, then turn on again).
  • Re-check all wiring connections.

If problems persist after attempting these steps, please refer to the support information provided in Section 8.

8. Warranty and Support

Specific warranty details for this TKOWTB GPS Module may vary. Please refer to the documentation provided with your original bait boat or contact the seller directly for warranty information.

For technical support or further assistance, please contact your retailer or the manufacturer, TKOWTB, through their official support channels.
