1. Safety Information
Read all instructions carefully before assembly and use. Failure to follow these instructions may result in property damage or personal injury.
- Level Ground Installation: Always ensure the carport is installed on a level surface. Uneven ground can compromise the structural integrity and stability of the carport.
- Secure Anchoring: The carport must be anchored securely to the ground using the provided anchoring kits. Proper anchoring is critical to prevent the carport from tipping over, especially in windy conditions. Consider additional anchoring methods for areas prone to severe weather.
- Weather Conditions: Do not use the carport in areas prone to severe weather conditions without ensuring it is adequately secured for such environments. High winds, heavy snow, and extreme weather can cause structural failure if not properly prepared for.
- Assembly Personnel: Assembly typically requires at least two to three adults for safe and efficient installation.
- Tool Safety: Use appropriate safety gear, including gloves and eye protection, during assembly. Exercise caution when using power tools.
- Component Inspection: Before assembly, inspect all components for any damage or missing parts. Do not proceed with assembly if critical parts are damaged or absent.
2. Package Contents
Verify that all components are present and undamaged before beginning assembly. Refer to the parts list in your packaging for specific quantities.
- Steel Roof Panels: 29-gauge thickened steel panels with UV and rust-resistant coating.
- Steel Frame Tubes: 2"x2" 15-gauge corrosion-resistant steel tubes (1.5mm thickness).
- Adaptive Screw Tubes: Components for the innovative assembly structure.
- Weatherstrip Tape: High-density tape for roof panel seams to prevent water leakage.
- Anchoring Kits: 8 anchor kits for securing the carport to the ground.
- Fasteners and Hardware: Assorted screws, bolts, and washers required for assembly.
- Instruction Manual: This document.
3. Setup and Assembly
This section outlines the general steps for assembling your VEIKOU Metal Carport. For detailed, step-by-step instructions, always refer to the specific diagrams and instructions included in your product packaging.
3.1 Site Preparation
- Choose a Level Location: Select a flat, level area for installation. The carport can be installed on various surfaces including concrete, gravel, asphalt, or soil/grass, provided the surface is level.
- Clear the Area: Remove any debris, rocks, or obstructions from the installation site. Ensure adequate clearance around the carport for assembly and future use.
3.2 Required Tools (Not Included)
- Drill (for potential minor adjustments to pre-drilled holes)
- Wrenches or Socket Set
- Measuring Tape
- Level
- Step Ladders (at least two are recommended for roof panel installation)
- Safety Gloves and Eye Protection
- Grinder (potentially needed for minor adjustments to frame ends, as noted by some users)
3.3 Assembly Steps Overview
- Assemble the Base Frame: Connect the horizontal and vertical frame components according to the provided diagrams. Ensure all connections are secure but do not fully tighten bolts until the entire frame is aligned.
- Install Adaptive Screw Tubes: Utilize the innovative adaptive screw tube system to connect frame sections. This design simplifies the connection process and reduces assembly time.
- Erect the Main Structure: With assistance, carefully raise the assembled frame sections and connect them to form the full carport structure. Ensure the frame is square and level before tightening all fasteners.
- Attach Roof Supports: Install the roof support beams and purlins as indicated in the manual.
- Install Roof Panels: Carefully place and secure the 29-gauge steel roof panels onto the frame. Apply the high-density weatherstrip tape along the seams of the roof panels to ensure a waterproof seal. Work from one end to the other, overlapping panels correctly.
- Anchor the Carport: Once the structure is complete and stable, use the provided 8 anchoring kits to firmly secure the carport to the ground. For optimal stability, especially in areas with high winds, consider purchasing longer or additional anchors suitable for your specific ground type.
Image: Innovative Adaptive-Screw Tube Frame assembly steps. This diagram illustrates the simplified three-step process for connecting the frame components, designed to reduce assembly time.
Image: Ground installation options and anchor kits. The carport can be installed on concrete, gravel, asphalt, or soil/grass. Eight anchor kits are included to secure the structure to the ground. Installation must be on level ground.
4. Operating and Usage
The VEIKOU Metal Carport is designed to provide reliable protection for your vehicles and equipment.
- Vehicle Protection: This carport effectively shields cars, boats, trucks, and other vehicles from various environmental elements.
- UV Protection: The steel roof panels offer protection against harmful ultraviolet rays, helping to preserve vehicle paint and interiors.
- Weather Resistance: The robust design protects against rain, snow (rated for 35 SPF snow), and wind (rated for 100 MPH wind). The sloping roof design facilitates quick water drainage.
- Debris Protection: It helps protect vehicles from bird droppings, falling leaves, dust, and other airborne debris.
Image: VEIKOU Metal Carport in use, providing shelter for a tractor and a truck. This image demonstrates the carport's capacity and protective function.
Image: Carport in snowy conditions. This image highlights the carport's durability and resistance to various weather conditions, including a 35 SPF snow rating and 100 MPH wind rating.
5. Maintenance
Regular maintenance ensures the longevity and continued performance of your carport.
- Routine Inspection: Periodically inspect the entire structure, including the frame, roof panels, and anchors, for any signs of wear, damage, or loosening.
- Anchor Check: Ensure all ground anchors remain firmly secured, especially after strong winds or heavy rainfall. Re-tighten or re-secure as necessary.
- Roof Cleaning: Keep the roof panels free of excessive debris, such as leaves or branches, to maintain proper water drainage and prevent accumulation that could stress the structure.
- Sealant Inspection: Check the weatherstrip tape and roof panel seams for any signs of degradation or gaps. Apply additional silicone sealant if any leaks are observed or anticipated.
- Corrosion Prevention: While the frame and roof are corrosion-resistant, regularly clean any dirt or grime that could trap moisture and accelerate wear. Touch up any scratches on painted surfaces to prevent rust.

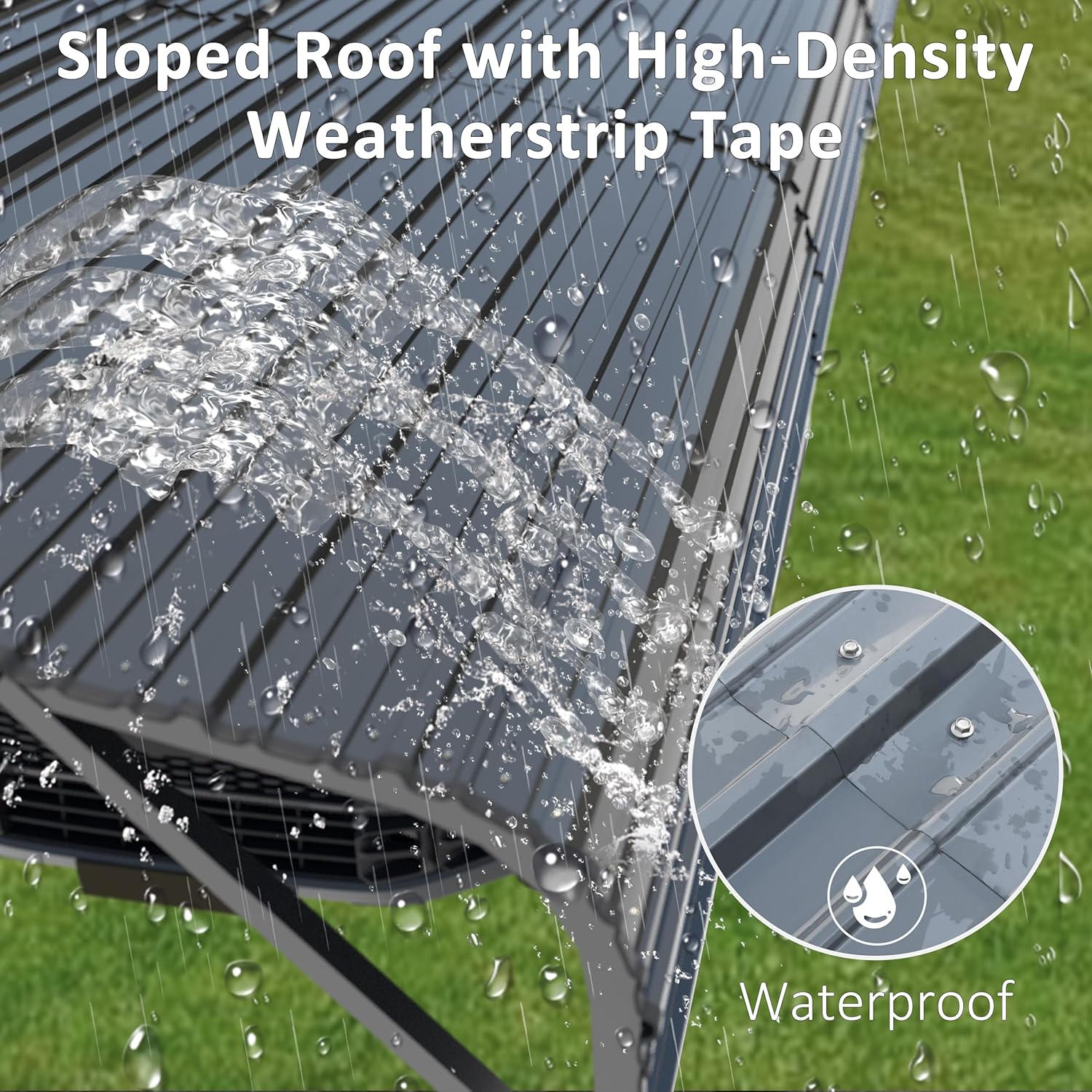

Image: Sloped roof with high-density weatherstrip tape. This image illustrates the effective water drainage and waterproof features of the roof, which should be regularly inspected for optimal performance.
6. Troubleshooting
This section addresses common issues that may arise during or after the installation of your carport.
- Issue: Roof panels are leaking.
Solution: Ensure the high-density weatherstrip tape is correctly applied along all roof panel seams. If leaks persist, apply a high-quality silicone sealant to the affected areas to create a better waterproof barrier. - Issue: Frame components do not fit together or pre-drilled holes do not align.
Solution: While the innovative assembly structure is designed for ease, minor manufacturing variations can occur. For slight misalignments, a drill can be used to slightly widen holes. For frame ends that do not fit, a grinder may be necessary to adjust the metal for proper insertion. Always ensure the frame is square and level during assembly to minimize alignment issues. - Issue: Missing parts or hardware.
Solution: Carefully check all packaging materials. If parts are genuinely missing, contact VEIKOU customer support with your product model and a description of the missing components. - Issue: Carport feels unstable or anchors are insufficient.
Solution: Verify that the carport is installed on a perfectly level surface. Ensure all 8 anchoring kits are properly installed and tightened. For areas with strong winds or soft ground, consider purchasing longer or heavy-duty ground anchors suitable for your specific soil conditions to enhance stability.
7. Specifications
| Feature | Specification |
|---|---|
| Brand | VEIKOU |
| Model Number | 20' x 20' x 8.8' |
| Overall Dimensions (L x W x H) | 238.2'' x 238.6'' x 115.8'' |
| Interior Dimensions (W x D x H) | 234.6'' x 234.4'' x 87.2'' |
| Total Storage Area | 381.71 sq.ft. |
| Roof Material | 29-gauge Steel Panels |
| Frame Material | 2"x2" 15-gauge Alloy Steel Tube (1.5mm thickness) |
| UV Protection | Yes (UPF 50+) |
| Water Resistance Level | Waterproof |
| Wind Rating | 100 MPH |
| Snow Rating | 35 SPF |
| Assembly Required | Yes |
| Recommended Uses | Car, Boat, Truck |
Image: Carport dimensions diagram. This illustration provides detailed measurements for the overall structure and interior space, indicating a total storage area of 381.71 sq.ft.
Image: 29-Gauge Weather-Resistant Steel Roof. This image details the roof panel's construction, emphasizing its UV-resistant and rust-resistant qualities.

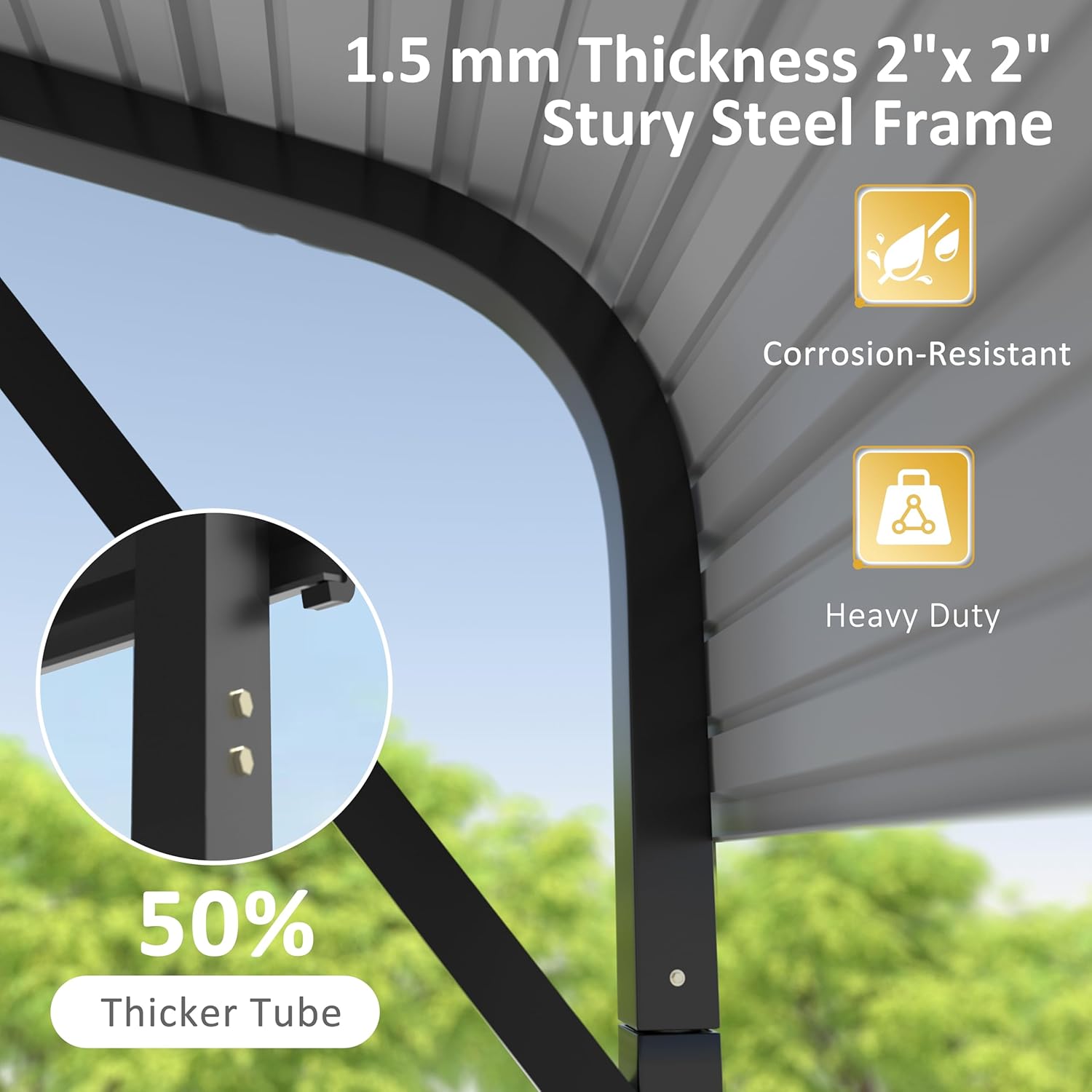

Image: 1.5mm Thickness 2"x2" Sturdy Steel Frame. This image shows the robust construction of the frame, noting its corrosion-resistant and heavy-duty characteristics.
8. Warranty and Support
Specific warranty details for the VEIKOU 20'x20' Metal Carport are not provided in this manual. For information regarding product warranty, returns, or technical support, please refer to the documentation included with your purchase or contact VEIKOU customer service directly through their official channels.
