1. Introduction

This manual provides essential information for the safe and efficient operation of your Toshiba AW-DUHN1600LUPEG 15kg Top Load Washing Machine. Please read it thoroughly before using the appliance and keep it for future reference. Proper use and maintenance will ensure optimal performance and extend the lifespan of your washing machine.

Image 1: Toshiba AW-DUHN1600LUPEG 15kg Top Load Washing Machine with the lid open, showcasing the drum and control panel.

2. Safety Information

To prevent injury to yourself and others, and to avoid property damage, please observe the following safety precautions:

• Read all instructions before using the appliance.
• Ensure the washing machine is properly grounded.
• Do not allow children to play on or in the appliance. Close supervision is necessary when the appliance is used near children.
• Do not wash items that are soiled with cooking oils, gasoline, dry-cleaning solvents, or other flammable or explosive substances.
• Do not reach into the appliance if the tub or agitator is moving.
• Unplug the appliance before cleaning or performing any maintenance.
• Do not install or store the appliance where it will be exposed to the weather or freezing temperatures.
• Use only detergents and fabric softeners recommended for automatic washing machines.

3. Product Overview

Your Toshiba AW-DUHN1600LUPEG washing machine is equipped with advanced features designed for efficient and effective laundry care.

Key Features:

• Great Waves Technology: This innovative technology optimizes water flow and movement to deliver powerful cleaning while saving energy and time. It helps protect fabric color and shine, and prevents clothes from tangling.
• Direct Drive Inverter Motor: Connected directly to the inner drum, this motor operates with low noise and high efficiency, reducing wear on components and saving electricity.
• Ultra Fine Bubbles: Nano-sized bubbles penetrate deep into fabric fibers to remove stubborn stains, bacteria, and residues, enhancing cleaning performance and reducing detergent residue.
• I-Clean (Auto Drum Clean): This feature automatically cleans both the inner and outer drums during the rinse cycle, preventing dirt and bacteria accumulation and ensuring a hygienic wash.
• Soft Close Glass Door: The durable tempered glass lid features a soft-close mechanism for safe and quiet operation. Its silk pattern design helps reduce fingerprints.
• Borderless Design: The washing machine's T60 structure is designed without sharp edges or corners, enhancing safety and aesthetics.
• 3D Water Flow: A specialized water flow system pushes clothes upwards for effective contact with water, improving stain removal and preventing fabric wear and tangling.

Components:

• Control Panel: Used to select wash programs, adjust settings, and start/stop cycles.
• Detergent Dispenser: For adding laundry detergent.
• Softener Dispenser: For adding fabric softener.
• Washing Tub/Drum: Where laundry is placed for washing.
• Lid: Top cover of the washing machine.

Image 2: Close-up view of the control panel and inner drum.

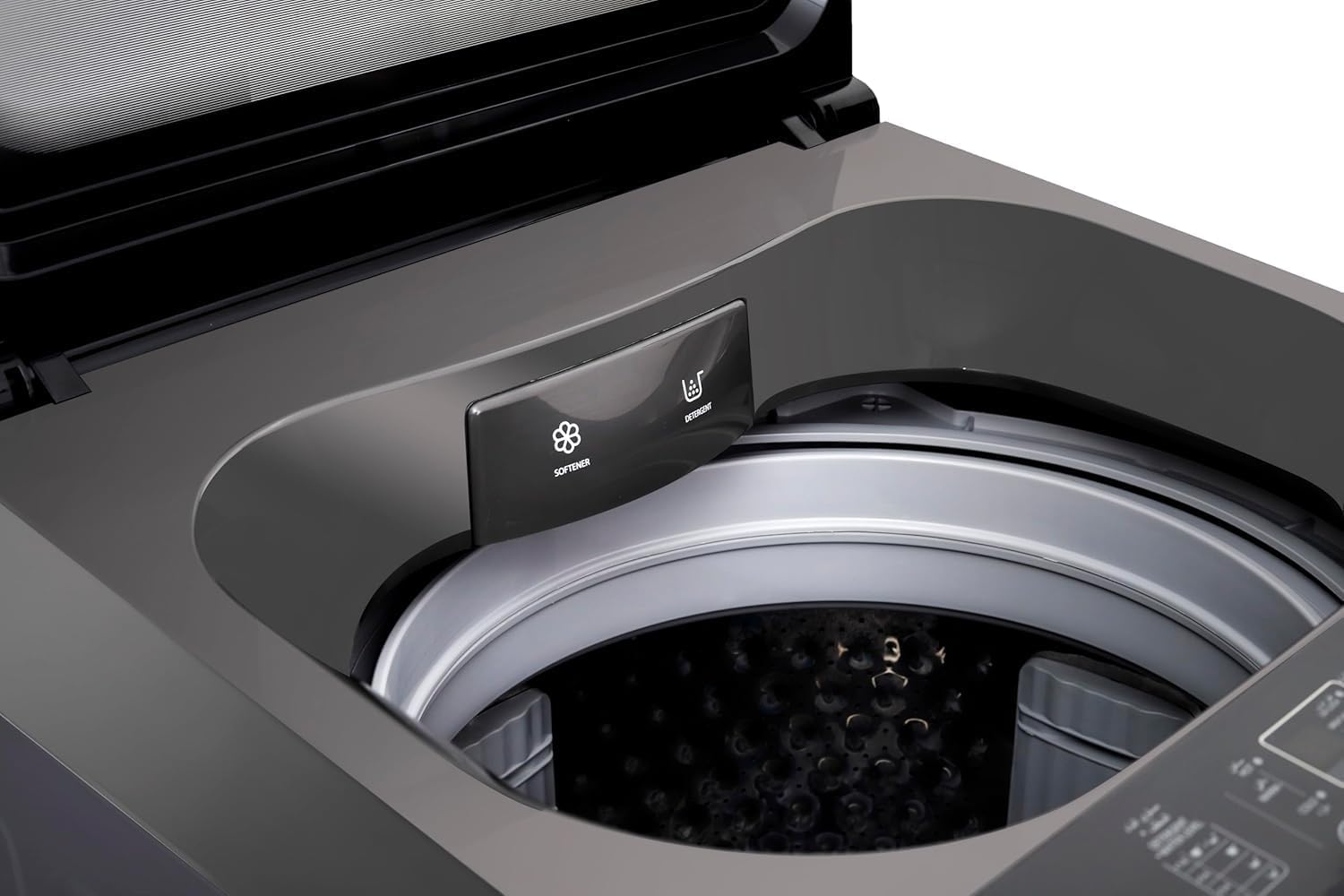

Image 3: Detailed view of the detergent and softener dispenser compartments.

4. Setup and Installation

Proper installation is crucial for the performance and safety of your washing machine. It is recommended to have the appliance installed by a qualified technician.

Unpacking:

• Remove all packaging materials, including the base packaging and any internal packing.
• Check for any damage during transit. If damaged, do not install and contact your dealer.

Location:

• Place the washing machine on a firm, level surface.
• Ensure there is adequate space around the machine for ventilation and maintenance.
• Avoid direct sunlight or locations with high humidity.

Leveling:

• Adjust the leveling feet at the bottom of the machine to ensure it is perfectly stable and level. An unlevel machine can cause excessive vibration and noise.

Water Connection:

• Connect the water inlet hose to a cold water tap. Ensure connections are tight to prevent leaks.
• Position the drain hose correctly into a standpipe or sink, ensuring it is not kinked or blocked.

Electrical Connection:

• Plug the power cord into a grounded 220V electrical outlet.
• Do not use extension cords or adapters.

5. Operating Instructions

Follow these steps for a typical wash cycle:

5.1. Preparing Laundry:

• Sort laundry by fabric type, color, and degree of soiling.
• Check garment care labels for specific washing instructions.
• Empty pockets and close zippers and hooks to prevent damage.

5.2. Loading Laundry:

• Open the lid and place sorted laundry loosely into the washing tub.
• Do not overload the machine. Ensure there is enough space for clothes to move freely.

5.3. Adding Detergent and Softener:

• Add the appropriate amount of detergent to the 'DETERGENT' compartment.
• Add fabric softener to the 'SOFTENER' compartment. Do not exceed the maximum fill line.

5.4. Selecting a Program:

• Close the lid.
• Press the POWER button to turn on the machine.
• Use the COURSE button to select one of the 8 available wash programs (e.g., Regular, Heavy Wash, Soak, Blanket, Delicate, Memory, Tub Clean).
• Adjust other settings like Water Level, Rinse, or Spin if desired, using the respective buttons.

5.5. Starting the Wash:

• Press the START/HOLD button to begin the wash cycle.
• The machine will automatically fill with water and proceed with the selected program.

5.6. Special Functions:

• Steam Care: This feature helps to reduce wrinkles and refresh clothes. Refer to the control panel for specific program options that include steam care.
• I-Clean (Auto Drum Clean): This function activates automatically during the rinse cycle to clean the drum. For a dedicated drum cleaning cycle, select the 'Tub Clean' program.

6. Maintenance

Regular maintenance ensures the longevity and hygiene of your washing machine.

6.1. Cleaning the Exterior:

• Wipe the exterior with a soft, damp cloth. Do not use abrasive cleaners or solvents.

6.2. Cleaning the Detergent/Softener Dispenser:

• Periodically remove and clean the dispenser compartments to prevent residue buildup. Rinse thoroughly and replace.

6.3. Drum Cleaning (I-Clean):

• The I-Clean function automatically cleans the drum during regular cycles.
• For a more thorough cleaning, select the dedicated 'Tub Clean' program. This helps remove detergent residue and bacteria from the drum.

6.4. Water Inlet Filter:

• Check and clean the water inlet filter periodically to prevent blockages and ensure proper water flow.

7. Troubleshooting

Before contacting service, try the following solutions for common issues:

8. Specifications

9. Warranty and Support

Warranty Information:

This Toshiba washing machine comes with a 6-year warranty from Miraco. Please retain your proof of purchase for warranty claims.

Customer Support:

For technical assistance, service requests, or further inquiries, please contact Toshiba customer support or your authorized dealer. Refer to your warranty card or Toshiba's official website for contact details.
