1. Introduction
The Hammacher Schlemmer Remote Controlled TENS Pain Reliever is a wearable device designed to provide drug-free pain relief through Transcutaneous Electrical Nerve Stimulation (TENS) therapy. This device stimulates nerves and helps block pain signals to the brain, offering a convenient and effective solution for various body parts. This manual provides essential information for the safe and effective use of your TENS pain reliever.
2. Safety Information
Important Safety Precautions:
- DO NOT USE this device if you have a pacemaker, implanted defibrillator, or any other implanted metallic or electronic device.
- Consult your physician before using this device if you have any pre-existing medical conditions, including but not limited to heart disease, epilepsy, or if you are pregnant.
- Do not apply the device over broken skin, open wounds, or areas with rashes or swelling.
- Avoid using the device while driving, operating machinery, or during any activity where involuntary muscle contractions could put the user at risk.
- Keep out of reach of children.
- Do not immerse the device in water or other liquids.
- Use only the provided charging cable and follow charging instructions carefully.
Legal Disclaimer: Statements regarding dietary supplements have not been evaluated by the FDA and are not intended to diagnose, treat, cure, or prevent any disease or health condition.
3. Package Contents
Carefully unpack your Hammacher Schlemmer Remote Controlled TENS Pain Reliever and verify that all items are present and in good condition. The package should contain:
- 1 x Wireless TENS Unit
- 1 x Remote Control
- 2 x Breathable Hydrogel Patches (pre-attached to the unit)
- 1 x USB Charging Cable
- 1 x Storage Case
Figure 3.1: All components included in the package.
4. Product Features
The Hammacher Schlemmer Remote Controlled TENS Pain Reliever offers the following key features:
- Wireless Design: Wearable unit with no cumbersome wires for maximum comfort and mobility.
- Remote Control Operation: Easily adjust settings with the included remote.
- Multiple Modes: Features six automatic TENS pulse stimulation modes and nine manual TENS pulse stimulation modes.
- Adjustable Intensity: Offers 16 levels of intensity to customize your pain relief experience.
- Hydrogel Patches: Secures to the skin via breathable hydrogel patches for comfortable and effective contact.
- USB Rechargeable: Conveniently charges via a standard USB connection.
5. Setup
5.1 Charging the Device
Before first use, fully charge the TENS unit. Connect the provided USB charging cable to the charging port on the TENS unit and plug the other end into a USB power source (e.g., computer USB port, wall adapter). The charging indicator light will illuminate during charging and turn off or change color when fully charged.
5.2 Attaching Hydrogel Patches
The TENS unit comes with hydrogel patches pre-attached. If replacing, ensure the new patches are properly aligned with the electrodes on the unit. Remove the protective film from the hydrogel patches before application.
5.3 Applying the Device to Skin
Ensure your skin is clean, dry, and free of lotions or oils before application. Firmly press the hydrogel patches onto the desired area of your body. The device is designed for use on various parts, including shoulders, neck, back, waist, abdomen, arms, and thighs.

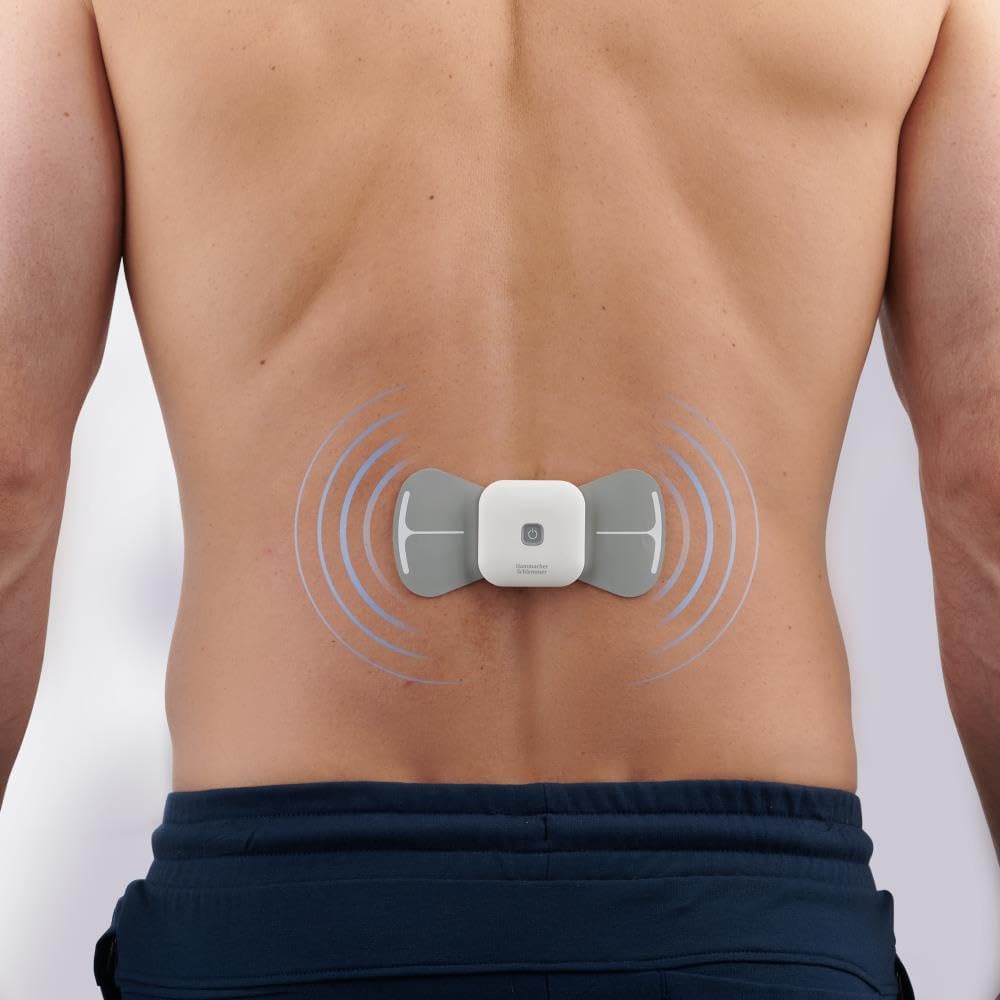

Figure 5.1: Proper application of the TENS unit on the lower back.
6. Operating Instructions
6.1 Powering On/Off
To turn on the TENS unit, press the power button on the unit itself or on the remote control. To turn off, press and hold the power button until the unit powers down.
6.2 Using the Remote Control
The remote control allows you to easily manage the device's settings:
- Mode Selection: Use the 'M' button to cycle through the six automatic and nine manual TENS pulse stimulation modes.
- Intensity Adjustment: Use the '+' and '-' buttons to increase or decrease the intensity level. There are 16 levels of intensity available. Start with a low intensity and gradually increase until you feel a comfortable, yet effective, sensation.
- Timer: The remote may display a timer indicating the remaining session duration.
Figure 6.1: The remote control for the TENS unit.
Figure 6.2: Using the TENS unit on the arm with remote control.
Figure 6.3: TENS unit in use on the back, illustrating the area of effect.
7. Maintenance
7.1 Cleaning the Device and Patches
After each use, gently wipe the TENS unit with a soft, damp cloth. Do not use abrasive cleaners or immerse the unit in water. The hydrogel patches can be gently wiped with a damp cloth if needed, but avoid excessive moisture. Ensure the patches are dry before re-applying the protective film.
7.2 Storage
Store the TENS unit and remote control in the provided storage case when not in use. Keep the device in a cool, dry place away from direct sunlight and extreme temperatures. Proper storage helps prolong the life of the hydrogel patches and the device itself.

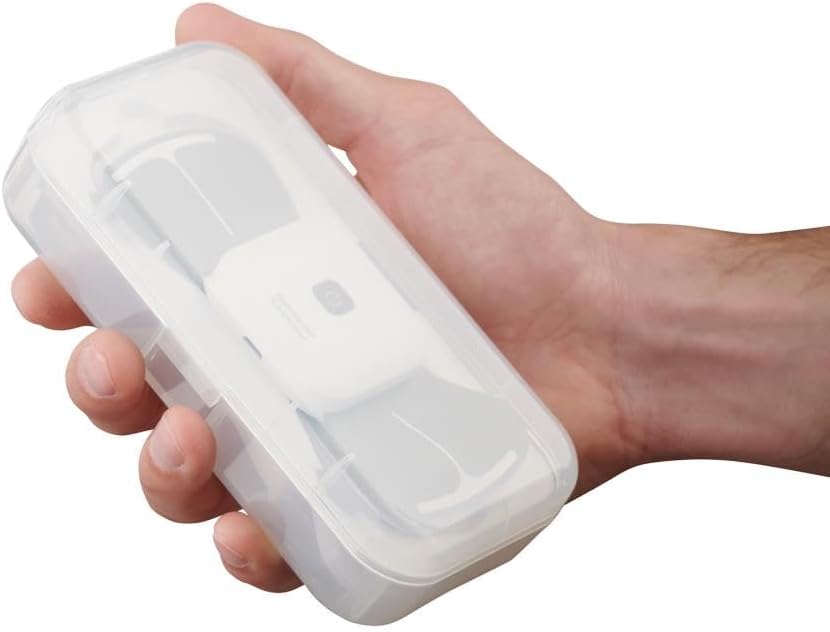

Figure 7.1: Storing the TENS unit in its protective case.
7.3 Hydrogel Patch Replacement
The hydrogel patches are consumable items and will lose their adhesiveness over time with repeated use. Replace the patches when they no longer stick firmly to the skin or when you notice a decrease in stimulation effectiveness. Replacement patches can be purchased separately from authorized Hammacher Schlemmer retailers.
8. Troubleshooting
If you experience issues with your TENS Pain Reliever, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Device does not turn on. | Battery is low or depleted. | Charge the device fully using the provided USB cable. |
| No sensation or weak sensation. | Hydrogel patches are not adhering well or are worn out. Intensity level is too low. | Ensure patches are firmly applied to clean, dry skin. Replace patches if worn. Increase intensity using the '+' button on the remote. |
| Remote control not responding. | Remote battery is low. Obstruction between remote and unit. | Ensure remote has power (check battery if applicable, or if rechargeable, ensure it's charged). Ensure clear line of sight between remote and unit. |
| Skin irritation after use. | Skin not clean before application. Allergic reaction to hydrogel. Overuse in one area. | Clean skin thoroughly before each use. Discontinue use if irritation persists and consult a physician. Vary application sites and adhere to recommended session durations. |
9. Specifications
| Feature | Detail |
|---|---|
| Product Dimensions | 6.3 x 3.26 x 1.57 inches |
| Item Weight | 0.4 Pounds (6.4 ounces) |
| Power Source | Corded Electric (USB Rechargeable) |
| Material | Plastic |
| Manufacturer | Hammacher Schlemmer |
| Country of Origin | China |
| TENS Modes | 6 Automatic, 9 Manual |
| Intensity Levels | 16 |
10. Important Information
This device is intended for personal use to provide temporary relief of pain associated with sore and aching muscles in the shoulder, waist, back, upper extremities (arm), and lower extremities (leg) due to strain from exercise or normal household and work activities. It is not intended for medical diagnosis or treatment.
Contraindications: Do not use this device if you have a pacemaker, implanted defibrillator, or any other implanted metallic or electronic device. Consult your doctor before use if you have any medical conditions.
11. Warranty and Support
Specific warranty information for the Hammacher Schlemmer Remote Controlled TENS Pain Reliever is not provided in this manual. For details regarding warranty coverage, product support, or to purchase replacement parts (such as hydrogel patches), please visit the official Hammacher Schlemmer website or contact their customer service directly. Keep your purchase receipt as proof of purchase for any warranty claims.
