Euker Semi Automatic Espresso Machine User Manual

Introduction

Thank you for choosing the Euker Semi Automatic Espresso Machine. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new espresso machine. Please read this manual thoroughly before first use and retain it for future reference.

Image: Front view of the Euker Semi Automatic Espresso Machine, showcasing its sleek design and integrated grinder.

Important Safety Instructions

Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, and injury to persons.

• Read all instructions before operating the appliance.
• Do not touch hot surfaces. Use handles or knobs.
• To protect against fire, electric shock, and injury, do not immerse cord, plugs, or the appliance in water or other liquid.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance.
• Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or has been damaged in any manner.
• The use of accessory attachments not recommended by the appliance manufacturer may result in fire, electric shock, or injury to persons.
• Do not use outdoors.
• Do not let cord hang over edge of table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to "off", then remove plug from wall outlet.
• Do not use appliance for other than intended use.

Parts and Components

Familiarize yourself with the various parts of your Euker Espresso Machine for proper operation and maintenance.

Image: Labeled diagram showing the main components of the espresso machine, including the removable water tank, tamper, milk jug, needle, cleaning brush, single filter cup, and double filter cup.

1. Removable Water Tank (2.8L capacity)
2. Tamper
3. Milk Jug
4. Needle (for cleaning)
5. Cleaning Brush
6. Single Filter Cup
7. Double Filter Cup
8. Integrated Conical Burr Grinder
9. Control Panel (On/Off, Grind, Single, Double buttons, Rotary knob)
10. 58mm Portafilter
11. Steam Wand
12. Drip Tray

Setup

Before first use, follow these steps to set up your espresso machine.

1. Unpacking: Carefully remove all packaging materials and ensure all components listed in the "Parts and Components" section are present.

2. Placement: Place the machine on a stable, flat, heat-resistant surface, away from water sources and direct heat. Ensure adequate ventilation around the machine.

3. Water Tank Installation: Fill the removable water tank with fresh, cold water up to the MAX line. Place the tank securely into its position at the back of the machine. The machine features a 95oz (2.8L) water tank.



   Image: Illustration showing the detachable water tank and the cup warming area on top of the machine.

4. Initial Rinse Cycle: Before brewing coffee, perform an initial rinse cycle to clean the internal components.

   • Ensure the water tank is filled.
   • Place a large container under the portafilter and steam wand.
   • Turn on the machine.
   • Run a cycle without coffee grounds by pressing the "Single" or "Double" button.
   • Activate the steam wand for a few seconds to clear any air.

5. Plug In: Connect the power cord to a grounded electrical outlet.

Operating Instructions

This section details the steps for brewing espresso and frothing milk.

1. Grinding Coffee Beans

Your machine features a built-in conical burr grinder with 30 grind settings, allowing you to customize the grind size for optimal flavor extraction.

Image: Close-up view of the integrated conical burr grinder and examples of coarse, medium, and fine grind sizes with corresponding settings.

1. Add Beans: Pour fresh whole coffee beans into the bean hopper on top of the machine.

2. Select Grind Size: Adjust the grind setting dial to your desired fineness. For espresso, a fine grind (settings 8-9 recommended) is typically preferred for optimal extraction. Experiment to find your ideal setting.



   Image: Visual representation of the 30 optional grinding settings, illustrating the range from coarse to fine and their impact on extraction speed.

3. Grind: Place the portafilter under the grinder outlet. Press the "Grind" button to start grinding. The machine supports hand-free grinding.

2. Brewing Espresso

The machine features a 20-bar professional pump and 58mm portafilter for consistent pressure and optimal extraction.

Image: Step-by-step visual guide for brewing espresso, from adding beans to making milk foam.

1. Pre-heat: Ensure the machine is pre-heated before extraction for best results. The machine features Double PID temperature control for precise temperature management (192.2°F-203°F).



   Image: Close-up of the control panel highlighting the Double PID temperature control and adjustable temperature range.

2. Fill Portafilter: After grinding, ensure the portafilter is filled with the correct amount of coffee grounds (11-13g for single cup, 16-18g for double cup).

3. Tamp: Use the provided tamper to firmly press the coffee grounds in the portafilter. Tamp to the MAX line for the filter.

4. Attach Portafilter: Securely attach the portafilter to the brewing group head by inserting it and twisting it to the right until it locks into place.



   Image: Detailed view of the 58mm brewing group head, portafilter, and single cup filter, emphasizing professional-grade extraction.

5. Place Cup: Position your espresso cup(s) under the portafilter spouts.

6. Brew: Press the "Single" or "Double" button to start brewing. The machine will automatically stop when the desired volume is reached. For manual control, use the manual-shot mode for up to 13.5 oz free control.



   Image: Depiction of the three brewing options: single cup filter, double cup filter, and manual-shot mode for personalized control.



   Image: Visual illustrating the pre-infusion process, 20 Bar high pressure extraction, and the 58mm portafilter during espresso brewing.

3. Milk Frothing

The powerful steam wand allows you to create silky microfoam for lattes and cappuccinos.

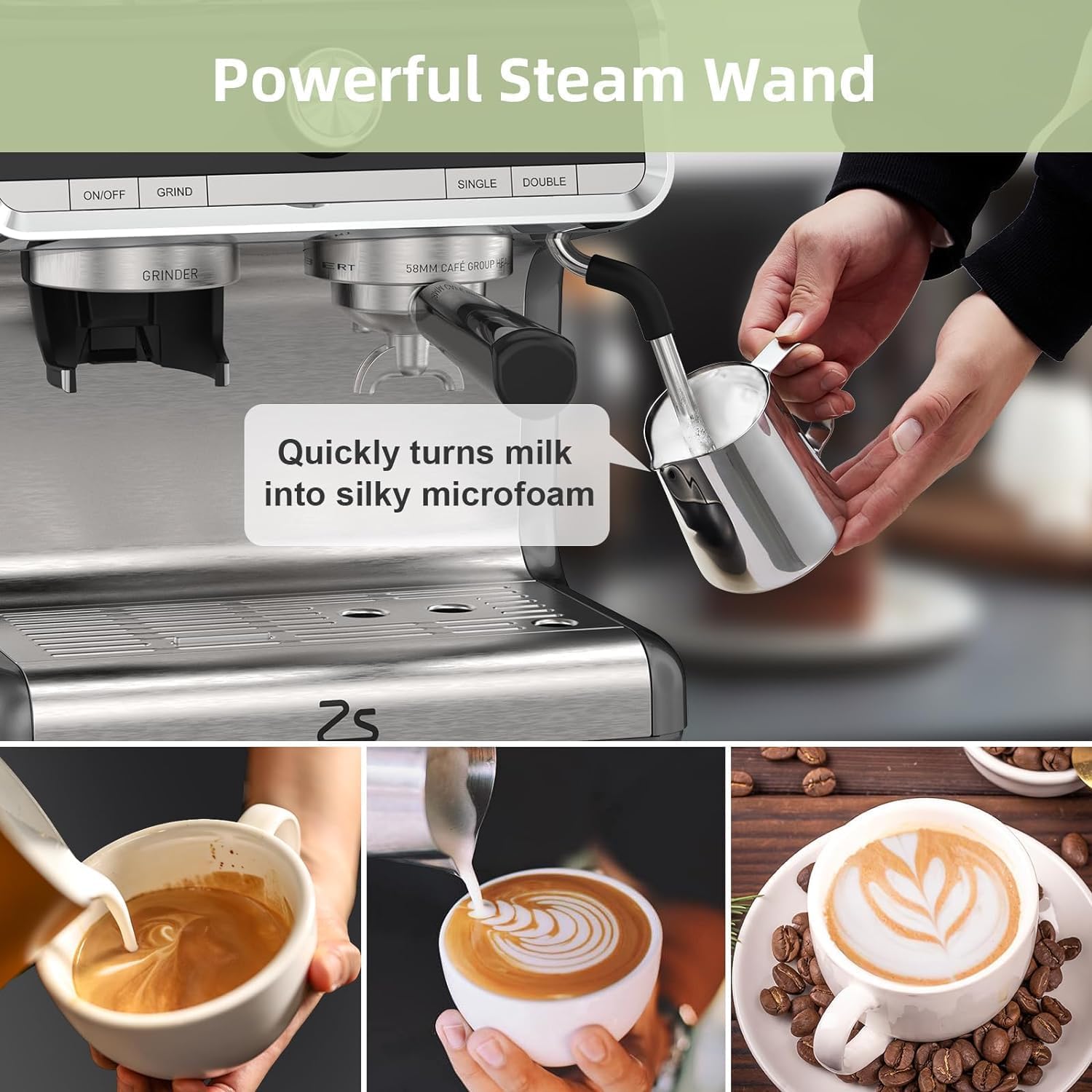

Image: Demonstration of the steam wand quickly turning milk into silky microfoam, with examples of latte art.

1. Prepare Milk: Fill the milk jug with cold milk (dairy or non-dairy) to just below the spout.

2. Activate Steam: Turn the rotary knob to the steam function. Wait for the steam indicator light to illuminate, indicating the machine has reached frothing temperature.

3. Froth Milk: Immerse the steam wand tip just below the surface of the milk. Open the steam valve fully. Move the jug up and down to create foam. Once desired texture is achieved, close the steam valve and remove the jug.

4. Clean Steam Wand: Immediately wipe the steam wand with a damp cloth to prevent milk residue from drying. Briefly open the steam valve again to clear any milk from inside the wand.

4. Beverage Customization

Explore various coffee beverages by combining espresso with frothed milk, cream, or chocolate.

Image: Examples of various coffee beverages that can be made, including Americano, Vienna, Mocha, Macchiato, Cappuccino, and Latte.

Maintenance and Cleaning

Regular cleaning and maintenance will ensure the longevity and optimal performance of your espresso machine.

Daily Cleaning

• Drip Tray: Empty and clean the removable drip tray daily. It has a water level indicator that floats when full.



  Image: Illustration showing the removable drip tray with its water level indicator and the integrated space-saving toolbox for accessories.

• Portafilter and Filter Baskets: After each use, remove the portafilter, discard coffee grounds, and rinse the portafilter and filter basket under hot water. Use the cleaning brush to remove any stubborn residue.

• Steam Wand: As mentioned in the operating instructions, wipe the steam wand immediately after each use and purge it briefly.

• Exterior: Wipe the exterior of the machine with a soft, damp cloth. Do not use abrasive cleaners or scouring pads.

Weekly Cleaning / Descaling

• Water Tank: Wash the water tank with mild detergent and rinse thoroughly. Refill with fresh water.

• Grinder Cleaning: Periodically clean the burr grinder to prevent buildup of coffee oils and ensure consistent grind quality. Refer to the grinder cleaning instructions in the full manual (if applicable, or general advice).

• Descaling: Depending on water hardness and frequency of use, descaling should be performed every 2-3 months. Use a commercial descaling solution designed for espresso machines and follow the product's instructions. This process removes mineral buildup from internal components.

The machine includes a space-saving toolbox where the cleaning disc, brush, and cleaning pin are stored behind the drip tray for convenience.

Troubleshooting

Refer to this section for common issues and their solutions. If the problem persists, contact customer support.

Specifications

Warranty and Support

For warranty information and customer support, please refer to the documentation included with your purchase or visit the official Euker website. Keep your proof of purchase for warranty claims.

Online Support: For frequently asked questions, troubleshooting guides, and product registration, please visit the Euker support page.

Contact Information: If you require further assistance, please contact Euker customer service. Contact details can typically be found on the product packaging or the brand's official website.
