1. Introduction
This manual provides essential instructions for the assembly, installation, operation, and maintenance of your SoBuy BZR198-N wall-mounted bathroom furniture set. Please read these instructions carefully before beginning assembly and retain them for future reference.
2. Safety Instructions
- Ensure all components are present and undamaged before assembly. Do not proceed with assembly if any parts are missing or damaged.
- Assembly should be performed on a soft, clean surface to prevent scratches.
- Always use appropriate tools and follow the assembly steps precisely.
- For wall-mounted items, ensure the wall structure is suitable and use appropriate fixings for your wall type. Consult a professional if unsure.
- Keep small parts and packaging materials away from children to prevent choking hazards.
- Do not overload drawers or shelves. Adhere to the maximum weight capacity of 27 kg for the base cabinet.
3. Package Contents
Your SoBuy BZR198-N set is delivered in three packages and includes the following main components:
- Wall-mounted base cabinet with two large drawers.
- Ceramic washbasin.
- Wall-mounted mirror with integrated shelf.
- Assembly instructions and all necessary screws.
Note: Faucet and drain fitting are not included and must be purchased separately.

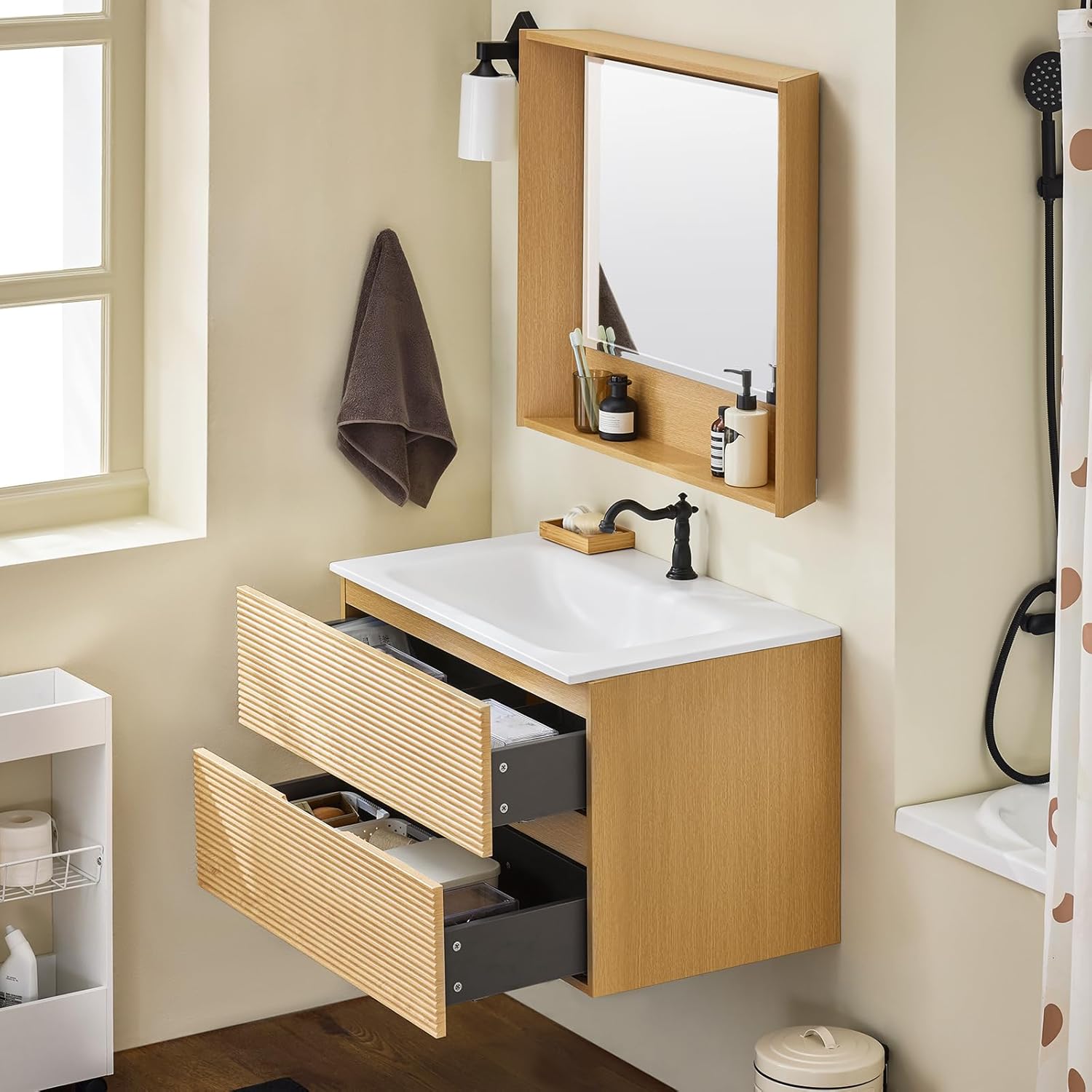

Figure 1: Overview of the SoBuy BZR198-N bathroom furniture set, showing the wall-mounted cabinet with washbasin and mirror.
4. Setup and Assembly
The SoBuy BZR198-N set is designed for easy installation. A detailed assembly instruction manual is included in your package. Please follow the step-by-step guide provided with the product for precise assembly.
4.1. Dimensions
Refer to the diagram below for product dimensions to ensure proper placement and installation.
- Base Cabinet: 80 cm (width) x 50 cm (depth) x 52 cm (height)
- Mirror: 81 cm (width) x 13 cm (depth) x 70 cm (height)
Figure 2: Detailed dimensions of the washbasin cabinet and mirror unit.
4.2. Wall Mounting
Both the base cabinet and the mirror are designed for wall mounting. Ensure the wall is capable of supporting the weight of the furniture and its contents. Use appropriate wall plugs and screws for your specific wall type (e.g., concrete, plasterboard). The mirror features a secure mounting plate.
Figure 3: Close-up view of the mirror's wall mounting bracket, showing the keyhole slot for secure attachment.
4.3. Washbasin and Plumbing
The ceramic washbasin is included. You will need to install a separate drain pipe and faucet. Ensure all plumbing connections are watertight and comply with local regulations.
5. Operating Instructions
5.1. Drawers
The base cabinet features two large drawers designed for storing toiletries and other bathroom essentials. The drawers operate on smooth-gliding runners. To open, gently pull the drawer front. To close, push until it is fully seated.
Figure 4: View of the drawer slide mechanism, illustrating the smooth operation.
The drawers are designed with an internal U-shaped cutout to accommodate plumbing pipes, maximizing usable storage space around the washbasin drain.
Figure 5: Interior view of a drawer, showing the U-shaped cutout designed to fit around plumbing.
5.2. Mirror
The mirror provides a clear reflection and includes a small integrated shelf for convenient storage of small items like toothbrushes or soap dispensers.
6. Maintenance
To ensure the longevity and appearance of your bathroom furniture set, follow these maintenance guidelines:
- Cleaning: Wipe surfaces with a soft, damp cloth. Avoid abrasive cleaners, harsh chemicals, or solvents, as these can damage the MDF (E1) and ceramic finishes.
- Spills: Immediately wipe up any water spills or moisture to prevent damage to the wood-based materials.
- Mirror Care: Clean the mirror with a glass cleaner and a soft, lint-free cloth.
- Drawer Runners: Periodically check drawer runners for smooth operation. If they become stiff, a small amount of silicone spray can be applied.
7. Troubleshooting
- Drawers not closing smoothly: Check for obstructions in the drawer runners. Ensure the runners are clean and free of debris. Verify that the cabinet is level.
- Mirror appears loose: Re-check the wall fixings. Ensure the mounting plate is securely attached to the wall and the mirror is properly seated.
- Water leaks from washbasin: This is typically due to improper installation of the drain pipe or faucet. Consult a plumber or re-check all plumbing connections for tightness and proper sealing.
8. Specifications
| Feature | Detail |
|---|---|
| Model | BZR198-N |
| Brand | SoBuy |
| Material | MDF(E1), Ceramic |
| Base Cabinet Dimensions (W x D x H) | 80 x 50 x 52 cm |
| Mirror Dimensions (W x D x H) | 81 x 13 x 70 cm |
| Item Weight | 59.8 kg |
| Tested Weight Capacity (Base Cabinet) | 27 kg |
| Color | Natural |
| Style | Modern |
9. Warranty and Support
SoBuy products are designed for quality and durability. For any questions, concerns, or support needs regarding your BZR198-N bathroom furniture set, please refer to the following:
- Assembly Manual: A detailed manual is included in each package. You can also scan the QR code on the packaging or contact SoBuy directly to receive a copy.
- Returns: If you are not satisfied with the product or encounter any issues, you can contact SoBuy to obtain a return label.
- Contact: For further assistance, please do not hesitate to contact SoBuy customer service.
