TCINDRR Main Timing Cover Seal Instruction Manual

1. Introduction

This manual provides essential information for the installation, function, and maintenance of the TCINDRR Main Timing Cover Seal. This product is designed for specific Honda K Series engines and compatible vehicle models. Please read this manual thoroughly before proceeding with installation or any related procedures.

Product Name: Main Timing Cover Seal

Brand: TCINDRR

Part Numbers: 91212-R11-A01, 91212-R1B-A01

Compatibility: Honda K Series K20, K24, K23 engines. Compatible with Honda Accord, CR-V, HR-V, Civic, Crosstour, Element.

2. Product Overview and Parts Included

The package includes two (2) Main Timing Cover Seals. These seals are critical components for maintaining the integrity of your engine's timing cover, preventing oil leaks and ensuring proper engine function.

Figure 2.1: Two TCINDRR Main Timing Cover Seals as packaged.

Figure 2.2: Outer diameter measurement of the timing cover seal.

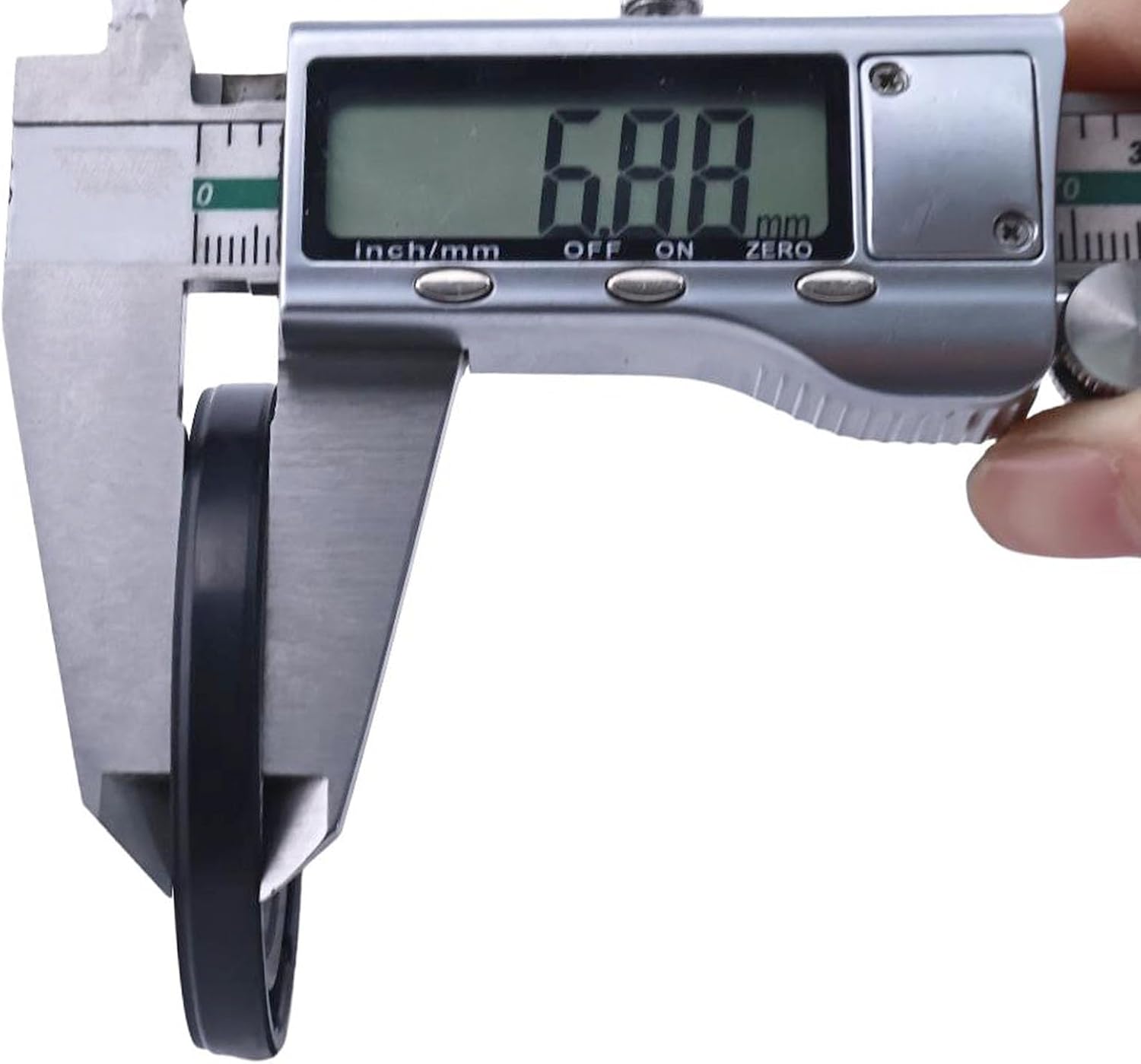

Figure 2.3: Thickness measurement of the timing cover seal.

Figure 2.4: Inner diameter measurement of the timing cover seal.

3. Specifications

4. Installation (Setup)

Installation of a main timing cover seal requires specialized tools and automotive knowledge. Improper installation can lead to oil leaks, engine damage, and other serious issues. It is highly recommended that this component be installed by a qualified professional mechanic.

General Installation Steps (Professional Guidance Recommended):

1. Preparation: Ensure the engine is cool and disconnected from the battery. Drain engine oil and coolant if necessary, depending on the vehicle's specific timing cover design.
2. Access: Remove any components obstructing access to the timing cover, such as drive belts, pulleys, engine mounts, and the crankshaft pulley.
3. Timing Cover Removal: Carefully remove the timing cover bolts and detach the timing cover. Be mindful of any gaskets or sealant.
4. Old Seal Removal: Using appropriate seal removal tools, carefully extract the old timing cover seal from the timing cover. Avoid damaging the timing cover or crankshaft.
5. Surface Preparation: Clean the timing cover and engine block mating surfaces thoroughly. Remove all old gasket material, sealant, and oil residue. Inspect surfaces for any damage or corrosion.
6. New Seal Installation: Apply a thin layer of clean engine oil to the lip of the new TCINDRR timing cover seal. Using a seal installation tool or a socket of appropriate size, carefully press the new seal squarely into the timing cover until it is fully seated. Ensure it is not cocked or damaged.
7. Reassembly: Apply new RTV sealant (if required by manufacturer specifications) to the timing cover mating surface and install a new timing cover gasket. Carefully reinstall the timing cover, ensuring proper alignment. Torque timing cover bolts to manufacturer specifications.
8. Final Steps: Reinstall all removed components, refill engine oil and coolant, and reconnect the battery. Start the engine and check for any leaks.

Warning: Refer to your vehicle's specific service manual for detailed, model-specific installation procedures and torque specifications. Failure to follow proper procedures can result in severe engine damage.

5. Function and Purpose (Operating)

The main timing cover seal plays a crucial role in the engine's operation by sealing the crankshaft where it passes through the timing cover. Its primary functions include:

• Preventing Oil Leaks: It forms a tight seal to prevent engine oil from leaking out of the timing cover area, which could lead to low oil levels and potential engine damage.
• Protecting Timing Components: By containing oil, it ensures proper lubrication of the timing chain or belt and other internal components, contributing to their longevity and efficient operation.
• Maintaining Engine Pressure: A proper seal helps maintain internal engine pressure, which is vital for various engine systems.

A properly functioning timing cover seal is essential for the overall health and performance of your engine.

6. Maintenance and Inspection

Timing cover seals are generally maintenance-free components designed for long-term durability. However, periodic inspection is recommended as part of routine vehicle maintenance:

• Visual Inspection: During oil changes or other under-hood inspections, visually check the area around the timing cover for any signs of oil leaks or seepage.
• Early Detection: Address any detected leaks promptly. Even minor leaks can worsen over time and lead to more significant issues.
• Professional Check: If you suspect a leak or notice oil stains around the timing cover, consult a qualified mechanic for a thorough inspection.

7. Troubleshooting

The most common issue associated with a faulty timing cover seal is an oil leak. If you observe any of the following symptoms, the timing cover seal may need inspection and replacement:

• Visible Oil Leaks: Oil spots on the ground beneath the front of the engine, or visible oil residue around the timing cover.
• Low Engine Oil Level: Frequent need to add engine oil, indicating consumption or leakage.
• Burning Oil Smell: Oil leaking onto hot engine components can produce a burning smell.
• Contaminated Drive Belts: Oil leaking onto drive belts can cause them to slip, squeal, or degrade prematurely.

If any of these symptoms are present, it is advisable to have the vehicle inspected by a professional to diagnose the exact cause and perform necessary repairs.

8. Warranty Information

Specific warranty details for this TCINDRR product are not provided in the available information. Please refer to the product packaging or contact the seller directly for warranty terms and conditions.

9. Customer Support

For technical assistance, installation questions, or product inquiries, please contact the seller or manufacturer directly. Contact information is typically available on the product packaging or the point of purchase.
