Emporio Armani World Explorer Dive-Inspired Men's Watch User Manual

1. Introduction

Thank you for choosing the Emporio Armani World Explorer Dive-Inspired Men's Watch. This timepiece combines sophisticated design with reliable solar-powered technology, offering precision and style for the modern individual. This manual provides essential information for the proper setup, operation, and maintenance of your watch.

Figure 1: Front view of the Emporio Armani World Explorer watch.

Key Features:

• Solar-Powered Movement: Utilizes light energy, eliminating the need for battery replacements. A full charge can power the watch for up to 5 months.
• Chronograph Function: Integrated stopwatch for precise time measurement.
• Durable Construction: Features a 43.5mm stainless steel case, scratch-resistant mineral crystal, and a robust stainless steel bracelet.
• Water Resistance: Rated for 100 meters (330 feet) / 10 ATM, suitable for bathing, swimming, or snorkeling.
• Dive-Inspired Design: Blue sunray dial with luminous hands and markers, and a rotating bezel.

2. Components Overview

Familiarize yourself with the main components of your Emporio Armani World Explorer watch.

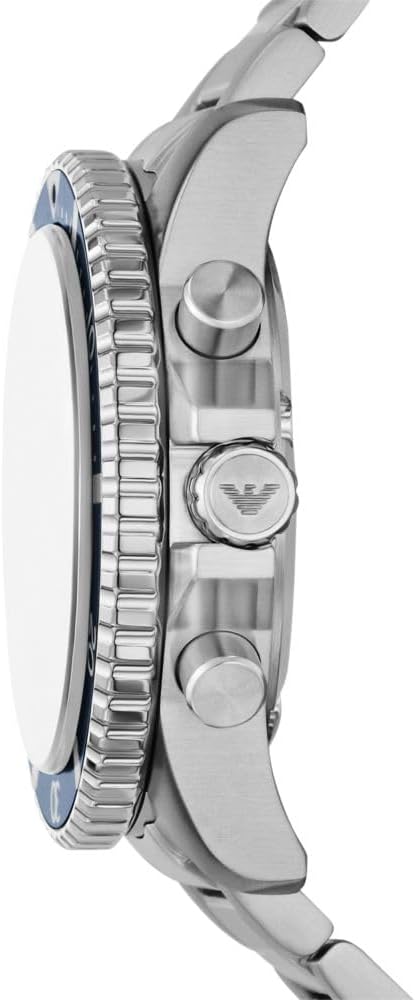

Figure 2: Side view highlighting the crown and pushers.

• 1. Crown: Used for setting the time and date.
• 2. Pushers (A & B): Used to operate the chronograph functions.
• 3. Bezel: Rotating ring, often used for timing or tracking elapsed time.
• 4. Dial: The watch face, displaying time and other information.
• 5. Hands: Hour, minute, and second hands.
• 6. Sub-dials: Small dials for chronograph minutes, seconds, and 24-hour display.
• 7. Date Window: Displays the current date.

Figure 3: Angled view showing the watch bracelet and clasp.

3. Setup

3.1 Initial Charge

Your Emporio Armani World Explorer watch is powered by light. Before initial use, or if the watch has stopped, expose the dial to a strong light source (natural sunlight is ideal) for several hours. A full charge can provide approximately 5 months of operation. Ensure the watch is regularly exposed to light to maintain its charge.

3.2 Setting the Time and Date

1. Pull out the crown to position 2 (second click) to set the time. The second hand will stop.
2. Rotate the crown to move the hour and minute hands clockwise until the desired time is set. Ensure the AM/PM is correctly set if your watch has a 24-hour indicator or date changes at midnight.
3. Push the crown back to position 1 (first click) to set the date.
4. Rotate the crown to adjust the date.
5. Push the crown back to position 0 (normal position) to start the watch.

3.3 Bracelet Adjustment

The stainless steel bracelet can be adjusted for a customized fit by adding or removing links. This procedure typically requires specialized tools and is best performed by a professional jeweler or watch repair service to avoid damage.

Figure 4: Watch on wrist, showing typical fit.

4. Operating the Watch

4.1 Using the Chronograph

The chronograph function allows you to measure elapsed time.

1. To Start: Press pusher A (top pusher) to start the chronograph. The chronograph second hand will begin to move.
2. To Stop: Press pusher A again to stop the chronograph. The elapsed time will be indicated by the chronograph hands.
3. To Reset: After stopping, press pusher B (bottom pusher) to reset the chronograph hands to their zero positions.
4. Split Time (if applicable): Some chronographs allow for split time measurement. Consult the specific movement instructions if your model supports this.

4.2 Water Resistance Guidelines

Your watch has a water resistance rating of 10 ATM (100 meters / 330 feet). This means it is suitable for:

• Everyday use and splashes.
• Bathing and showering.
• Swimming and snorkeling.

Important: This watch is not designed for scuba diving or high-impact water sports. Do not operate the crown or pushers when the watch is wet or submerged, as this can compromise the water resistance.

5. Maintenance

5.1 Cleaning Your Watch

To maintain the appearance of your watch:

• Wipe the case and crystal with a soft, lint-free cloth.
• For the stainless steel bracelet, use a soft brush and mild soapy water to clean between the links, then rinse thoroughly with clean water and dry immediately with a soft cloth.
• Avoid using harsh chemicals, solvents, or abrasive cleaners.

5.2 Solar Cell Care and Storage

To ensure optimal performance of the solar movement:

• Avoid prolonged storage in dark places. If stored in darkness, the watch may stop.
• When not wearing the watch, store it in a location where it can receive light, such as near a window, but avoid direct, intense sunlight for extended periods to prevent overheating.
• Store the watch in its original box or a watch case to protect it from dust and scratches.

Figure 5: Original Emporio Armani watch box for storage.

6. Troubleshooting

For issues not listed above, or if solutions do not resolve the problem, please contact an authorized Emporio Armani service center.

7. Specifications

8. Warranty and Support

Your Emporio Armani World Explorer watch is covered by a manufacturer's warranty against defects in materials and workmanship. Please refer to the warranty card included with your purchase for specific terms, conditions, and duration.

For warranty claims, repairs, or technical assistance, please contact Emporio Armani customer support or visit an authorized service center. You can find more information on the official Emporio Armani website or through the retailer where you purchased the watch.

Online Support: For additional resources and frequently asked questions, please visit the official Emporio Armani website.
