ZZH Office Chair Instruction Manual

1. Introduction

Thank you for choosing the ZZH Office Chair Model 03. This manual provides detailed instructions for the safe assembly, operation, and maintenance of your new office chair. Please read all instructions carefully before use and retain this manual for future reference.

Attention: Please read the assembly instructions carefully before assembling the chair. Use the included tool and follow the instructions for safe adjustment of the adjustable parts.

2. Components Overview

Before assembly, ensure all components are present and undamaged. If any parts are missing or damaged, please contact customer support.

Image: Components of the chair base, including the robust nylon base, SGS certified gas lift, and quality universal wheels. The reinforced steel plate is also visible.

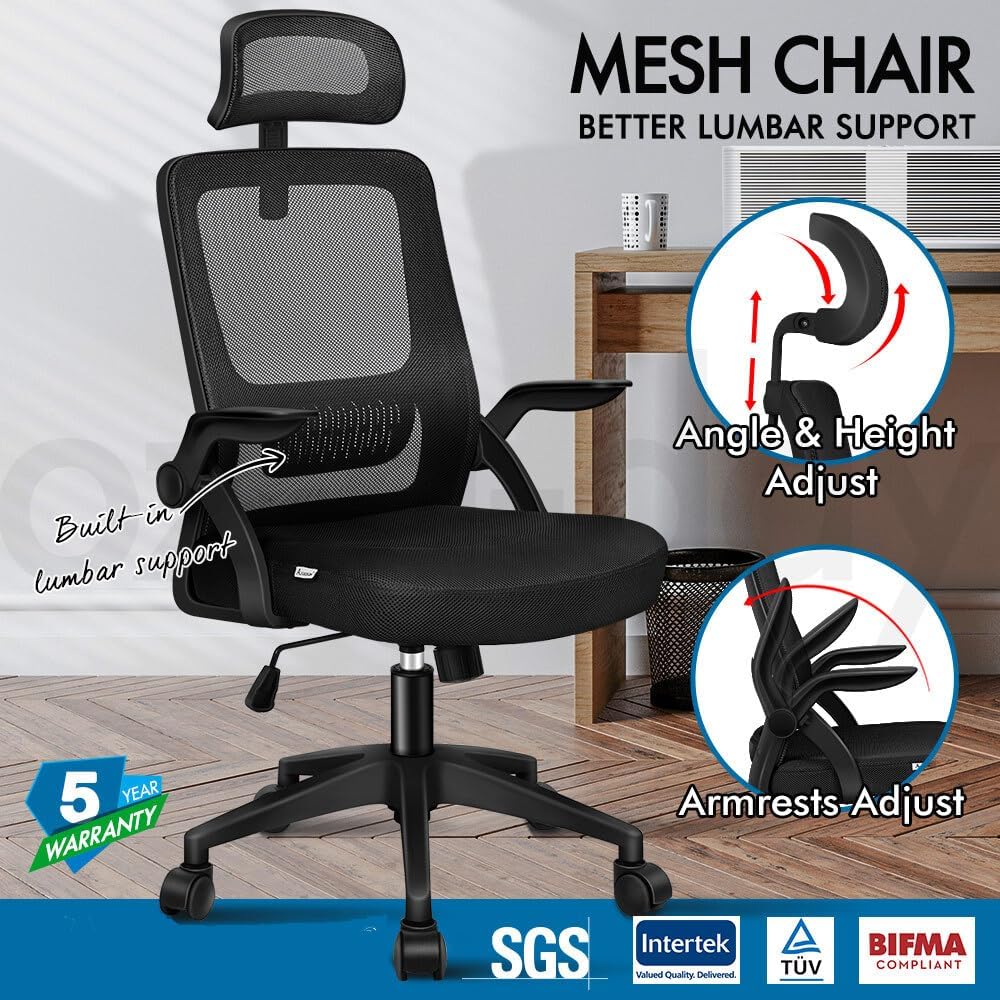

Image: Overview of the ZZH Office Chair highlighting the built-in lumbar support, adjustable headrest (angle & height), and adjustable armrests.

3. Assembly Instructions

Follow these steps to assemble your ZZH Office Chair. It is recommended to assemble the chair on a soft, clean surface to prevent damage.

1. Attach Wheels to Base: Insert the five universal wheels into the openings at the end of each leg of the chair base. Push firmly until they click into place.
2. Insert Gas Lift: Place the gas lift cylinder into the central hole of the assembled chair base. Ensure it is seated securely.
3. Attach Seat Mechanism: Secure the seat mechanism to the underside of the seat cushion using the provided screws. Ensure the front of the mechanism aligns with the front of the seat.
4. Connect Seat to Gas Lift: Carefully place the assembled seat onto the gas lift cylinder. The tapered end of the gas lift should fit into the central hole of the seat mechanism.
5. Attach Backrest: Align the backrest with the mounting points on the seat mechanism and secure it with the provided screws.
6. Install Headrest: Insert the headrest into the designated slots at the top of the backrest. Adjust its height and angle as desired.
7. Attach Armrests: Secure the armrests to the sides of the seat using the provided screws. Ensure they are firmly attached.

Image: Fully assembled ZZH Office Chair with detailed dimensions for height, width, and depth of various components including backrest, seat, and armrests.

4. Operating Instructions

Your ZZH Office Chair is designed with multiple adjustable features to provide optimal comfort and support.

• Height Adjustment: To adjust the chair height, locate the lever on the right side beneath the seat. While seated, pull the lever up to lower the chair. To raise the chair, stand up and pull the lever up. Release the lever at the desired height. The chair offers approximately 10cm of adjustable height.
• Tilt Mechanism: The chair features a tilt function for active sitting and proper posture. Use the lever on the left side beneath the seat to lock or unlock the tilt. When unlocked, you can recline the backrest. Some models may include a tension knob to adjust the resistance of the tilt.
• Headrest Adjustment: The headrest can be adjusted for both angle and height. Gently push or pull the headrest to change its angle. To adjust the height, slide the headrest up or down along its support.
• Armrest Adjustment: The armrests are flexible and can be adjusted to suit your preferred position. Depending on the model, armrests may pivot or adjust vertically. Refer to the specific mechanism on your chair for adjustment.
• Lumbar Support: The chair features built-in lumbar support designed to conform to the natural curve of your spine. This support is integrated into the backrest for continuous comfort.
• 360° Swivel: The chair is equipped with a 360° swivel function, allowing for easy rotation and movement around your workspace.

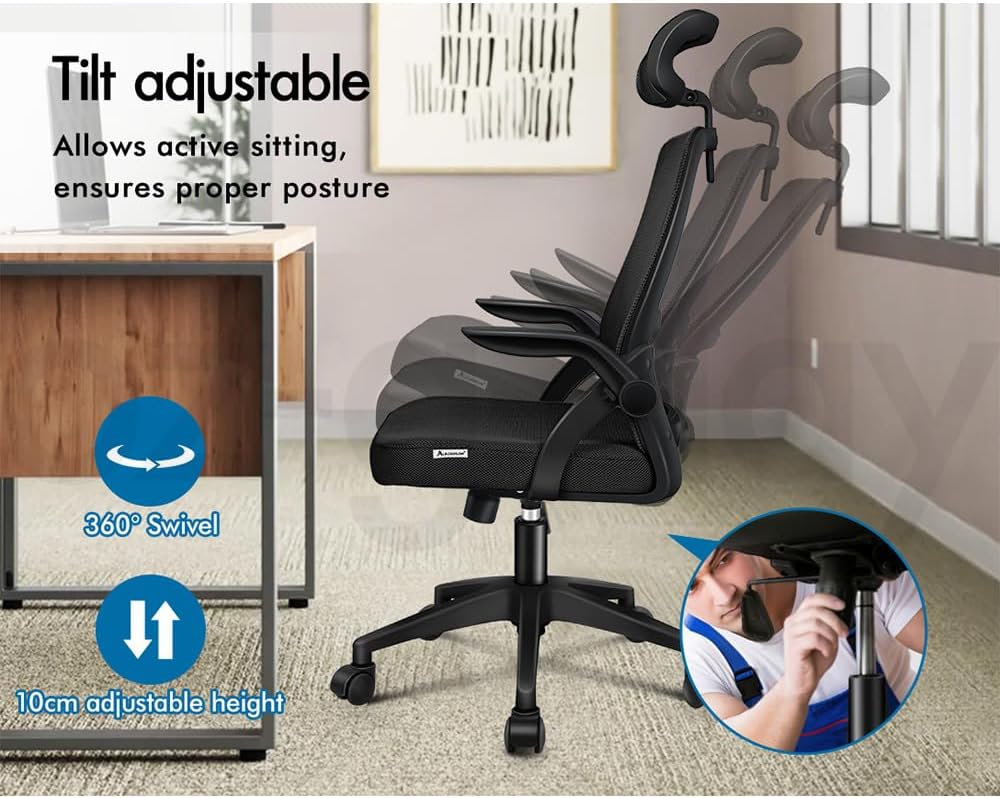

Image: The ZZH Office Chair demonstrating its tilt adjustable feature, 360-degree swivel, and 10cm adjustable height mechanism.

Image: The S-curve design of the ZZH Office Chair, illustrating the angle and height adjustable headrest, removable headrest option, and adjustable armrests for ergonomic seating.

5. Maintenance

Proper maintenance will extend the life and appearance of your ZZH Office Chair.

• Cleaning: Wipe clean with a damp cloth. Avoid harsh chemicals or abrasive cleaners, as these can damage the mesh fabric and other materials.
• Regular Checks: Periodically check all screws and bolts to ensure they are tight. Re-tighten if necessary to maintain stability and safety.
• Wheel Care: Keep the wheels free of debris (hair, dust, etc.) to ensure smooth rolling.

Image: Close-up view of the A1 class mesh fabric used in the ZZH Office Chair, emphasizing material quality.

6. Troubleshooting

If you encounter any issues with your ZZH Office Chair, refer to the following common problems and solutions.

• Chair Sinks or Does Not Stay Up: This usually indicates an issue with the gas lift. Ensure the height adjustment lever is fully engaged. If the problem persists, the gas lift may need replacement.
• Chair Wobbles: Check all assembly screws and bolts, especially those connecting the seat to the mechanism and the backrest. Re-tighten any loose fasteners. Ensure the base is properly assembled and the gas lift is securely seated.
• Wheels Not Rolling Smoothly: Inspect the wheels for any trapped debris such as hair or lint. Clean the wheels thoroughly. Ensure the wheels are correctly inserted into the base.
• Squeaking Noises: Apply a small amount of silicone-based lubricant to moving parts, such as the tilt mechanism or wheel axles. Avoid oil-based lubricants on plastic components.

7. Specifications

8. Warranty & Support

The ZZH Office Chair Model 03 is backed by a comprehensive 5-year warranty, ensuring long-term confidence in your investment. This warranty covers manufacturing defects and material failures under normal use.

For warranty claims, technical support, or any questions regarding your product, please contact ZZH customer service through your original point of purchase or visit the official ZZH website for contact information.
