DFFMQSJ Adjustable Motorcycle Rear Luggage Rack & Side Carrier User Manual

1. Introduction

This manual provides comprehensive instructions for the installation, operation, and maintenance of your DFFMQSJ Adjustable Motorcycle Rear Luggage Rack and Side Carrier. Designed for compatibility with the Honda CC110 Cross Cub, this product offers a robust and adjustable solution for carrying luggage and other essentials securely. Please read this manual thoroughly before installation and use to ensure proper function and safety.

2. Product Overview

The DFFMQSJ Adjustable Motorcycle Rear Luggage Rack and Side Carrier is engineered to provide a versatile storage solution for your motorcycle. Its adjustable design allows for customization to suit various luggage sizes and types. Constructed from high-quality metal with a gloss black finish, it offers durability and resistance to corrosion. The integrated side carriers can be unfolded to expand storage capacity.

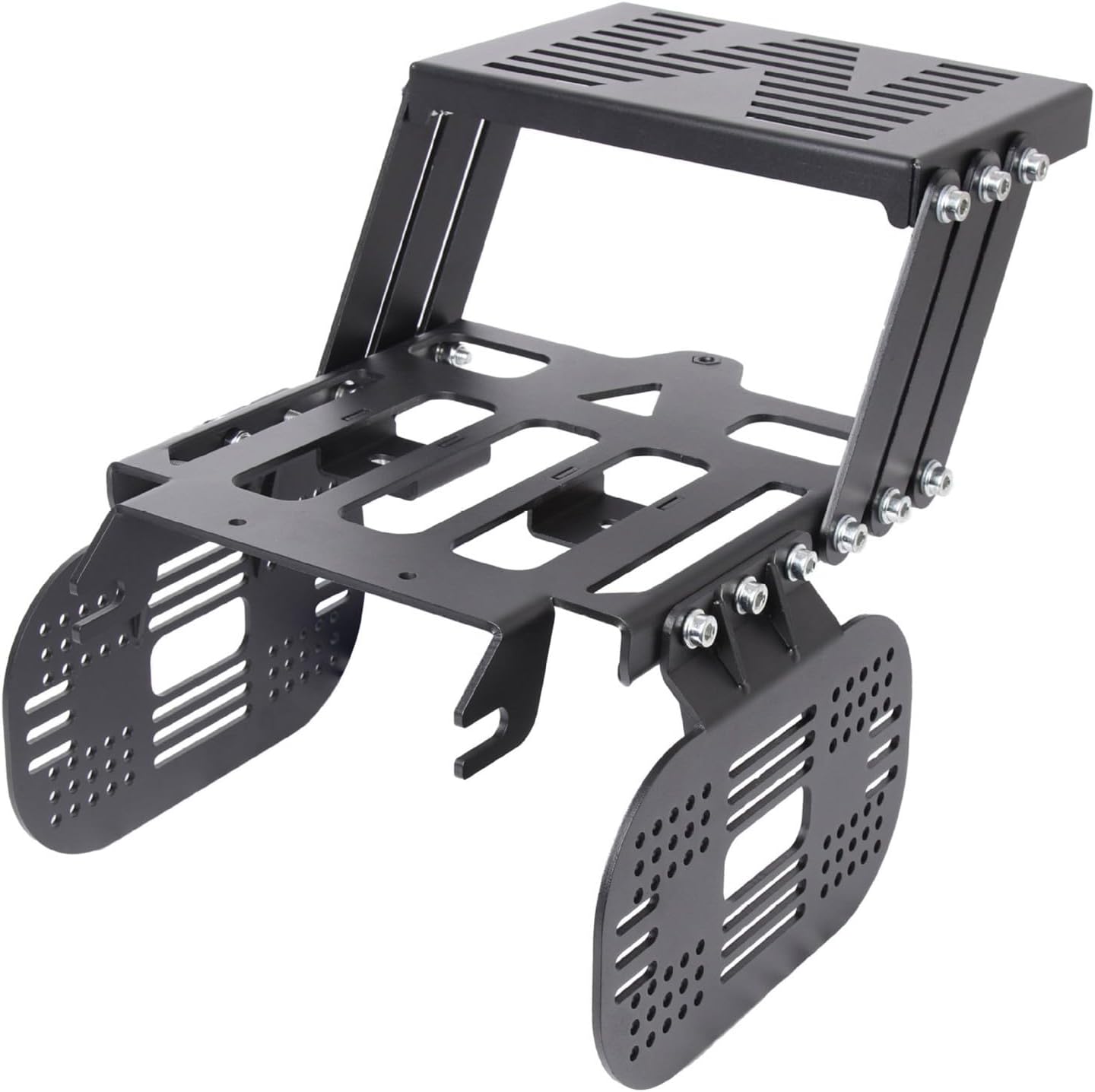

Image 2.1: Overview of the DFFMQSJ Adjustable Motorcycle Rear Luggage Rack and Side Carrier.

3. Package Contents

Before beginning installation, please verify that all components are present in your package:

• 1 x Motorcycle Storage Rack Set
• 1 x Installation Kit (includes necessary screws and fasteners)

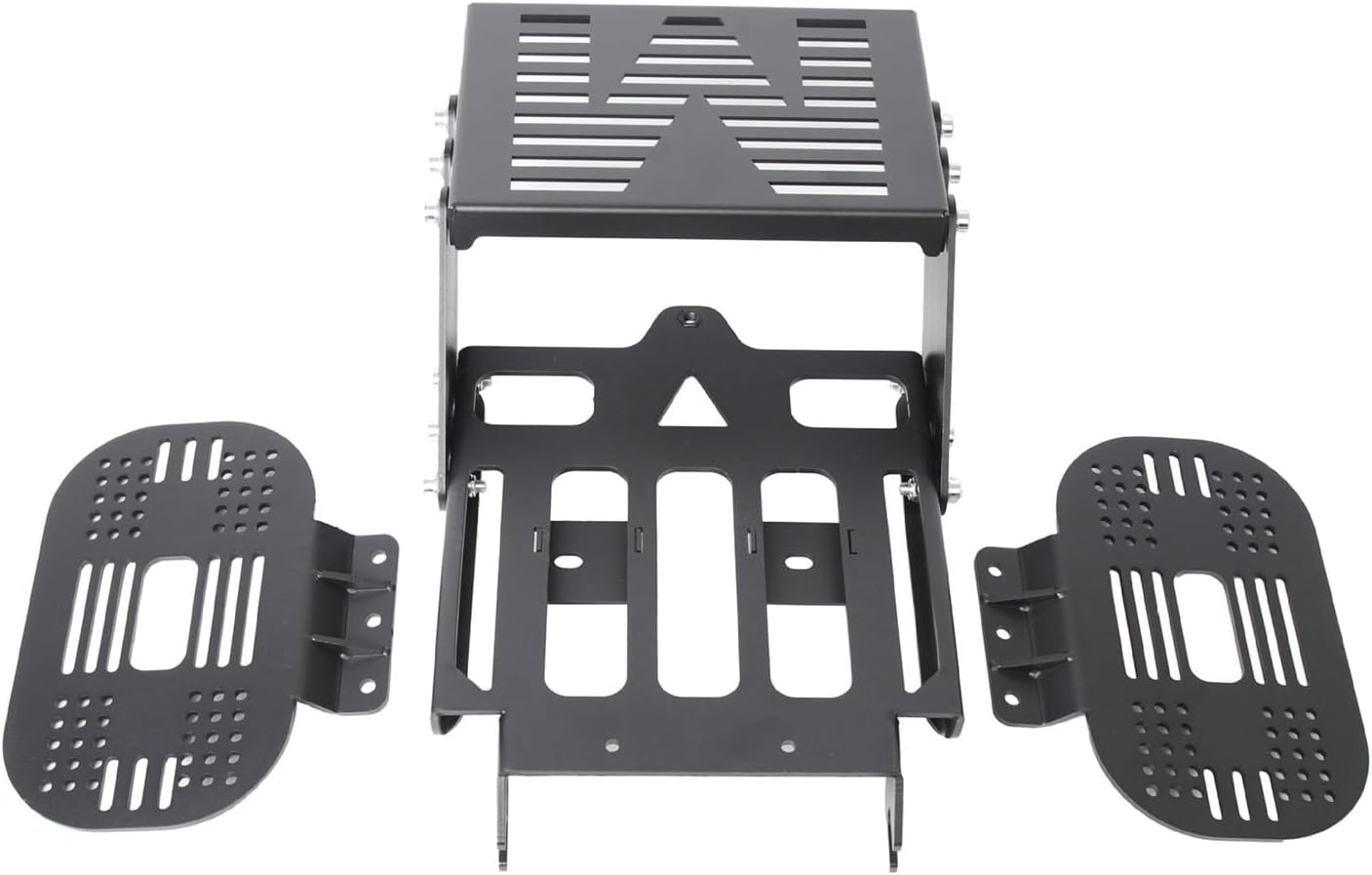

Image 3.1: All components included in the DFFMQSJ Motorcycle Luggage Rack package.

4. Specifications

5. Setup and Installation

The DFFMQSJ Adjustable Motorcycle Rear Luggage Rack and Side Carrier is designed for straightforward, punch-free installation. Follow these steps carefully:

Step 1: Prepare the Motorcycle

Ensure your Honda CC110 Cross Cub is parked on a stable, level surface. Turn off the engine and remove the key. It is recommended to have basic tools such as wrenches and screwdrivers readily available.

Step 2: Identify Mounting Points

Locate the designated mounting points on the rear frame of your Honda CC110 Cross Cub. The rack is designed to align with existing bolt holes, eliminating the need for drilling.

Step 3: Assemble the Rack Components (if necessary)

If the rack components are not pre-assembled, connect the main rack platform to the side support brackets using the provided screws and fasteners from the installation kit. Do not fully tighten bolts at this stage.

Step 4: Attach the Rack to the Motorcycle

Carefully position the assembled rack onto the motorcycle's rear section, aligning the rack's mounting holes with the motorcycle's frame. Insert the provided screws and fasteners. Hand-tighten all bolts initially.

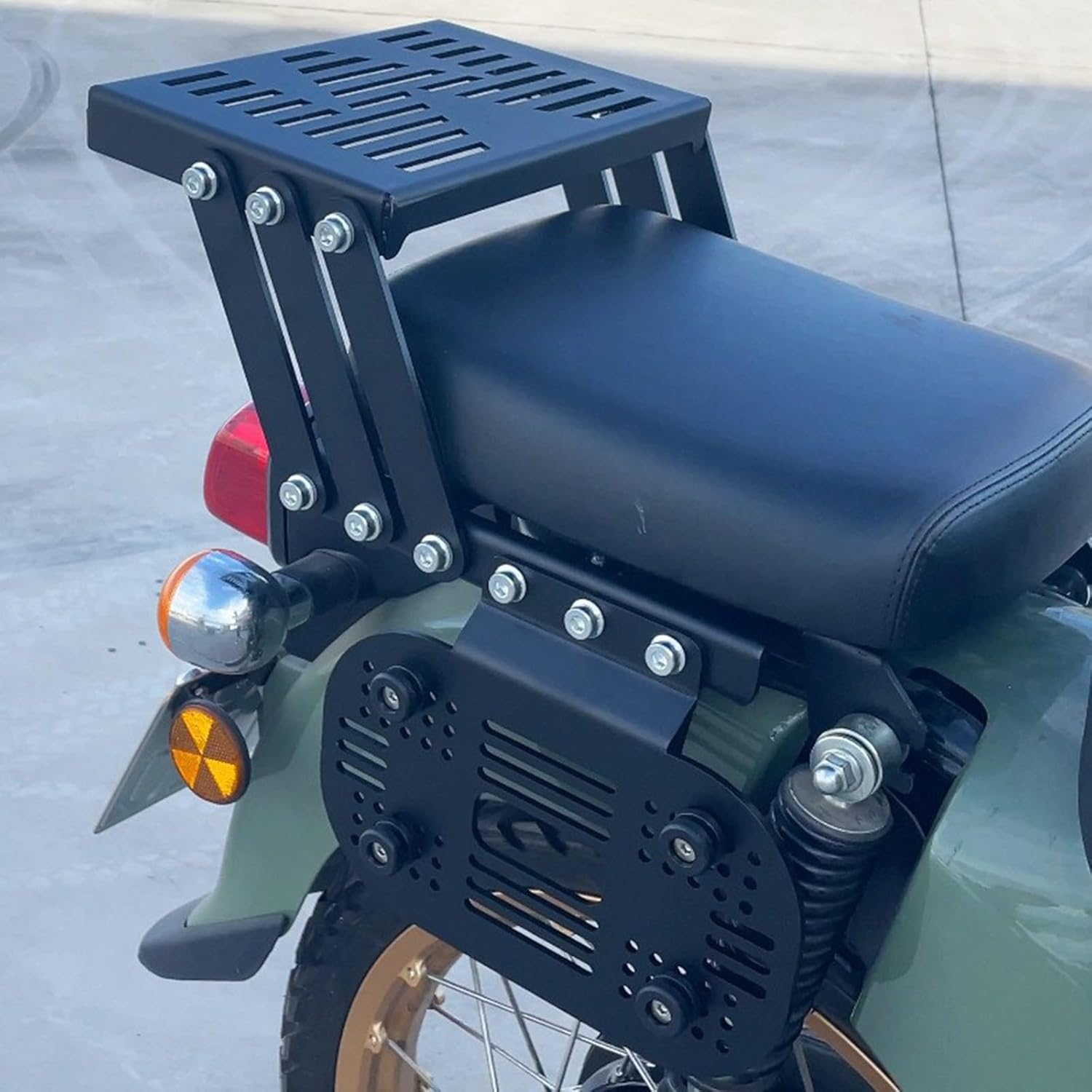

Image 5.1: Side view of the luggage rack installed on a Honda CC110 Cross Cub.

Step 5: Adjust and Secure

Once all bolts are in place, adjust the rack to your desired position. The side carriers can be unfolded to increase storage space. After positioning, systematically tighten all screws and fasteners securely using appropriate tools. Ensure all connections are firm and stable.

Image 5.2: Rear view of the luggage rack installed on a Honda CC110 Cross Cub, showing the main platform and side carriers.

Step 6: Final Check

Before riding, perform a final inspection to ensure all components are tightly secured and the rack is stable. Gently shake the rack to confirm there is no excessive movement or rattling.

6. Operation and Usage

The DFFMQSJ Adjustable Motorcycle Rear Luggage Rack and Side Carrier is designed for carrying various items. Observe the following guidelines for safe operation:

• Weight Capacity: Do not exceed the maximum weight capacity of 41 lbs (18.6 kg). Overloading can affect motorcycle handling and stability.
• Load Distribution: Distribute weight evenly across the rack. Place heavier items closer to the center of the motorcycle.
• Securing Luggage: Always use appropriate straps, bungee cords, or nets to securely fasten luggage to the rack. Ensure items do not obstruct lights, turn signals, or interfere with motorcycle operation.
• Adjustable Side Carriers: The side carriers can be unfolded to accommodate wider items or saddlebags. Ensure they are securely locked in position when in use.

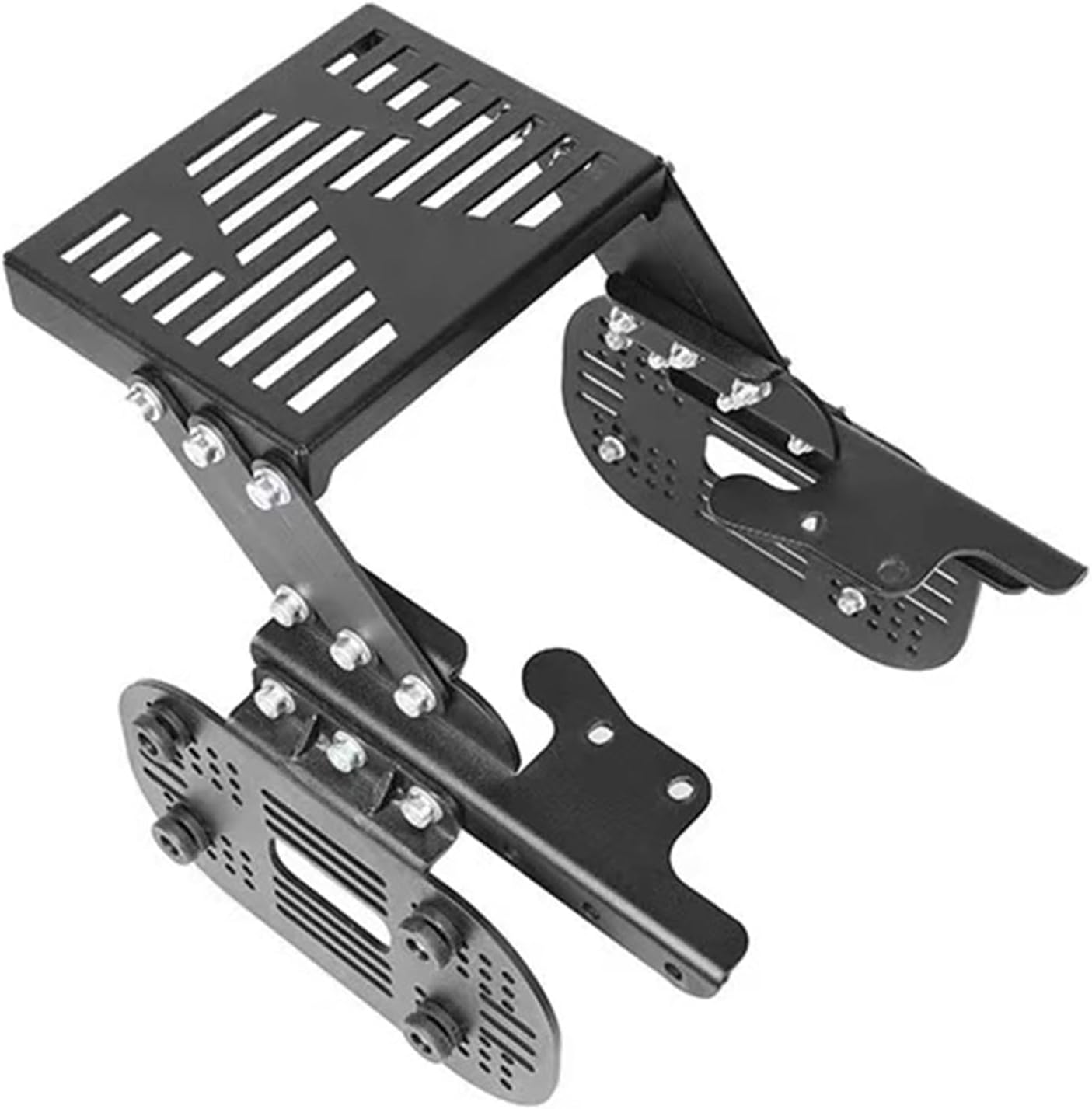

Image 6.1: Angled view of the luggage rack, demonstrating the adjustable side carriers.

7. Maintenance

Regular maintenance ensures the longevity and safe operation of your luggage rack.

• Regular Inspection: Periodically check all bolts and fasteners for tightness. Vibrations from riding can cause them to loosen over time.
• Cleaning: Clean the rack with a mild detergent and water. Avoid abrasive cleaners that could damage the finish.
• Corrosion Prevention: While the rack has a corrosion-resistant coating, inspect for any signs of rust, especially after exposure to rain or harsh conditions. Touch up any chips or scratches in the paint to prevent rust.
• Damage Check: Inspect the rack for any signs of damage, bends, or cracks. Replace any damaged components immediately.

8. Troubleshooting

Issue: Rack feels loose or rattles.

• Solution: Check all mounting bolts and fasteners. Tighten them securely. Ensure no components are missing from the installation kit.

Issue: Difficulty in attaching luggage.

• Solution: Ensure the adjustable side carriers are correctly positioned. Use appropriate luggage straps or nets designed for motorcycle use.

9. Warranty and Support

For warranty information or technical support, please contact DFFMQSJ customer service through the retailer where the product was purchased. Please have your purchase details and product model information ready.
