Introduction
Thank you for choosing the Ethelred Smart Watch ET570. This manual provides essential information for setting up, operating, and maintaining your new smartwatch. Please read this manual thoroughly before using the device to ensure proper function and longevity.

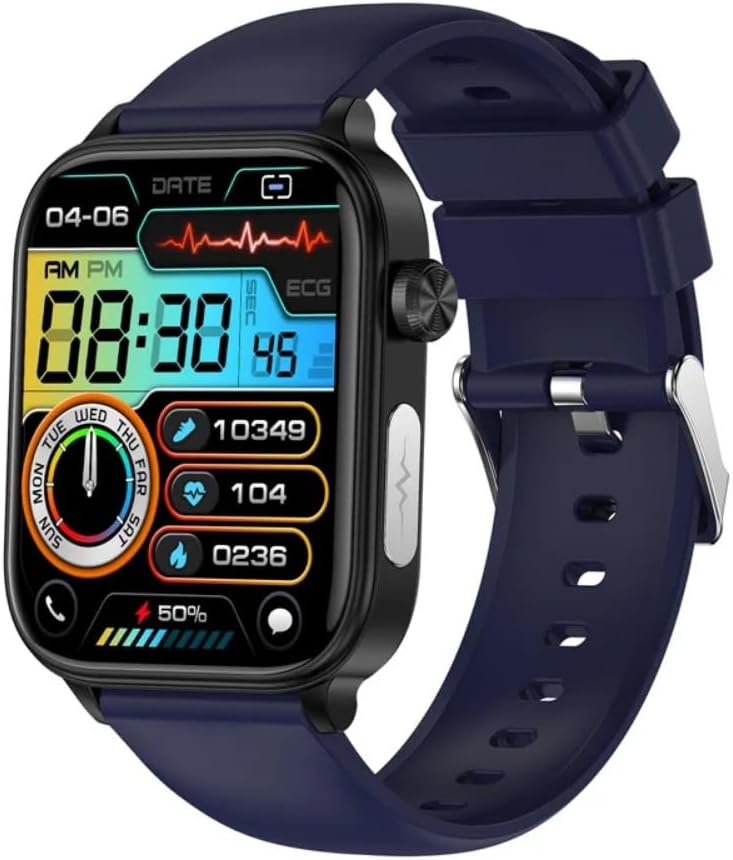

Image: Front view of the Ethelred Smart Watch ET570 with a blue strap, displaying various health metrics and time.
What's in the Box
Upon opening your Ethelred Smart Watch ET570 package, you should find the following items:
- Ethelred Smart Watch ET570 (Blue)
- Charging Cable
- User Manual (this document)
- Watch Band
Setup
1. Initial Charging
Before first use, fully charge your Ethelred Smart Watch ET570. Connect the provided charging cable to the charging port on the back of the watch and plug the other end into a USB power adapter (not included) or a computer's USB port. The watch display will indicate charging status.
2. Powering On/Off
- To Power On: Press and hold the side button until the Ethelred logo appears on the screen.
- To Power Off: Press and hold the side button, then select "Power Off" from the options displayed on the screen.
3. App Installation and Pairing
The Ethelred Smart Watch ET570 requires the "H Band" application for full functionality and data synchronization. The app is compatible with both iOS and Android operating systems.
- Download the "H Band" app from your smartphone's app store (Apple App Store for iOS, Google Play Store for Android).
- Ensure Bluetooth is enabled on your smartphone.
- Open the "H Band" app and follow the on-screen instructions to create an account or log in.
- Within the app, navigate to the device pairing section and select "Add Device".
- The app will search for nearby devices. Select "ET570" from the list of found devices to initiate pairing.
- Confirm the pairing request on both your smartphone and the smartwatch if prompted.
Once paired, the watch will synchronize time and date with your phone, and you can begin customizing settings and tracking data.
Operating Instructions
Touch Screen Navigation
The ET570 features an intuitive 1.96-inch TFT touch screen for navigation.
- Swipe Up/Down: Scroll through menus and notifications.
- Swipe Left/Right: Access different widgets or quick settings.
- Tap: Select an item or confirm an action.
- Press and Hold: Customize watch faces or access specific function menus.
Key Functions
The Ethelred Smart Watch ET570 offers a range of functions to enhance your daily life and fitness tracking:
- Fitness Tracking: Tracks steps, calories burned, and activity.
- Health Monitoring: Includes Heart Rate Monitor, Sleep Monitor, and Blood Pressure Monitor.
- Communication: Answer and Dial Calls, Message Reminder, Call Reminder, Push Message notifications.
- Convenience Features: Passometer, Alarm Clock, Week display, Remote Control (for phone camera/music).

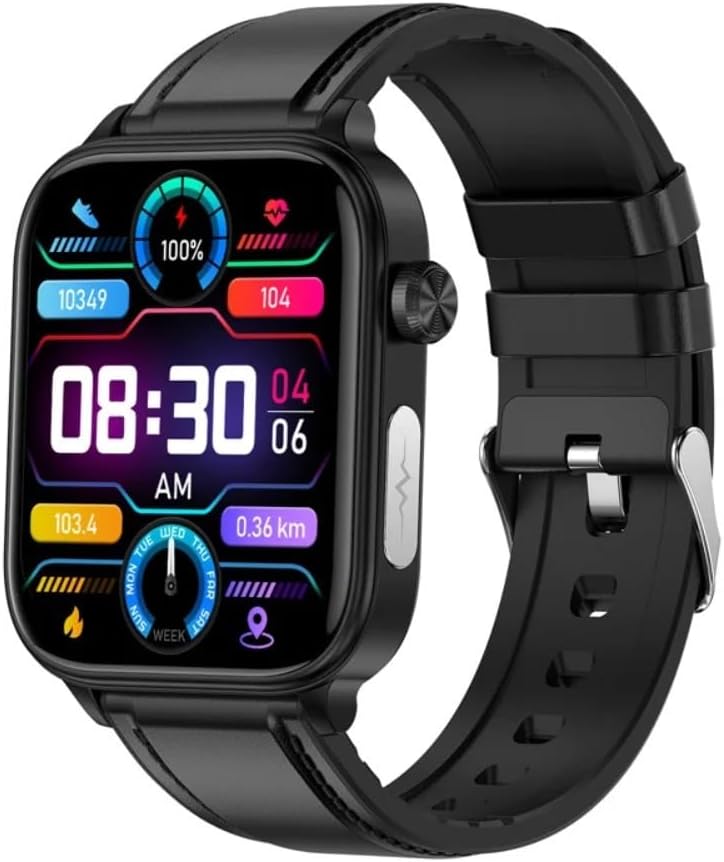

Image: The smartwatch screen showing health metrics such as heart rate and step count.
Using the H Band App
The H Band app serves as the central hub for your smartwatch data and settings. Through the app, you can:
- View detailed health and fitness data.
- Set personal goals and track progress.
- Customize watch faces and display settings.
- Manage notifications from various applications.
- Update the watch's firmware.
Maintenance
Cleaning Your Smart Watch
Regular cleaning helps maintain the appearance and functionality of your ET570.
- Wipe the screen and body with a soft, lint-free cloth.
- For stubborn marks, slightly dampen the cloth with water. Avoid using harsh chemicals or abrasive materials.
- Ensure the charging contacts are clean and dry before charging.
Water Resistance
The Ethelred Smart Watch ET570 is rated as "Life Waterproof". This means it is resistant to splashes, rain, and brief immersion in shallow water. It is not suitable for swimming, showering, or diving. Avoid exposing the watch to hot water or steam.
Battery Care
To maximize battery life and longevity:
- Avoid extreme temperatures.
- Do not allow the battery to fully discharge frequently.
- Use only the provided charging cable.
Troubleshooting
| Problem | Possible Solution |
|---|---|
| Watch not turning on | Ensure the watch is fully charged. Press and hold the side button for at least 10 seconds. |
| Cannot pair with phone |
|
| Inaccurate health data | Ensure the watch is worn snugly on your wrist, about one finger's width above the wrist bone. Clean the sensor on the back of the watch. |
| Notifications not appearing |
|
Specifications
| Feature | Detail |
|---|---|
| Brand | Ethelred |
| Model | ET570 |
| Display Size | 1.96 inch |
| Screen Material | TFT |
| Resolution | 360*360 |
| CPU Model | 7013A |
| Bluetooth Version | 5.0 |
| Battery Capacity | 300-450mAh (Typical: 300 Milliamp Hours) |
| Battery Life | Up to 2 days (depending on usage) |
| Waterproof Grade | Life Waterproof |
| Compatibility | IOS, Android OS |
| App Name | H Band |
| Metrics Measured | Heart Rate Monitor, Sleep Monitor, Blood Pressure Monitor |
| Activity Tracked | Steps Tracker, Calorie Tracker, Activity Tracker |
| Case Material | Alloy |
| Band Material | Silica GEL |
Warranty and Support
Warranty Information
The Ethelred Smart Watch ET570 comes with a standard manufacturer's warranty. Please refer to the warranty card included in your product packaging for specific terms and conditions, including warranty duration and coverage details. Keep your proof of purchase for warranty claims.
Customer Support
For technical assistance, troubleshooting beyond this manual, or warranty inquiries, please contact Ethelred customer support through the following channels:
- Website: Visit the official Ethelred website for FAQs and support resources.
- Email: Refer to your product packaging or the Ethelred website for support email addresses.
- Phone: Contact numbers may be available on the official website for your region.
When contacting support, please have your product model (ET570) and purchase details ready.
