1. Introduction
This manual provides detailed instructions for the installation, operation, and maintenance of your YACAISI Solar Street Lights Outdoor. These lights are designed for outdoor use, featuring 8500K LED illumination, a dusk-to-dawn sensor, motion detection, and remote control functionality. Please read this manual thoroughly before installation and use to ensure proper function and longevity of the product.
The YACAISI Solar Street Light utilizes a 6V/5W polycrystalline solar panel with a 25% energy conversion rate. It is equipped with a 3000mAH battery, providing 10-12 hours of continuous lighting after a 4-6 hour charge in direct sunlight. The light features 42 super-bright 5054 high-power LED lamp beads, offering 220-degree ultra-wide-angle lighting and covering an area of approximately 900 square feet.
Image: Front view of the YACAISI Solar Street Light, showcasing its design and LED array.
2. Package Contents
Verify that all items listed below are included in your package. If any parts are missing or damaged, please contact customer support.
- 2 x YACAISI Solar Street Lights
- 2 x Remote Controls
- 1 x Instruction Manual (this document)
- 3 sets of Installation Accessories (screws, anchors, mounting bracket)
Image: Visual representation of the items included in the package, such as the solar lights, remote controls, and mounting hardware.
3. Setup and Installation
The YACAISI Solar Street Light is designed for easy wall-mount installation without the need for additional wiring. For optimal performance, choose a location that receives direct sunlight for at least 4-6 hours daily.
3.1 Choosing an Installation Location
- Select a wall or pole where the solar panel can receive maximum direct sunlight throughout the day. Avoid shaded areas from trees, buildings, or other obstructions.
- Ensure the light is positioned to illuminate the desired area effectively. The light provides a 220-degree wide-angle illumination.
- Consider the height for installation. A higher position generally provides a wider light spread.
3.2 Mounting Instructions
- Mark Drilling Points: Hold the mounting bracket against the desired installation surface. Use a marker to mark the positions for the drilling holes.
- Drill Holes: Using an appropriate drill bit for your surface (wood, concrete, etc.), drill holes at the marked positions.
- Insert Wall Anchors: For masonry or concrete surfaces, insert the provided wall anchors into the drilled holes.
- Attach Mounting Bracket: Align the mounting bracket with the drilled holes and secure it using the provided screws. Ensure it is firmly attached.
- Attach Light Fixture: Slide the solar street light onto the mounting arm of the bracket. Secure it with any provided locking mechanisms or screws to prevent movement.
- Initial Charge: Allow the solar light to charge in direct sunlight for at least one full day (8-10 hours) before its first use to ensure the battery is fully charged.
Image: Diagram illustrating the components included for installation and how the light is mounted to a wall.
4. Operating Modes and Remote Control
Your YACAISI Solar Street Light comes with a remote control to select various operating modes. The light automatically turns on at dusk and off at dawn based on the selected mode.
4.1 Remote Control Functions
Image: The remote control with labels for each button and its corresponding function.
- Light On: Keeps the light on continuously until the battery power is depleted.
- Sensor 1: Activates radar motion sensor mode. The light maintains 30% brightness. When motion is detected within 15-30 feet, it brightens to 100%. After motion ceases, it returns to 30% brightness.
- Sensor 2: Activates radar motion sensor mode. The light remains off. When motion is detected within 15-30 feet, it turns on at 100% brightness. After motion ceases, it turns off.
- ON / OFF: Manually turns the light on or off. When turned off, it will remain off until manually turned on again or until the next dusk-to-dawn cycle if set to an automatic mode.
- 3hrs / 5hrs to Sensor: Sets a timed duration for the light to operate in Sensor 1 mode (30% brightness with 100% on motion). After 3 or 5 hours, the light will switch to Sensor 2 mode (off with 100% on motion).
- 4hrs: Turns the light on at high brightness for 4 hours, then turns off.
4.2 Dusk to Dawn Functionality
In any active mode, the light's built-in sensor will detect ambient light levels. It will automatically turn on when it gets dark (dusk) and turn off when it becomes light (dawn), conserving battery life during the day.
Image: Comparison of the solar street light's appearance during daytime charging and nighttime illumination.
5. Maintenance
Regular maintenance ensures optimal performance and extends the lifespan of your solar street light.
- Clean Solar Panel: Periodically wipe the solar panel surface with a soft, damp cloth to remove dust, dirt, leaves, or snow. A clean panel ensures efficient charging.
- Inspect for Obstructions: Ensure no new obstructions (e.g., growing tree branches) are shading the solar panel.
- Check Mounting: Occasionally check that the light fixture and mounting bracket are securely fastened.
- Battery Care: The integrated battery is designed for long-term use. Avoid prolonged storage in a completely discharged state. If storing for an extended period, ensure the light is fully charged before storage and recharge every few months.

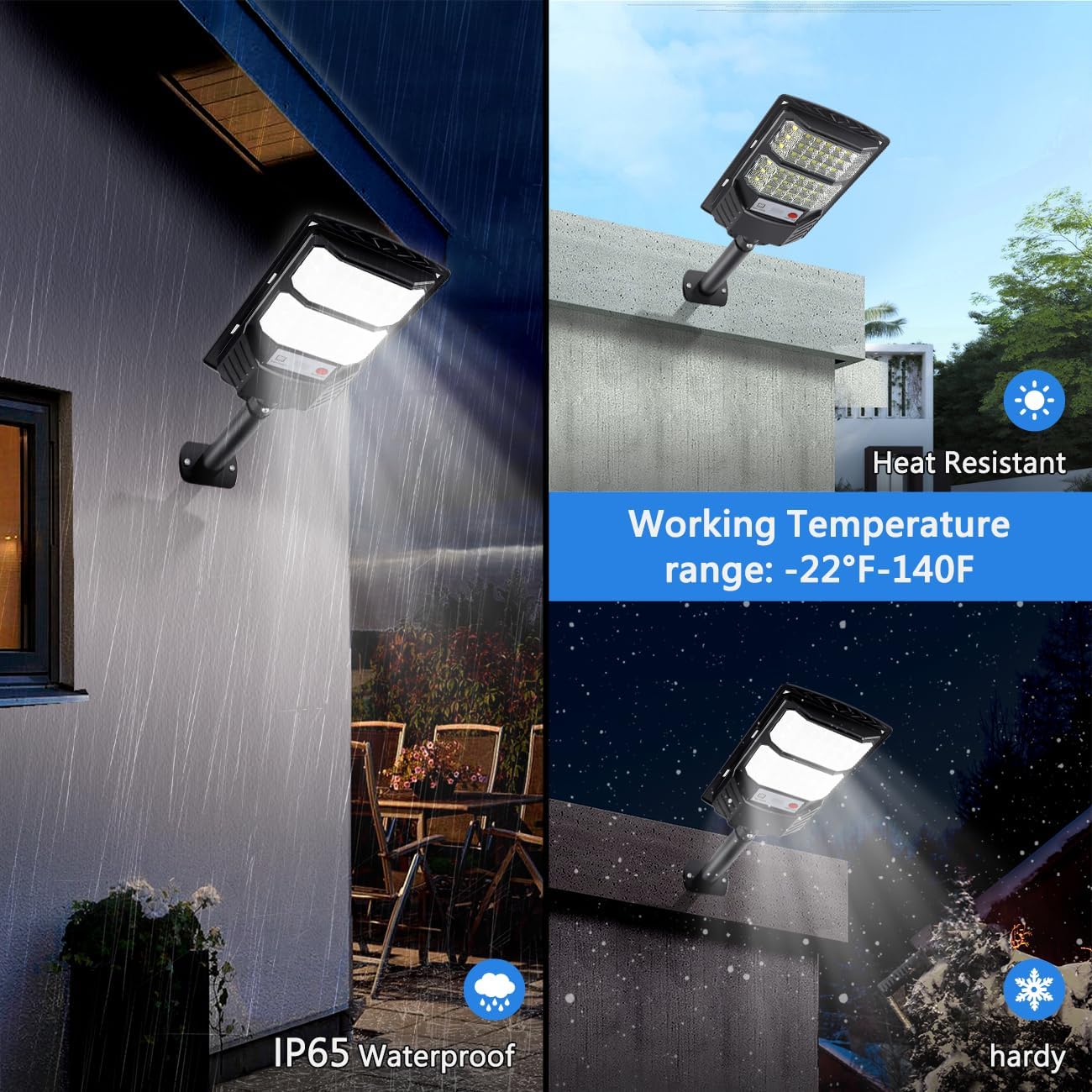

Image: The solar street light demonstrating its IP65 waterproof rating and heat resistance, suitable for various weather conditions.
6. Troubleshooting
If your solar street light is not functioning as expected, refer to the following common issues and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Light does not turn on at night. |
|
|
| Light duration is shorter than expected. |
|
|
| Motion sensor is not working. |
|
|
| Remote control is not working. |
|
|
7. Product Specifications
| Feature | Detail |
|---|---|
| Brand | YACAISI |
| Model Number | AU-APL-JZ-200W-2PACK |
| Power Source | Solar Powered |
| Light Source | LED (42 pcs 5054 high-power lamp beads) |
| Color Temperature | 8500 Kelvin (Cool White) |
| Brightness | 2100 Lumens |
| Wattage | 200 watts (equivalent) |
| Solar Panel | 6V/5W Polycrystalline, 25% Conversion Rate |
| Battery Capacity | 3000mAH |
| Charging Time | 4-6 hours (direct sunlight) |
| Lighting Time | 10-12 hours (fully charged) |
| Control Method | Remote Control, Motion Sensor, Dusk to Dawn |
| Motion Sensor Range | 15-30 feet |
| Water Resistance Level | IP65 Waterproof |
| Material | Acrylonitrile Butadiene Styrene (ABS) |
| Mounting Type | Wall Mount |
| Item Dimensions (L x W x H) | 4.5"L x 4.6"W x 6"H |
| Item Weight | 1000 Grams |
8. Warranty and Support
YACAISI provides a 24-month comprehensive support for this product. If you encounter any issues, have questions, or require assistance with your solar street lights, please do not hesitate to contact our customer support team.
Please refer to your purchase documentation or the retailer's website for specific contact information for warranty claims and technical support.
Note: Keep your purchase receipt as proof of purchase for warranty purposes.
