1. Product Overview

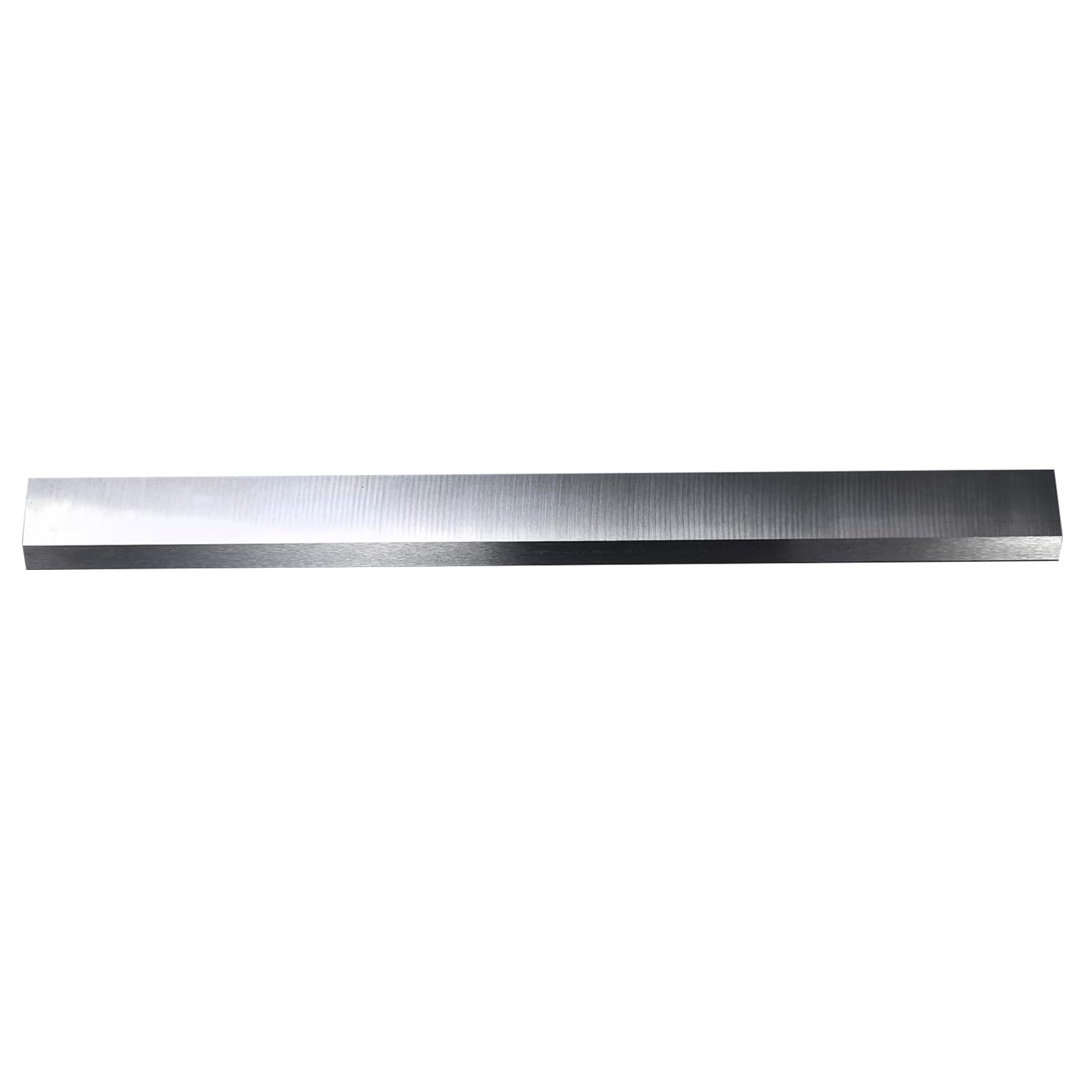

The MAIHUITE MHT-330RB is a high-performance 13-inch replacement blade specifically engineered for the HTC-330 Laminate Floor Cutter. Crafted from premium high-speed steel (HSS), this blade is designed to deliver sharp, clean, and precise cuts, ensuring professional results for various flooring materials. Its robust construction provides exceptional durability and wear resistance, making it suitable for frequent and heavy-duty use.
Key Features:
- High-Performance Material: Made of premium high-speed steel (HSS) for sharp, clean, and precise cuts.
- Durable and Long-Lasting: Robust 0.12" thickness and superior wear resistance for frequent use.
- Exact Fit for HTC-330 Cutter: Ensures seamless compatibility and optimal performance.
- Effortless Installation: Designed for quick and easy blade replacement.
- Enhanced Cutting Dimensions: Measures 13.07" in length and 1.18" in height for broader coverage.
Compatible Cutter (HTC-330):
The MHT-330RB replacement blade is designed for the MAIHUITE HTC-330 Pro 13-inch Flooring Cutter, a manual tool used for cutting various types of flooring materials. The cutter features a long handle for leverage, a sturdy base, and adjustable guides for precise angle cuts.
2. Safety Information
Always prioritize safety when handling and operating tools with sharp blades. Failure to follow safety guidelines can result in serious injury.
- WARNING: VERY SHARP BLADE. Handle the blade with extreme care.
- Always wear appropriate personal protective equipment (PPE), including safety gloves and eye protection, when installing, using, or maintaining the blade.
- Ensure the cutter is stable and on a flat, secure surface before operation.
- Keep hands and fingers clear of the blade path during cutting operations.
- DO NOT ALLOW HANDLE TO SLAM BACK AFTER MAKING A CUT. Control the handle's movement to prevent injury or damage.
- Keep children and unauthorized personnel away from the work area.
- Store the blade and cutter in a safe, dry place, out of reach of children.
3. Installation of the Replacement Blade
The MHT-330RB blade is designed for easy replacement in the HTC-330 Laminate Floor Cutter. Follow these general steps:
- Ensure Safety: Before beginning, ensure the cutter is powered off (if applicable) and the handle is secured in the down position. Wear protective gloves.
- Remove Old Blade: Locate the screws or fasteners securing the existing blade to the cutter. Use the appropriate tool (e.g., Phillips head screwdriver, Allen wrench) to carefully loosen and remove them. Gently detach the old blade.
- Clean Blade Area: Clean any debris or residue from the blade mounting area on the cutter.
- Install New Blade: Position the new MHT-330RB replacement blade onto the cutter, aligning it with the mounting holes. Ensure the blade is oriented correctly for cutting.
- Secure Blade: Insert and tighten the screws or fasteners to secure the new blade. Do not overtighten, but ensure the blade is firmly in place and does not wobble.
- Test Operation: Carefully operate the cutter handle a few times without material to ensure the blade moves smoothly and is properly seated.
4. Operating the Laminate Floor Cutter (with MHT-330RB Blade)
The HTC-330 Laminate Floor Cutter, equipped with the MHT-330RB blade, is designed for efficient and clean cuts on various flooring materials. Below are general operating instructions and demonstrations:
General Cutting Procedure:
- Prepare the Cutter: Place the cutter on a stable surface. Unlock and extend the handle to the desired height.
- Adjust Guides: Use the movable ruler and angle markings (15°, 30°, 45°) on the cutter's base to set the desired cutting angle and length.
- Position Material: Place the flooring material firmly against the guide and under the blade. Ensure the cutting line is accurately aligned.
- Execute Cut: Apply steady, firm pressure to the handle, pushing it down to shear through the material. Maintain control throughout the cut.
- Retrieve Material: Once the cut is complete, lift the handle and retrieve the cut material.
Video Demonstrations:
Cutting Various Flooring Types
This video demonstrates the MAIHUITE HTC-330 Laminate Floor Cutter's ability to cut various flooring materials, including vinyl, LVP/LVT/WPC, SPC, laminate, engineered hardwood, and solid wood, at different angles (15°, 30°, ±45°).
Longitudinal Cutting of SPC Flooring
This video illustrates the cutter's performance in making longitudinal cuts on SPC (Stone Plastic Composite) flooring without causing cracks, highlighting the blade's precision.
Pro Laminate & Vinyl Floor Cutter Capabilities
A demonstration of the 13-inch Pro Laminate & Vinyl Floor Cutter's ability to handle various materials, showcasing its versatility and cutting power.
Updated Heavy Duty Flooring Cutter in Action
This video provides an updated look at the heavy-duty flooring cutter, emphasizing its sharp blade and efficient cutting capabilities across different materials.
NAACOO 13-inch Flooring & Siding Cutter Overview
An overview of the NAACOO 13-inch Flooring & Siding Cutter, demonstrating its assembly, features like the adjustable ruler for angles, and ease of use for various flooring types.
Switching to SPC Floor Cutting Mode
This video shows how to switch the cutter to SPC floor cutting mode, ensuring optimal performance and blade protection when working with rigid core vinyl flooring.
13-inch Pro Flooring Cutter MC-330 Demonstration
A comprehensive demonstration of the 13-inch Pro Flooring Cutter MC-330, showcasing its ease of use and effectiveness in cutting different flooring materials.
5. Maintenance
Proper maintenance ensures the longevity and optimal performance of your MHT-330RB replacement blade.
- Cleaning: After each use, clean the blade and cutter thoroughly to remove any dust, debris, or adhesive residue. Use a dry cloth or a soft brush.
- Sharpening: The blade may require occasional sharpening to maintain its cutting edge. Use a honing stone (often included with the cutter) to gently sharpen the blade. Follow the manufacturer's guidelines for sharpening frequency and technique.
- Storage: Store the blade and cutter in a dry environment to prevent rust. Ensure the blade is protected to avoid accidental contact and dulling.
- Inspection: Regularly inspect the blade for any signs of damage, chips, or excessive wear. Replace the blade if it shows significant damage or can no longer provide clean cuts after sharpening.
6. Specifications
| Attribute | Detail |
|---|---|
| Brand | MAIHUITE |
| Model Number (Blade) | MHT-330RB |
| Compatible Cutter Model | HTC-330 |
| Material | High-Speed Steel (HSS) |
| Blade Thickness | 0.12 inches (approx. 3 mm) |
| Blade Length | 13.07 inches (approx. 33.2 cm) |
| Blade Height | 1.18 inches (approx. 3 cm) |
| Item Weight | 240 g (approx. 0.53 lbs) |
| Power Source | Hand-powered (for cutter operation) |
| Included Components | HSS Blade (1 unit) |
7. Troubleshooting
If you encounter issues with your MHT-330RB replacement blade or the HTC-330 cutter, consider the following:
- Dull or Uneven Cuts:
- Check if the blade is sharp. Sharpen it with a honing stone if necessary.
- Ensure the material is properly positioned and held firmly against the guides.
- Verify the blade is securely installed and not loose.
- Blade Not Fitting Correctly:
- Double-check that you have the correct replacement blade (MHT-330RB) for your HTC-330 cutter.
- Ensure all mounting screws are aligned and tightened properly.
- Difficulty Operating Handle:
- Ensure the handle is fully extended and unlocked.
- Check for any obstructions in the cutting mechanism.
8. Warranty and Support
For warranty information, technical support, or to purchase additional replacement parts, please contact MAIHUITE customer service through their official channels or refer to the documentation included with your original HTC-330 Laminate Floor Cutter.
