Product Overview
This manual provides essential information for the assembly, operation, and maintenance of your PURPLE LEAF 12' × 12' Outdoor Louvered Pergola. Designed for outdoor living spaces, this pergola features an adjustable louvered roof and a robust aluminum frame, offering versatile shade and rain protection for your deck, garden, or backyard.
Image: The PURPLE LEAF 12' x 12' Outdoor Louvered Pergola, showcasing its design and integration into a patio setting next to a swimming pool.
Key Features
- Premium Champagne Powder Coating: This advanced champagne-finish coating provides rust resistance and durability, maintaining its like-new appearance for over 3 years.
- Independent Adjustable Roofs: Two independently adjustable louvers (0°-90° range) enable customized control of sunlight and rain protection.
- Heavy Duty Frame: This 4.3-inches wide aluminum posts feature 15% thicker than standard louvered pergolas, which provides wind resistance up to 72 mph.
- Integrated Drainage System: Equipped with an integrated drainage system to prevent water accumulation and keep the outdoor furniture dry.

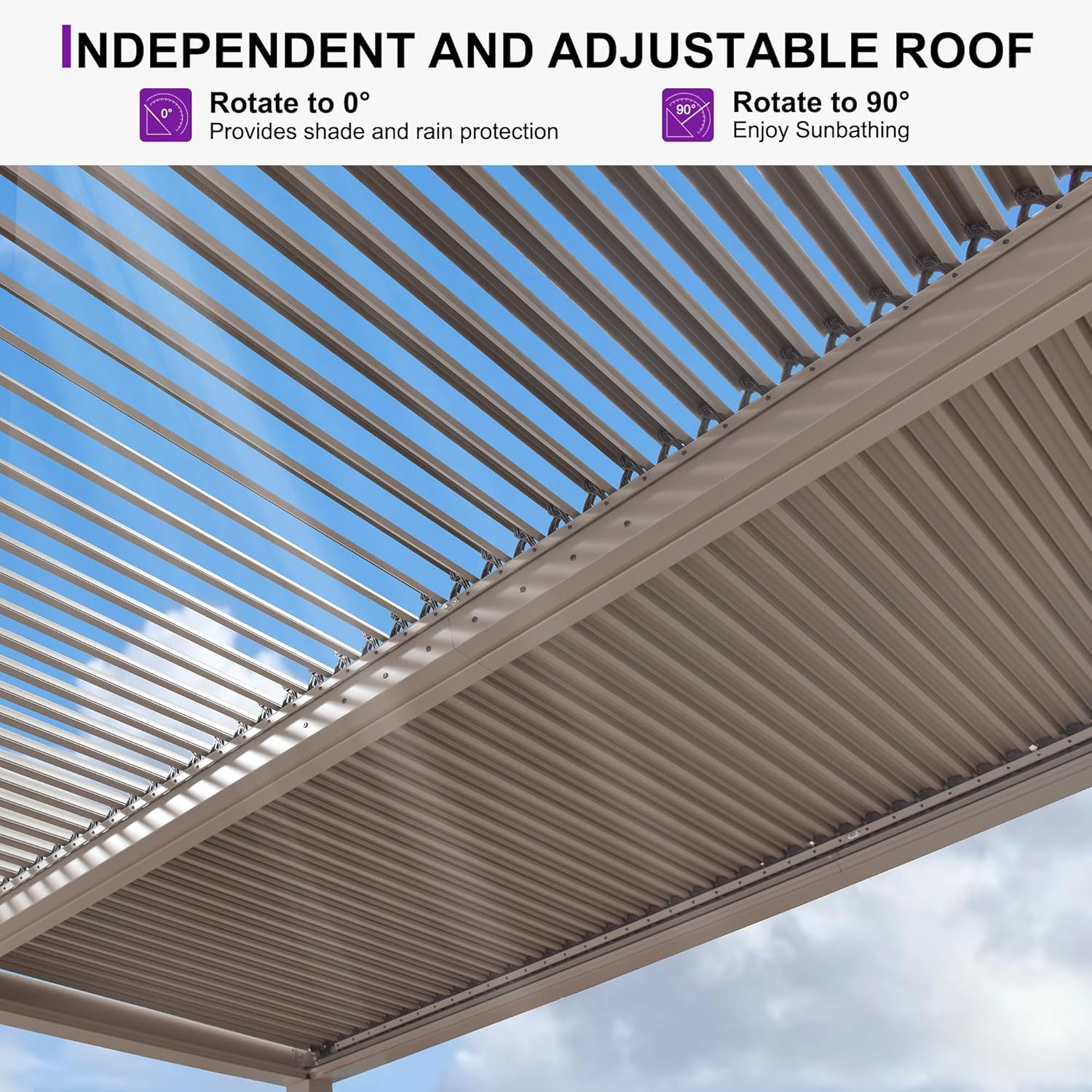

Image: Detail of the independent and adjustable louvered roof, showing rotation capability.
Image: Illustration of the built-in gutter design, directing rainwater away from the patio area.
Image: Visual comparison demonstrating the increased thickness and stability of the PURPLE LEAF pergola posts.
Image: A close-up view of the premium champagne powder coating, highlighting its smooth finish.
Important Safety Information
Always follow the assembly instructions carefully. Ensure the pergola is securely anchored to a stable foundation to prevent tipping. Keep children and pets away from the assembly area to avoid injury. Do not attempt to adjust the louvers when the pergola is wet or icy to prevent slips and falls.
Setup and Assembly
The PURPLE LEAF Louvered Pergola requires assembly. It is recommended that 2 to 3 people are involved in the assembly process due to the size and weight of the components. Detailed instructions are included with your product packaging. Ensure all parts are present and undamaged before beginning assembly.
Key Assembly Considerations:
- Foundation: Ensure the installation surface is level and stable. Securely anchor the pergola to the ground using appropriate hardware to prevent movement or tipping, especially in windy conditions.
- Tools: Gather all necessary tools as specified in the assembly guide.
- Component Identification: Familiarize yourself with all components and hardware before starting.
- Safety: Wear appropriate safety gear, such as gloves, during assembly. Keep children and pets away from the assembly area.
Video: An official demonstration of the PURPLE LEAF Louvered Pergola, showcasing its features and functionality, which can aid in understanding the assembly and operation.
Operation
The PURPLE LEAF Louvered Pergola features independently adjustable louvers, allowing you to control sunlight and rain protection for your outdoor space.
Adjusting the Louvers
The roof consists of two independently adjustable louver sections. Each section can be rotated from 0° (fully closed for shade and rain protection) to 90° (fully open for maximum sunlight and ventilation).
- To close the louvers for full shade or rain protection, rotate them to the 0° position.
- To open the louvers for sunbathing or ventilation, rotate them to the 90° position.
- Caution: Do not attempt to adjust the louvers when they are wet or icy, as this may cause damage to the mechanism or lead to slips and falls.
Image: Visual representation of the adjustable louvers, illustrating their range of motion for light and weather control.
Maintenance
Cleaning
- Regularly clean the aluminum frame and louvers with mild soap and water. Avoid abrasive cleaners or harsh chemicals that could damage the champagne finish.
- Rinse thoroughly with clean water after cleaning to prevent soap residue buildup.
- Ensure the integrated drainage system is free from debris (such as leaves or dirt) to allow for proper water runoff and prevent pooling on the roof.
Seasonal Care
- In areas with heavy snowfall, it is recommended to keep the louvers open to prevent snow accumulation and potential damage to the roof structure.
- Inspect all bolts and connections periodically to ensure they remain tight and secure. Tighten any loose fasteners as needed.
- Check the powder coating for any signs of wear, scratches, or damage and address them promptly to maintain rust resistance and aesthetic appeal.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Louvers not adjusting smoothly | Debris in mechanism, loose connections, ice/water buildup | Clean louver mechanism, check and tighten connections, ensure louvers are dry before adjustment. |
| Water accumulation on roof | Blocked drainage system | Inspect and clear any debris from the integrated gutters and downspouts. |
| Pergola feels unstable or wobbly | Improper anchoring, loose bolts | Ensure the pergola is securely anchored to a stable foundation. Check and tighten all assembly bolts. |
If you encounter issues not listed here or require further assistance, please contact PURPLE LEAF customer support.
Specifications
| Attribute | Detail |
|---|---|
| Brand | PURPLE LEAF |
| Model Number | B0DSZLR736 |
| Material | Aluminum |
| Style | Modern |
| Product Dimensions (L x W x H) | 144.62"L x 144.62"W x 94"H |
| Frame Material | Aluminum |
| Water Resistance Level | Water Resistant |
| Shape | Square |
| UV Protection | 50 |
| Assembly Required | Yes |
| Color | Champagne |
| Wind Resistance | Up to 72 mph |
| Louver Adjustment Range | 0° - 90° |
Image: Detailed dimensions of the pergola, including length, width, height, and column size for planning your installation space.
Warranty and Support
Warranty Information
The PURPLE LEAF Louvered Pergola comes with a 1-year warranty for frame construction. This warranty covers manufacturing defects and structural integrity under normal use conditions from the date of purchase.
For detailed warranty terms and conditions, including limitations and exclusions, please refer to the documentation included with your product packaging or contact PURPLE LEAF customer support directly.
Customer Support
For any questions regarding assembly, operation, maintenance, or warranty claims, please contact PURPLE LEAF customer support. When contacting support, please have your model number (B0DSZLR736) and purchase date ready to expedite assistance.
