1. Product Overview
The FPBIGCHA GCS898 Linear Encoder Sensor is a precision measurement device designed for use with milling machines and digital meters. It provides accurate linear position feedback, essential for various industrial and scientific applications. This sensor features a vertical five-bearing sliding system for smooth and precise movement, ensuring stable performance and high integration within measurement systems.

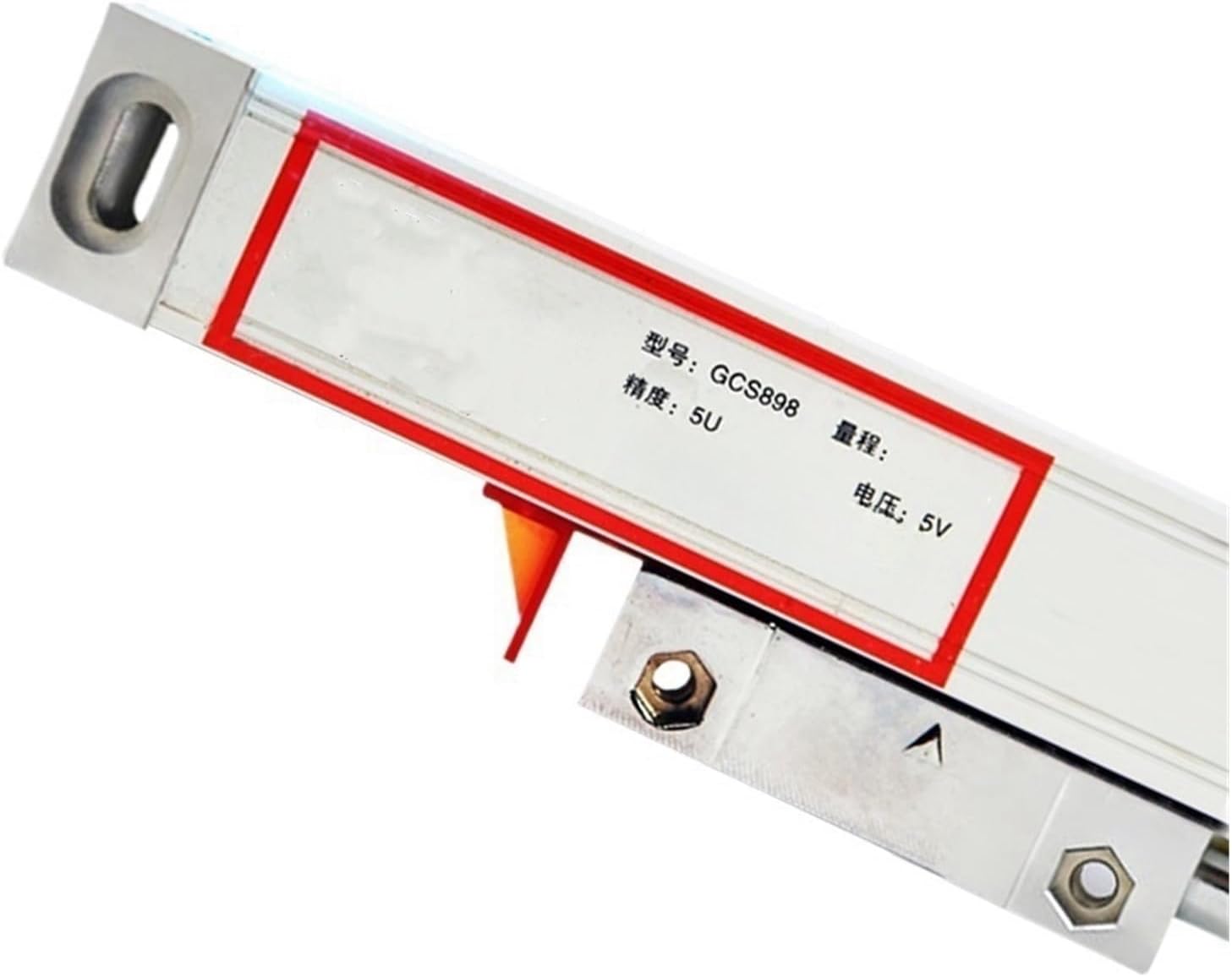

An image showing the FPBIGCHA GCS898 Linear Encoder Sensor, a long, metallic bar with a readhead attached, and a cable extending from one end. This sensor is designed for precise linear measurement in industrial applications.
2. Safety Information
Please read and understand all safety instructions before installing or operating the GCS898 Linear Encoder Sensor. Failure to follow these instructions may result in injury or damage to the equipment.
- Ensure the power supply is disconnected from the digital readout (DRO) system before installation or maintenance.
- Handle the sensor carefully to avoid bending or damaging the scale or readhead.
- Avoid exposing the sensor to excessive moisture, dust, or extreme temperatures.
- Do not attempt to disassemble or modify the sensor. Refer all servicing to qualified personnel.
- Wear appropriate personal protective equipment (PPE) during installation, especially when working with machinery.
3. Package Contents
Verify that all components are present and undamaged upon unpacking. The standard package for the GCS898 Linear Encoder Sensor typically includes:
- GCS898 Linear Encoder Sensor (600mm 5U 5V)
- Readhead assembly
- Mounting brackets and screws
- Connection cable
- User Manual (this document)
4. Setup and Installation
The GCS898 Linear Encoder Sensor features a simple structure for easy installation. Proper installation is crucial for accurate and reliable operation.
4.1 Mounting the Sensor
- Identify a suitable mounting location on your milling machine or equipment that allows for the full range of motion to be measured.
- Securely attach the sensor body to a rigid, stable surface using the provided mounting brackets and screws. Ensure the sensor is parallel to the axis of motion.
- Mount the readhead assembly to the moving part of the machine. The readhead must be positioned correctly relative to the sensor scale, maintaining the specified gap (typically 0.5mm to 1.5mm, refer to specific product diagrams if available).
- Ensure the readhead moves smoothly along the entire length of the sensor without binding or excessive friction.
4.2 Electrical Connection
- Connect the sensor's cable to the appropriate input port on your GCS899-2/3 Digital Meter or compatible DRO system.
- Ensure the connection is secure and the cable is routed away from moving parts or sources of electrical interference.
- Power on the digital meter and verify that the sensor is recognized and displaying readings.
5. Operating Instructions
Once installed and connected, the GCS898 Linear Encoder Sensor operates in conjunction with a digital readout (DRO) system to provide real-time position data.
- Power On: Turn on your digital meter or DRO system. The sensor will automatically begin transmitting position data.
- Zeroing: Move the machine axis to your desired starting point and press the 'ZERO' button on your digital meter to set the current position as zero.
- Measurement: As the machine axis moves, the digital meter will display the linear displacement from the set zero point.
- Absolute/Incremental Modes: Most digital meters offer both absolute and incremental measurement modes. Consult your digital meter's manual for details on switching between these modes.
- Unit Conversion: If your digital meter supports it, you can switch between metric (mm) and imperial (inches) units.
6. Maintenance
Regular maintenance ensures the longevity and accuracy of your GCS898 Linear Encoder Sensor.
- Cleaning: Periodically clean the sensor scale and readhead with a soft, lint-free cloth. If necessary, use a mild, non-abrasive cleaning solution. Ensure no debris obstructs the optical path.
- Inspection: Regularly inspect the cable for any signs of wear, cuts, or damage. Check mounting brackets for tightness.
- Environment: Keep the operating environment as clean and dry as possible to prevent dust and moisture ingress.
- Calibration: While the sensor itself is highly stable, periodic calibration of the entire DRO system (sensor + digital meter) is recommended to ensure continued accuracy.
7. Troubleshooting
If you encounter issues with your GCS898 Linear Encoder Sensor, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| No reading on digital meter | Loose cable connection, power off, damaged sensor/cable | Check cable connections, ensure digital meter is powered on, inspect cable for damage. |
| Inaccurate or erratic readings | Debris on scale, incorrect readhead gap, vibration, electrical interference | Clean scale, adjust readhead gap, reduce vibration, check for interference sources. |
| Sensor not moving smoothly | Misalignment, obstruction, damaged bearings | Check mounting alignment, remove obstructions, contact support if bearings are damaged. |
If the problem persists after attempting these solutions, please contact customer support.
8. Specifications
The following specifications apply to the FPBIGCHA GCS898 Linear Encoder Sensor (Model GCS898-600mm 5U 5V):
- Measuring Length: 600mm
- Resolution: 5U (5 microns)
- Output Voltage: 5V
- Item Weight: 2.2 pounds
- Package Dimensions: 1.18 x 0.79 x 0.39 inches
- Manufacturer: FPBIGCHA
- Assembly Required: No
- Number of Pieces: 1
9. Warranty and Support
For warranty information and technical support, please refer to the documentation provided with your purchase or contact FPBIGCHA customer service directly. Keep your purchase receipt as proof of purchase for warranty claims.
