Arctic Air for R12 Systems User Manual

1. Introduction

The Arctic Air for R12 Systems is an advanced automotive A/C additive engineered to optimize your vehicle's air conditioning performance. This product combines two essential functions: it effectively removes moisture from the A/C system, preventing corrosion and freezing, and it reduces internal system friction, leading to colder air duct temperatures. It is compatible with most automotive refrigerants, excluding ammonia and CO2 systems.

This product is gas-propelled and installs similarly to standard refrigerants. It is designed to provide colder air fast and is proudly Made in the USA.

Figure 1.1: Arctic Air for R12 Systems product can.

2. Important Safety Information

For Use By Qualified Personnel Only!

WARNING! Contents Under Pressure! ALL LABELED HAZARDOUS PRECAUTIONS MUST BE OBSERVED.

2.1. Danger

• Extremely flammable gas. Contains gas under pressure; may explode if heated.
• This pressure flammable gas can form explosive mixtures with air.
• Contact with liquid causes frostbite.
• May cause an allergic skin reaction.
• DO NOT incinerate.
• This product contains a hydrocarbon propellant.
• DO NOT use in ammonia systems. Explosion can occur.

2.2. Precautions

• Keep away from all children and untrained personnel.
• Keep away from heat/sparks/open flames/hot surfaces. No smoking.
• Contaminated work clothing should not be allowed out of the workplace.
• Avoid breathing dust/fumes/gas/mist/vapors/spray.
• Container temperature should not exceed 50°C/122°F.
• Wear protective gloves/protective clothing/eye protection/face protection.
• Avoid skin or eye contact.
• DO NOT connect to high pressure side. Can may burst, causing body injury.

2.3. First Aid Measures

• Inhalation: When symptoms occur: go into open air and ventilate suspected area. Immediately call a POISON CENTER or doctor/physician.
• Skin Contact: Thaw frosted parts with lukewarm water. Do not rub affected area. Get immediate medical attention.
• Eye Contact: Rinse cautiously with water for several minutes. Remove contact lenses, if present and easy to do. Continue rinsing. Immediately call a POISON CENTER or doctor/physician.
• Ingestion: Do not induce vomiting. Immediately call a POISON CENTER or doctor/physician.

2.4. In Case of Fire

• Suitable Extinguishers: Dry chemical powder, alcohol-resistant foam, carbon dioxide.
• Unsuitable Extinguisher: Do not use a heavy water stream. Use of heavy water stream may spread the fire.

2.5. Storage

• Keep at temperatures below 52°C/125°F.
• Store in cool/dry and well ventilated place.
• Keep away from heat, sparks, and flames.

2.6. Disposal

See safety data sheet (SDS) for this product.

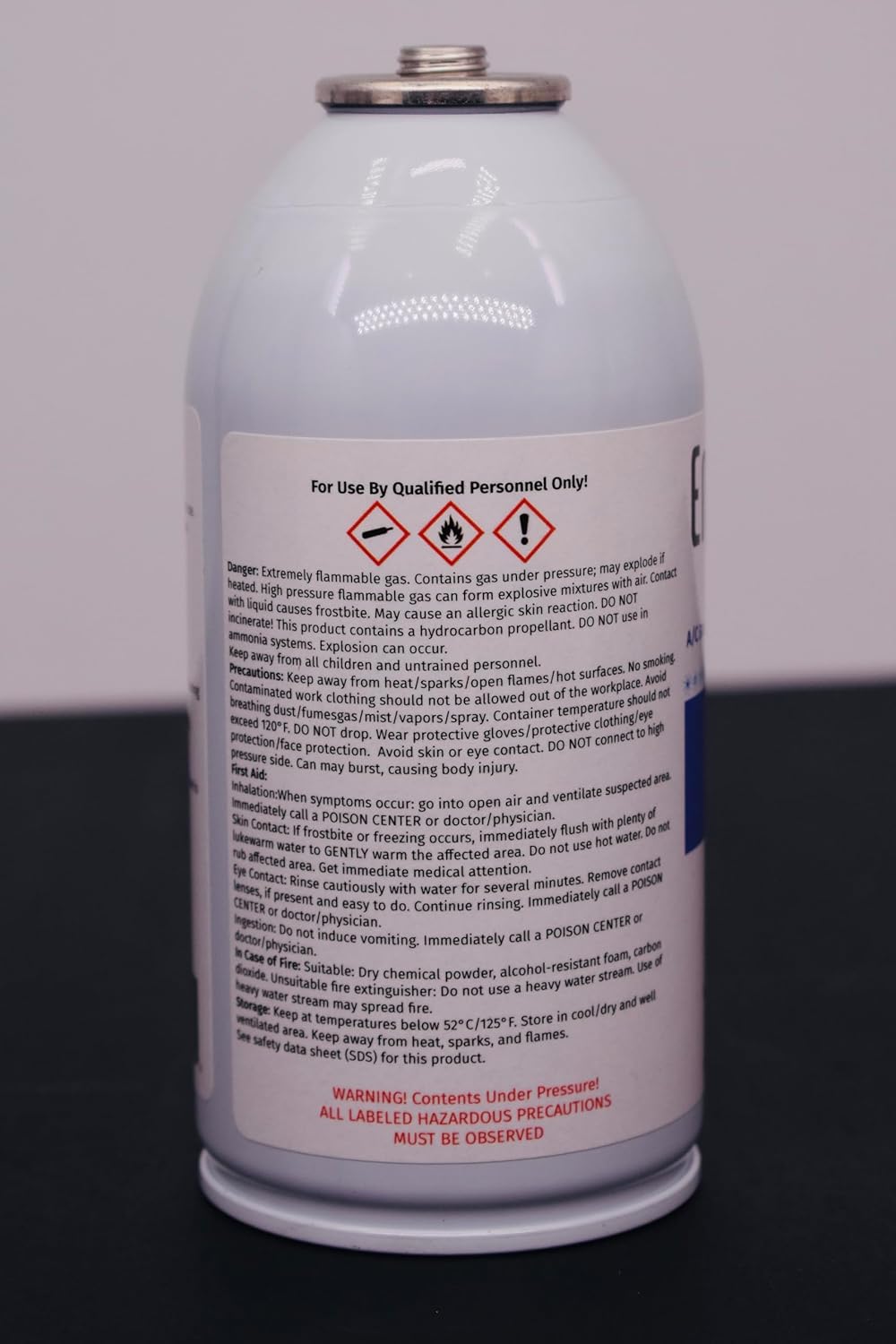

Figure 2.1: Safety warnings and first aid information on the product can.

3. What's in the Box

The Arctic Air for R12 Systems package includes:

• 1 can of Arctic Air R12

4. Setup and Preparation

Before beginning the installation process, ensure you have read and understood all warnings and directions for use. As with any flammable substance, take adequate precautions during use.

1. Shake the can well before use.
2. Install a compatible can tap valve onto the Arctic Air can.
3. Connect the charging hose to the can tap valve.
4. Connect the other end of the charging hose to the low-pressure side service port of your vehicle's A/C system ONLY.

5. Operating Instructions

Follow these steps to properly add Arctic Air to your R12 A/C system:

1. Invert the can of Arctic Air.
2. Install all product from the can into the A/C system. Ensure the system is not fully charged before adding this product.
3. Once the product is installed, operate the vehicle's air conditioning system for at least thirty (30) minutes at normal operating temperature to allow the product to circulate and integrate fully.
4. Dispose of any waste material, including the empty can, in accordance with all local, regional, national, and international regulations.

Note: DO NOT use this product with R410 systems. The system pressure in R410 systems is too high and will cause the can to burst, leading to potential injury or damage.

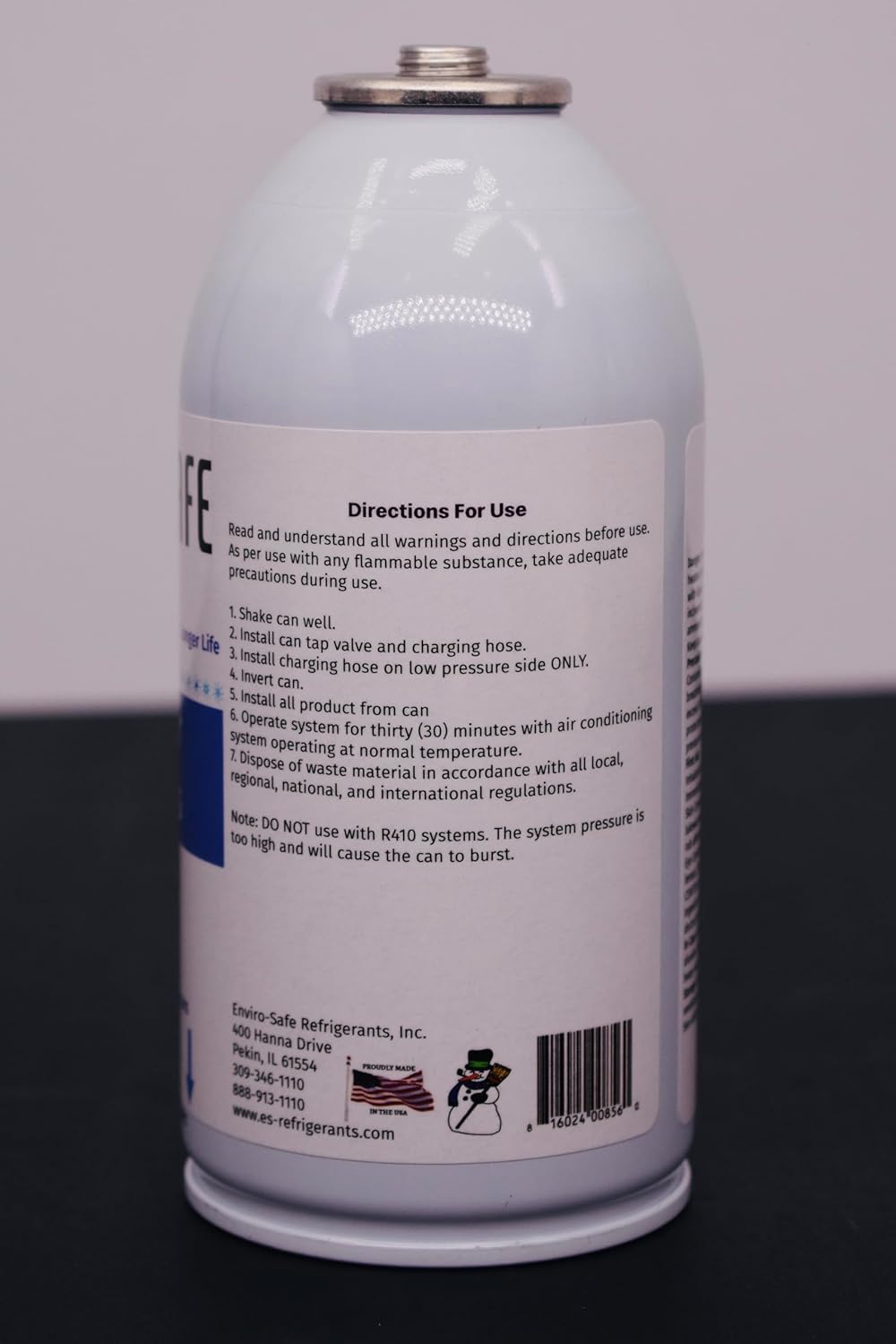

Figure 5.1: Directions for use and important notes on the product can.

6. Maintenance

Arctic Air for R12 Systems is an additive designed for a single application. No ongoing maintenance of the product itself is required after installation. Regular maintenance of your vehicle's A/C system should be performed according to your vehicle manufacturer's recommendations.

7. Troubleshooting

• Product cannot be added to the system: Ensure the A/C system is not already fully charged. This product cannot be added to a system that is at its maximum refrigerant capacity.
• Can bursts or system pressure is too high: This product is strictly for R12 systems. DO NOT use with R410 systems or any other refrigerant type not specified as compatible. Using it with incompatible systems can lead to dangerous pressure buildup and can rupture the can.

8. Specifications

9. Warranty and Support

For information regarding product warranty, technical support, or any inquiries not covered in this manual, please contact the manufacturer directly:

Enviro-Safe Refrigerants, Inc.
400 Hanna Drive
Pekin, IL 61554
Phone: 309-346-1110 or 888-913-1110
Website: www.es-refrigerants.com
