Ihanherry 77" L-Shaped Modular Sectional Cloud Sofa with Ottoman Instruction Manual

Introduction

Thank you for choosing the Ihanherry 77" L-Shaped Modular Sectional Cloud Sofa with Ottoman. This manual provides essential information for the safe assembly, operation, maintenance, and care of your new furniture. Please read all instructions carefully before beginning assembly and retain this manual for future reference.

Important Safety Information

• All foam and upholstered surfaces meet flammability standards.
• Keep the sofa away from open flames or high heat sources to prevent fire hazards.
• Supervise children and pets around the sofa to avoid entrapment risks or injury.
• Ensure all connections are securely tightened before use. Periodically check and re-tighten fasteners as needed.
• Do not stand on the sofa or use it as a step stool.
• Do not exceed the maximum weight capacity of 440 lbs per seat.

Package Contents

Your Ihanherry sofa is shipped in three separate boxes. Please ensure all parts are present before beginning assembly. If any parts are missing or damaged, contact customer service immediately.

Components:

• Modular Seat Frames (Quantity varies by configuration)
• Ottoman Frame (1)
• Seat Cushions (High Resilience Foam)
• Back Cushions (Foam with Lumbar Support)
• Armrest Pillows (2)
• Back Pillows (2)
• Sofa Legs (Quantity varies by configuration)
• Assembly Hardware (Screws, washers, Allen wrench)

This image illustrates the various components included with your sofa, such as the seat frames, cushions, and pillows, providing a visual guide to help you identify each part.

Setup Instructions

Assembly typically takes about 30 minutes. It is recommended to have two people for easier assembly.

Step-by-Step Assembly:

1. Unpack Components: Carefully remove all parts from the three boxes. Lay them out on a clean, soft surface to prevent scratches.
2. Assemble Armrests to Seat Frames: Attach the left and right armrests to the designated seat frames using the provided screws and Allen wrench. Ensure they are securely tightened.
3. Connect Seat Frames: Arrange the modular seat frames in your desired L-shape configuration. Connect them using the butterfly nuts and screws provided, ensuring a stable connection between each module.
4. Attach Sofa Legs: Screw the sofa legs into the pre-drilled holes on the bottom of each seat frame and the ottoman frame. Hand-tighten firmly.
5. Assemble Back Frames: Insert the back frames into the designated holes on the rear of the seat modules. Secure them by tightening the screws from the underside of the seat frames.
6. Place Cushions and Pillows: Unpack all vacuum-sealed cushions and pillows. Allow them to expand fully (this may take up to 48 hours). Place the double-layer seat cushions onto the seat frames, followed by the back cushions, and finally the armrest and decorative pillows.

This video provides a visual demonstration of the assembly process, guiding you through each step from unpacking to securing the components and placing the cushions.

Operating Instructions

The Ihanherry Modular Sectional Cloud Sofa offers versatile configurations to suit your living space and needs.

Modular Flexibility:

• L-Shape Configuration: Arrange the seat modules and ottoman to form a traditional L-shaped sectional, ideal for corner spaces or defining a seating area.
• Straight Sofa with Ottoman: Position the ottoman separately as a footrest or extra seating, creating a classic sofa arrangement.
• Individual Seating: Each module can function as an independent seat, allowing for flexible arrangements in larger rooms or for individual comfort.
• Deep Seat Comfort: The double-layer high resilience foam cushions provide a luxurious deep seating experience, perfect for relaxation.

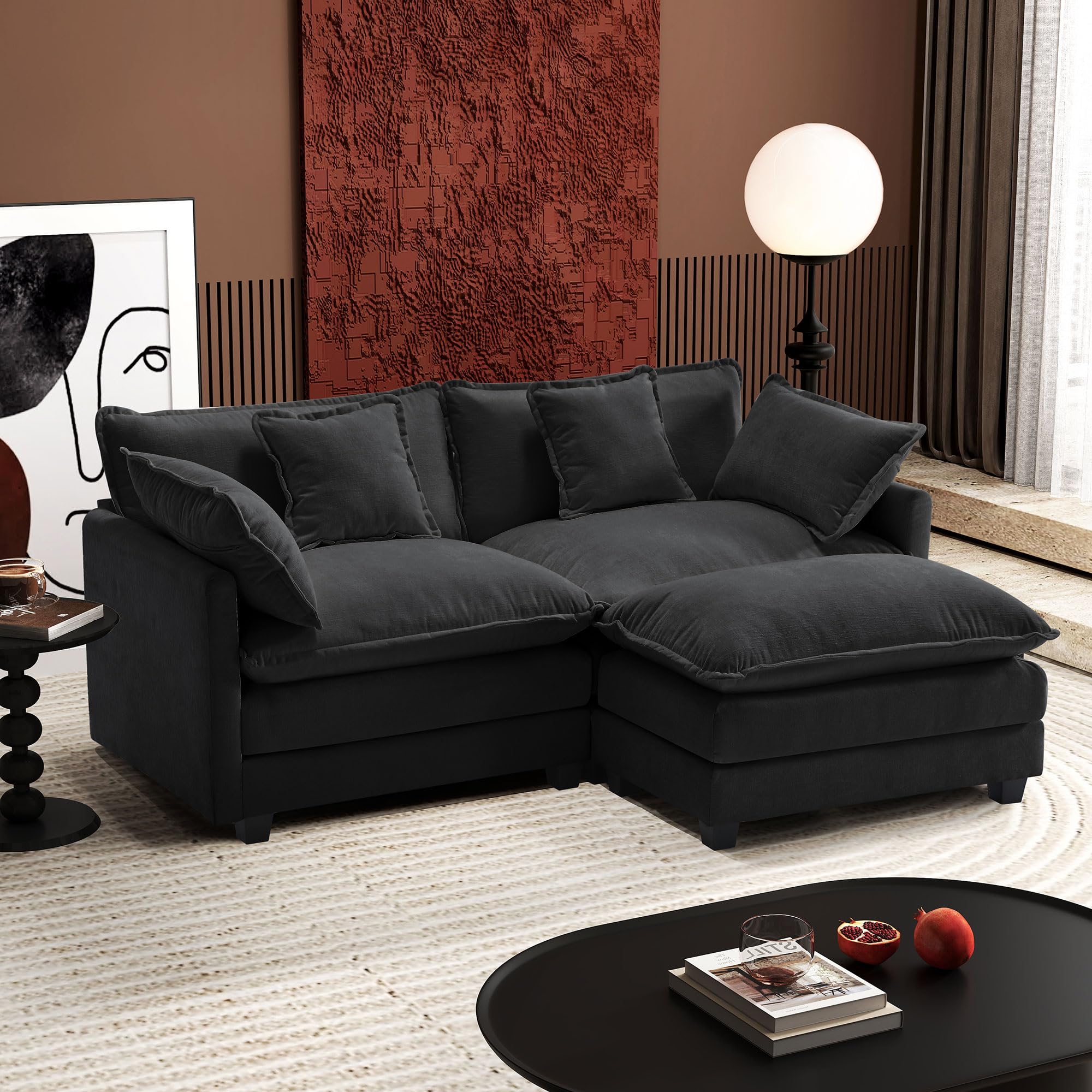

This image illustrates how the movable ottoman can be freely combined with the sofa modules to create different layouts, adapting to your space and preferences.

Maintenance & Care

Proper care will extend the life and appearance of your Ihanherry sofa.

Cleaning Instructions:

• Regular Cleaning: Vacuum regularly using a soft brush attachment to remove dust and loose debris.
• Spot Cleaning: For spills, blot immediately with a clean, dry cloth. Do not rub, as this can spread the stain. For stubborn stains, use a mild fabric cleaner and follow the product instructions. Test on an inconspicuous area first.
• Cushion Care: Fluff and rotate cushions periodically to maintain their shape and even out wear.
• Fabric: The high-quality Chenille fabric is skin-friendly and breathable.

This image provides a detailed look at the Chenille fabric, showcasing its texture and quality, which is designed to be both comfortable and durable.

Troubleshooting

If you encounter any issues with your sofa, please refer to the following common problems and solutions:

• Sofa feels unstable: Check all screws and fasteners to ensure they are tightly secured. Re-tighten any loose connections.
• Cushions appear flat: Allow up to 48 hours for vacuum-sealed cushions to fully expand. Regularly fluff and rotate cushions to help them regain their shape.
• Parts missing or damaged: Do not attempt to assemble with missing or damaged parts. Contact Ihanherry customer service for replacements.
• Difficulty assembling: Review the step-by-step instructions and assembly video. Ensure all parts are correctly oriented. If issues persist, contact customer service for online guidance.

Specifications

This image provides a comprehensive diagram of the sofa's dimensions, including overall width, depth, height, and individual component measurements, to assist with space planning.

Warranty & Support

Ihanherry is committed to your satisfaction.

• 1-Year Satisfaction Guarantee: We offer a 1-year 100% satisfaction guarantee.
• 3-Year Warranty: A 3-year warranty is provided for quality-related issues.
• Customer Service: If you have any questions, encounter problems during installation, or require assistance, please contact Ihanherry customer service. We are available to provide solutions, installation videos, or online guidance.
