1. Introduction
This manual provides detailed instructions for the safe and efficient operation of your GHRERTX Semi-Automatic Sweater Knitting Machine. Designed for both beginners and experienced knitters, this machine features a 6.5mm mid-gauge and 150 stitches, allowing for the creation of various knitted items. Please read this manual thoroughly before initial use and retain it for future reference.
2. Safety Instructions
- Always operate the machine on a stable, flat surface.
- Keep fingers and loose clothing away from moving parts during operation.
- Do not allow children to operate the machine without adult supervision.
- Ensure the machine is securely clamped to the table before beginning any knitting project.
- Use only recommended yarn types and sizes (1.2-4.0mm wire) to prevent damage to the needles or machine.
- Store the machine in a dry, clean place when not in use.
3. Package Contents
Verify that all items are present in your package:
- 1 x Knitting Machine Kit (Main bed, carriage, yarn mast, clamps, etc.)
- 1 x Accessories Set (Weights, transfer tools, needles, etc.)
4. Setup
- Unpack Components: Carefully remove all parts from the packaging.
- Assemble Yarn Mast: Attach the yarn mast to the designated slot on the knitting machine bed. Ensure it is stable and upright.
- Secure to Table: Place the knitting machine on a sturdy table. Use the provided clamps to firmly secure the machine to the table edge. Tighten the clamps until the machine is stable and does not move.
5. Operating Instructions
5.1 Yarn Selection
This machine is compatible with yarn sizes ranging from 1.2mm to 4.0mm. Select yarn appropriate for your project and the machine's needle pitch (6.5mm).
5.2 Threading the Yarn
- Place your chosen yarn cone or ball on the yarn mast.
- Thread the yarn through the tension guides on the yarn mast.
- Guide the yarn into the yarn feeder on the carriage. Ensure the yarn moves freely through all guides.
5.3 Casting On
Follow the specific casting-on method for your desired stitch pattern. This typically involves manually placing loops of yarn onto the needles or using a specific carriage setting to create the initial row.
5.4 Knitting Process
- Once cast on, ensure the carriage settings (e.g., tension dial, stitch size) are appropriate for your yarn and desired fabric.
- Push the carriage smoothly across the needle bed. The roller-capped latch needles will automatically form stitches.
- Attach weights to the knitted fabric as it grows to maintain even tension and prevent stitches from dropping.
- For manual needle selection, use the provided tools to move individual needles forward or backward as required by your pattern.
6. Maintenance
6.1 Cleaning
- Regularly clean the needle bed and carriage to remove lint and yarn fibers. Use a soft brush or a vacuum cleaner with a narrow attachment.
- Wipe down the machine surfaces with a dry, soft cloth. Avoid using harsh chemicals or abrasive cleaners.
6.2 Lubrication
- Periodically apply a small amount of knitting machine oil to the needle bed and carriage rails to ensure smooth operation. Refer to specialized knitting machine oil for best results.
- Do not over-lubricate, as excess oil can stain yarn.
6.3 Storage
- When not in use, store the machine in its original packaging or a protective cover to prevent dust accumulation.
- Store in a dry environment to prevent rust or damage to components.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Dropped Stitches | Incorrect tension, insufficient weights, damaged needle, yarn snagging. | Adjust yarn tension, add more weights, inspect and replace damaged needles, ensure yarn feeds smoothly. |
| Yarn Tangling | Improper threading, yarn mast not assembled correctly, yarn quality. | Re-thread yarn carefully, ensure yarn mast is secure, try a different yarn. |
| Carriage Not Moving Smoothly | Accumulated lint/fibers, lack of lubrication, bent needles. | Clean needle bed and carriage, apply knitting machine oil, check for and replace bent needles. |
| Uneven Knitting | Inconsistent yarn tension, uneven weights, machine not level. | Adjust tension, distribute weights evenly, ensure machine is securely clamped and level. |

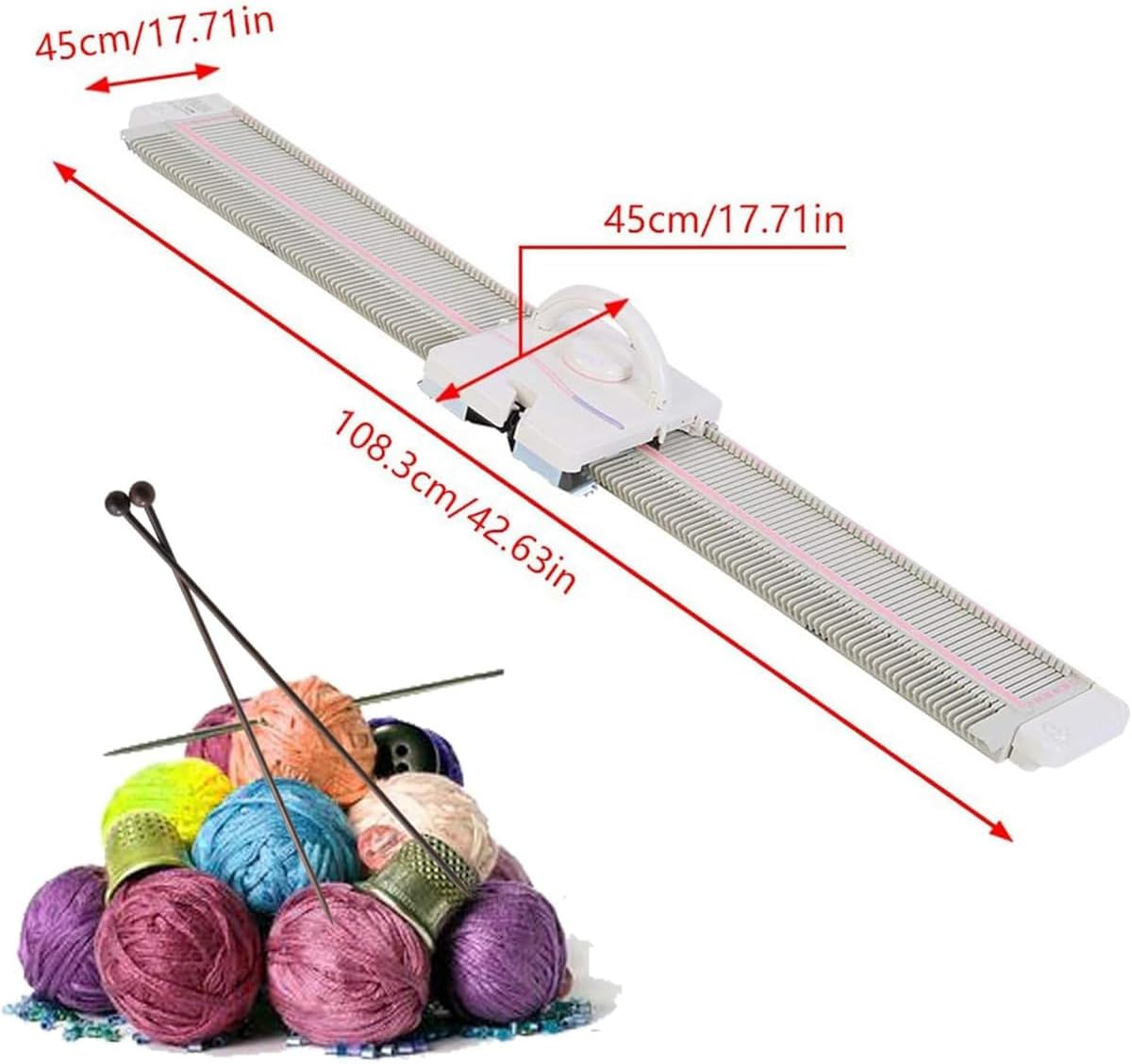

8. Specifications
- Brand: GHRERTX
- Model: GHRERTX
- Needle Pitch: 6.5mm (Mid-Gauge)
- Number of Needles: 150 needles
- Needle Selection: Manual Selection
- Applicable Yarn Thickness: 1.2mm - 4.0mm wire
- Pole Height: 50cm
- Wire Frame Height: 49cm
- Package Dimensions: 45.28 x 11.81 x 4.72 inches
- Item Weight: 13.23 pounds
9. Support
Should you require further assistance with installation, operation, or encounter any issues not covered in this manual, please contact our customer support. We are committed to providing a response within 24 hours to address your concerns.
