Pagani Design PD2770 Automatic Mechanical Watch User Manual

1. Introduction

This user manual provides comprehensive instructions for the Pagani Design PD2770 Automatic Mechanical Watch. Designed for precision and durability, this timepiece features a reliable automatic movement and a robust stainless steel construction. Please read this manual carefully to ensure proper use, maintenance, and longevity of your watch.

2. Product Overview

2.1 Watch Components

Familiarize yourself with the key components of your Pagani Design PD2770 watch:

• Crown: Used for winding the watch and setting the time/date.
• Dial: The watch face displaying hours, minutes, seconds, and date.
• Hands: Hour, minute, and second hands.
• Date Window: Displays the current date.
• Case: The main body of the watch, made of 316L stainless steel.
• Strap: The band that secures the watch to your wrist, made of stainless steel or leather (depending on variant).
• Case Back: The rear cover of the watch, often transparent to view the movement.

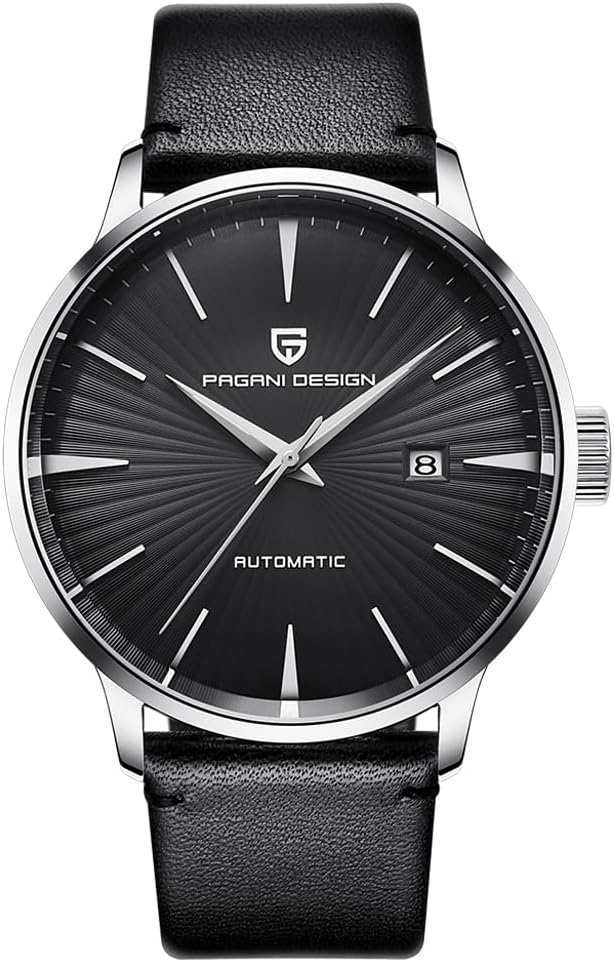

Figure 2.1: Front view of the Pagani Design PD2770 watch. This image shows the watch face with its distinct hour markers, hands, and date window, along with the crown on the side.

Figure 2.2: Close-up of the watch dial and crown. This image highlights the intricate details of the dial texture and the design of the crown, which is used for adjustments.

3. Setup and Initial Operation

3.1 Initial Winding

As an automatic mechanical watch, the PD2770 is powered by the movement of your wrist. However, for initial setup or after a period of inactivity, manual winding is recommended:

1. Ensure the crown is in its fully pushed-in position (Position 0).
2. Rotate the crown clockwise approximately 20-30 times. This will provide enough power reserve to start the watch.
3. The second hand should begin to move smoothly.

3.2 Setting Time and Date

To set the time and date on your watch:

1. Setting the Date:
   • Gently pull the crown out to the first click (Position 1).
   • Rotate the crown clockwise or counter-clockwise (depending on the movement) to adjust the date.
   • Important: Avoid setting the date between 9:00 PM and 3:00 AM, as this is when the date change mechanism is engaged and could cause damage. If the time falls within this period, first adjust the time outside this window, then set the date, and finally reset the time.
2. Setting the Time:
   • Pull the crown out to the second click (Position 2). The second hand will stop.
   • Rotate the crown to set the hour and minute hands. Rotate past 12 o'clock to ensure the AM/PM is correctly set (the date will change if you pass midnight).
   • Once the desired time is set, push the crown back into Position 0. The second hand will resume movement.

4. Operating Your Automatic Watch

4.1 Automatic Movement

The Pagani Design PD2770 utilizes a Seagull 2813 automatic mechanical movement. This movement is self-winding, meaning it harnesses the kinetic energy from your arm's motion to power the watch. When worn regularly (typically 8-10 hours a day), the watch will remain wound and keep accurate time.

4.2 Power Reserve

If the watch is not worn for an extended period (e.g., 24-48 hours, depending on the specific power reserve of the movement), it will stop. Simply pick up the watch, give it a gentle shake, or manually wind it as described in Section 3.1 to restart it.

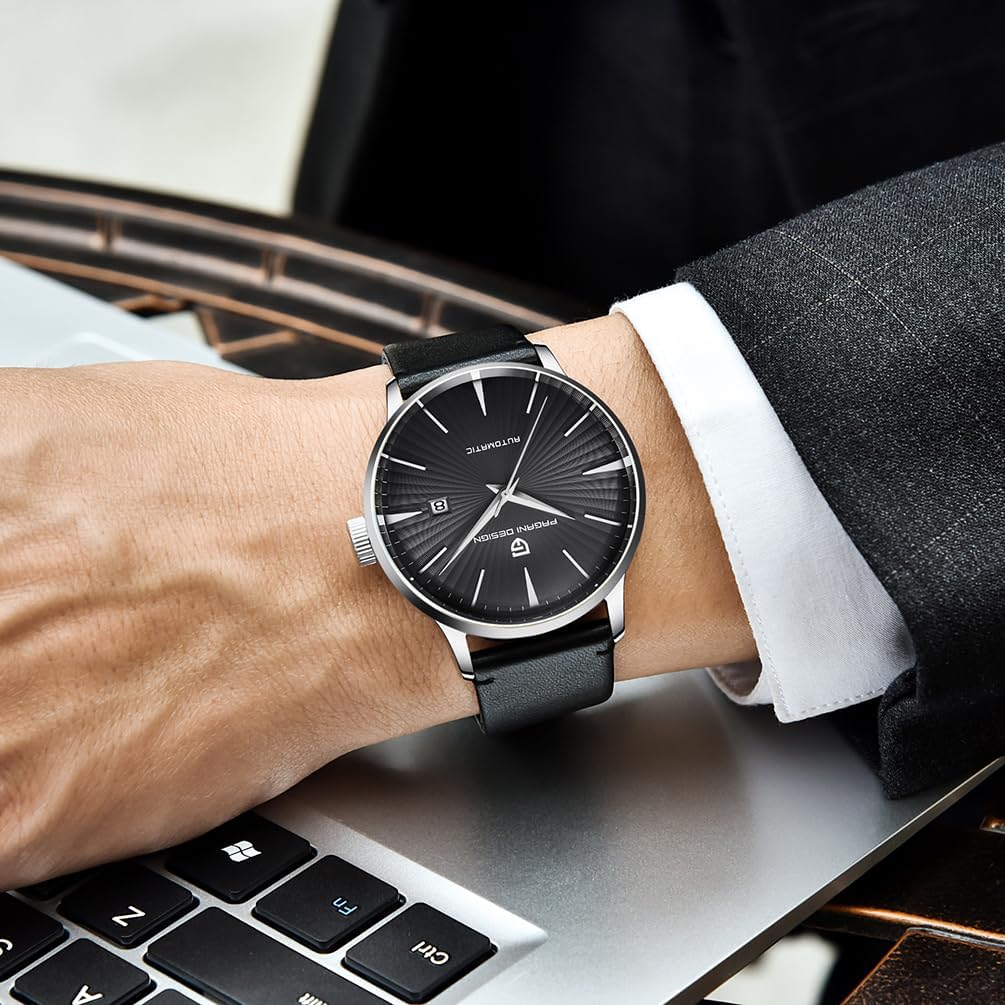

Figure 4.1: The Pagani Design PD2770 watch being worn. This image demonstrates the watch's appearance during daily use, highlighting its suitability for business and casual settings.

5. Maintenance and Care

5.1 Cleaning

To maintain the appearance of your watch:

• Wipe the case and crystal with a soft, lint-free cloth.
• For stainless steel parts, a slightly damp cloth can be used, followed by a dry cloth.
• Avoid using harsh chemicals, solvents, or abrasive cleaners, as these can damage the watch's finish or seals.

5.2 Water Resistance

The Pagani Design PD2770 watch has a water resistance rating of 30 meters (3 ATM). This means it is suitable for:

• Daily use, such as accidental splashes or rain.
• Washing hands.

It is NOT suitable for:

• Showering, bathing, swimming, diving, or any prolonged water immersion.
• Operating the crown or pushers while the watch is wet or submerged.

Water resistance is not a permanent condition and may eventually be compromised by the aging of gaskets or accidental shocks to the crown. It is recommended to have the water resistance checked periodically by a qualified watchmaker.

5.3 General Care Tips

• Avoid exposing the watch to extreme temperatures (hot or cold) or sudden temperature changes.
• Keep the watch away from strong magnetic fields, as these can affect the accuracy of the mechanical movement.
• Protect the watch from strong impacts or shocks.
• When not wearing the watch, store it in a dry, safe place, preferably in its original box or a watch winder if you wish to keep it running.

6. Troubleshooting

If you encounter any issues with your Pagani Design PD2770 watch, please refer to the table below for common problems and their solutions:

7. Specifications

Detailed specifications for the Pagani Design PD2770 Automatic Mechanical Watch:

8. Warranty and Support

Your Pagani Design PD2770 watch comes with a commitment to quality and customer satisfaction.

8.1 Warranty Information

• 12-Month After-Sale Service: The manufacturer provides a 12-month after-sale service covering manufacturing defects. This warranty does not cover damage resulting from improper handling, accidents, normal wear and tear, or unauthorized repairs.
• 30-Day Refund Policy: A 30-day no-reason refund policy is available from the point of purchase. Please refer to your retailer's return policy for details.

8.2 Customer Support

For any questions, concerns, or support inquiries regarding your Pagani Design watch, please contact the seller or manufacturer directly through the platform where the purchase was made. For Amazon purchases, you can contact the seller via your Amazon order details.
