Important Safety Information
Please read and understand all instructions and warnings before assembling and using this product. Failure to follow these instructions may result in injury to your pet or damage to the product. Keep this manual for future reference.
- Ensure all components are securely fastened before placing a pet inside the kennel.
- Regularly inspect the kennel for any signs of wear, damage, or loose parts. Repair or replace damaged components immediately.
- Do not allow children to play unsupervised near or inside the kennel.
- Position the kennel on a flat, stable surface to prevent tipping.
- Provide adequate water and shelter for your pet, especially during extreme weather conditions. The included cover offers protection from sun and rain.
- This kennel is designed for outdoor use.
Package Contents
Verify that all parts are present before beginning assembly. If any parts are missing or damaged, contact customer support.
- Welded Wire Panels (various sizes, including gate panel)
- Frame Tubes/Pipes
- 420D Oxford Fabric Cover (Waterproof & UV Resistant)
- Spring Clips/Fasteners
- 360° Rotating Bowl Holder
- Adjustable Bowls (4-level)
- Assembly Hardware (bolts, nuts, washers, etc.)
Image: The complete PawHut Outdoor Dog Kennel, showcasing its welded wire construction, red waterproof cover, and integrated feeding station.
Setup and Assembly
Assembly typically requires two people. Follow these steps carefully for proper installation.
- Prepare the Area: Choose a level, clear outdoor space for the kennel. Ensure sufficient room around the kennel for assembly and access.
- Assemble the Base Frame: Connect the bottom frame tubes according to the diagram in your specific assembly guide. Ensure all connections are secure.
- Attach Wire Panels: Securely attach the welded wire panels to the base frame using the provided clips or hardware. Pay attention to the orientation of the gate panel.
- Install Top Frame: Assemble and attach the top frame tubes, ensuring they align with the vertical wire panels.
- Secure All Connections: Double-check all bolts, nuts, and clips to ensure they are tightened and secure. Loose connections can compromise the kennel's stability.
- Install Feeding Station: Attach the 360° rotating bowl holder to the designated panel. Insert the adjustable bowls.
- Attach the Cover: Drape the 420D Oxford Fabric Cover over the top frame. Secure it using the spring clips to the frame, ensuring it is taut and covers the entire top area to prevent water and snow buildup.
Image: Illustration demonstrating various configurations for the kennel panels, allowing for flexible placement of the door and feeding station on either the front or side.
Image: A diagram illustrating the overall dimensions of the kennel, including length, width, height, and specific measurements for the gate and wire mesh.
Operating Instructions
Using the Gate
The kennel features a secure, escape-proof latch on the gate. To open, lift the latch and pull the gate outwards. To close, push the gate shut and ensure the latch engages fully.
Using the Feeding Station
The integrated feeding station includes a 360° rotating bowl holder and 4-level adjustable bowls for convenience.
- Rotating Bowls: To fill or clean the bowls, gently rotate the holder outwards without needing to enter the kennel. Once done, rotate it back into position.
- Adjustable Height: The bowls can be adjusted to four different height levels to accommodate various pet sizes. Loosen the securing mechanism, slide the bowls to the desired height, and re-secure.

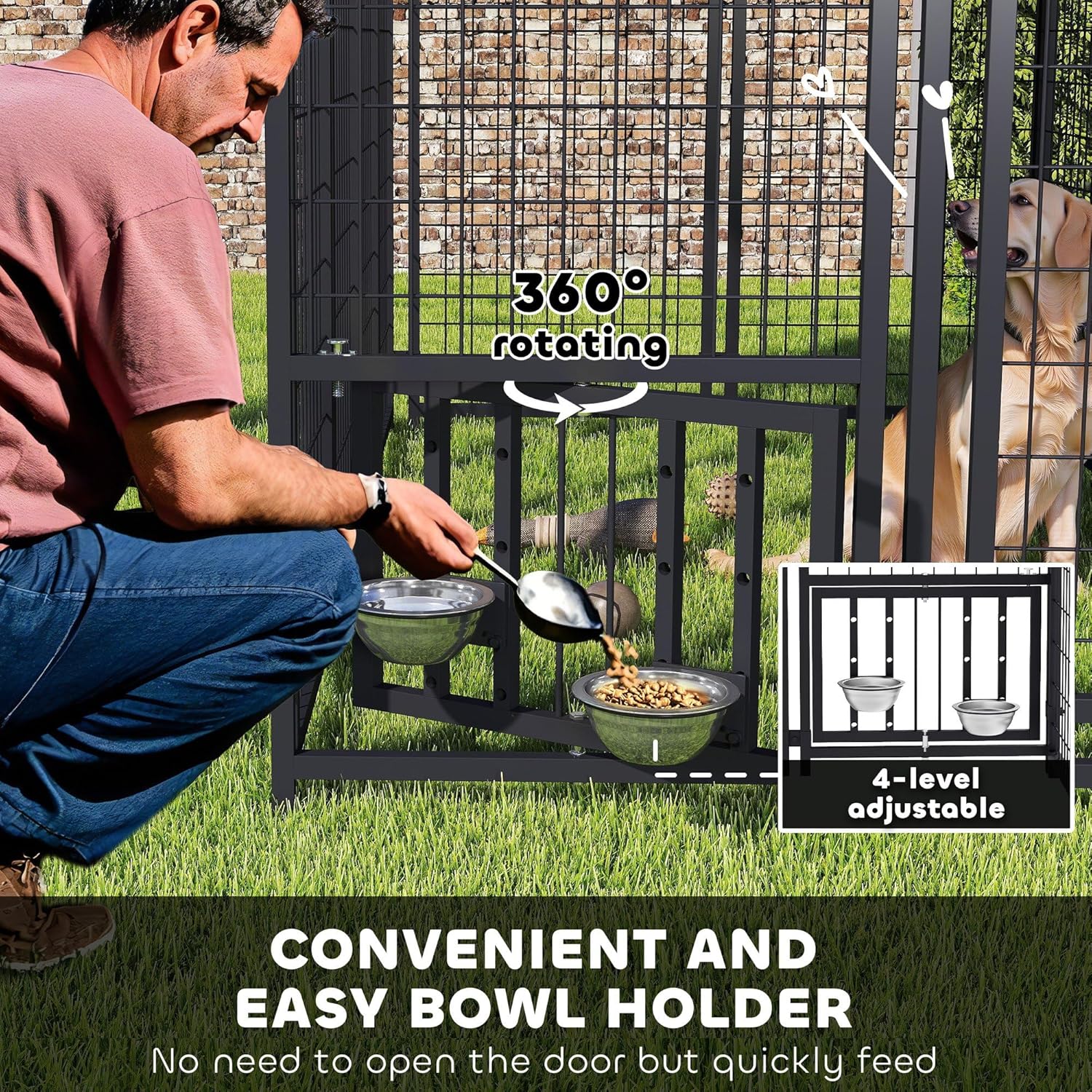

Image: A person demonstrating the use of the 360° rotating feeding station, showing how to easily access and fill the adjustable bowls from outside the kennel.
Maintenance
Cleaning the Kennel
Regular cleaning helps maintain hygiene and extends the product's lifespan.
- Wire Panels: Clean wire panels with a mild detergent and water. Rinse thoroughly and allow to air dry.
- Feeding Bowls: Remove and wash bowls daily with pet-safe soap and water.
Cover Care
The 420D Oxford Fabric Cover is waterproof and UV resistant, but proper care is essential.
- Wipe the cover clean with a damp cloth. Avoid harsh chemicals that may damage the fabric.
- Periodically check the cover for tears or damage. Replace if necessary to maintain weather protection.
- Ensure the pitched design of the cover allows water and snow to run off, preventing accumulation.
Image: A detailed view of the kennel's roof cover, illustrating its water-proof and UV-resistant features under different weather conditions.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Kennel feels unstable or wobbly. | Loose connections or uneven ground. | Ensure all bolts and clips are securely tightened. Relocate the kennel to a flat, level surface. Consider anchoring the kennel to the ground for added stability. |
| Gate does not latch securely. | Misalignment or obstruction. | Check for any debris obstructing the latch mechanism. Ensure the gate is properly aligned within the frame. Adjust panel connections if necessary. |
| Cover collects water or sags. | Improper installation or loose clips. | Re-tension the cover and ensure all spring clips are firmly attached to the frame. Verify the pitched design is maintained to allow water runoff. |
| Pet escapes from the kennel. | Unsecured gate or damaged panels. | Always ensure the gate latch is fully engaged. Inspect all panels for damage or gaps. Reinforce any weak points if identified. |
Specifications
| Feature | Detail |
|---|---|
| Model Number | D02-221V00RD |
| Overall Dimensions | 95.3"L x 47.6"W x 72.0"H (8' W x 4' D x 6' H) |
| Activity Area | Approximately 32 sq.ft |
| Gate Dimensions | 18.1" W x 45.9" H |
| Material | Alloy Steel (frame), Polyester (cover) |
| Cover Type | 420D Oxford Fabric, Waterproof & UV Resistant |
| Item Weight | 86 Pounds |
| Recommended Breeds | Small to Large dogs (within 66 lbs) |
| Specific Uses | Outdoor use for dogs, chickens, ducks, etc. |
Warranty and Support
This PawHut product is manufactured by Aosom LLC.
Warranty Information
The PawHut D02-221V00RD Outdoor Dog Kennel comes with a 1 Year Warranty Against Manufacturer Defects. Please retain your proof of purchase for warranty claims.
Customer Support
For assistance with assembly, missing parts, or warranty inquiries, please contact Aosom Direct customer support. Refer to the contact information provided with your purchase or visit the official PawHut website for support details.
