ZZP Nail Fungus Light Device User Manual

1. Introduction

The ZZP Nail Fungus Light Device is designed to provide an effective and safe solution for treating nail fungus on both toenails and fingernails. This device utilizes specific light wavelengths to interact with the fungus, promoting the repair of damaged and discolored nails. It offers a convenient and long-lasting solution for home use.

2. Product Overview

The ZZP Nail Fungus Light Device is engineered for high effectiveness and safety, using light at particular wavelengths (470nm blue light and 905nm invisible infrared light) to target fungus without harming skin or body tissues. Its larger size accommodates all fingers and toenails simultaneously, saving time during treatment sessions. The device features 18 LEDs to maximize the treatment area.

Consistent use can lead to noticeable improvements within 4-6 weeks, with effective treatment of weak and damaged nails typically observed within 3-4 months. Its compact and portable design ensures that you can use this safe and effective solution anytime, anywhere, making it ideal for both home and travel. This non-laser treatment device is designed to be non-damaging to human structure or function.

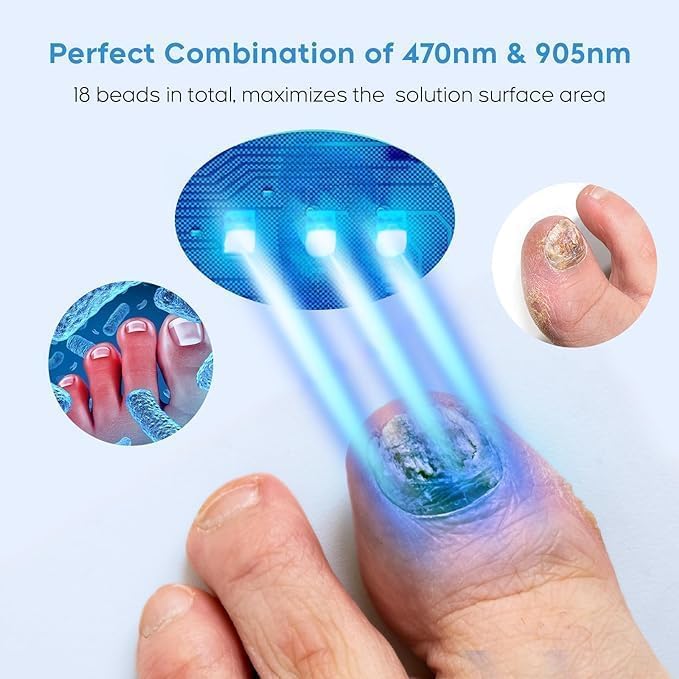

Image: The device utilizes a combination of 470nm blue light and 905nm infrared light for treatment, maximizing the solution surface area with 18 LED beads.

Image: Key benefits and usage frequency of the device, highlighting its safety and effectiveness.

3. Setup

The ZZP Nail Fungus Light Device is designed for simple setup. It operates by being plugged into a power source.

1. Unpack the device and the provided charging cable from its packaging.
2. Locate the power input port on the device, typically labeled DC5V/2A.
3. Connect the small end of the charging cable to the device's power input port.
4. Plug the USB end of the charging cable into a compatible USB power adapter (not included) or a USB port on a computer. Ensure the power source provides DC5V/2A for optimal performance.

Image: The device and its charging cable, ready for connection to a power source.

4. Operating Instructions

Follow these steps for effective use of your ZZP Nail Fungus Light Device:

1. Preparation: Before each use, ensure your hands or feet are clean and dry. Trim the length of your nails as needed.
2. Placement: Place your fingers or toes into the designated slots of the nail light device. The device is designed to accommodate multiple nails at once.
3. Power On & Timer Selection: The device must be plugged in to operate. Once connected to power, press the desired timer button (3 minutes, 5 minutes, or 10 minutes) to start the treatment. The recommended treatment duration is 10 minutes per session.
4. Treatment: The device will emit blue and infrared light during the selected time. It will automatically turn off once the session is complete.
5. Frequency: For optimal results, use the device twice a day, with each session lasting 10 minutes. Consistent use is key to restoring your nails to their original healthy appearance.

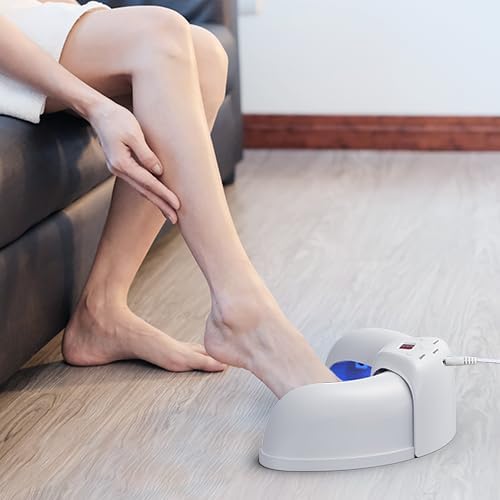

Image: Step-by-step guide for preparing nails and using the device for treatment.

Image: Expected timeline for noticeable nail improvement with consistent use of the device.

5. Maintenance

To ensure the longevity and optimal performance of your ZZP Nail Fungus Light Device, follow these simple maintenance guidelines:

• Cleaning: After each use, gently wipe the device's light-emitting surfaces and the areas where nails are placed with a soft, dry cloth. If necessary, use a slightly damp cloth with mild soap, then dry thoroughly. Do not use abrasive cleaners or immerse the device in water.
• Storage: Store the device in a cool, dry place away from direct sunlight and extreme temperatures. Keep it in its original packaging or a protective case to prevent dust accumulation and damage.
• Cable Care: Handle the charging cable with care. Avoid bending or twisting it excessively, and always unplug it by grasping the plug, not the cable itself.

6. Troubleshooting

If you encounter any issues with your ZZP Nail Fungus Light Device, please refer to the following common troubleshooting tips:

• Device Not Turning On:
  • Ensure the device is properly plugged into a working power outlet and the charging cable is securely connected to the device.
  • Verify that the power adapter (if used) is functioning correctly and provides the specified DC5V/2A output.
• Lights Not Emitting:
  • Confirm that a timer button (3min, 5min, or 10min) has been pressed after plugging in the device.
  • If the device has been recently dropped or damaged, contact customer support.
• Timer Display Not Working:
  • Check power connection. If the issue persists, it may indicate a fault with the display unit.

If these steps do not resolve the issue, please contact customer support for further assistance.

7. Specifications

8. Warranty and Support

Your ZZP Nail Fungus Light Device comes with a return policy allowing for returns or replacements within 30 days of purchase, as per the seller's policy.

For any questions, concerns, or troubleshooting assistance not covered in this manual, please contact our customer support team:

Email: NailFungus-services@outlook.com

Please provide your product model number (B0DSVJ4RNF) and a detailed description of your issue when contacting support for faster resolution.
