Members Mark Hampton 7-Piece Outdoor Fire Dining Set User Manual

Introduction

Thank you for choosing the Members Mark Hampton 7-Piece Outdoor Fire Dining Set. This manual provides essential information for the safe and efficient use, assembly, operation, and maintenance of your new outdoor furniture set. Please read all instructions carefully before use and retain this manual for future reference.

This set includes a dining table with an integrated linear fire feature, four stationary dining chairs, and two swivel rocker chairs, all designed for outdoor use. The durable construction and weather-resistant materials ensure longevity and comfort.

Members Mark Hampton 7-Piece Outdoor Fire Dining Set with fire lit, showing the dining table, four stationary chairs, and two swivel chairs on a patio.

Image: The complete Hampton 7-Piece Outdoor Fire Dining Set with the fire feature active, positioned on an outdoor patio.

Safety Information

WARNING: Failure to follow these safety instructions could result in fire, explosion, or serious injury.

Read all instructions before operating the fire pit.
For outdoor use only. Do not use indoors or in an enclosed area.
Keep children and pets away from the fire pit at all times.
Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
Always ensure proper ventilation.
Do not leave the fire pit unattended when in use.
Allow the fire pit to cool completely before covering or moving.
Use only a standard 20 lb LP (liquid propane) tank. (LP Tank not included).
Ensure all gas connections are tight and leak-free before operation. Perform a leak test as described in the fire pit's specific instructions.
Keep the area around the fire pit clear of combustible materials, gasoline, and other flammable vapors and liquids.

Components List

The Members Mark Hampton 7-Piece Outdoor Fire Dining Set includes the following components:

1 x Fire Pit Dining Table
4 x Stationary Dining Chairs
2 x Swivel Rocker Chairs
6 x Dove Gray Cushions (one for each chair)
1 x Furniture Cover

Members Mark Hampton 7-Piece Outdoor Fire Dining Set without fire, showing the dining table, four stationary chairs, and two swivel chairs on a patio next to a green canal.

Image: The complete Hampton 7-Piece Outdoor Fire Dining Set, ready for use, without the fire feature active.

Setup

1. Unpacking and Placement

Carefully unpack all components from their packaging. Inspect for any damage.
This set requires No Assembly. All chairs and the dining table are pre-assembled.
Choose a level, stable surface for placement, away from any overhead obstructions or combustible materials. Ensure adequate clearance around the fire pit.
Place the cushions on the chairs.

2. Fire Pit LP Tank Connection

The fire pit dining table features a concealed compartment for an LP tank.

Open the access door on the side of the fire pit dining table.
Place a standard 20 lb LP (liquid propane) tank (not included) into the compartment.
Connect the gas hose from the fire pit to the LP tank valve. Hand-tighten the connection securely.
Perform a leak test: Mix a solution of equal parts water and liquid dish soap. With the LP tank valve open, apply the solution to all gas connections. If bubbles appear, there is a leak. Close the LP tank valve immediately and re-tighten connections. Repeat the test. If leaks persist, do not use the fire pit and contact customer support.
Close the access door.

Close-up of the fire pit feature on the dining table, showing the decorative glass rocks and the cover partially slid open.

Image: Detail of the fire pit feature, revealing the decorative media and the sliding cover.

Operating the Fire Pit

1. Ignition

Ensure the LP tank valve is fully open.
Locate the control knob and push-button igniter on the side of the fire pit table.
Push and turn the control knob to the 'LOW' position.
While holding the control knob in, press and hold the igniter button repeatedly until the burner ignites.
Once ignited, continue to hold the control knob in for 10-15 seconds to allow the thermocouple to heat up. Release the knob. If the flame extinguishes, repeat the ignition process.

2. Flame Control

To adjust the flame height, rotate the control knob between the 'LOW' and 'HIGH' positions as desired.

3. Shutting Down

Turn the control knob to the 'OFF' position.
Close the valve on the LP tank.
Allow the fire pit to cool completely before covering or touching any hot surfaces.

Maintenance

1. Cleaning

Wicker and Frame: Use a mild detergent and warm water with a soft cloth or sponge. Rinse thoroughly and dry completely. Avoid abrasive cleaners or brushes.
Cushions: Spot clean with a mild soap and water solution. For deeper cleaning, remove covers if possible and follow fabric care instructions. Allow to air dry completely before re-use or storage.
Fire Pit: Ensure the fire pit is completely cool. Wipe down surfaces with a damp cloth. Periodically check the burner ports for any obstructions and clean as necessary.

2. Protection and Storage

When not in use, especially during inclement weather or off-season, use the provided furniture cover to protect the set from elements.
For prolonged storage, particularly in freezing temperatures, it is recommended to store cushions indoors in a dry, protected area.
Disconnect the LP tank and store it in a well-ventilated outdoor area, away from direct sunlight and heat sources.

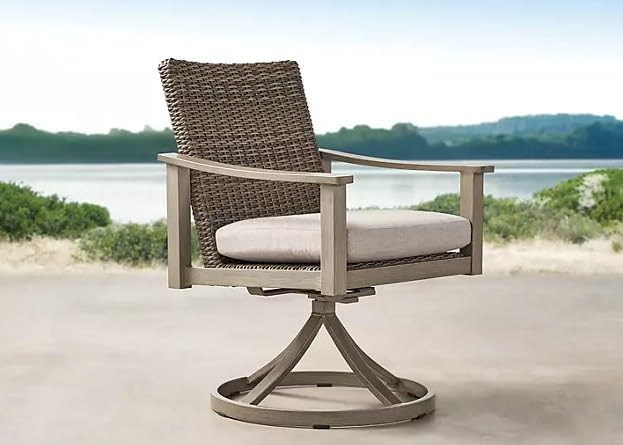

Close-up of a swivel rocker chair from the Members Mark Hampton set, showing the woven wicker back, aluminum frame, and dove gray cushion.

Image: A detailed view of one of the swivel rocker chairs, highlighting the construction and cushion.

Close-up of a dove gray cushion on a chair from the Members Mark Hampton set, showing the fabric texture and stitching.

Image: A close-up of the dove gray cushion, emphasizing its texture and comfort.

The Members Mark Hampton 7-Piece Outdoor Fire Dining Set covered with a black protective cover, positioned on a patio near a body of water.

Image: The entire dining set protected by its custom furniture cover, demonstrating proper storage.

Troubleshooting

Problem	Possible Cause	Solution
Fire pit does not ignite.	LP tank empty or valve closed. Igniter not sparking. Gas flow obstructed.	Check LP tank level and ensure valve is fully open. Check igniter battery (if applicable) or ensure igniter pin is clean and close to burner. Ensure gas hose is not kinked and connections are secure. Perform leak test.
Flame is low or inconsistent.	Low LP tank pressure. Partial obstruction in burner ports. Excessive wind.	Replace or refill LP tank. Clean burner ports carefully when cool. Consider relocating the set or using a wind guard (if compatible).
Gas odor detected.	Gas leak.	Immediately turn off LP tank valve. Perform a leak test. If leak persists, do not use and contact customer support.

Specifications

Seating Capacity: 6 people
Material: All-weather wicker, handwoven; Rust-free aluminum exposed metal frames
Cushion Color: Dove Gray
Fire Pit BTU: 30,000 BTU
Fire Pit Fuel: Liquid Propane (LP) - 20 lb tank (not included)
Assembly Required: No
Item Weight: Approximately 280 lbs
Product Care: Use a mild detergent and warm water for cleaning.

Dimensions:

Dining Chair: 24.5"W x 28.75"D x 36"H
Swivel Rocker: 24.5"W x 28.75"D x 36"H
Fire Pit Dining Table: 83.75"W x 41.75"D x 30.25"H
Weight Limit (per seat): 250 lbs

Image: Detailed dimensional drawing for the swivel chair, stationary chair, and fire pit dining table.

Warranty and Support

For any questions, concerns, or support needs regarding your Members Mark Hampton 7-Piece Outdoor Fire Dining Set, please contact the seller, ESHOP HOUSE LLC, directly through your purchase platform. Please have your order details and product model information available when contacting support.
