FYNORA-REVIXO Gas Dryer Coil Kit Replacement Set User Manual

1. Introduction

This manual provides instructions for the FYNORA-REVIXO Gas Dryer Coil Kit, designed for replacing gas valve coils in various dryer models. The kit includes two gas coils: one primary (3-terminal) and one safety (2-terminal). These coils are essential for the proper operation of your gas dryer's ignition system.

2. Safety Information

WARNING: Working with gas appliances and electricity can be hazardous. Always follow these safety precautions:

• Before beginning any installation or repair, disconnect the dryer from its electrical power supply by unplugging it or turning off the circuit breaker.
• Shut off the gas supply to the dryer at the main gas valve.
• Ensure the work area is well-ventilated.
• If you are unsure about any step, consult a qualified technician.
• After installation, check for gas leaks using a soap and water solution (never an open flame).

3. Package Contents

The FYNORA-REVIXO Gas Dryer Coil Kit includes:

• 1 x Primary Gas Coil (3-terminal)
• 1 x Safety Gas Coil (2-terminal)

4. Compatibility

This coil kit is compatible with a wide range of gas dryer models from various brands, including but not limited to:

• Whirlpool
• Maytag
• Kenmore
• Samsung
• Admiral
• Amana
• Crosley
• Roper
• Estate
• Inglis
• Speed Queen

It is also interchangeable with Frigidaire part number 5303931775.

Known compatible model numbers include: 279834BULK, 58804B, 63-6615, 14202750, 3479, 63-6614, 7MLGR3624, 7MLGR4634, 7MLGR5620, 7MLGR8620, 7MWG44500, 7MWG45500, 7MWG66007, 7MWG66700, 7MWG66800, 7MWG77900, 7MWG87600, 7MWG99930, 7MWGD1500, 7MWGD1600, 7MWGD8000, 7MWGD90, 7MWGD9150, 7MWGD9200, 7MWGD9400, 7MWGT3300, 8BLGR5636, 8LGC7858, 8LGR5636.

If your specific model number is not listed, please cross-reference with your dryer's existing coil part numbers or consult your dryer's service manual.

5. Setup and Installation

Replacing the gas dryer coils typically involves accessing the gas valve assembly. The process can be completed with basic tools.

Tools Required:

• Phillips Head Screwdriver
• Needle Nose Pliers
• Nut Driver (size may vary depending on dryer model)

Installation Steps:

1. Safety First: Ensure the dryer is unplugged from the electrical outlet and the gas supply valve is turned off.
2. Access the Gas Valve: Depending on your dryer model, you may need to remove the front panel, top panel, or rear panel to access the burner assembly and gas valve. Refer to your dryer's service manual for specific instructions on accessing these components.
3. Locate the Coils: The gas coils are typically located on the gas valve assembly, often near the igniter. You will see one coil with three terminals (primary) and one with two terminals (safety).
4. Disconnect Wires: Carefully disconnect the electrical wires from the old coils. Note their positions for correct reinstallation.
5. Remove Old Coils: Use a Phillips screwdriver to remove the screws holding the coils in place. Some coils may simply slide off after removing a retaining clip or screw.
6. Install New Coils: Install the new primary (3-terminal) and safety (2-terminal) coils in the same positions as the old ones. Ensure they are securely fastened.
7. Reconnect Wires: Reconnect the electrical wires to the corresponding terminals on the new coils.
8. Reassemble Dryer: Carefully reassemble any panels or components that were removed.
9. Restore Gas and Power: Turn the gas supply back on and plug the dryer back into the electrical outlet.
10. Test for Leaks: Before operating, apply a soap and water solution to all gas connections to check for bubbles, which would indicate a gas leak. If leaks are detected, tighten connections or seek professional assistance.
11. Test Dryer: Run a short cycle to confirm the dryer heats properly.

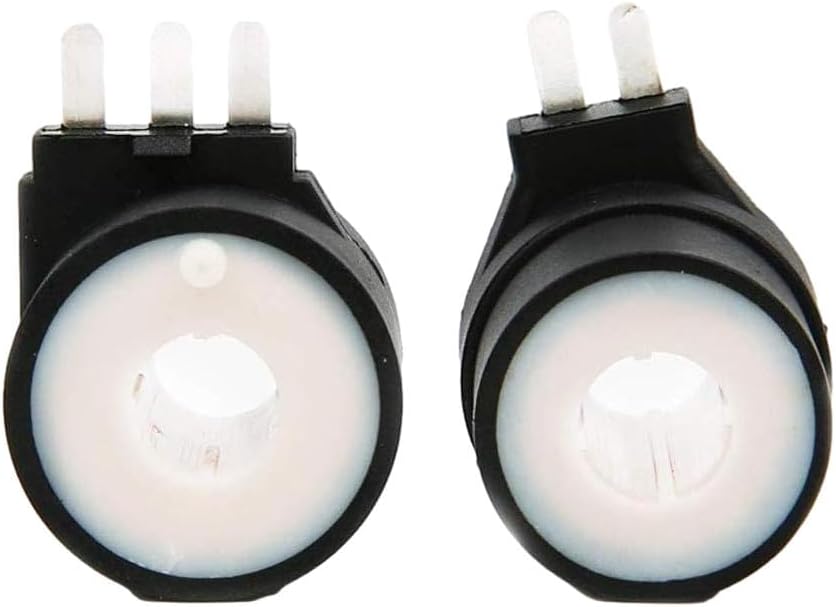

This image displays the two gas dryer ignition coils included in the kit. The coil on the left features three electrical terminals, while the coil on the right has two electrical terminals. Both coils are black with a white circular core.

6. Operating Principles

The gas coils in your dryer are electromagnetic solenoids that control the flow of gas to the burner. When the dryer's control system calls for heat, electrical current is sent to the coils. The primary coil opens the main gas valve, allowing gas to flow to the burner. The safety coil acts as a secondary valve, ensuring gas flow only when the igniter is hot enough to ignite the gas. If either coil fails, the gas valve will not open correctly, preventing the dryer from heating.

7. Maintenance

Gas dryer coils are wear-and-tear components and do not typically require routine maintenance. However, general dryer maintenance can help prolong the life of all components:

• Regularly clean the lint filter before or after every load.
• Periodically clean the dryer vent system to ensure proper airflow and prevent overheating.
• Avoid overloading the dryer, which can strain components.

If one coil fails, it is recommended to replace both coils as a pair for consistent performance and to avoid future issues, as they often wear out at similar rates.

8. Troubleshooting

If your gas dryer is experiencing heating issues after coil replacement, consider the following:

• Dryer Not Heating: If the dryer tumbles but does not produce heat, the new coils may be faulty, or there might be an issue with the igniter, thermal fuse, or flame sensor. Ensure the coils are correctly installed and wired.
• No Gas Ignition: If you hear the igniter glow but no flame appears, the coils might not be opening the gas valve. Verify the coils are receiving power and are correctly seated.
• Gas Smell: If you detect a gas smell, immediately shut off the gas supply and electrical power. Do not operate the dryer. Check all gas connections for leaks using a soap and water solution. If the smell persists, contact a qualified technician or your gas provider.
• Incorrect Coil Installation: Ensure the 3-terminal primary coil and 2-terminal safety coil are installed in their correct positions.

For persistent issues, it is advisable to consult a professional appliance repair technician.

9. Specifications

10. Warranty and Support

For warranty information or technical support, please refer to the product packaging or contact the seller directly through your purchase platform. Keep your proof of purchase for any warranty claims.
