Introduction
This manual provides detailed instructions for the installation, maintenance, and troubleshooting of the TERGTIRY WH03X32218 1/3 Hp Motor Pulley & Nut. This component is designed as a replacement part for specific GE, Hotpoint, RCA, and Kenmore washing machine models, ensuring proper function of your appliance's motor system.
Product Overview
The WH03X32218 motor pulley and nut assembly is a critical component in your washing machine's drive system. It facilitates the transfer of power from the motor to the wash basket, enabling agitation and spinning cycles. This replacement part is manufactured from durable materials to ensure long-lasting and reliable performance.
Image: The WH03X32218 motor pulley and nut, shown as a complete assembly.
Compatibility
The WH03X32218 motor pulley and nut are compatible with a wide range of washing machine models from GE, Hotpoint, RCA, and Kenmore. It replaces the following part numbers: WH49X25378, WH39X27601, WH07X24695, AP7034989, PS16619249, and EAP16619249.
Key Compatible Models include:
- GTW335ASN1WW
- GTW465ASN0WW, GTW465ASN8WW, GTW465ASN9WW, GTW465ASN3WW
- GTW585BSV0WS, GTW585BSV3WS
- GTW325ASW0WW
- HTW240ASK6WS, HTW265ASW0WW
- HTW200ASK0WW, HTW200ASK1WW, HTW200ASK2WW, HTW200ASK3WW, HTW200ASK4WW
- HTW240ASK0WS, HTW240ASK1WS
Image: Visual guide for checking part compatibility and replacement numbers.
Installation Instructions
Replacing the motor pulley and nut requires basic tools and adherence to safety precautions. Always refer to your appliance's specific service manual for additional guidance.
- Step 1: Disconnect Power. Unplug the washing machine from the electrical outlet to prevent electric shock.
- Step 2: Access Motor. Carefully remove the screws that secure the motor casing or access panel, as per your washer's design.
- Step 3: Remove Old Parts. Locate the motor shaft. Using an appropriate wrench, remove the old pulley and nut from the motor shaft. Note the orientation of the components for reassembly.
- Step 4: Install New Parts. Ensure the new pulley and nut are compatible with the motor shaft (check size and thread). Install the new pulley onto the motor shaft, followed by the nut. Securely tighten the nut with a wrench.
- Step 5: Reassemble and Test. Reinstall the screws for the motor casing or access panel. Plug the power cord back into the electrical outlet. Run a test cycle to ensure proper operation.

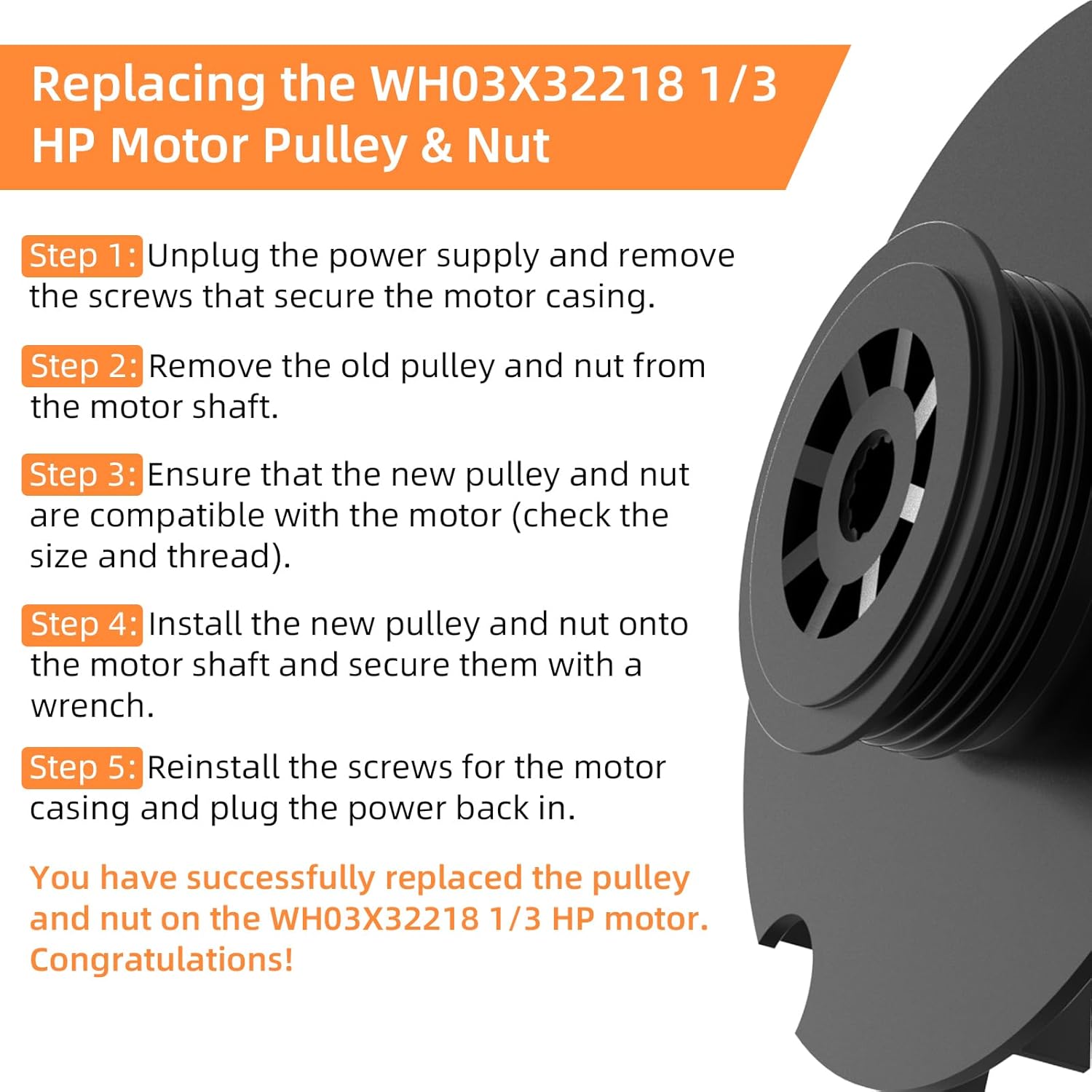

Image: Illustrated steps for replacing the WH03X32218 motor pulley and nut.
Functionality and Problem Resolution
The WH03X32218 motor pulley and nut are designed to restore proper function to washing machines experiencing issues related to the drive system. Replacing this part can resolve common problems such as:
- Washer not spinning or agitating
- Unusual grinding noises during operation
- Uneven movement of the wash basket
- Abnormal agitation or spinning cycles
Image: Depiction of a washing machine with common issues that this part can fix.
Maintenance
As a replacement part, the WH03X32218 motor pulley and nut are designed for durability. Regular maintenance of your washing machine, such as avoiding overloading and ensuring balanced loads, can help prolong the life of all internal components, including this part. Periodically inspect the motor area for any signs of wear or damage to the pulley and nut, especially if you notice changes in your washer's performance.
Troubleshooting Common Issues
If your washing machine continues to exhibit problems after replacing the motor pulley and nut, consider the following:
- No Power: Ensure the washer is properly plugged in and the circuit breaker has not tripped.
- Still Not Spinning/Agitating: Verify that the new pulley and nut are securely fastened. Other components, such as the motor itself, drive belt (if applicable), or transmission, may require inspection.
- Loud Noises: Recheck the installation to ensure no parts are loose or rubbing. Confirm that the new part is correctly seated and aligned.
For persistent issues, consult a qualified appliance technician or refer to your washing machine's comprehensive service manual.
Product Specifications
| Part Number | WH03X32218 |
| Item Weight | 5.9 ounces |
| Product Dimensions | 5 x 3 x 3 inches |
| Color | Black |
| Included Components | Motor Pulley & Nut |
| Manufacturer | TERGTIRY |
Image: Visual representation of the product dimensions.
Warranty and Customer Support
The TERGTIRY WH03X32218 motor pulley and nut come with a 1-year manufacturer's warranty. This warranty covers defects in materials and workmanship under normal use.
For any inquiries, assistance, or warranty claims, please contact our dedicated customer support team. We are committed to customer satisfaction and aim to respond to all inquiries within 24 hours.
Customer Support: Please refer to your purchase documentation or the seller's contact information for direct support channels.
