NovorikX 45CC 2.3HP Gas Chainsaw User Manual

1. Important Safety Information

Operating a chainsaw can be hazardous. Always read and understand all safety instructions before using this product. Failure to follow these instructions may result in serious injury or death.

1.1 Personal Protective Equipment (PPE)

• Head Protection: Wear a safety helmet.
• Eye Protection: Always wear safety goggles or a face shield.
• Ear Protection: Use earplugs or earmuffs to protect against noise.
• Hand Protection: Wear heavy-duty work gloves.
• Leg Protection: Wear chainsaw protective chaps or trousers.
• Foot Protection: Wear steel-toed safety boots with non-slip soles.

1.2 General Safety Precautions

• Never operate the chainsaw when fatigued, ill, or under the influence of alcohol or drugs.
• Keep children, bystanders, and animals at a safe distance (at least 50 feet/15 meters) from the work area.
• Inspect the chainsaw before each use for loose parts, damage, or wear. Ensure the chain brake is functional.
• Always hold the chainsaw firmly with both hands.
• Be aware of kickback and how to avoid it.
• Do not operate the chainsaw in poor weather conditions, such as strong winds or heavy rain.
• Ensure proper ventilation when fueling and operating.

2. Product Overview and Package Contents

The NovorikX 45CC 2.3HP Gas Chainsaw is designed for efficient tree trimming and wood cutting. This section details the components included in your package and the main parts of the chainsaw.

2.1 Package Contents

Your NovorikX 45CC 2.3HP Gas Chainsaw package includes the following items:

• 1 x NovorikX 45CC 2.3HP Gas Chainsaw Unit
• 1 x 18-inch Guide Bar and Chain
• 1 x 16-inch Guide Bar and Chain
• 1 x Guide Bar Cover
• 1 x Fuel Mixing Bottle
• 1 x Socket Wrench
• 1 x Screwdriver
• 1 x Sharpening File
• 1 x Pair of Gloves
• 1 x Pair of Goggles
• 1 x Pair of Earplugs
• User Manual

Figure 1: NovorikX 45CC 2.3HP Gas Chainsaw with all included accessories, including two guide bars and chains, safety gear, and tools.

2.2 Chainsaw Components

Familiarize yourself with the main parts of your chainsaw:

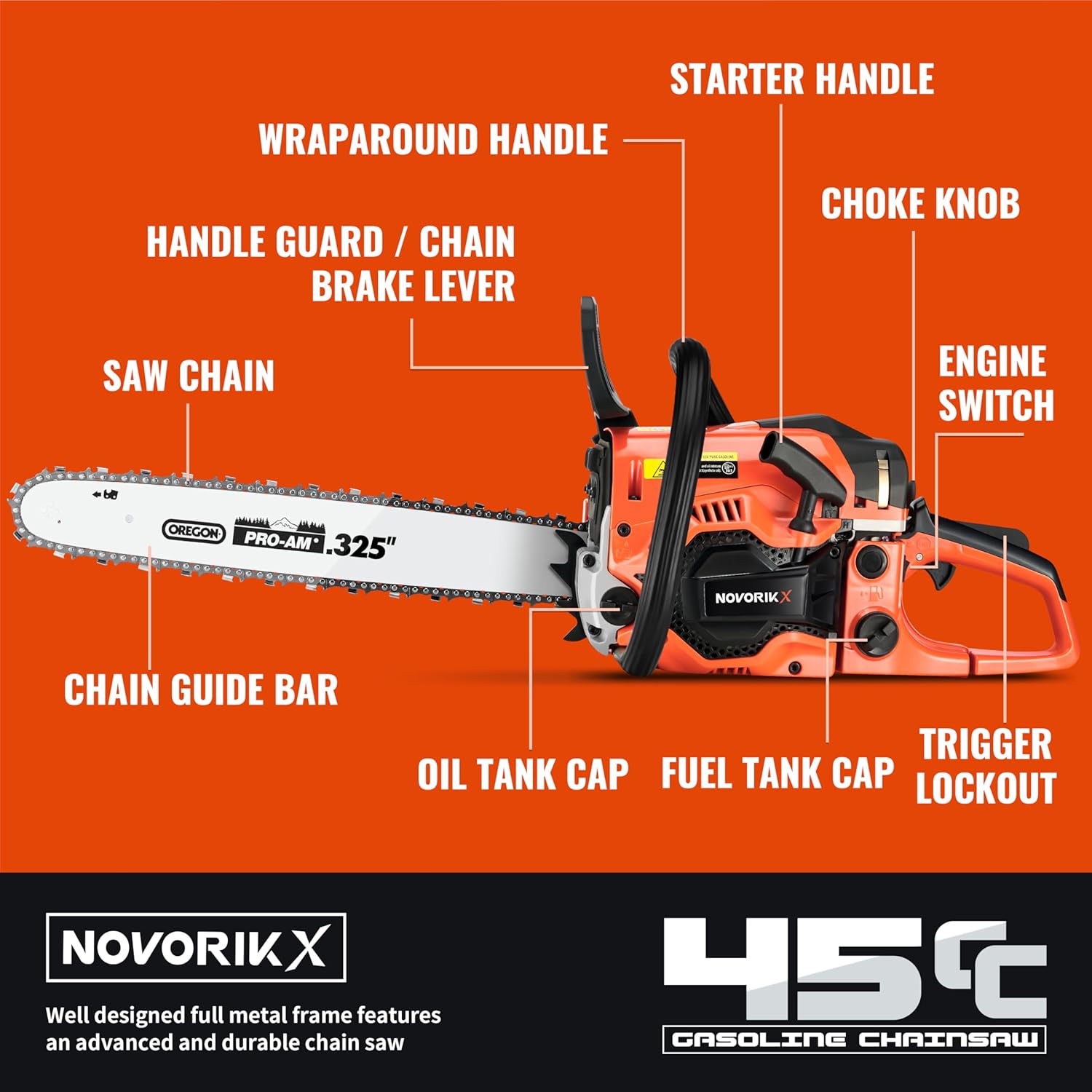

Figure 2: Labeled diagram showing key components of the NovorikX 45CC 2.3HP Gas Chainsaw, including the wraparound handle, starter handle, choke knob, engine switch, trigger lockout, fuel tank cap, oil tank cap, chain guide bar, saw chain, and handle guard/chain brake lever.

• Wraparound Handle: Provides multiple grip positions for control.
• Starter Handle: Used to pull-start the engine.
• Choke Knob: Assists in cold starting the engine.
• Engine Switch: Turns the engine ON/OFF.
• Trigger Lockout: Prevents accidental throttle engagement.
• Fuel Tank Cap: For filling the fuel mixture.
• Oil Tank Cap: For filling chain lubricant.
• Chain Guide Bar: Supports and guides the saw chain.
• Saw Chain: The cutting component of the chainsaw.
• Handle Guard / Chain Brake Lever: Protects the hand and activates the chain brake.

3. Setup and Assembly

Before operating your chainsaw, proper assembly and preparation are essential.

3.1 Guide Bar and Chain Installation

1. Ensure the engine is off and the chain brake is disengaged.
2. Remove the side cover by loosening the two nuts with the socket wrench.
3. Carefully place the chain around the clutch drum and guide bar, ensuring the cutting edges face the correct direction.
4. Align the guide bar studs with the holes in the guide bar.
5. Replace the side cover, ensuring the chain tensioning pin engages with the hole in the guide bar.
6. Hand-tighten the nuts.
7. Adjust chain tension: The chain should be snug against the guide bar but still able to be pulled freely by hand. There should be no slack on the underside of the bar, and the chain should snap back when pulled away from the bar.
8. Fully tighten the side cover nuts.

3.2 Fuel and Chain Oil Preparation

This chainsaw requires a specific fuel mixture and chain lubricant.

• Fuel Mixture: Mix unleaded gasoline with 2-stroke engine oil at the ratio specified in your manual (typically 25:1 or 50:1, refer to the specific product manual for exact ratio). Use the provided mixing bottle for accuracy.
• Chain Oil: Fill the chain oil tank with high-quality bar and chain lubricant. The chainsaw features an automatic oil supply system to ensure proper lubrication during operation.

Always fill tanks on a level surface and wipe up any spills immediately.

4. Operating Instructions

Follow these steps for safe and effective operation of your NovorikX gas chainsaw.

4.1 Starting the Chainsaw

1. Place the chainsaw on a firm, flat surface.
2. Engage the chain brake by pushing the handle guard forward.
3. Set the engine switch to the ON position.
4. Pull the choke knob out for cold starts. For warm starts, the choke may not be necessary.
5. Press the primer bulb several times until fuel is visible in the return line.
6. Hold the chainsaw firmly with one hand on the front handle and place your foot on the rear handle.
7. Pull the starter handle with a smooth, steady motion until the engine attempts to start (a pop sound).
8. Push the choke knob halfway in (or fully in if the engine started).
9. Pull the starter handle again until the engine starts.
10. Once the engine is running, disengage the chain brake by pulling the handle guard back. Allow the engine to warm up for a few moments before use.

Figure 3: Demonstrating the spring-assisted pull handle for effortless starting of the chainsaw.

4.2 Cutting Techniques

Always maintain a firm grip with both hands and ensure stable footing. Plan your cuts to avoid kickback and falling debris.

• Felling Trees: Requires advanced technique and should only be performed by experienced operators. Always assess the tree's lean, surrounding obstacles, and escape routes.
• Limbing: Remove branches from a fallen tree. Work from the base towards the top, cutting smaller branches first.
• Bucking: Cutting a fallen log into shorter sections. Be aware of pinching and rolling logs.

Figure 4: The chainsaw in operation, demonstrating its cutting capability on a large log.

Figure 5: Chainsaw in use, showcasing the anti-vibration system for stable and smooth operation during tree cutting.

5. Maintenance

Regular maintenance ensures optimal performance and extends the lifespan of your chainsaw.

5.1 Daily Maintenance

• Clean Air Filter: Remove and clean the air filter after each use or as needed. A clogged air filter can reduce engine performance.
• Check Chain Tension: Ensure the chain tension is correct before each use and adjust if necessary.
• Inspect Chain Sharpness: A dull chain requires more effort and can be dangerous. Sharpen or replace the chain as needed.
• Check Chain Oiler: Verify that the automatic oiler is functioning and supplying oil to the chain.
• Clean Debris: Remove sawdust and debris from the guide bar groove, sprocket cover, and cooling fins.

5.2 Periodic Maintenance

• Spark Plug: Inspect and clean the spark plug periodically. Replace if worn or fouled.
• Fuel Filter: Replace the fuel filter after approximately 5 hours of run time or if fuel delivery issues occur.
• Guide Bar: Flip the guide bar periodically to ensure even wear. Clean the guide bar groove.
• Sprocket: Inspect the drive sprocket for wear and replace if necessary.

6. Troubleshooting

This section provides solutions to common issues you might encounter.

7. Specifications

Technical details for the NovorikX 45CC 2.3HP Gas Chainsaw.

8. Warranty and Support

NovorikX products are designed for reliability and performance. We offer comprehensive support for your chainsaw.

• Warranty: This product comes with a 2-year warranty.
• Returns: Free 30-day returns are available.
• Customer Service: For warranty service or any product-related inquiries, please contact the store customer service where you purchased the product. They will provide you with the necessary warranty information and support.
