User Manual: Compact Telescopic Inspection Lens

Introduction

Thank you for choosing the ReachMall Compact Telescopic Inspection Lens. This versatile tool is designed to assist professional mechanics, DIY enthusiasts, and anyone needing to inspect hard-to-reach areas in various applications. Its robust construction and intelligent design ensure reliable performance and ease of use.

This manual provides essential information on the product's features, setup, operation, maintenance, and specifications to help you get the most out of your inspection lens.

Product Features

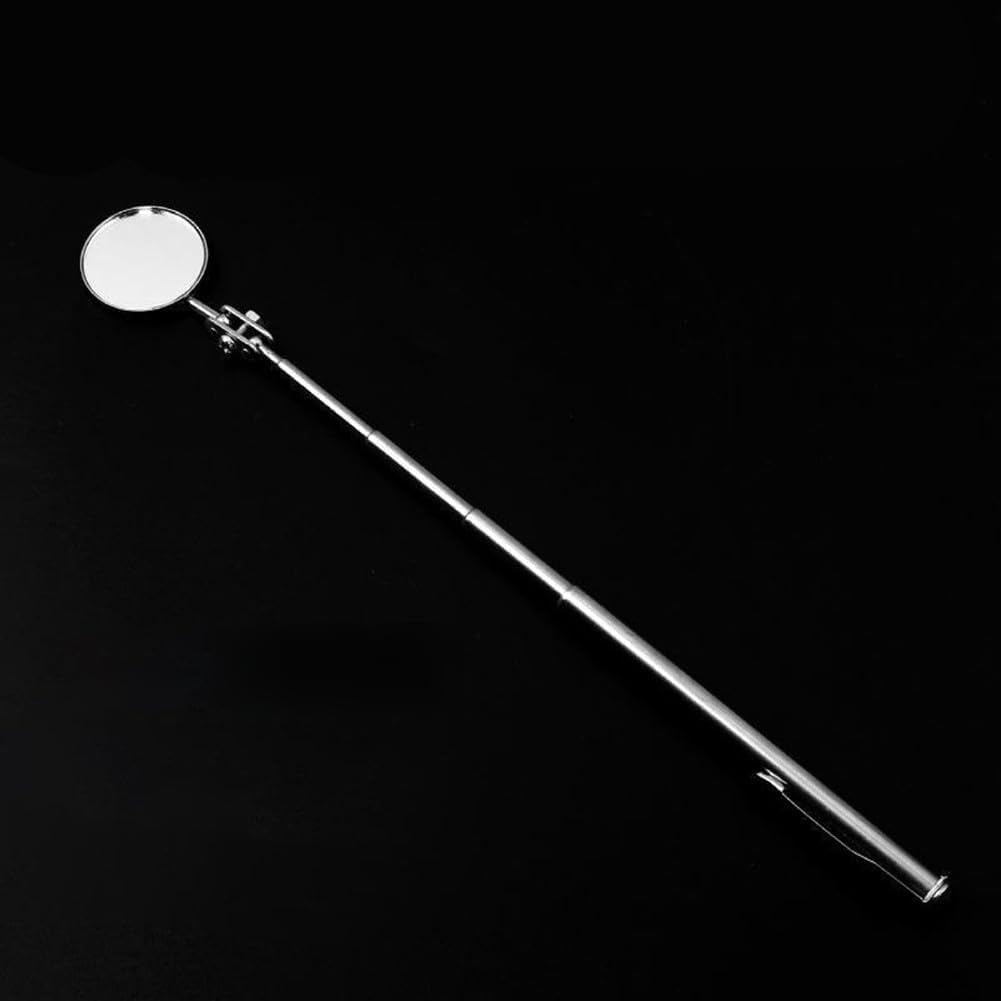

• Automatic Telescopic Round Inspection Mirror: Features a 30mm diameter mirror mounted on a swivel ball joint, allowing for a full 360-degree viewing angle. Ideal for inspecting difficult-to-access areas such as engine compartments, behind appliances, or inside narrow spaces.
• Extendable Telescopic Design: The inspection lens extends to adjust its length according to your specific needs, offering enhanced versatility and convenience during use.
• Wide Application: Suitable for automotive use, as well as household, electronics, and workshop applications. Whether locating lost parts or performing detailed inspections, this tool is a reliable companion.
• Excellent Construction: Manufactured from high-quality stainless steel, ensuring durability and resistance to wear and breakage even with regular use.
• Compact and Portable: Its compact size and lightweight design make this telescopic inspection lens easy to carry and store, making it an indispensable tool for any professional or hobbyist.

Setup

The ReachMall Compact Telescopic Inspection Lens requires minimal setup. It is ready for use directly out of the package.

1. Unpack: Carefully remove the inspection lens from its packaging.
2. Inspect: Check the mirror and telescopic shaft for any signs of damage during transit.
3. Ready for Use: The tool is now ready to be extended and used.

Operating Instructions

Using the telescopic inspection lens is straightforward:

1. Extend the Shaft: Gently pull the telescopic shaft to extend it to the desired length. The shaft will lock into place at various extensions.
2. Adjust the Mirror Angle: The mirror is mounted on a swivel ball joint. Adjust the mirror to achieve the optimal viewing angle for the area you wish to inspect. The 360-degree rotation allows for comprehensive visibility.
3. Position for Inspection: Carefully maneuver the extended mirror into the hard-to-reach area. Use the mirror to view hidden components, serial numbers, or obstructions.
4. Retract and Store: Once inspection is complete, gently push the shaft back to retract it to its compact size. Store the tool in a clean, dry place.

Maintenance

To ensure the longevity and optimal performance of your inspection lens, follow these maintenance guidelines:

• Cleaning the Mirror: Use a soft, lint-free cloth and a mild glass cleaner to clean the mirror surface. Avoid abrasive materials that could scratch the mirror.
• Cleaning the Shaft: Wipe the stainless steel shaft with a clean, damp cloth to remove any dirt or grime. Dry thoroughly.
• Lubrication: If the telescopic mechanism becomes stiff, apply a small amount of silicone-based lubricant to the sliding parts. Avoid oil-based lubricants that can attract dust.
• Storage: Store the inspection lens in a dry, clean environment, away from extreme temperatures and corrosive substances. Retract the shaft fully before storage to protect it.

Troubleshooting

Most issues with the inspection lens can be resolved with simple steps:

• Mirror is blurry or dirty: Clean the mirror surface as described in the Maintenance section. Ensure no smudges or dust particles are present.
• Telescopic shaft is stiff: Apply a small amount of silicone lubricant to the sliding sections of the shaft. Ensure the shaft is clean and free of debris that might impede movement.
• Mirror does not hold position: Check the tightness of the swivel joint. While typically not user-adjustable, ensure no foreign objects are interfering with the ball joint's movement.

Specifications

Package Contents

• 1 x Automatic Telescopic Inspection Lens

Warranty and Support

For information regarding warranty, returns, or technical support, please refer to the seller's policy on the platform where the product was purchased. Keep your purchase receipt as proof of purchase.
