Instruction Manual: HK-3301 Thermostat Dry Boil Protection Water Open Cut-off Device

1. Product Overview

The HK-3301 Thermostat is a critical safety component designed for use in HD9348 electric kettles. It provides essential dry boil protection and an automatic water open cut-off mechanism, ensuring safe operation by preventing the kettle from overheating when dry or when the lid is opened during boiling.

Key features include:

• 100% reliable and durable construction.
• Designed for easy installation.
• Functions as a dry boil protection device.
• Includes a water open cut-off mechanism.

Figure 1: Top-down view of the HK-3301 Thermostat, showing the central heating element contact and surrounding structure.

Figure 2: Angled view of the HK-3301 Thermostat, highlighting its compact design and connection points.

2. Specifications

Figure 3: Close-up view of the thermostat's side, showing electrical specifications such as "10A 100-240V~".

3. Setup and Installation

The HK-3301 thermostat is an internal component of the HD9348 electric kettle and requires careful installation. It is recommended that installation or replacement be performed by individuals with experience in appliance repair or electrical work. Always ensure the kettle is unplugged from the power source before attempting any installation.

1. Safety First: Disconnect the electric kettle from the main power supply.
2. Access the Kettle Base: Carefully disassemble the base of your HD9348 electric kettle to expose the internal components, including the existing thermostat. This may involve removing screws or prying open plastic casings.
3. Identify and Remove Old Thermostat: Locate the old thermostat. Note its orientation and how it connects to the heating element and power supply. Disconnect any wires and carefully remove the old unit.
4. Install New Thermostat: Position the new HK-3301 thermostat in the same orientation as the old one. Ensure all contact points align correctly.
5. Connect Wiring: Reconnect the wires to the new thermostat. Ensure connections are secure and correctly matched to prevent electrical hazards. Refer to the kettle's original wiring diagram if available.
6. Secure the Unit: Ensure the thermostat is firmly seated and secured within the kettle base.
7. Reassemble Kettle: Carefully reassemble the kettle base, ensuring all screws are tightened and casings are properly closed.
8. Test Functionality: After reassembly, fill the kettle with water and plug it in. Test its operation to ensure it heats water correctly and the automatic shut-off functions as expected.

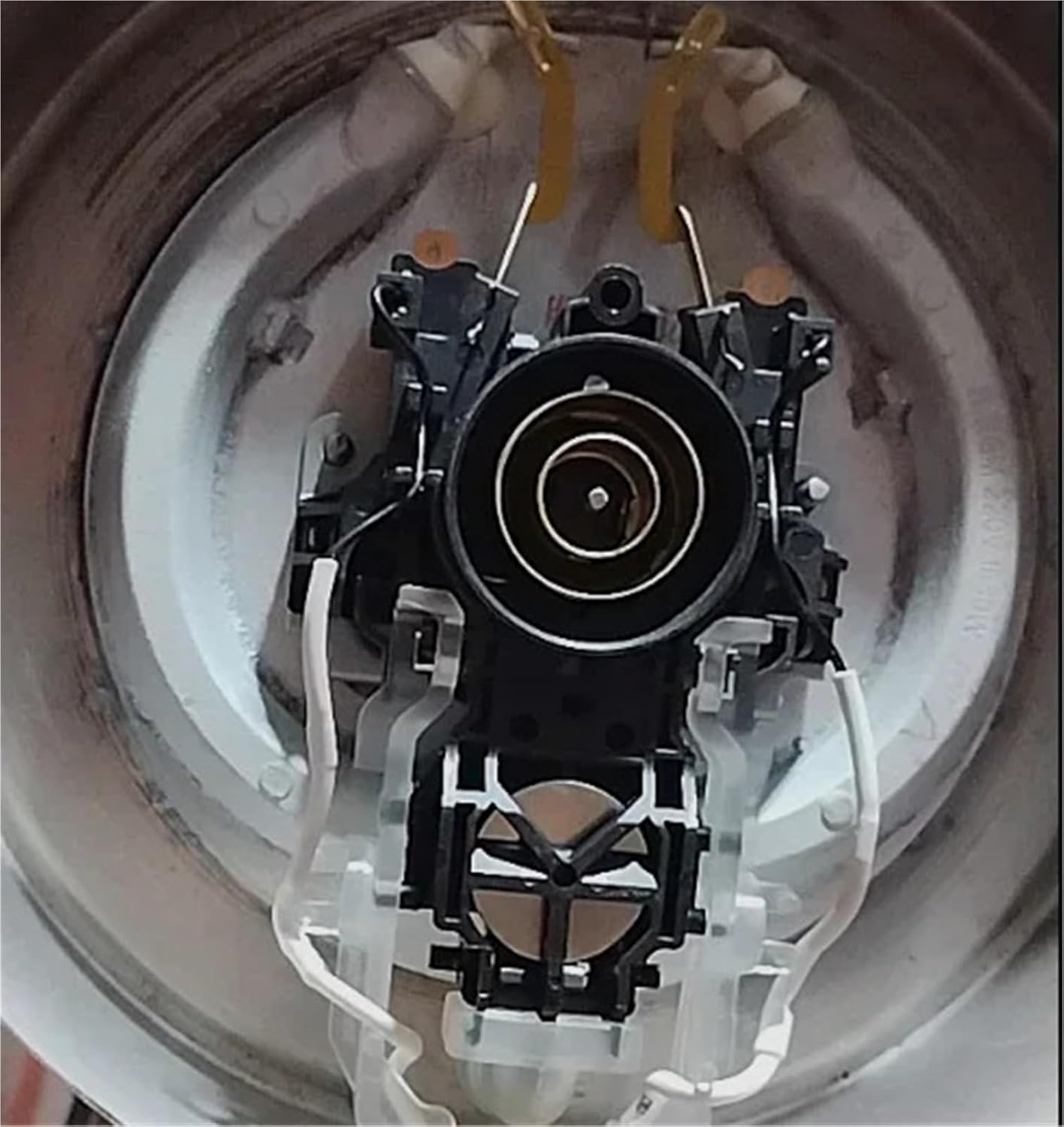

Figure 4: The HK-3301 Thermostat shown installed within the base of an electric kettle, demonstrating its placement relative to the heating element contacts.

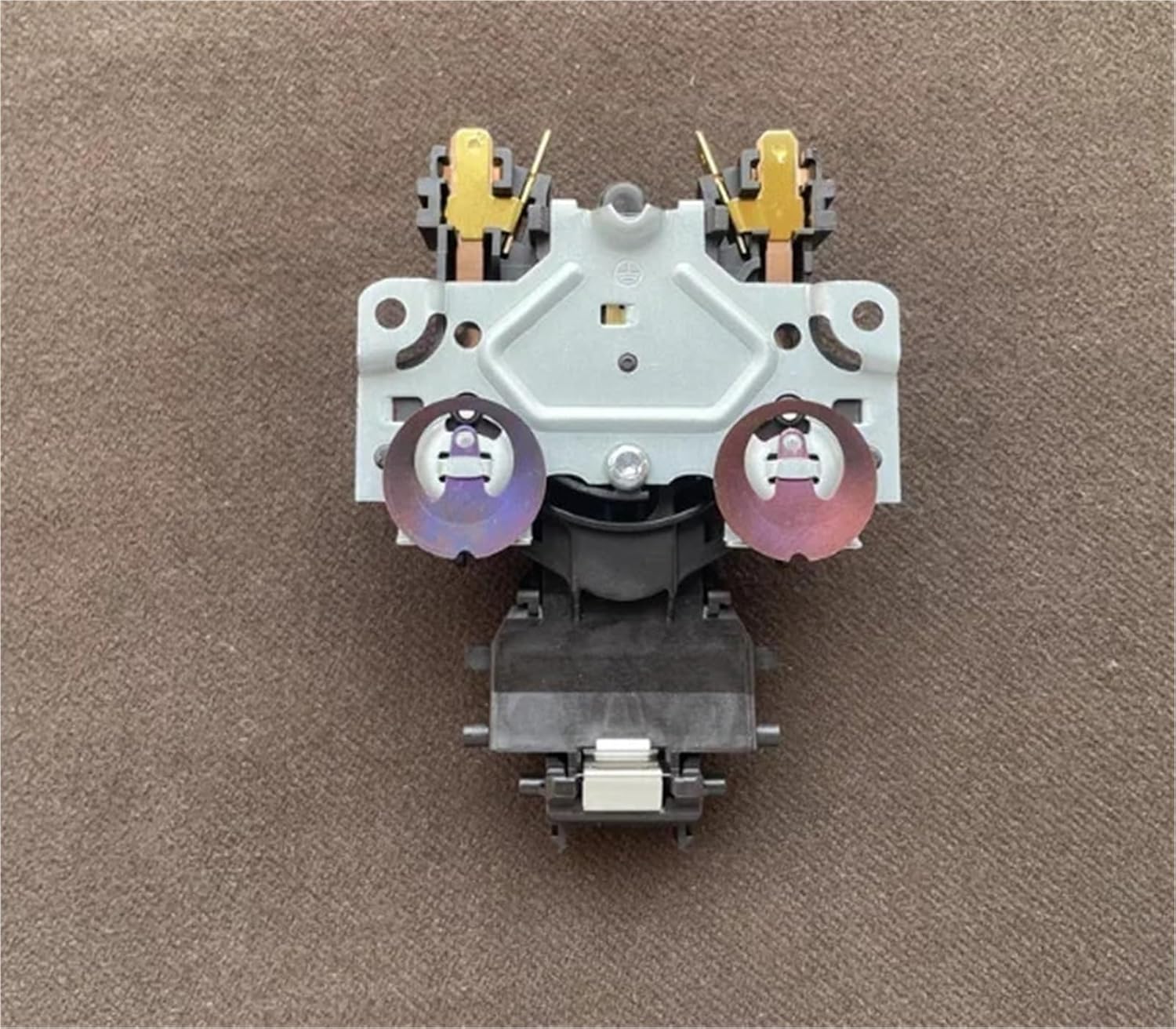

Figure 5: Bottom view of the HK-3301 Thermostat, showing the base plate and connection terminals.

4. Operating Principle

The HK-3301 thermostat operates automatically to ensure the safe functioning of your electric kettle. Its primary functions are:

• Dry Boil Protection: This mechanism detects when the kettle is operating without sufficient water. If the temperature rises abnormally due to lack of water, the thermostat automatically cuts off power to prevent damage to the heating element and potential fire hazards.
• Water Open Cut-off Device: This feature ensures that the kettle automatically shuts off if the lid is opened during the boiling cycle. This prevents steam burns and accidental spills of hot water.
• Automatic Shut-off: Once the water reaches boiling point, the thermostat senses the temperature and automatically switches off the heating element, conserving energy and preventing over-boiling.

No user intervention is required for the operation of the thermostat itself; it functions as an integrated safety and control component within the kettle.

5. Maintenance

As an internal component, the HK-3301 thermostat requires minimal direct maintenance. However, adhering to general appliance care practices can prolong its lifespan and ensure continued safe operation:

• Keep Kettle Clean: Regularly clean your electric kettle according to its manufacturer's instructions, especially descaling to prevent mineral buildup on the heating element, which can affect thermostat performance.
• Avoid Physical Damage: Protect the kettle from drops or impacts that could damage internal components, including the thermostat.
• Ensure Proper Ventilation: Ensure the kettle base is placed on a flat, stable surface with adequate ventilation to prevent heat buildup around the thermostat area.
• Professional Inspection: If you suspect any issues with the thermostat or kettle's safety features, consult a qualified technician for inspection and repair. Do not attempt to repair complex internal components unless you are qualified.

6. Troubleshooting

If your electric kettle is not functioning as expected, the HK-3301 thermostat might be a contributing factor. Here are some common issues and potential causes:

Important: For any issues involving electrical components, if you are not confident in performing the repair yourself, it is strongly advised to seek assistance from a qualified appliance repair technician.

7. Warranty and Support

For warranty information and technical support regarding your HK-3301 Thermostat, please contact the manufacturer, ENCHSHANGM. Details regarding specific warranty periods and conditions are typically provided with the original product purchase or can be obtained directly from the manufacturer's customer service.

Manufacturer: ENCHSHANGM

For assistance, please refer to the contact information provided by your retailer or on the manufacturer's official website.
