1. Safety Information
Read all instructions carefully before installation and operation. Failure to follow these instructions may result in property damage, serious injury, or death. Keep this manual for future reference.
- Ensure the power supply matches the specifications of the unit.
- Do not operate the unit if any part is damaged.
- Keep children and pets away from the unit during operation.
- Proper grounding is essential to prevent electrical shock.
- Do not block the air intake or exhaust vents.
- Consult a qualified electrician for any electrical wiring beyond simple plug-and-play connections.
2. Product Overview
The ECOPOOLTECH EU50 is an electric heat pump designed to efficiently heat above-ground swimming pools up to 5000 gallons. Utilizing heat pump technology, it extracts heat from the ambient air and transfers it to the pool water, offering an energy-efficient method for extending your swimming season. The unit features a pure titanium heat exchanger, suitable for various water types including saltwater, and an intelligent control system for ease of use.

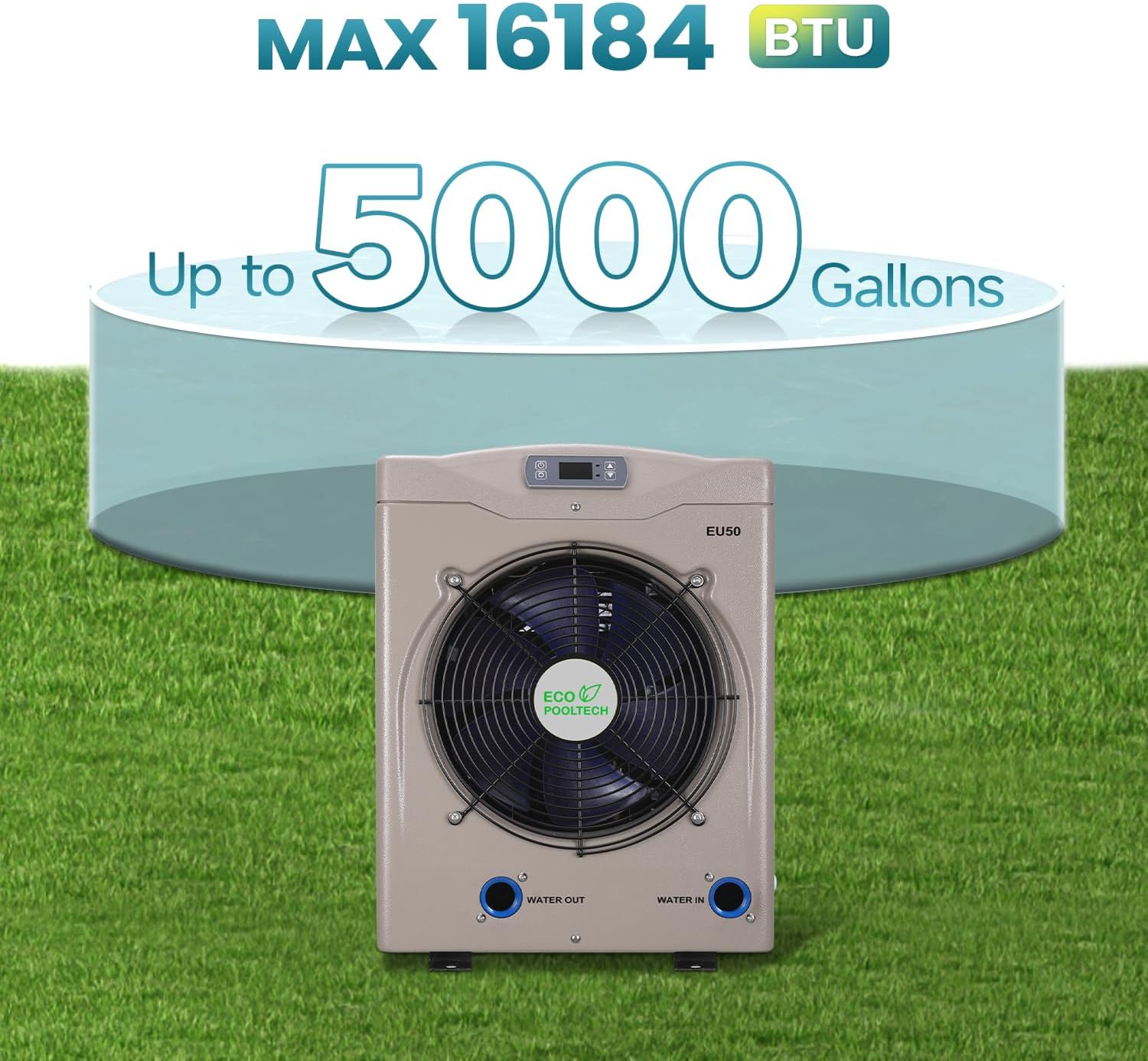

Image: ECOPOOLTECH EU50 Pool Heat Pump, showing its 16000 BTU capacity and suitability for pools up to 5000 gallons.

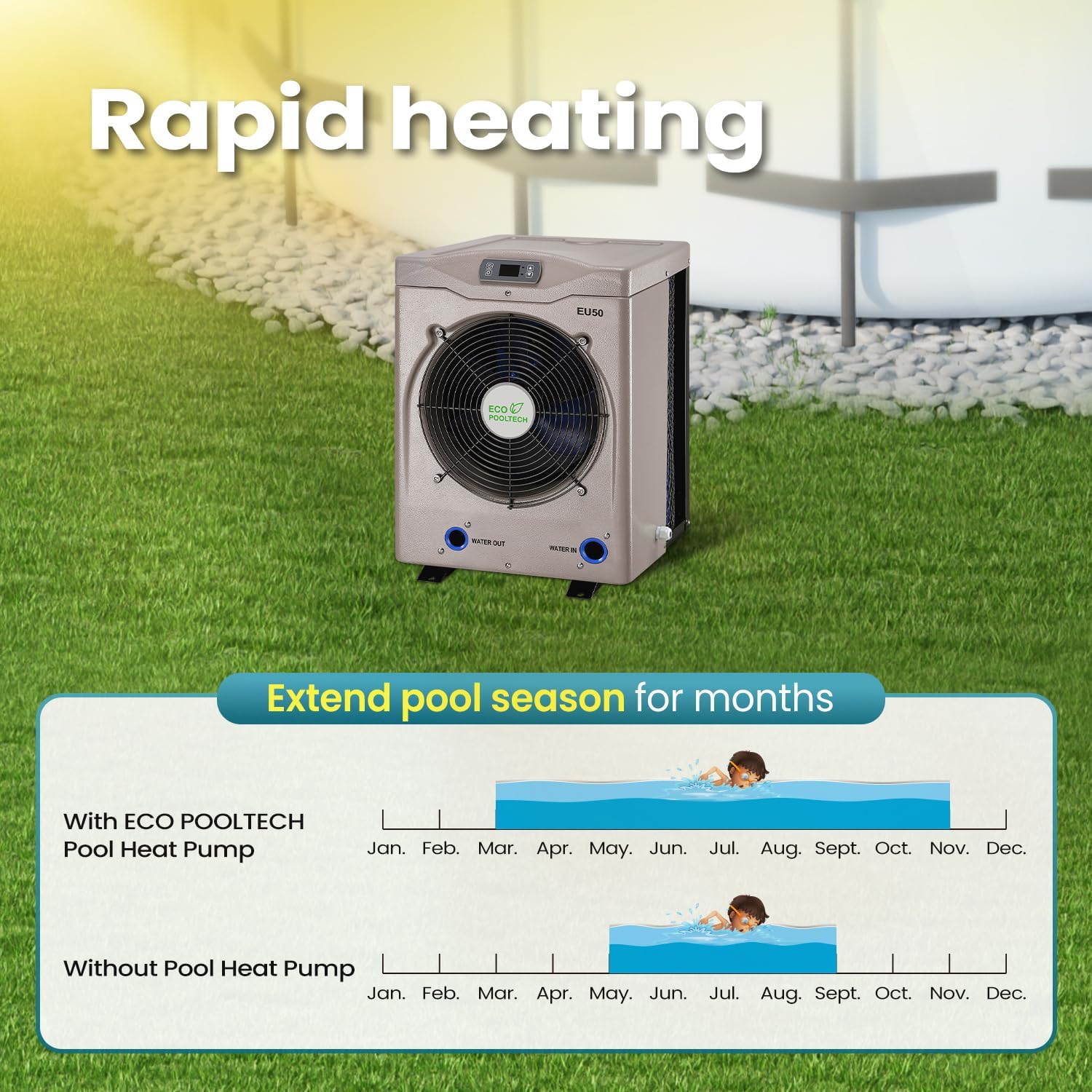

Image: Diagram illustrating how the ECOPOOLTECH Pool Heat Pump can extend the swimming season compared to an unheated pool.
Image: Close-up of the titanium threaded coil heat exchanger, highlighting its design for efficient heat transfer.
Image: Illustration of the ECOPOOLTECH EU50 Pool Heat Pump operating with low noise levels, approximately 30dB.
Video: Overview of Electric Pool Heat Pumps, demonstrating their application for above-ground pools.
3. Package Contents
Verify that all items are present in the package:
- ECOPOOLTECH EU50 Pool Heat Pump Unit
- Hose Adapters (for 1.25" and 1.5" hoses)
- Hose Clamps
- User Manual
Image: The ECOPOOLTECH EU50 unit, showing the built-in 10ft power cable with a 120V standard plug, along with the included hose adapters and user manual.
4. Specifications
| Feature | Specification |
|---|---|
| Product Dimensions | 5 x 3 x 3 inches |
| Manufacturer | ECO POOLTECH |
| Item Model Number | 50+70+100 (EU50 variant) |
| Heating Capacity | 16000 BTU |
| Max Pool Volume | 5000 Gallons (e.g., 15ft round or 9x18ft rectangular) |
| Operating Temperature Range | 40°F to 105°F |
| Max Heated Temperature | Up to 100°F (under optimal conditions) |
| Heat Exchanger Material | Pure Titanium |
| Power Cable | Built-in 10ft with 120V standard plug |
5. Installation
The ECOPOOLTECH EU50 pool heater is designed for easy, tool-free installation. It integrates with your existing pool filtration system.
Installation Steps:
- Positioning: Place the heat pump unit on a stable, level surface near your pool and existing filtration system. Ensure adequate airflow around the unit.
- Hose Preparation: If necessary, cut your existing pool hoses to the appropriate length to connect to the heat pump.
- Connect Adapters: Attach the provided hose adapters to the 'WATER INLET' and 'WATER OUTLET' ports on the heat pump. Ensure the rubber gaskets are properly seated to prevent leaks. Secure with hose clamps.
- Connect Hoses: Connect the hose from your pool filter's return line (filtered water going back to the pool) to the 'WATER INLET' of the heat pump. Connect the 'WATER OUTLET' of the heat pump to the pool's return jet. Secure all connections with hose clamps.
- Power Connection: Plug the heat pump's power cord into a standard 120V electrical outlet. Ensure the outlet is properly grounded and protected by a Ground Fault Circuit Interrupter (GFCI).
- Check for Leaks: Turn on your pool pump and check all connections for leaks. Tighten clamps as needed.

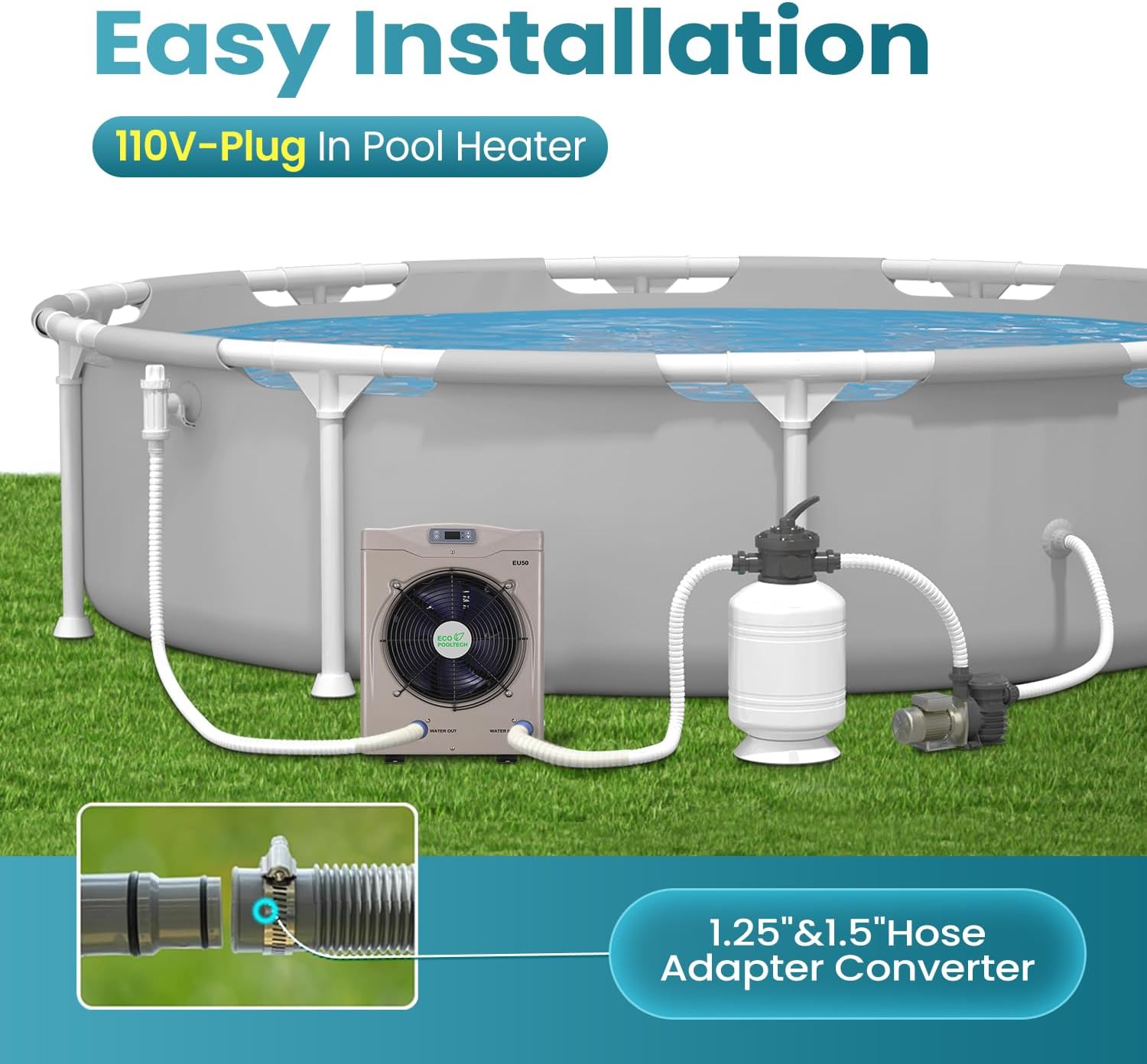

Image: Visual guide demonstrating the easy installation of the ECOPOOLTECH EU50 Pool Heat Pump, showing connections to an above-ground pool and filter pump.
Video: Detailed installation guide for the ECOPOOLTECH EU50 pool heater, demonstrating hose connections and setup.
6. Operation
The ECOPOOLTECH EU50 features an intelligent control system for setting and maintaining your desired pool temperature.
Operating Instructions:
- Power On: Ensure the unit is plugged in and your pool pump is running. Press and hold the 'Power' button on the control panel for approximately 3 seconds to turn the unit on. The display will show the current water temperature.
- Set Desired Temperature: Use the 'Up' and 'Down' arrow buttons to adjust the desired water temperature. The display will show your set point. The unit will automatically begin heating until this temperature is reached.
- Automatic Operation: The heat pump will automatically turn on and off to maintain the set temperature, provided the pool pump is circulating water. The built-in water flow sensor ensures the heater only operates when water is flowing.
- Power Off: To turn off the unit, press and hold the 'Power' button for approximately 3 seconds. The display will show 'OFF'.
Video: Demonstration of the ECOPOOLTECH EU50 Pool Heat Pump's display and operating controls, including how to power on/off and set the temperature.
7. Maintenance
Regular maintenance ensures optimal performance and longevity of your ECOPOOLTECH EU50 pool heater.
- Clean Air Vents: Periodically inspect and clean the air intake and exhaust vents to ensure unobstructed airflow. Remove any leaves, debris, or obstructions.
- Check Water Connections: Regularly inspect all hose connections for leaks and ensure they are securely fastened.
- Winterization: Before freezing temperatures arrive, drain all water from the heat pump and disconnect hoses. Store the unit in a dry, protected area.
- General Cleaning: Wipe down the exterior of the unit with a soft, damp cloth as needed. Do not use harsh chemicals or abrasive cleaners.
8. Troubleshooting
If you encounter issues with your ECOPOOLTECH EU50 pool heater, refer to the following common troubleshooting steps:
- Unit Not Turning On:
- Check if the power cord is securely plugged into a working 120V GFCI outlet.
- Ensure the pool pump is running and water is circulating. The heat pump has a built-in flow sensor and will not operate without water flow.
- Press and hold the power button for 3 seconds to ensure it's properly activated.
- Pool Not Heating:
- Verify the set temperature on the control panel is higher than the current pool water temperature.
- Check for proper water flow. A weak pump or clogged filter can reduce heating efficiency.
- Ensure air vents are not blocked, as restricted airflow can hinder heat exchange.
- Allow sufficient time for heating. Initial heating of a cold pool can take 24-72 hours depending on pool size and ambient temperature.
- Water Leaks:
- Inspect all hose connections and ensure clamps are tight.
- Check that rubber gaskets are correctly seated within the hose adapters.
- Unusual Noises:
- Ensure the unit is on a stable, level surface.
- Check for any debris obstructing the fan blades.
If problems persist after following these steps, please contact ECOPOOLTECH customer support.
9. Warranty and Support
The ECOPOOLTECH EU50 Pool Heat Pump comes with a 3-year warranty, exceeding industry standards. This warranty covers defects in materials and workmanship under normal use.
Image: ECOPOOLTECH 3-Year Warranty badge, signifying extended after-sales service and product confidence.
For technical assistance, warranty claims, or any questions regarding your product, please contact ECOPOOLTECH customer service. Our dedicated support team is available through our 24-hour online service center to provide timely assistance.
Contact information can be found on the official ECOPOOLTECH website or through your purchase platform.
