KikkaBoo i-Size i-FLIT Car Seat User Manual

Introduction

This user manual provides essential information for the safe and proper use, installation, and maintenance of your KikkaBoo i-Size i-FLIT car seat. Please read this manual thoroughly before first use and keep it for future reference.

The KikkaBoo i-Size i-FLIT car seat is designed to provide excellent protection and comfort for children from approximately 15 months up to 12 years of age, corresponding to a height range of 76 cm to 150 cm (9-36 kg). It meets the stringent i-SIZE safety standards (UN-Regulation No. R129/03), ensuring maximum safety for your child.

Safety Information

Always prioritize your child's safety. Failure to follow these instructions may result in serious injury.

• Ensure the car seat is correctly installed and secured before every journey.
• Never leave your child unattended in the car seat.
• Do not use the car seat if it has been involved in an accident, even if there is no visible damage. Internal damage may compromise its safety.
• Only use original KikkaBoo replacement parts and accessories.
• Regularly check all straps, buckles, and adjustment mechanisms for wear and tear.
• Ensure the child is properly secured in the 5-point harness (for younger children) or with the vehicle's seat belt (for older children).

Product Features

• i-SIZE Standard: Certified according to UN-Regulation No. R129/03 for enhanced safety.
• Age/Height Range: Suitable for children from 76 cm to 150 cm (approx. 15 months to 12 years).
• Installation: ISOFIX system for secure attachment and Top Tether for additional stability. Can also be installed using the vehicle's 3-point seat belt.
• Side Impact Protection (SPS): Superior side impact resistance for enhanced safety.
• Harness System: Integrated 5-point harness for younger children, adjustable with one hand.
• Adjustable Headrest: 12-position adjustable headrest to accommodate your child's growth.
• Recline Positions: Two recline positions for optimal comfort during travel.
• Comfort Features: Soft full-body cushion, breathable mesh fabric, and extra padding for a cozy ride.
• Maintenance: Removable and washable fabric cover.

Setup and Installation

Proper installation is crucial for your child's safety. Follow these steps carefully.

1. Preparing the Car Seat

Before installation, ensure all components are present and undamaged. The car seat is designed for forward-facing use only.

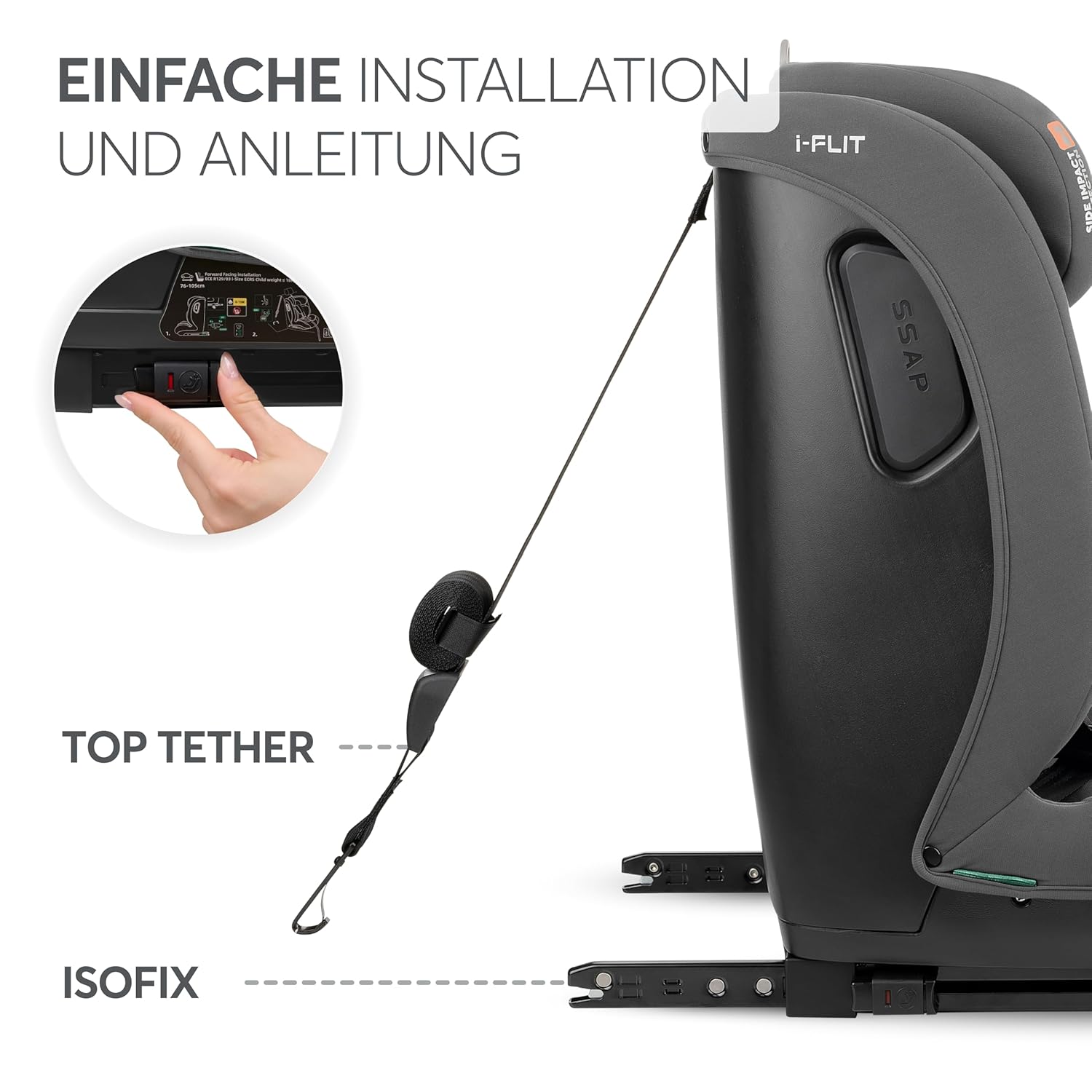

2. ISOFIX and Top Tether Installation (Recommended)

1. Locate the ISOFIX anchor points in your vehicle's rear seat. These are usually marked with an ISOFIX symbol.
2. Extend the ISOFIX connectors from the base of the car seat by pressing the release buttons (refer to image for location).
3. Align the ISOFIX connectors with the vehicle's anchor points and push firmly until you hear a distinct "click" sound. Check for green indicators on the connectors, confirming secure attachment.
4. Push the car seat firmly against the vehicle's seat back to remove any slack.
5. Locate the Top Tether strap at the top rear of the car seat.
6. Attach the Top Tether hook to the designated Top Tether anchor point in your vehicle (usually on the back of the seat or in the trunk).
7. Tighten the Top Tether strap until the indicator on the strap turns green, ensuring it is taut and secure.

3. Vehicle Seat Belt Installation (Alternative)

If your vehicle does not have ISOFIX anchor points, or for specific installation needs, the car seat can be secured using the vehicle's 3-point seat belt.

1. Place the car seat on the vehicle's seat.
2. Route the vehicle's 3-point seat belt through the designated belt guides on the car seat. Ensure the lap belt portion is routed correctly over the child's hips and the diagonal belt over the shoulder.
3. Buckle the vehicle's seat belt and pull it taut to remove any slack, ensuring the car seat is firmly secured and does not move excessively.

Operating the Car Seat

1. Securing Your Child (76-105 cm, using 5-point harness)

1. Place your child in the car seat.
2. Bring the two buckle tongues together and insert them into the buckle until you hear a "click".
3. Pull the harness adjustment strap (usually located at the front of the seat) to tighten the harness. Ensure the straps are snug against your child's body, with no more than two fingers fitting between the strap and the child's collarbone.
4. Adjust the shoulder straps to be at or just below your child's shoulders.

2. Securing Your Child (100-150 cm, using vehicle's seat belt)

Once your child reaches 100 cm in height, the 5-point harness can be removed, and the child can be secured using the vehicle's 3-point seat belt.

1. Remove the 5-point harness system according to the instructions in the maintenance section.
2. Place your child in the car seat.
3. Route the vehicle's 3-point seat belt through the red belt guides on the car seat. The lap belt should sit low across your child's hips, and the diagonal belt should rest across the center of their shoulder and chest, not on their neck.
4. Buckle the vehicle's seat belt and pull it taut to ensure a snug fit.

3. Adjusting the Headrest and Recline

• Headrest Adjustment: To adjust the headrest height, locate the adjustment handle at the top of the headrest (refer to image). Squeeze the handle and slide the headrest up or down to the desired position. Ensure the headrest is adjusted so that the shoulder straps are at or just below your child's shoulders (when using the 5-point harness) or so that the vehicle's shoulder belt rests correctly (when using the vehicle belt). The i-FLIT features 12 adjustable headrest positions.
• Recline Adjustment: The car seat offers two recline positions. Locate the recline adjustment lever (usually at the front or side of the base). Pull the lever and tilt the seat to the desired recline angle. Ensure the seat is securely locked in the chosen position.

Maintenance and Care

Regular cleaning and maintenance will prolong the life of your car seat and ensure its continued safety.

• Fabric Cover: The fabric cover is removable and washable. Refer to the care label on the cover for specific washing instructions (typically machine wash cold on a gentle cycle). Do not bleach, tumble dry, or iron. Allow to air dry completely before reattaching.
• Plastic Parts: Wipe plastic parts with a damp cloth and mild soap. Do not use abrasive cleaners or solvents.
• Harness System: Clean the harness straps with a damp cloth and mild soap. Do not immerse the buckle or harness straps in water, as this may compromise their integrity.
• Storage: When not in use, store the car seat in a cool, dry place away from direct sunlight.

Troubleshooting

If you encounter any issues with your KikkaBoo i-Size i-FLIT car seat, refer to the following common problems and solutions:

If the problem persists after attempting these solutions, please contact KikkaBoo customer support for further assistance.

Specifications

• Model Name: i-FLIT
• Product Dimensions: 45.5 x 83 x 44 cm (Depth x Height x Width)
• Item Weight: 7.3 Kilograms
• Recommended Child Height: 76 cm to 150 cm
• Recommended Child Weight: 9 kg to 36 kg
• Age Group: Approximately 15 months to 12 years
• Safety Standard: UN-Regulation No. R129/03 (i-SIZE)
• Installation Type: ISOFIX with Top Tether, or Vehicle 3-point Seat Belt
• Orientation: Forward-facing
• Material Composition: 90% Polyester, 10% Polystyrene
• Color: Light Grey

Warranty and Support

KikkaBoo products are manufactured to high-quality standards. For information regarding warranty coverage, please refer to the warranty card included with your purchase or visit the official KikkaBoo website.

For technical support, spare parts, or any other inquiries, please contact KikkaBoo customer service. Keep your product model name and purchase date ready when contacting support.
