1. Introduction
This manual provides detailed instructions for the safe and effective operation, installation, and maintenance of your Sparklingtrack ZQ06139 24-Bead 3W RGB LED Wall Washer Stage Light Bar. Please read this manual thoroughly before using the product and retain it for future reference.
Image 1.1: The Sparklingtrack ZQ06139 LED Wall Washer Stage Light Bar illuminating a modern home exterior with dynamic RGB colors.
2. Safety Information
- Electrical Safety: Ensure the power supply voltage matches the product's requirements. Always disconnect power before cleaning or servicing.
- Installation: Install the fixture securely to prevent accidental falls. Ensure adequate ventilation around the unit to prevent overheating.
- Environmental Conditions: The product is IP65 waterproof, suitable for outdoor use in rain. However, avoid submerging the unit in water or exposing it to extreme temperatures beyond its operating range.
- Eye Protection: Do not stare directly into the LED light source, as it can cause eye strain or damage.
3. Package Contents
Verify that all items listed below are included in your package:
- 1 x Light Fixture
- 1 x Waterproof Power Cord
- 1 x Waterproof Signal Cable
- 2 x Hooks
- 2 x Gaskets
- 2 x Knobs
- 1 x Instruction Manual
Image 3.1: The complete package contents of the Sparklingtrack ZQ06139 LED Wall Washer Stage Light Bar.
4. Product Overview
The Sparklingtrack ZQ06139 is a versatile 24-bead 3W RGB LED wall washer stage light bar designed for various lighting applications. Its robust aluminum construction and IP65 waterproof rating ensure durability and performance in diverse environments.
Key Features:
- High-Quality LEDs: Equipped with 24 individual 3W RGB LED beads for bright and vibrant illumination.
- Wide Irradiation Range: Features a 25° light output angle, with an optimal projection distance of 4-6 meters.
- Durable Construction: Made from aluminum with built-in fan cooling for efficient heat dissipation, extending product lifespan.
- Weatherproof Design: IP65 waterproof rating allows for reliable indoor and outdoor use.
- Versatile Control: Supports DMX mode, automatic mode, voice control mode, and master-slave connection.
- Dynamic Lighting Effects: Offers single color, mixed color, strobe, color jump, color gradient, color pulse, and 15 built-in shows with adjustable speed.
- Independent Point Control: Each LED bead can be individually controlled for customized color changing effects.
- Adjustable Mounting: Includes brackets for wall or floor mounting, allowing for 180° adjustment.
Image 4.1: The robust and weatherproof design of the Sparklingtrack ZQ06139.
Image 4.2: Detailed view of the product's components and adjustable features.
Product Video:
Video 4.3: An official product video demonstrating the features, waterproof display, LED quality, button controls, various lighting effects, and package contents of the Sparklingtrack ZQ06139.
5. Setup
Follow these steps to set up your LED Wall Washer Stage Light Bar:
- Unpack: Carefully remove all components from the packaging.
- Attach Brackets: Secure the two included hooks, gaskets, and knobs to the sides of the light fixture. These brackets allow for 180° adjustment and can be used for wall or floor mounting.
- Positioning: Place the light bar in your desired location, ensuring it is stable and has adequate space for ventilation.
- Connect Power: Connect the waterproof power cord to the light fixture and then to a suitable power outlet.
- Connect Signal (Optional): If using DMX or master-slave mode, connect the waterproof signal cable between units or to a DMX controller.
6. Operation
The ZQ06139 features a control panel with a digital display and four buttons: MENU, UP, DOWN, and ENTER. Refer to the included user manual for a detailed chart of all settings and their corresponding values.
Control Panel Functions:
- MENU: Cycles through different operating modes and settings.
- UP/DOWN: Adjusts values or navigates through options within a mode.
- ENTER: Confirms selections.
Image 6.1: The digital display and control buttons for adjusting settings.
Operating Modes:
- DMX Mode: Connect to a DMX controller to access 2/3/4/6/7/12/24 channel control options for precise lighting design.
- Automatic Mode: Utilizes built-in programs for various lighting effects without external control.
- Voice Control Mode: The lights react to sound, creating dynamic effects synchronized with music or ambient noise.
- Master-Slave Mode: Link multiple units together, where one unit acts as the master, controlling the effects of all connected slave units.
Image 6.2: Visual representation of the different control modes available.
Lighting Effects and Adjustments:
- Linear Dimming: Adjust brightness from 0% to 100%.
- Color Changing: Access 16 million color combinations through RGB 3-in-1 mixing.
- Built-in Shows: Select from 15 pre-programmed lighting effects, including strobe, jump, gradient, and pulse.
- Speed Adjustment: Control the speed of color changes and effects.
- Independent Point Control: Customize the color of individual LED beads for unique segmented lighting effects.

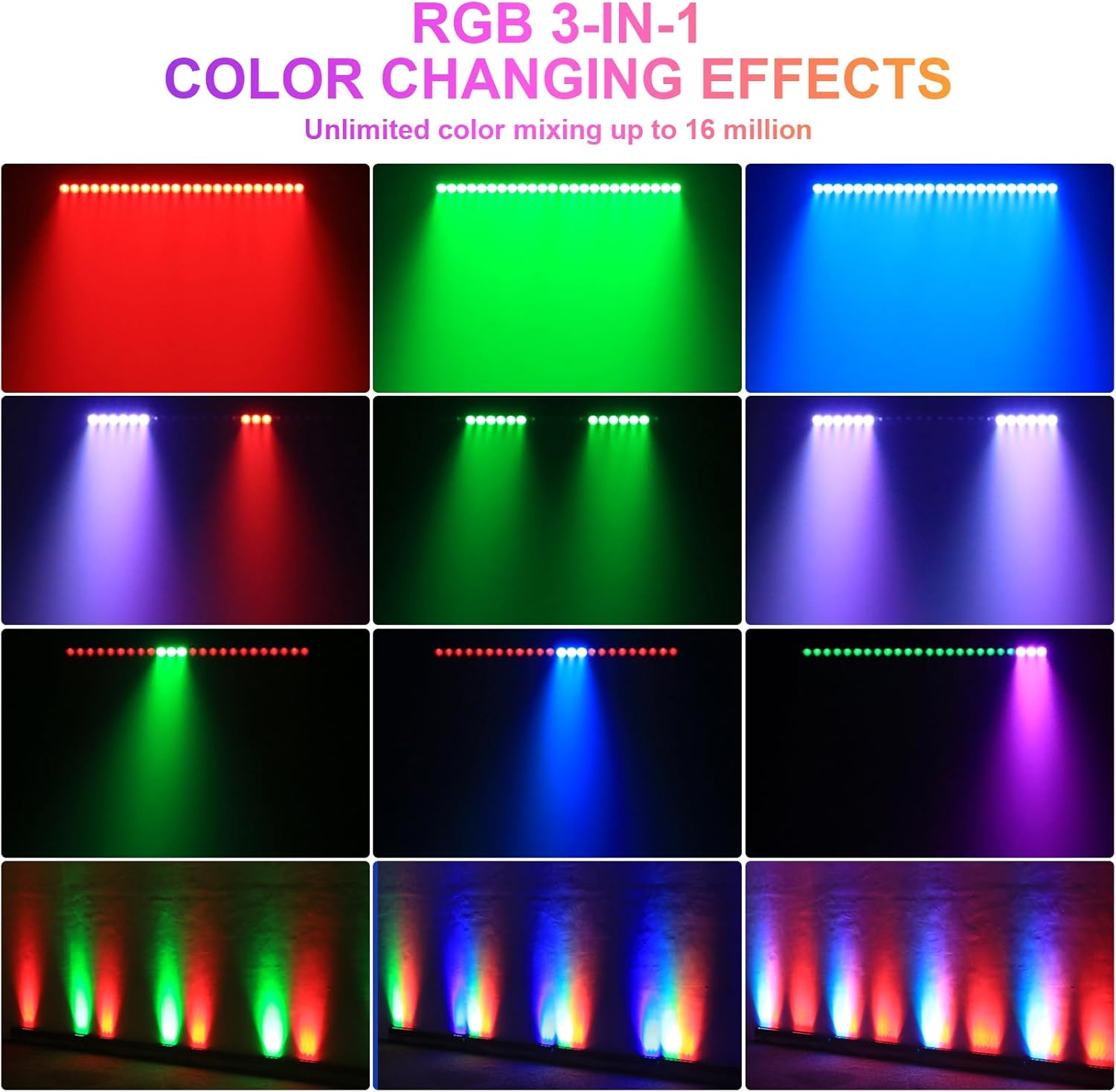

Image 6.3: Examples of the RGB 3-in-1 color changing effects.
7. Maintenance
Regular maintenance ensures optimal performance and longevity of your light bar.
- Cleaning: Use a soft, dry cloth to clean the exterior of the fixture. Do not use abrasive cleaners or solvents.
- Lens Cleaning: Gently wipe the LED lenses with a soft, lint-free cloth to maintain light output clarity.
- Inspection: Periodically check all cables, connections, and mounting hardware for any signs of wear or damage. Replace any damaged components immediately.
- Storage: When not in use for extended periods, store the light bar in a cool, dry place, away from direct sunlight and extreme temperatures.
8. Troubleshooting
If you encounter any issues, refer to the following common troubleshooting steps:
| Problem | Possible Cause | Solution |
|---|---|---|
| Light does not turn on | No power supply; Faulty cable; Incorrect mode setting | Check power connection and outlet; Inspect power cord for damage; Verify operating mode on control panel. |
| Incorrect colors or effects | Incorrect mode setting; DMX signal issue; Parameter misconfiguration | Adjust mode settings via control panel; Check DMX connections and address settings; Reset to factory defaults if necessary. |
| Light flickers or is unstable | Loose connection; Power fluctuation; Internal fault | Ensure all cables are securely connected; Test with a stable power source; Contact customer support if problem persists. |
| Unit overheats | Blocked ventilation; Excessive ambient temperature | Ensure ventilation openings are clear; Operate within specified temperature range. |
9. Specifications
| Feature | Specification |
|---|---|
| Model Number | ZQ06139 |
| Light Source | 24 x 3W RGB LED Beads |
| Light Source Type | Light Emitting Diode |
| Color | Black |
| Material | Aluminum |
| IP Rating | IP65 Waterproof |
| Beam Angle | 25 Degrees |
| Optimal Projection Distance | 4-6 Meters |
| Control Channels | 2/3/4/6/7/12/24 CH |
| Control Modes | DMX, Automatic, Voice Control, Master-Slave |
| Dimming | 0-100% Linear Dimming |
| Product Dimensions | 40.15"L x 2.75"W x 3.54"H |
| Item Weight | 9.43 pounds |
10. Warranty and Support
Sparklingtrack is committed to providing high-quality products and excellent customer service. For any questions, technical assistance, or warranty inquiries, please refer to the contact information provided with your purchase or visit the official Sparklingtrack website.
