Giantex Portable Washing Machine User Manual

Product Overview

The Giantex Portable Washing Machine is a compact, full-automatic washer designed for convenience in various living spaces such as apartments, dorms, homes, and RVs. It features an 11 lbs capacity, 8 washing programs, 10 water levels, and a built-in drain pump.

Front-side view of the Giantex Portable Washing Machine, showing its compact design and the attached drain hose.

Illustration of the washing machine's internal components, including the stainless steel honeycomb inner tub for garment care, balance rings for stable operation, and a rotating pulsator for thorough cleaning.

Key Features

• 2-in-1 Washer & Spinner Combo: Features a powerful turbine for efficient washing and high-speed spin for 95% quick drying. Includes a self-cleaning stainless steel tub with honeycomb surface.
• Compact Yet Spacious: 11 lbs capacity suitable for family laundry, with compact dimensions (20” x 21” x 33”) for easy placement.
• Easy & Safe Operation: Smart control panel with LED display, 8 washing programs, 10 water levels, 24-hour delay function, and child lock feature.
• User-friendly Design: Built-in drain pump, automatic balance adjustment for stable operation, adjustable foot pads, detachable filter, built-in handles, and detergent dispenser box.
• Powerful 300W Motor: Provides strong, efficient, and energy-saving performance.

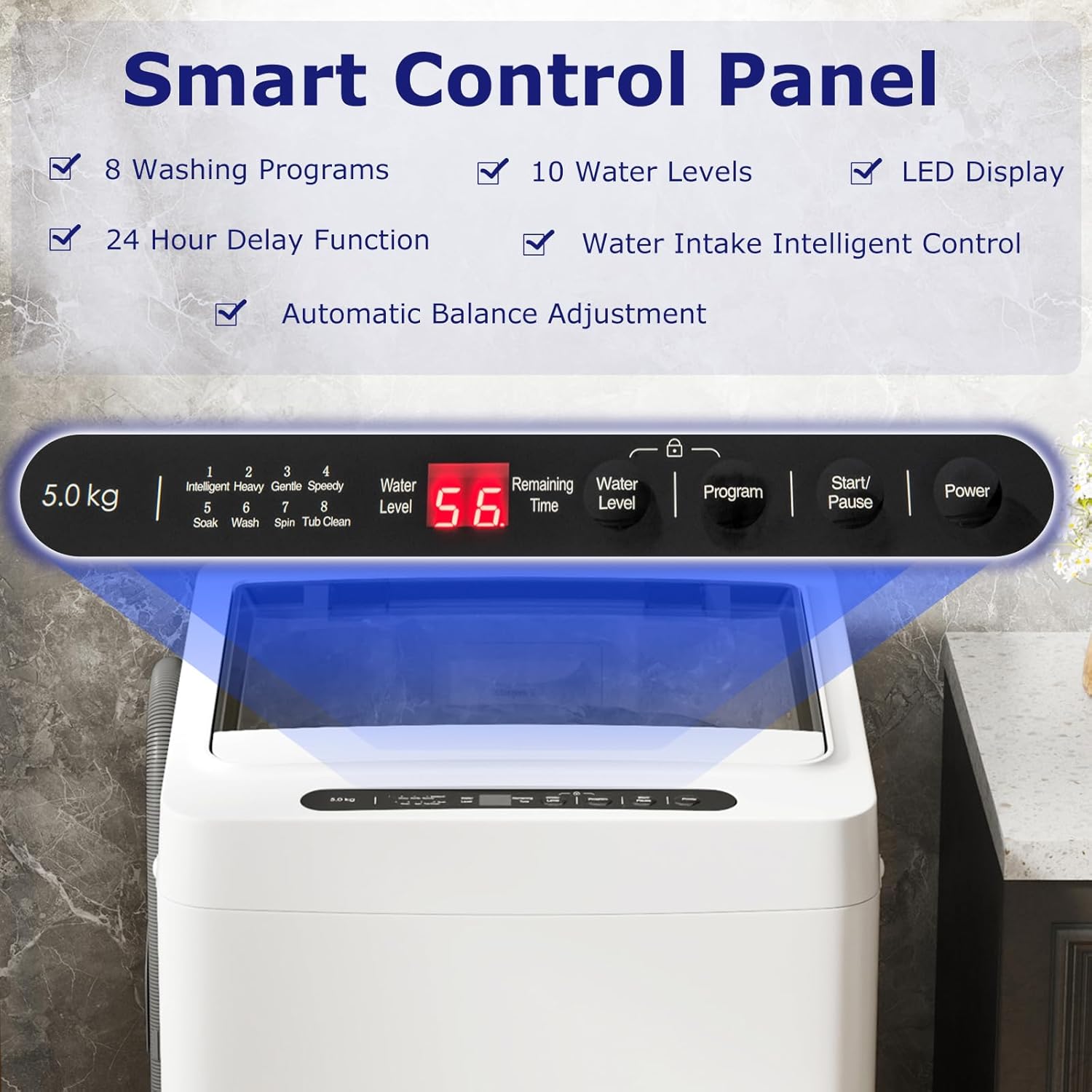

The smart control panel features an LED display showing remaining time and water level, along with touch controls for 8 washing programs and 10 water levels.

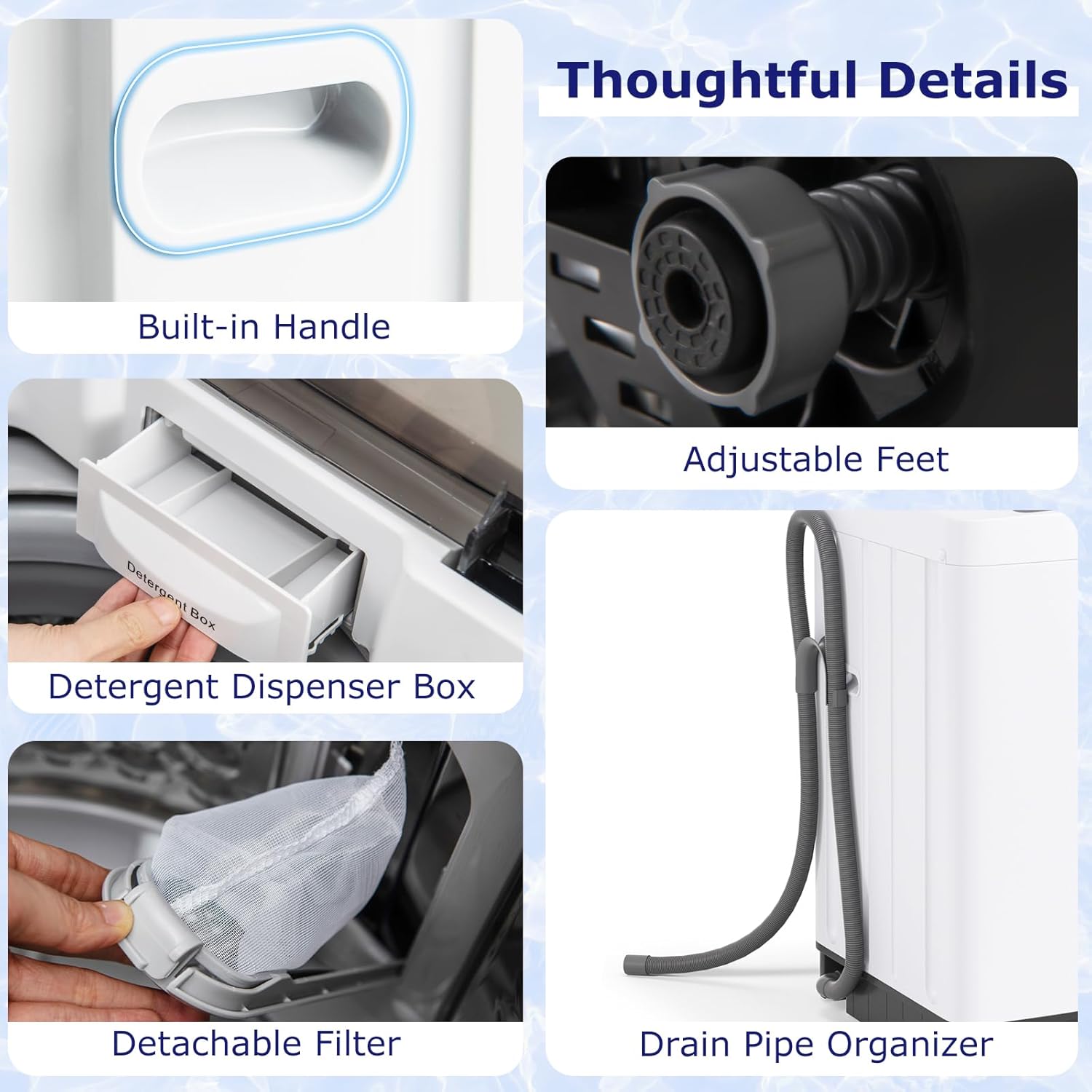

Detailed view of user-friendly features such as the built-in handle for portability, adjustable feet for stability, a convenient detergent dispenser, a detachable lint filter, and a drain pipe organizer.

Setup and Installation

Unpacking

Carefully remove the washing machine from its packaging. Inspect for any damage during transit. Retain all packaging materials for future transport or service needs.

Placement

Place the washing machine on a firm, level surface. Ensure there is adequate space around the unit for ventilation and access. Adjust the foot pads to ensure stability and prevent vibrations during operation.

Water Connection

The washing machine is designed to connect to most standard faucets. Remove the faucet aerator first. Check if the connection complies with Male 3/4" GTH, Female Thread 15/16"-27 T (24mm), or Male 56/64"-27T (22mm). A 5/8" Quick Connection Adapter is included for convenience.

Visual guide demonstrating the compatibility of the washing machine's water inlet with common faucet types and the included quick connection adapter.

Drainage

The unit features a built-in drain pump. Position the drain hose into a sink or drain pipe. Ensure the hose is securely placed to prevent dislodging during the drain cycle.

Operating Instructions

Loading Laundry

Open the top lid and load clothes into the stainless steel tub. Do not overload the machine; ensure clothes can move freely during the wash cycle. The maximum capacity is 11 lbs.

Adding Detergent

Add appropriate detergent to the detergent dispenser box. Refer to your detergent's instructions for recommended amounts based on load size and water hardness.

Selecting Programs and Water Levels

Use the smart control panel to select one of the 8 washing programs (e.g., Intelligent, Heavy, Gentle, Speedy, Soak, Wash, Spin, Tub Clean) and one of the 10 water levels. The LED display will show the remaining time.

Starting a Cycle

Press the "Start/Pause" button to begin the selected wash cycle. The machine will automatically fill with water, wash, rinse, and spin.

Delay Start Function

The 24-hour delay function allows you to set a specific time for the wash cycle to begin. This is useful for scheduling laundry to fit your routine.

Child Lock Feature

To activate the child lock, press and hold the "Water Level" and "Program" buttons simultaneously for 1.5 seconds. This prevents accidental changes to settings during operation.

Instructions for activating the child lock feature, which secures the control panel to prevent unintended operation, especially important in households with children.

Maintenance and Care

Cleaning the Tub

The stainless steel tub has a self-cleaning feature. Regularly run the "Tub Clean" program to maintain hygiene and prevent residue buildup.

Cleaning the Detachable Filter

The detachable filter collects fibers and lint during washing. Regularly remove and clean the filter to ensure optimal performance and prevent clogging.

Exterior Cleaning

Wipe the exterior of the washing machine with a soft, damp cloth. Avoid abrasive cleaners or solvents that could damage the finish.

Winterizing

If the machine will be stored in an unheated area or used in an RV during cold weather, ensure all water is drained from the hoses and pump to prevent freezing and damage.

Troubleshooting

Specifications

• Model: GX10849WH-FP
• Brand: Giantex
• Capacity: 1.5 Cubic Feet (11 lbs)
• Dimensions (L x W x H): 20" x 21" x 33"
• Item Weight: 56 pounds
• Power: 120V/60Hz
• Rated Input Power: 300W
• Water Pressure: 0.03-0.85MPa
• Waterproof Class: IPX4
• Length of Power Cord: 6ft
• Control Console: Touch
• Access Location: Top Load
• Special Features: Full Automatic, Pump Drain, Child Lock
• Included Components: Portable Washer & Spinner Combo, Inlet Hose Kit, Drainage Hose Kit

Technical specifications including product dimensions (20"D x 21"W x 33"H), power requirements, and safety certifications (ETL, UL).

Warranty and Support

For warranty information and customer support, please refer to the documentation included with your purchase or visit the official Giantex website. Contact information for support is typically provided in the product packaging or on the manufacturer's website.

Giantex Store Link: Visit the Giantex Store on Amazon
