1. Product Overview
The ENVO EV-SL-60-12US is a 60W Linear LED Driver designed to convert 120VAC input to 12VDC output, suitable for various LED strip light applications in kitchens, cabinets, and other areas. This ultra-thin driver features integrated protection functions for enhanced safety and reliability.

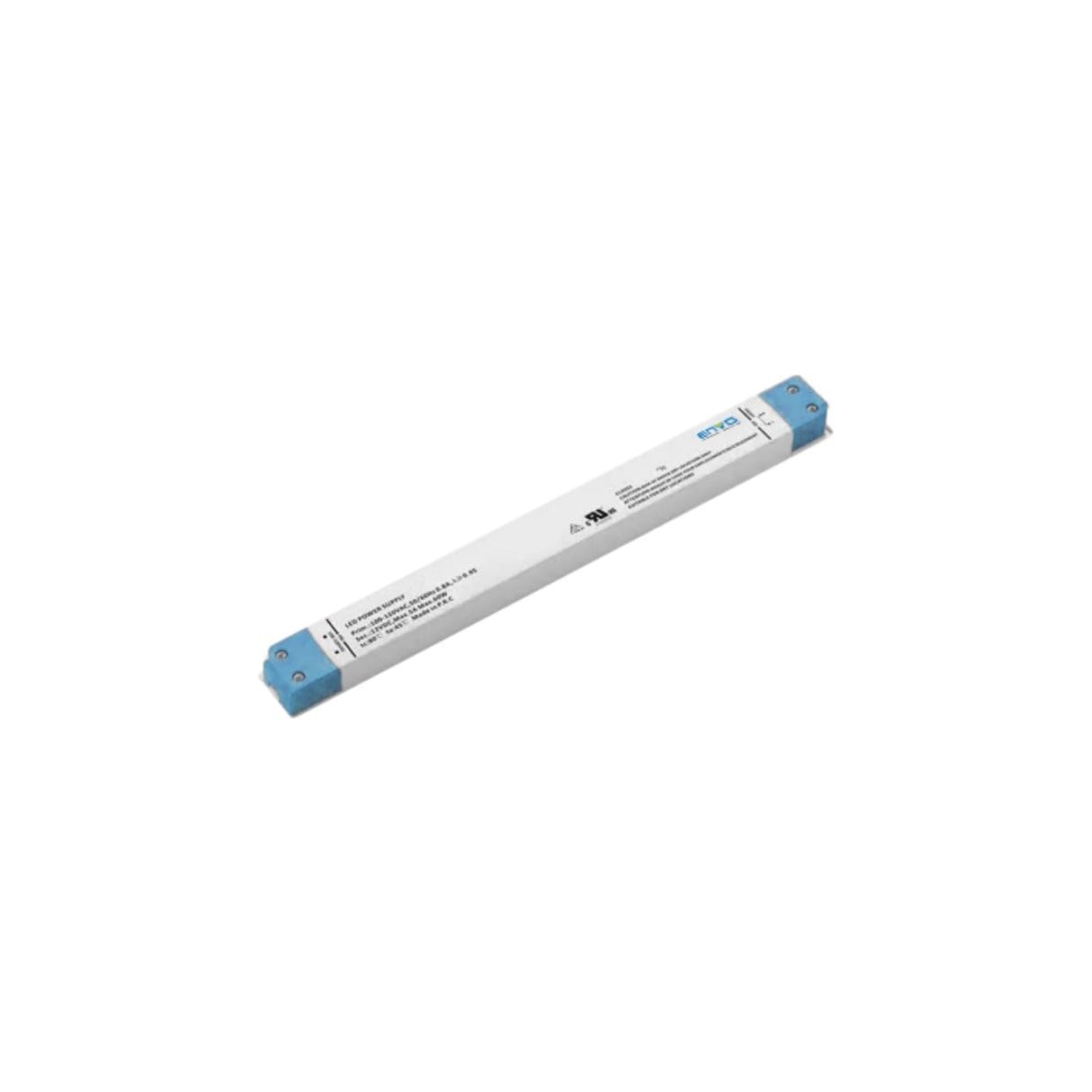

Image 1.1: ENVO 60W Linear LED Driver (EV-SL-60-12US)
2. Safety Information
Please read all safety instructions before installation and operation. Failure to follow these instructions may result in electric shock, fire, or other hazards.
- This product is designed for low voltage LED applications and meets Class II standards for electric shock protection.
- Integrated protection functions include open circuit, short circuit, and overload protection.
- Ensure the input voltage (120VAC) and output voltage (12VDC) are compatible with your electrical system and LED lights.
- Installation should be performed by a qualified electrician or in accordance with local electrical codes.
- Do not exceed the maximum output wattage of 60W.
- The driver is UL certified (UL8750) for safety.
3. Product Features
- Safe Operation: Full protective plastic case for isolation, suitable for DIY and home applications.
- Ultra-Slim Design: Perfect for narrow or tight spaces, can be installed behind extrusions or channels. Dimensions: 304.6mm x 30mm x 16.7mm (11.99" x 1.18" x 0.66").
- Easy Connection: Features screw terminals for fast and secure wiring.
- Energy Efficient: Low standby power design helps reduce electricity bills.
- Comprehensive Protection: Includes open circuit, overload, short circuit, over temperature, and over voltage protection with auto-recovery and latch-off features.
4. Setup and Installation
Follow these steps for proper installation of your LED driver.
4.1 Mounting
The ENVO LED driver is designed for independent surface mounting. Its super slim profile allows for installation in confined spaces.
- Choose a dry, well-ventilated location away from direct heat sources.
- Ensure adequate clearance around the driver for heat dissipation.
- Secure the driver using appropriate fasteners through its mounting points.
4.2 Wiring Diagram
Connect the input and output wires as shown in the diagram below. Ensure all connections are secure using the screw terminals.
LED Power Supply Wiring Diagram
Image 4.1: Simplified Wiring Diagram for ENVO LED Driver
- Input (PRI): Connect the Live (L) and Neutral (N) wires from your 120VAC power source to the corresponding input terminals.
- Output (SEC): Connect the positive (+) and negative (-) wires of your 12VDC LED strip light to the corresponding output terminals.
- Ensure wire preparation is 7-8mm for optimal connection.
- Input and output cables are SPT-2 18AWG, with output cable length up to 2 meters.
5. Operating Instructions
Once properly installed and wired, the ENVO LED driver operates automatically. Simply apply power to the input, and the driver will provide stable 12VDC power to your connected LED lights.
- Verify all connections are secure before applying power.
- Ensure the total wattage of connected LED lights does not exceed 60W.
- The driver has a fast startup time of less than 1 second.
- Operating temperature range: -20°C to 45°C.
- Relative humidity range: 45%-85%.
6. Maintenance
The ENVO LED driver is designed for long-term, maintenance-free operation. However, periodic checks can ensure optimal performance and longevity.
- Keep the driver clean and free from dust and debris to ensure proper heat dissipation.
- Periodically check all wiring connections for tightness and signs of wear.
- Do not attempt to open or repair the driver. Refer to qualified personnel for service.
- The expected lifetime of the driver is 30,000 hours.
7. Troubleshooting
If you encounter issues with your LED driver, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| LEDs do not light up | No power to driver, loose connections, faulty LED strip, driver overload. | Check power supply, verify all wiring, test LED strip, ensure total wattage is within 60W. |
| LEDs flicker or dim | Unstable input power, loose connections, driver overload, faulty LED strip. | Check input power stability, verify wiring, reduce load, test LED strip. |
| Driver is hot to touch | Overload, insufficient ventilation, high ambient temperature. | Reduce load, ensure proper airflow, check ambient temperature (max case temp 80°C). |
| Driver shuts off intermittently | Overload protection, over temperature protection, short circuit. | Check for shorts, reduce load, ensure proper ventilation. Driver has auto-recovery. |
8. Specifications
8.1 Electrical Specifications
| Item | Condition | Request |
|---|---|---|
| Input | ||
| Input voltage | Ta | 90-132Vac |
| Input frequency | 50Hz/60Hz | |
| Input current | < 0.8A | |
| Input power | 25°C, rated input voltage, output with max. rated power | <70W |
| Efficiency | ≥ 86% | |
| Standby | 25°C, rated input voltage, output without load | <0.5W (Average) |
| Inrush current | 25°C, rated input voltage | <50A (Peak) |
| PF | 25°C, rated input voltage, output with max. rated power | ≥0.95 |
| Output | ||
| Startup time | 25°C, rated input voltage, output with max. rated power | <1S |
| Output voltage and precision | Ta, rated input voltage, output with max. rated power | 12V±5% |
| Output current range | Ta, rated input voltage | 0-5A |
| Output voltage wave | 25°C, rated input voltage output with max. rated power | <300mV Vp-p |
| Output overload | 25°C, rated input voltage, output with 2 times LED load | Yes |
8.2 Environmental & Mechanical Specifications
| Item | Condition | Request |
|---|---|---|
| Temperature and Others | ||
| Operation temp. | -20-45°C | |
| Relative humidity | 45%-85% | |
| Max. case temp. | 80°C | |
| Lifetime | Max.Ta, rated input voltage, output with max. rated power | 30,000hr |
| Working noise | 25°C, rated input voltage, output with rated power, mute box background noise <35dB, pickup 10cm distance from products | Yes |
| Mechanical, Mounting | ||
| Case material and size | Plastic Case 304.6x30x16.7mm | |
| Mounting ways | Independent | |
| Insulation type | Class II | |
| IP grade | IP20 | |
| Input cables dimension | SPT-2 18AWG | |
| Output cables dimension | SPT-2 18AWG | |
| Output cables length | Max 2M | |
| Protection Features | ||
| Open circuit | Ta, rated input voltage, no load | Yes |
| Over load | Ta, 0.94-1.06 times of input voltage, 2 times of rated | Yes |
| Short circuit | Ta, 0.94-1.06 times of input voltage | Yes |
| Over temperature | Ta, 0.94-1.06 times of input voltage, temperature detected point more than 115 degree | Yes |
| Over voltage | Ta, 0.94-1.06 times of input voltage, output voltage is 1.5 times of rated one | Yes |
| Auto recovery | Over load, short circuit, over heat revocation | Yes |
| Latch off | Over voltage re-start after cut off | Yes |
8.3 Standards Compliance
| Item | Conditions | Standard |
|---|---|---|
| Safety | UL8750 | |
| EMI | FCC PART15 CLASSB |
9. Warranty and Support
The ENVO EV-SL-60-12US LED Driver comes with a 5-year warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use.
- For warranty claims or technical support, please contact ENVO customer service.
- Our products are locally stocked in the US for efficient service and support.
- Please retain your proof of purchase for warranty validation.
For further assistance, please visit the ENVO store on Amazon or contact our support team directly.
