1. Product Overview
This manual provides instructions for the ENCHSHANGM 3-terminal temperature controller thermostat, designed for various refrigerator models including WDF18, WDF19, WDF20, WDF29, WPF22, WPF22G, and WDF29M. This component is crucial for regulating the internal temperature of your refrigerator, ensuring optimal cooling performance.
Key features of this thermostat include:
- Durable Construction: Manufactured to be 100% brand new and durable.
- Easy Installation: Designed for straightforward installation.
- Temperature Control: Enables precise temperature regulation within the appliance.

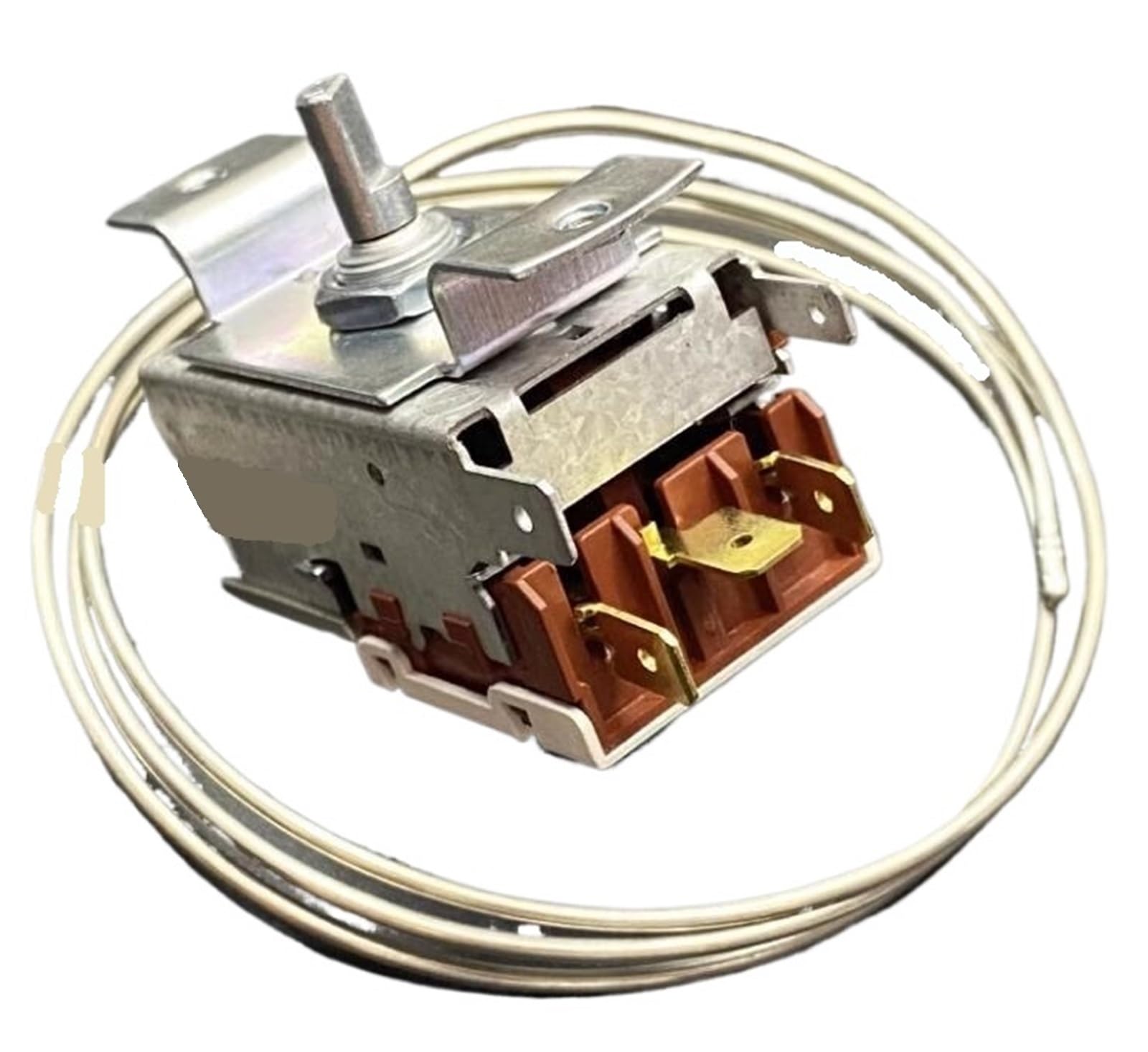

Figure 1: ENCHSHANGM 3-Terminal Refrigerator Thermostat. The image shows the thermostat with a labeled dimension of 5.6cm across its width, indicating its compact size. It features a central shaft for temperature adjustment and three electrical terminals for connection.
2. Specifications
| Specification | Detail |
|---|---|
| Brand | ENCHSHANGM |
| Item Model Number | ENCHSHANGM1 |
| Compatible Models | WDF18, WDF19, WDF20, WDF29, WPF22, WPF22G, WDF29M |
| Terminals | 3 |
| Application | Refrigerator Temperature Control |
3. Installation
Important Safety Notice: Before attempting any installation or repair, ensure the refrigerator is completely unplugged from the power source to prevent electrical shock. It is recommended to wear protective gloves during the installation process.
The installation process generally involves replacing the existing thermostat. While specific steps may vary slightly depending on your refrigerator model, the general procedure includes:
- Locate the existing thermostat, typically found near the refrigerator light or temperature control dial.
- Carefully remove any covers or panels securing the thermostat.
- Disconnect the electrical wires and the capillary tube from the old thermostat. Note the position of each wire for correct re-connection.
- Remove the old thermostat.
- Install the new ENCHSHANGM thermostat, ensuring the capillary tube is correctly routed and secured in its original position.
- Reconnect the electrical wires to the corresponding terminals on the new thermostat.
- Replace all covers and panels.
- Plug the refrigerator back into the power source.
Installation Video Guides:
WDF18-16 Installation Tutorial
This video demonstrates the step-by-step process of replacing a WDF18-16 refrigerator thermostat. It covers initial disassembly, wiring disconnection, old thermostat removal, new thermostat installation, wire re-connection, and reassembly.
WPF-20 Installation Tutorial
This video provides a detailed guide for installing a WPF-20 thermostat, showing how to access the thermostat compartment, detach the old unit, and securely fit the new one, including handling the capillary tube and electrical connections.
WPF-20 Mini Fridge Thermostat Installation
This video specifically illustrates the installation of a WPF-20 thermostat in a mini-fridge, highlighting the process of removing the control panel, detaching the old thermostat, and installing the replacement, including the temperature control knob.
4. Operation
Once the thermostat is installed, operating it is straightforward. The thermostat controls the cooling cycle of your refrigerator based on the temperature setting you select.
- Temperature Adjustment: The thermostat features a rotary knob, typically marked with numbers (e.g., 0-7) or symbols indicating colder or warmer settings.
- Setting the Temperature: Rotate the knob to your desired temperature setting. A higher number usually indicates a colder setting, causing the compressor to run more frequently or for longer durations. A lower number or "0" setting typically indicates a warmer temperature or off position.
- Monitoring: After adjusting the setting, allow several hours for the refrigerator's internal temperature to stabilize and reach the new setting. You may need to fine-tune the setting based on your specific cooling needs and ambient conditions.
5. Maintenance
The ENCHSHANGM refrigerator thermostat is designed for durability and requires minimal maintenance. However, periodic checks can help ensure its longevity and optimal performance:
- Cleanliness: Ensure the area around the thermostat and its capillary tube is free from dust, debris, or ice buildup, which could interfere with accurate temperature sensing.
- Connections: Periodically inspect the electrical connections to ensure they are secure and free from corrosion. (Always unplug the refrigerator before inspecting electrical components.)
- Capillary Tube: Verify that the capillary tube is not kinked, pinched, or damaged, as this can affect the thermostat's ability to sense temperature correctly.
6. Troubleshooting
If your refrigerator is not maintaining the desired temperature, consider the following troubleshooting steps before seeking professional assistance:
- Refrigerator Too Warm:
- Check if the thermostat knob is set to a sufficiently cold setting.
- Ensure the refrigerator door seals are intact and closing properly.
- Verify that the refrigerator is not overpacked, which can obstruct airflow.
- Inspect the condenser coils for dust buildup and clean if necessary.
- Refrigerator Too Cold / Freezing Food:
- Adjust the thermostat knob to a warmer setting.
- Ensure the capillary tube is correctly positioned and not directly touching the cooling elements.
- Refrigerator Not Running:
- Check if the refrigerator is plugged in and receiving power.
- Ensure the thermostat is not set to the "0" or "Off" position.
- If the compressor is not starting, there might be an issue with the thermostat or other electrical components.
If these steps do not resolve the issue, it is recommended to consult a qualified appliance technician.
7. Warranty and Support
Specific warranty information for this product is not provided in the available documentation. Please refer to the product packaging or contact the retailer where the thermostat was purchased for details regarding warranty coverage.
For technical support or further inquiries, please contact ENCHSHANGM customer service or your appliance repair professional.
