1. Product Overview
The Betterhood Twin Trundle Bed is a versatile and space-saving furniture solution, ideal for children's rooms or guest areas. This bed features a main twin bed frame and a pull-out trundle bed, both constructed from solid pine wood for durability and stability. The design incorporates wooden slats for mattress support, eliminating the need for a box spring.
When not in use, the trundle bed can be discreetly stored beneath the main bed, maximizing floor space. Its modern design integrates seamlessly with various home decor styles.
Image 1: The Betterhood Twin Trundle Bed in white, with the lower trundle bed extended, showcasing its dual sleeping capacity.
2. Safety Information
- Always follow the assembly and use instructions carefully to prevent injury.
- Ensure the bed is properly assembled and all hardware is securely tightened before use.
- Do not exceed the maximum weight capacity: Main Bed: 200 lbs, Trundle Bed: 175 lbs. The total combined weight limit for the structure is 375 pounds.
- Do not use inappropriate bedding materials for infants and young children, as this product is intended for children.
- Keep small parts and packaging materials away from children during assembly.
3. Package Contents
Before beginning assembly, verify that all components listed in the included installation manual are present and undamaged. Typically, the package includes:
- Main Bed Frame Components (Headboard, Footboard, Side Rails)
- Trundle Bed Frame Components
- Wooden Slats for Main Bed and Trundle Bed
- Hardware Pack (screws, bolts, nuts, Allen wrench)
- Installation Manual
If any parts are missing or damaged, please contact customer service immediately.
4. Setup and Assembly Instructions
Assembly requires two adults and approximately 1-2 hours. Please refer to the detailed step-by-step instructions and diagrams provided in your included installation manual for precise guidance. The following is a general overview:
- Prepare the Area: Clear a spacious area for assembly. Lay out all components and hardware.
- Assemble the Main Bed Frame: Attach the side rails to the headboard and footboard using the provided hardware. Ensure all connections are secure.
- Install Main Bed Slats: Place the wooden slats across the main bed frame and secure them according to the manual. These slats provide direct mattress support.
- Assemble the Trundle Bed Frame: Construct the trundle frame, including its side rails and end pieces. Attach the roll-out wheels to the trundle frame.
- Install Trundle Bed Slats: Secure the wooden slats onto the trundle bed frame.
- Final Placement: Carefully slide the assembled trundle bed underneath the main bed.
- Mattress Placement: Place your twin mattresses on both the main bed and the trundle bed. No box spring is required.
Image 2: View of the main bed frame with its reinforced wooden slats, highlighting the solid wood construction for stability.

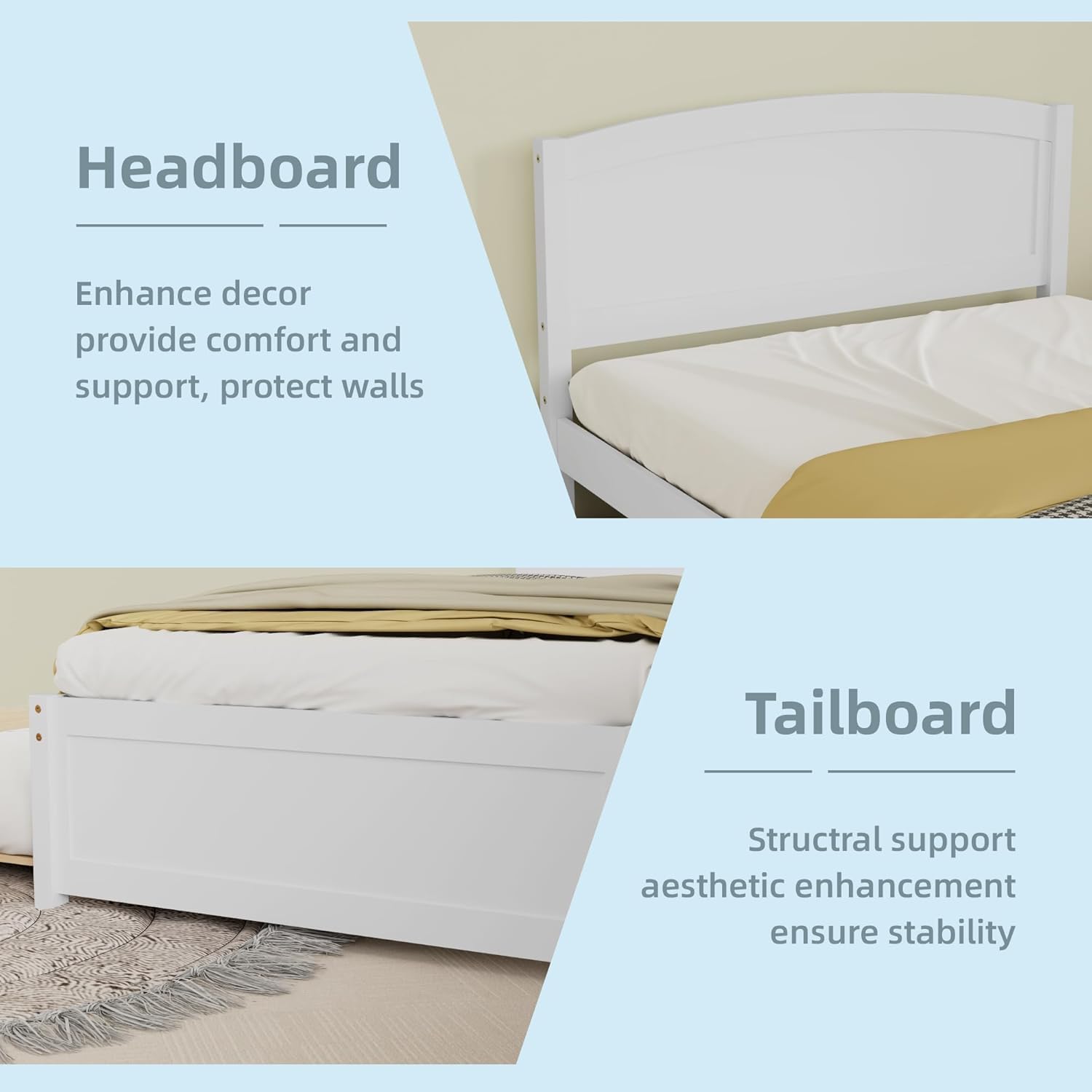

Image 3: Detailed view of the headboard and tailboard, showing their structural support and aesthetic design.
5. Operating Instructions
The trundle bed is designed for easy access and storage:
- To Extend the Trundle: Gently grasp the front panel of the trundle bed and pull it outwards from underneath the main bed. The smooth-gliding wheels will allow it to roll out easily.
- To Retract the Trundle: Push the trundle bed back underneath the main bed until it is fully concealed. Ensure no bedding or objects obstruct its path.
Image 4: A child resting on the trundle bed, with an inset showing the aluminum alloy rollers for smooth operation.
6. Maintenance
- Cleaning: Wipe the bed frame with a soft, damp cloth. Avoid using abrasive cleaners or harsh chemicals, as these can damage the wood finish.
- Hardware Check: Periodically check all bolts, screws, and connections to ensure they remain tight. Re-tighten if necessary to maintain stability and safety.
- Trundle Wheels: Keep the trundle wheels free of dust and debris to ensure smooth operation.
- Avoid Excessive Moisture: Protect the wood from prolonged exposure to moisture or extreme temperature changes.
7. Troubleshooting
- Squeaking Noises: If the bed makes squeaking noises, check all assembly points. Tighten any loose bolts or screws. Ensure all wooden slats are properly seated and not rubbing against the frame.
- Trundle Not Sliding Smoothly: Inspect the trundle wheels for any obstructions (e.g., carpet fibers, small objects). Clean the wheels if necessary. Ensure the floor surface is clear.
- Bed Feels Unstable: Re-check all connections and ensure they are fully tightened. Verify that the bed is placed on a flat, level surface.
8. Specifications
| Feature | Detail |
|---|---|
| Model Number | 001 |
| Size | Twin |
| Color | White |
| Product Dimensions (L x W x H) | 79.5" x 82.3" x 35.4" |
| Brand | Betterhood |
| Material | Solid Pine Wood |
| Main Bed Weight Limit | 200 lbs |
| Trundle Bed Weight Limit | 175 lbs |
| Total Weight Limit | 375 lbs |
| Item Weight | 71 Pounds |
| Special Feature | No Box Spring Needed |

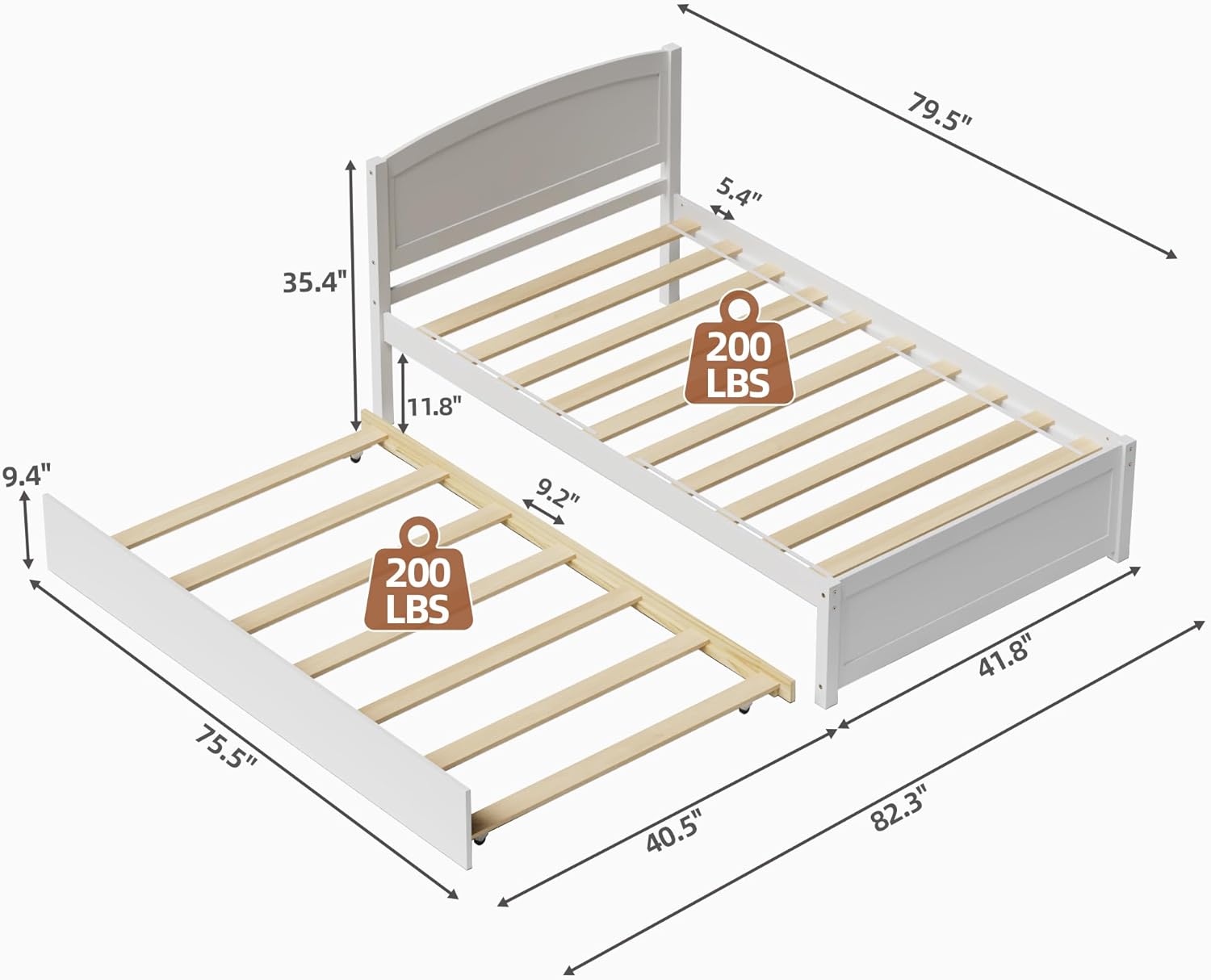

Image 5: Dimensional diagram of the Betterhood Twin Trundle Bed, illustrating key measurements and weight capacities.
9. Warranty and Support
This Betterhood Twin Trundle Bed comes with a Limited Warranty. For specific details regarding warranty coverage, terms, and conditions, please refer to the warranty information included with your purchase documentation.
For customer support, assistance with assembly, missing parts, or any other inquiries, please contact Betterhood customer service through the contact information provided in your product packaging or visit the official Betterhood website.
